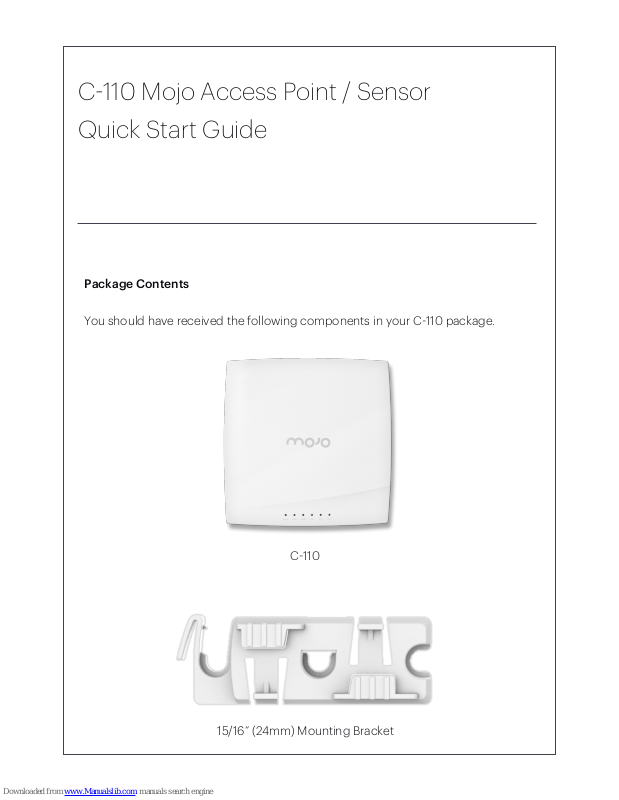

C-110 Mojo Access Point / Sensor
Quick Start Guide

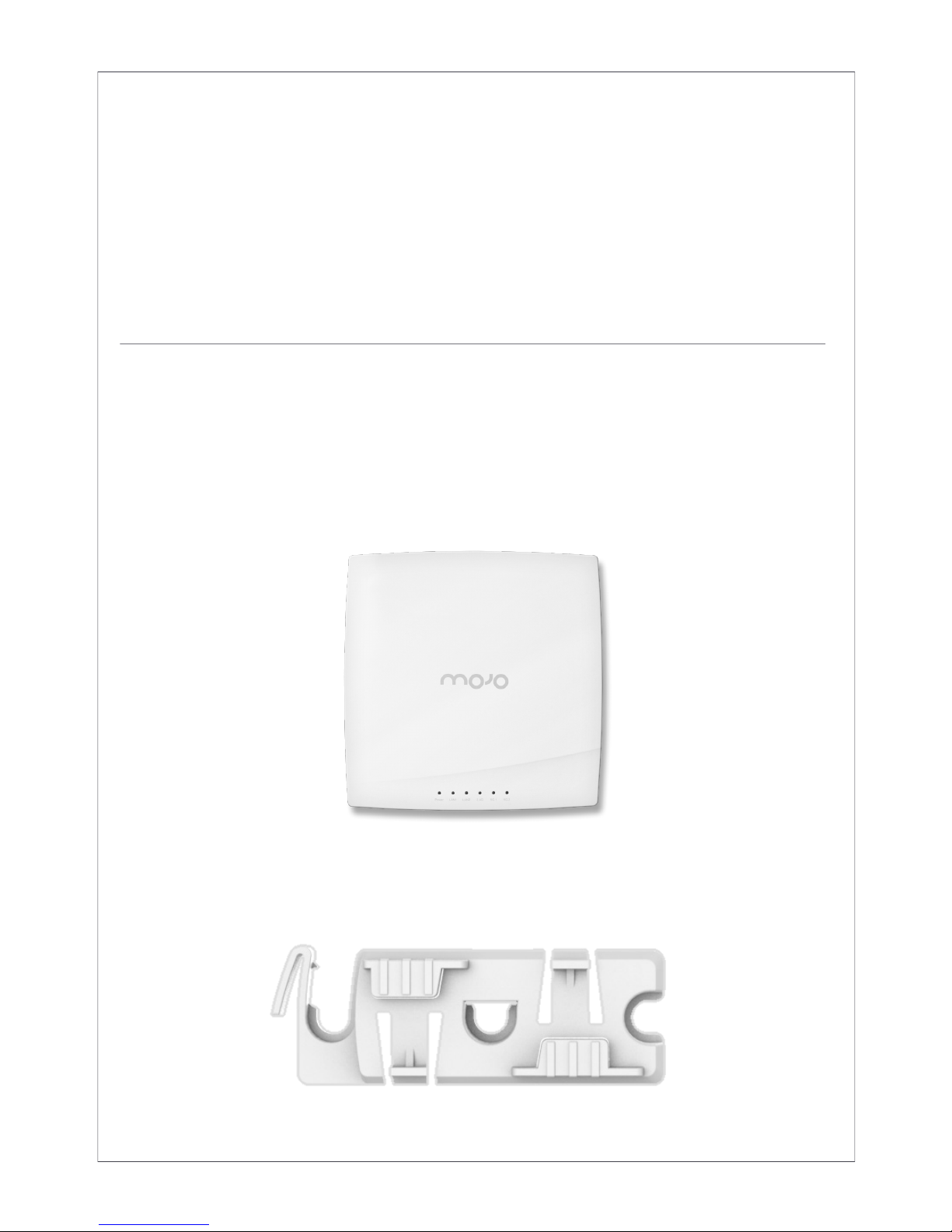

Package Contents
You should have received the following components in your C110 package.
C110
15/16” (24mm) Mounting Bracket
Mounting the C-110
4. Rotate the device such that all the
mounting posts on the rear-side of the
device are snapped in to the respective
notches on the bracket.
2. Rotate bracket to snap on to T- Grid.1. Aix bracket to T - Grid.
3. Place the irst mounting post on the
rear-side of the device on to the
lower notch of the bracket.

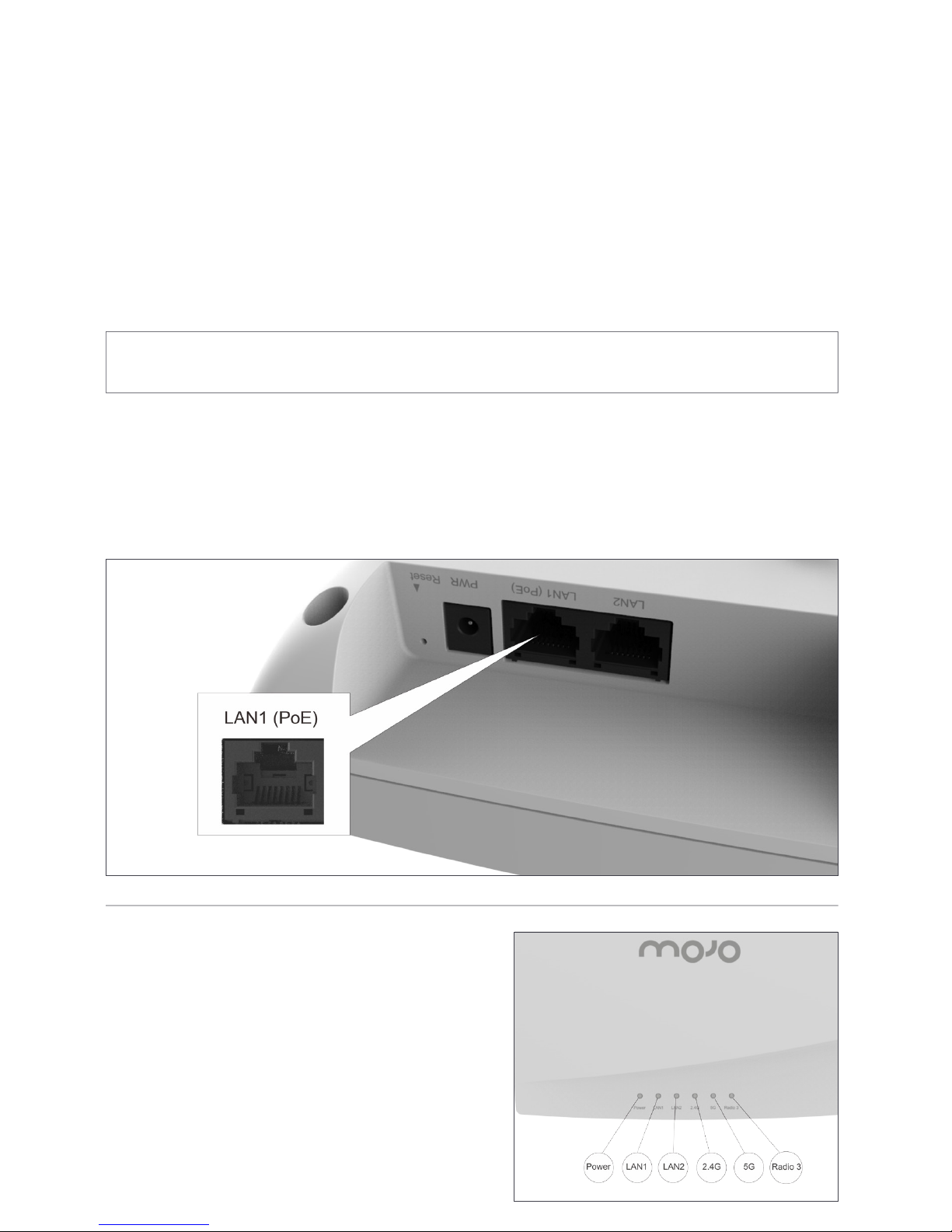

Getting the C-110 Online
Step 1: Power up
If using PoE, plug one end of the Ethernet cable into the PoE switch or injector and
plug the other end into the Ethernet + PoE port (LAN1) on the C110. Make sure the PoE
source you are using is turned ON.
OR
As an alternative to PoE, insert the power adapter plug into an AC power outlet and the
other end into the power input port on the C110.
Warning: If not using PoE, make sure you use only an AC power adapter supported by
the C110 access point (AP).
Step 2: Connect to the network
If you are using PoE, then the C110 should already be connected to your network. If
you are not using PoE, then plug one end of the Ethernet cable into an Ethernet jack
on your network and the other end into the Ethernet port (LAN1) on the C110.
Step 3: Check the LED status
Wait for a few minutes till the
LEDs for Power and Ethernet (LAN1)
turn solid GREEN, which indicates that
the C110 is online and operational.
Troubleshooting
The following table provides the status of the device based on the LEDs.
After following these guidelines, if you are still unable to resolve the problem, contact the
local Mojo Networks Sales Engineer or 24/7 Mojo Networks Technical Support.
Tel: +1 (650) 641 0027 Email: support@mojonetworks.com
Mojo Networks, Inc. 339 N. Bernardo Avenue #200, Mountain View, CA 94043
T +1.877.424.7844 T 650.961.1111 F 650.961.1169 www.mojonetworks.com info@mojonetworks.com
© 2016 Mojo Networks, Inc. All rights reserved. Mojo Networks and the Mojo Networks logo are trademarks, and Mojo is a registered
trademark of Mojo Networks, Inc. All other trademarks mentioned herein are properties of their respective owners. Speciications are
subject to change without notice.
LED Status Description
Power Solid Green Power On
O Power O
LAN1/PoE Solid Green Device connected to LAN port 1 at 10/100/1000 Mbps
Blinking Green Activity on LAN port 1
LAN2 Solid Green Device connected to LAN port 2 at 10/100/1000 Mbps
Blinking Green Activity on LAN port 2
2.4 GHz
Solid Green Client connected to 2.4 GHz radio
Blinking Green Wireless activity on 2.4 GHz radio
5 GHz Solid Green Client connected to 5 GHz radio
Blinking Green Wireless activity on 5 GHz radio
Radio 3 Blinking Green Activity on third radio
If the AP is not able to connect to Mojo Wireless Manager, check the following:
1. Ensure that the Ethernet cable is plugged into the correct port on the C110 and the
other end of the cable is plugged into an Ethernet jack or port on a switch that is
turned ON.
2. If the C110 did not receive a valid IP address from the DHCP server, ensure that a
DHCP server is ON and available on the VLAN/subnet to which the AP is connected.
If the AP still fails to get a valid IP address, reboot it once to see if that resolves the
problem.
3. If you are using Mojo Cloud Services, ensure that Internet connectivity is available
from the VLAN/subnet to which the AP is connected. Check if the required ports for
AP and Server communication – UDP 3851 and default HTTP (TCP port 80) – are open
on the Firewall. If you are using a Proxy, Web accelerator or URL content iltering,
ensure the settings allow communication between the AP and Mojo Cloud Services.

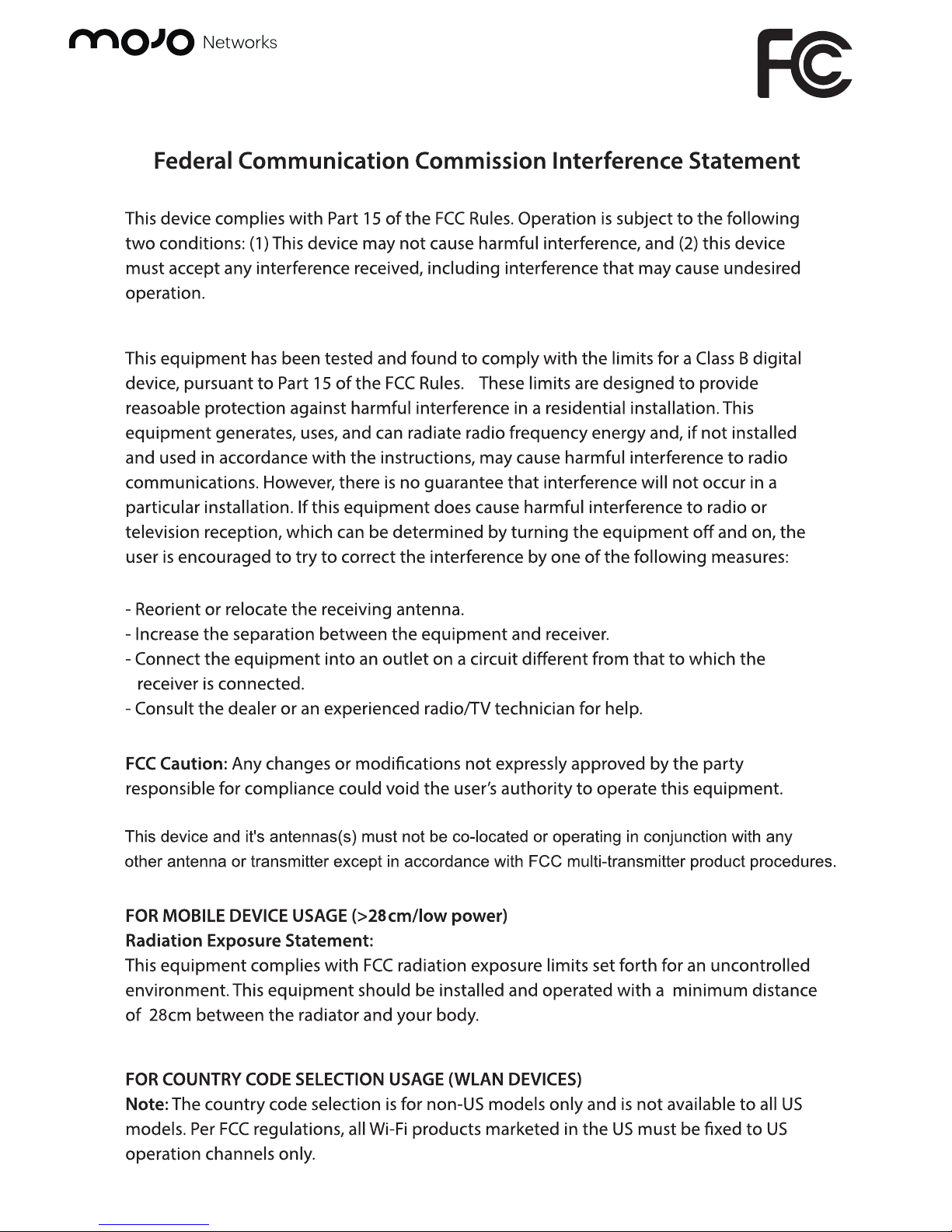

For indoor use only.
Pour une utilisation en intérieur uniquement.
Dynamic Frequency Selection (DFS) for devices operating in the bands 5250- 5350 MHz,
5470-5600 MHz and 5650-5725 MHz.Sélection dynamique de fréquences (DFS) pour les
dispositifs fonctionnant dans les bandes 5250-5350 MHz, 5470-5600 MHz et 5650-5725 MHz.
This device is restricted for indoor use.
