Mohawk TR-25A User Manual

MOHAWK

MADE IN THE USA

MODEL TR - 25A

25,000 LB. CAPACITY FOUR POST

TRUCK LIFT MANUAL

Thank you for sending in your
warranty registration card.

- Mohawk Service Dept.

MOHAWK RESOURCES LTD.

MOHAWK INDUSTRIAL PARK

VROOMAN AVE. P.O. BOX 110
AMSTERDAM, NY 12010

TOLL FREE : 1-800-833-2006
LOCAL : 1-518-842-1431
FAX : [phone]
INTERNET: WWW.MOHAWKLIFTS.COM
E-MAIL: [e-mail]

- INSTALLATION

- OPERATION

- MAINTENANCE

- PARTS

READ MANUAL
THOROUGHLY
BEFORE INSTALLING,
OPERATING OR
MAINTAINING LIFT !!

FILE: TR-25A.doc
REVISION DATE: 7/25/2003

MOHAWK MODEL TR - 25A

ALWAYS WEAR SAFETY GLASSES. Everyday eyeglasses only have impact resistant lenses,

IMPORTANT SAFETY INSTRUCTIONS

When using your garage equipment, basic safety precautions should always be followed, including the
following:

1. Read this manual and review all illustrations of this manual thoroughly before attempting to
install, operate or maintain this lift.

2. Deliver these operation, inspection, and maintenance instructions to the lift
owner/user/employer along with the other instructional materials furnished with this lift.

3. Maintenance on this equipment is to be performed only by trained lift service personnel, and
and worn or broken parts are to be replaced only with genuine Mohawk brand supplied parts.

4. Care must be taken as burns can occur from touching hot parts.

5. Do not operate equipment with a damaged cord or if the equipment has been dropped or
damaged - until it has been examined by a qualified serviceman.

6. Do not let cord or hoses hang over edge of table, bench or counter or come in contact with hot
manifolds or moving fan blades.

4. If an extension cord is necessary, a cord with a current rating equal to or more than that of the
equipment should be used. Cords rated for less current than the equipment may overheat. Care
should be taken to arrange the cord so that it will not be tripped over or pulled.

5. Always unplug equipment from electrical outlet when not in use. Never use the cord to pull the
plug from the outlet. Grasp plug and pull to disconnect

6. To reduce the risk of fire, do not operate equipment in the vicinity of open containers of
flammable liquids (gasoline). WARNING: Risk of Explosion: This equipment has internal
arcing and sparking parts which should not be exposed to flammable vapors. This equipment is
only suitable for installation in a garage having sufficient air circulation to be considered a non­hazardous location.

7. Adequate ventilation should be provided when working on operating internal combustion
engines.

8. Keep hair, loose clothing, fingers, and all parts of body away from moving parts.

9. To reduce the risk of electric shock, do not use on wet surfaces or expose to rain.

10. Use only as described in this manual. Use only manufacturer’s (Mohawk) recommended
attachments.

11.
they are NOT safety glasses.

SAVE THESE INSTRUCTIONS

Rev (10/22/99)

2

MOHAWK MODEL TR - 25A

All accessories (i.e. Lifting Pads, Height Adapters, Wheel Adapters, Turf Adapters, Jacking Beams)

APPENDAGE:

WARNING:

supplied with this lift are to be used on this lift only. Accessories from other lifts are not acceptable
and could result in injury to the user.

WARNING:

Loading of the jacking beams or combination of jacking beams above the rated capacity of the lift
itself could result in personal injury to the operator and/or damage to the lift and/or vehicle. The
load rating of any jacking beam or combination of jacking beams on this unit must not exceed the
rated capacity of the lift.

3

MOHAWK MODEL TR - 25A

HAVE A QUESTION?

Call your local

Mohawk distributor

For parts, service and technical support.

Distributor Place Card Here

Please have this unit’s model and serial number when calling for service.

Model Number ______________________
Serial Number ______________________

MOHAWK RESOURCES LTD.

65 Vrooman Ave.
P.O. Box 110
Amsterdam, NY 12010
Toll Free: 1-800-833-2006
Local: 1-518-842 -1431
Fax: [phone]

OR CONTACT:

Internet: www.MOHAWKLIFTS.com
E-Mail: [e-mail]

4

MOHAWK MODEL TR - 25A

STRUCTURAL COMPONENTS:

” IS APPLICABLE TO THE FOLLOWING MOHAWK LIFTS ONLY:

ALL PNEUMATIC (AIR) COMPONENTS (I.E. AIR CYLINDERS AND POPPET AIR VALVES) ARE GUARANTEED FOR ONE YEAR

MOHAWK WARRANTIES

EFFECTIVE DATE: 4/14/2003

GENERAL WARRANTY INFORMATION:

MOHAWK’S OBLIGATION UNDER THIS WARRANTY IS LIMITED TO REPAIRING OR REPLACING ANY PART OR PARTS RETURNED TO THIS FACTORY,
TRANSPORTATION CHARGES PREPAID, WHICH PROVE UPON INSPECTION TO BE DEFECTIVE AND WHICH HAVE NOT BEEN MISUSED. DAMAGE OR
FAILURE TO ANY PART DUE TO FREIGHT DAMAGE OR FAULTY MAINTENANCE IS NOT COVERED UNDER THIS WARRANTY. THIS WARRANTY DOES NOT
COVER ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES INCLUDING, BUT NOT LIMITED TO, LOST REVENUES OR BUSINESS HARM. THIS EQUIPMENT
HAS BEEN DESIGNED FOR USE IN NORMAL COMMERCIAL VEHICLE MAINTENANCE APPLICATIONS. A SPECIFIC INDIVIDUAL WARRANTY MUST BE
ISSUED FOR UNITS THAT DEVIATE FROM INTENDED USAGE, SUCH AS HIGH CYCLE USAGE IN INDUSTRIAL APPLICATIONS, OR USAGE IN EXTREMELY
ABUSIVE ENVIRONMENTS, ETC.. MOHAWK RESERVES THE RIGHT TO DECLINE RESPONSIBILITY WHEN REPAIRS HAVE BEEN MADE OR ATTEMPTED BY
OTHERS. THIS WARRANTY DOES NOT COVER DOWNTIME EXPENSES INCURRED WHEN UNIT IS IN REPAIR. THE MODEL NAME AND SERIAL NUMBER OF
THE EQUIPMENT MUST BE FURNISHED WITH ALL WARRANTY CLAIMS. THIS WARRANTY STATEMENT CONTAINS THE ENTIRE AGREEMENT BETWEEN
MOHAWK RESOURCES LTD. AND THE PURCHASER UNLESS OTHERWISE SPECIFICALLY EXPRESSED IN WRITING. THIS NON-TRANSFERABLE WARRANTY
APPLIES TO THE ORIGINAL PURCHASER ONLY. THIS WARRANTY IS APPLICABLE TO UNITS LOCATED ONLY IN THE UNITED STATES OF AMERICA AND
CANADA. CONTACT MOHAWK RESOURCES LTD. FOR SPECIFIC WARRANTY PROVISIONS FOR UNITS LOCATED OUTSIDE OF THESE COUNTRIES.

5-YEAR WARRANTY:

THIS WARRANTY IS APPLICABLE TO THE FOLLOWING MOHAWK LIFTS ONLY: A-7, SYSTEM IA, SYSTEM IA-10, TOMAHAWK­9000, LMF-12, TP-15, TP-18, TP-20, TP-26, TP-30 AND STANDARD OPTIONS.

3-YEAR WARRANTY:

THIS WARRANTY IS APPLICABLE TO THE FOLLOWING MOHAWK LIFTS ONLY: TSL-7, PL-6000, TR-19, TR-25, FL-25, TR-33, TR­35, TR-40, TR-50, TR-60, TR-75, TR-110, MP-SERIES AND RP-SERIES MOBILE COLUMN LIFTS, SL-SERIES SCISSOR LIFTS, FP­SERIES LIGHT DUTY FOUR POST LIFTS, TL-SERIES LIFTS AND STANDARD OPTIONS.

2-YEAR WARRANTY:

THIS WARRANTY IS APPLICABLE TO THE FOLLOWING MOHAWK LIFTS ONLY: PARALLELOGRAM SERIES AND USL-6000
AND STANDARD OPTIONS.

1-YEAR WARRANTY:

THIS WARRANTY IS APPLICABLE TO THE FOLLOWING MOHAWK LIFTS ONLY: HR-6, TD-1000, CT-1000 AND STANDARD
OPTIONS.

ALL STRUCTURAL AND MECHANICAL COMPONENTS OF THIS UNIT ARE GUARANTEED FOR THE ABOVE STATED TIME
FRAME, SPECIFIC TO MODEL, FROM THE DATE OF INVOICE, AGAINST DEFECTS IN WORKMANSHIP AND/OR MATERIALS
WHEN LIFT IS INSTALLED AND USED ACCORDING TO SPECIFICATIONS.
SEE MOHAWK’S “
CYLINDERS. THE “

EXTENDED LIFETIME CYLINDER WARRANTY
EXTENDED LIFETIME CYLINDER WARRANTY

A-7, SYSTEM I, LMF-12, TP-15, TP-18, TP-20, TP-26, TP-30, MP-SERIES AND TL-SERIES LIFTS.

POWER UNIT:

ALL POWER UNIT COMPONENTS (MOTOR, PUMP AND RESERVOIR) ARE GUARANTEED FOR THE ABOVE STATED TIME
FRAME, SPECIFIC TO MODEL, FROM THE DATE OF INVOICE, AGAINST DEFECTS IN WORKMANSHIP AND/OR MATERIALS
WHEN THE LIFT IS INSTALLED AND USED ACCORDING TO SPECIFICATIONS.

ELECTRICAL COMPONENTS:

ALL ELECTRICAL COMPONENTS (EXCLUDING MOTOR) ARE GUARANTEED FOR ONE YEAR FOR PARTS ONLY
(EXCLUDING LABOR), FROM THE DATE OF INVOICE, AGAINST DEFECTS IN WORKMANSHIP AND/OR MATERIALS WHEN
THE LIFT IS INSTALLED AND USED ACCORDING TO SPECIFICATIONS.

PNEUMATIC (AIR) COMPONENTS:

” FOR SPECIFIC WARRANTY PROVISIONS FOR HYDRAULIC

FOR PARTS ONLY (EXCLUDING LABOR), FROM THE DATE OF INVOICE, AGAINST DEFECTS IN WORKMANSHIP AND/OR
MATERIALS WHEN THE LIFT IS INSTALLED AND USED ACCORDING TO SPECIFICATIONS.

WARRANTY EXCEPTIONS:

ALL “SPECIAL” LIFTS AND/OR “CUSTOMIZED” OPTIONS ON THIS UNIT ARE GUARANTEED FOR ONE YEAR FOR PARTS ONLY (EXCLUDING LABOR),
FROM THE DATE OF INVOICE, AGAINST DEFECTS IN WORKMANSHIP AND/OR MATERIALS WHEN THE LIFT IS INSTALLED AND USED ACCORDING TO
SPECIFICATIONS.

THIS WARRANTY SUPERSEDES ALL OTHER WARRANTY POLICIES PREVIOUSLY STATED AND IN ALL OTHER MOHAWK PRODUCT SPECIFIC LITERATURE.

5

MOHAWK MODEL TR - 25A

EXTENDED LIFETIME CYLINDER WARRANTY

AS THE ORIGINAL PURCHASER OF A MOHAWK LIFT MANUFACTURED BY MOHAWK
RESOURCES, LTD. YOU ARE ENTITLED TO AN EXTENDED CYLINDER SEAL KIT REPAIR
WARRANTY. TO QUALIFY FOR THIS WARRANTY, THE FOLLOWING CONDITIONS MUST BE
MET:

ALL LIFTS MUST BE REGISTERED WITH MOHAWK RESOURCES, LTD., P.O. BOX 110, 65

♦

VROOMAN AVENUE, AMSTERDAM, NY 12010, WITH THE ORIGINAL CUSTOMER NAME,
ADDRESS AND PHONE NUMBER, WITHIN 30 DAYS OF INSTALLATION.

(PLEASE USE THE POSTAGE PAID WARRANTY REGISTRATION CARD ATTACHED TO THE

FRONT OF THIS MANUAL.)

ANY CYLINDER THAT IS PAST ITS NORMAL 5-YEAR WARRANTY PERIOD MUST BE

♦

SHIPPED FREIGHT PRE-PAID TO THE MOHAWK PLANT.
UPON COMPLETION OF INSTALLING A COMPLETE SEAL KIT, MOHAWK WILL SHIP THE

♦

CYLINDER TO YOU, FREIGHT COLLECT.
MOHAWK’S OBLIGATION UNDER THIS WARRANTY IS LIMITED TO REPAIRING ANY

♦

CYLINDER, WHICH UPON INSPECTION HAS NOT BEEN MISUSED. MOHAWK RESERVES
THE RIGHT TO DECLINE RESPONSIBILITY WHEN THE REPAIRS HAVE BEEN MADE, OR
ATTEMPTED BY OTHERS. THE FOREGOING CONTAINS THE ENTIRE AGREEMENT
BETWEEN MOHAWK RESOURCES, LTD. AND THE PURCHASER, UNLESS SPECIFICALLY
EXPRESSED IN WRITING. THIS WARRANTY IS NON-TRANSFERABLE AND RUNS TO THE
ORIGINAL PURCHASER ONLY.

THIS IS NOT A “LEND A CYLINDER” POLICY. AS STATED ABOVE, YOUR ORIGINAL CYLINDER
(WHEN OUT OF ITS ORIGINAL 5-YEAR WARRANTY) WILL HAVE ITS SEALS REPLACED, WITH
ALL FREIGHT CHARGES THE RESPONSIBILITY OF YOU, THE CUSTOMER.

6

MOHAWK MODEL TR - 25A

CONTENTS

TEXT Page

FIGURES & DIAGRAMS Figure

PARTS DRAWINGS (TR-25 w/ 20’ Tracks) Figure

ISOMETRIC FINAL ASSEMBLY MAN920
HYDRAULIC SYSTEM MAN901
MAIN SIDE TRACK ASSEMBLY MAN903
TOP RAIL ASSEMBLY MAN904
PARTS BOX #1 CONTENTS MAN906

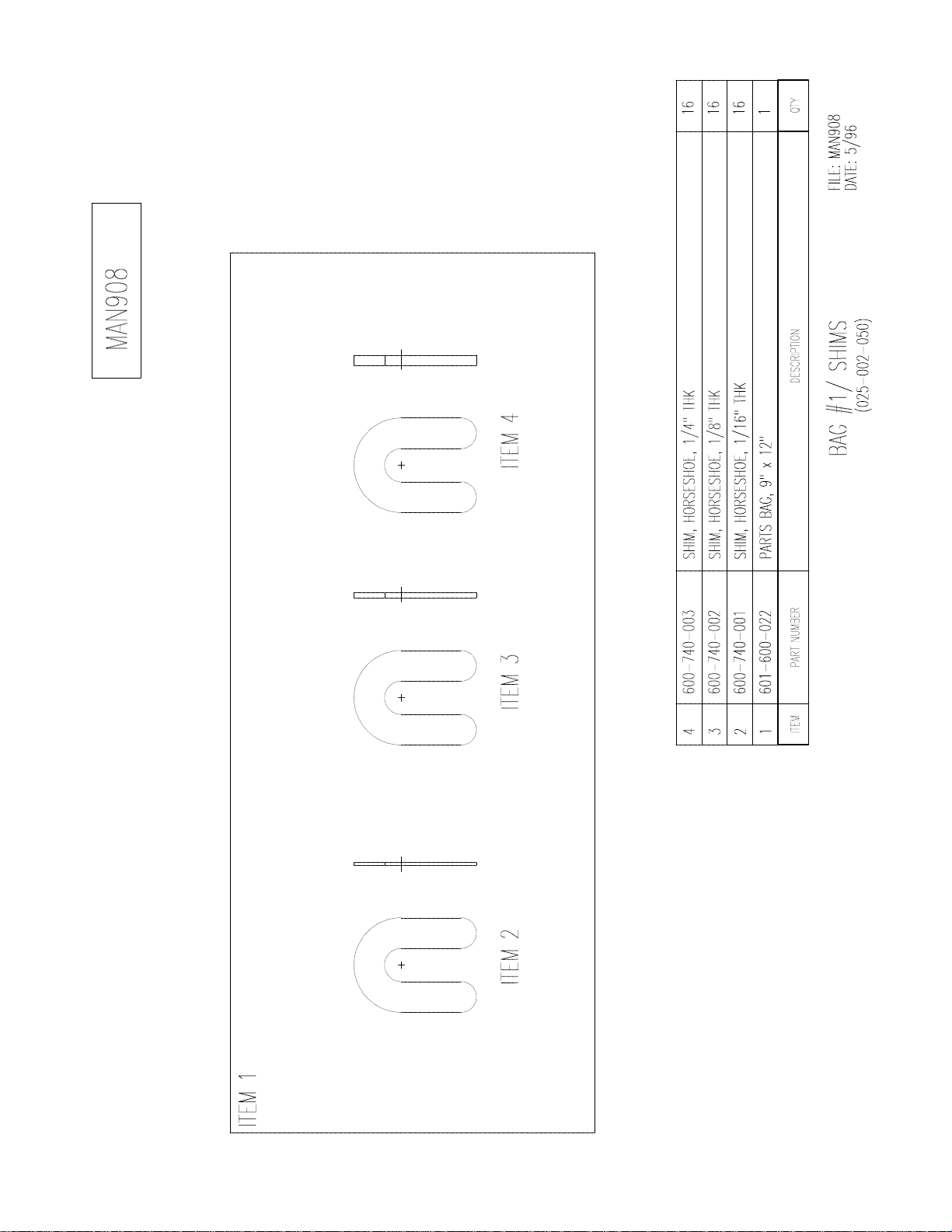

BAG #1/ SHIMS MAN908
CYLINDER ASSEMBLY MAN910
FORE AND AFT CROSSRAIL ASSEMBLY MAN922
CHAIN ROUTING MAN925
PARTS BOX #2 CONTENTS MAN927
BAG #2 CONTENTS MAN929
TAG & DECAL LOCATIONS MAN930

New Slab Recommendations End of Manual

ALL INFORMATION, ILLUSTRATIONS, AND SPECIFICATIONS IN THIS MANUAL ARE BASED ON THE LATEST PRODUCT INFORMATION AVAILABLE
AT THE TIME OF PRINTING. WE RESERVE THE RIGHT TO MAKE CHANGES AT ANY TIME WITHOUT NOTICE.

APPENDAGES 8
SPECIFICATIONS 9
PACKING LIST 10
RECOMMENDED TOOL LIST 11
BEFORE INSTALLING A LIFT / WEJ-IT INSTALLATION 12
INSTALLATION INSTRUCTIONS 13-14
SAFETY TIPS 15
PRE - OPERATION CHECK LIST / LIFTING PROCEDURES 16
MAINTENANCE PROCEDURES 17
TROUBLE SHOOTING 18
SERVICE CHART 19
MAINTENANCE CHART 19

FLOOR LAYOUT 1
FLOOR SLOPE AND SHIMMING RESTRICTIONS 2
BAY LAYOUT, 20’ LIFT 3
BAY LAYOUT, 20’ LIFT WITH OPTIONS 4
GENERAL LIFT DIMENSIONS 5
TOP RAIL INSTALLATION 6
CROSSRAIL INSTALLATION 7
MAINSIDE TRACK INSTALLATION 8
OFFSIDE TRACK INSTALLATION 9

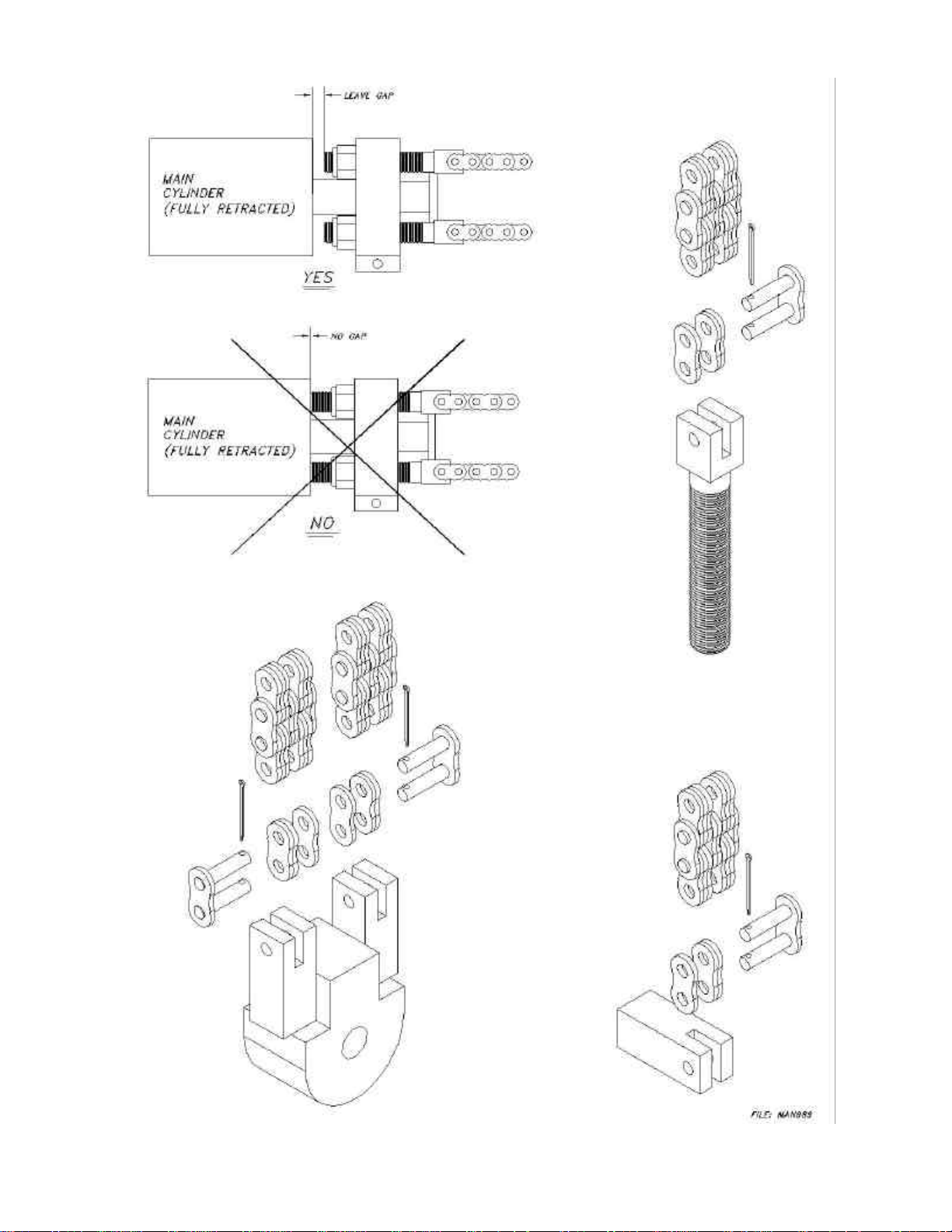

CHAIN ASSEMBLY DIAGRAMS 10
HYDRAULIC SYSTEM CONNECTIONS 11
CHAIN/POST SHIMMING 12
ANCHOR BOLT SPECS (SPADE TYPE) 13
ANCHOR BOLT SPECS (SLEEVE TYPE) 14
WHEEL BASE RESTRICTIONS GRAPH 15

7

MOHAWK MODEL TR - 25A

APPENDAGES

RECOMMENDATIONS BY THE INDIVIDUAL USER OR USING
ORGANIZATION FOR IMPROVING THIS PUBLICATION OR ANY
ASPECT OF THE PRODUCT ARE ENCOURAGED AND SHOULD BE
FORWARDED IN WRITING TO :

MOHAWK RESOURCES LTD.

PRODUCT IMPROVEMENTS
P.O. BOX 110
AMSTERDAM, NY, 12010

THIS IS NOT A VEHICLE LIFTING PROCEDURE MANUAL AND NO
ATTEMPT IS MADE OR IMPLIED HEREIN TO INSTRUCT THE USER IN
LIFTING METHODS PARTICULARLY TO THE INDIVIDUAL
APPLICATION OF THE EQUIPMENT DESCRIBED IN THIS MANUAL.
RATHER, THE CONTENTS OF THIS MANUAL ARE INTENDED AS A
BASE LINE FOR OPERATION, MAINTENANCE, TROUBLE SHOOTING,
AND PARTS LISTING OF THE UNIT AS IT STANDS ALONE AND AS IT
IS INTENDED AND ANTICIPATED TO BE USED IN CONJUNCTION
WITH OTHER EQUIPMENT.

PROPER APPLICATION OF THE EQUIPMENT DESCRIBED HEREIN IS
LIMITED TO THE PARAMETERS DETAILED IN THE SPECIFICATIONS
AND THE USES SET FORTH IN THE DESCRIPTIVE PASSAGES. ANY
OTHER PROPOSED APPLICATION OF THIS EQUIPMENT SHOULD BE
DOCUMENTED AND SUBMITTED IN WRITING TO MOHAWK
RESOURCES LTD. FOR EXAMINATION. THE USER ASSUMES FULL
RESPONSIBILITY FOR ANY EQUIPMENT DAMAGE, PERSONAL
INJURY, OR ALTERATION OF THE EQUIPMENT DESCRIBED IN THIS
MANUAL OR ANY SUBSEQUENT DAMAGES.

DO NOT WELD, APPLY HEAT, OR MODIFY THIS EQUIPMENT IN ANY
MANNER WITHOUT WRITTEN AUTHORIZATION FROM MOHAWK

RESOURCES LTD. CERTAIN ALLOY OR HEAT-TREATED

COMPONENTS MAY BE DISTORTED OR WEAKENED, RESULTING IN
AN UNSAFE CONDITION.

MOHAWK RESOURCES LTD. IS NOT RESPONSIBLE FOR

DISTORTIONS WHICH RESULT FROM WELDING ON THIS
EQUIPMENT AFTER MANUFACTURING IS COMPLETED.
UNAUTHORIZED WELDING, APPLICATION OF HEAT, OR
MODIFICATION OF THIS EQUIPMENT VOIDS ANY AND / OR ALL
APPLICABLE WARRANTIES COVERING THIS EQUIPMENT.

ALL WARRANTIES APPLICABLE TO THIS EQUIPMENT ARE
CONTINGENT ON STRICT ADHERENCE TO THE MAINTENANCE
SCHEDULES AND PROCEDURES IN THIS MANUAL.

KEEP ALL SHIELDS AND GUARDS IN PLACE. INSURE ALL SAFETY
MECHANISMS ARE OPERABLE. KEEP HANDS, FEET, AND CLOTHING
AWAY FROM POWER-DRIVEN AND MOVING PARTS.

WARNING

• DO NOT INSTALL THIS UNIT IN A PIT OR DEPRESSION DUE TO

FIRE OR EXPLOSION RISK

IMPORTANT NOTE

A LEVEL FLOOR IS SUGGESTED FOR A PROPER INSTALLATION SITE
AND WILL ENSURE LEVEL LIFTING. SMALL DIFFERENCES IN FLOOR
SLOPES MAY BE COMPENSATED FOR WITH SPECIAL LIFTING PADS.
ANY MAJOR SLOPE CHANGES WILL AFFECT THE LOW PROFILE
HEIGHT OF THE LIFTING PADS AND / OR THE UNITS LEVEL LIFTING
PERFORMANCE. IF A FLOOR IS OF QUESTIONABLE SLOPE,
CONSIDER A SURVEY OF THE SIGHT AND / OR THE POSSIBILITY OF
POURING A NEW LEVEL CONCRETE SLAB SECTION. SEE FIGURE 1.
SIMPLY STATED, FOR OPTIMUM LEVEL LIFTING, THE EQUIPMENT,
AT BEST, CAN LIFT ONLY AS LEVEL AS THE FLOOR ON WHICH IT IS

LOCATED... AND SHOULD NOT BE EXPECTED TO COMPENSATE FOR
DRASTIC FLOOR SLOPE DIFFERENCES.

THIS EQUIPMENT MUST BE INSTALLED ON A LEVEL CONCRETE
FLOOR WITH A MINIMUM THICKNESS OF 4-1/2 " THE CONCRETE
MUST BE AGED AT LEAST ( 28 ) TWENTY EIGHT DAYS PRIOR TO
INSTALLATION AND HAVE A MINIMUM COMPRESSIVE STRENGTH
OF 4000 P.S.I..

DO NOT INSTALL THIS UNIT ON ANY ASPHALT SURFACE.

DO NOT INSTALL THIS UNIT ON ANY SURFACE OTHER THAN
CONCRETE CONFORMING TO THE MINIMUM SPECIFICATIONS

STATED IN THE GENERAL FLOOR REQUIREMENTS.

DO NOT INSTALL THIS UNIT ON EXPANSION SEAMS OR ON
CRACKED, DEFECTIVE CONCRETE. CHECK WITH BUILDING
ARCHITECT.

DO NOT INSTALL THIS UNIT ON A SECOND FLOOR OR ANY
GROUND FLOOR WITH A BASEMENT BENEATH WITHOUT WRITTEN
AUTHORIZATION FROM THE BUILDING ARCHITECT.

INSTALL THIS EQUIPMENT ON CONCRETE ONLY

IF, FOR ANY REASON, A NEW CONCRETE SLAB SECTION IS
REQUIRED, THE MINIMUM THICKNESS, COMPRESSIVE STRENGTH,
AND AGING ARE MANDATORY. FOR YOUR PROTECTION,
CERTIFIED STRENGTH DOCUMENTATION SHOULD BE OBTAINED
FROM THE FIRM WHO SUPPLIES THE CONCRETE MIXTURE AT THE
TIME OF THE POUR. SPECIAL CONSIDERATION SHOULD BE MADE
TO THE JOINING OF THE EXISTING FLOOR AND THE NEW SECTION
BEING ADDED. CHECK WITH BUILDING ARCHITECT. THE
SUGGESTED SIZE OF THE NEW CONCRETE SLAB SECTION IS

LISTED IN THE, NEW SLAB RECOMMENDATIONS
SECTION IN THE BACK OF THIS MANUAL.

CAUTION

THE EQUIPMENT DESCRIBED IN THIS MANUAL COULD BE
POTENTIALLY DANGEROUS IF IMPROPERLY OR CARELESSLY
OPERATED. FOR THE PROTECTION OF ALL PERSONS AND
EQUIPMENT, ONLY COMPETENTLY TRAINED OPERATORS WHO
ARE CRITICALLY AWARE OF THE PROPER OPERATING
PROCEDURES, POTENTIAL DANGERS, AND SPECIFIC APPLICATION
OF THIS EQUIPMENT SHOULD BE ALLOWED TO TOUCH THE
CONTROLS AT ANY TIME.

SAFE OPERATION OF THIS EQUIPMENT IS DEPENDENT ON USE, IN
COMPLIANCE WITH THE OPERATION PROCEDURES OUTLINED IN
THIS MANUAL ALONG WITH THE MAINTENANCE AND INSPECTION
PROCEDURES WITH CONSIDERATION OF PREVAILING CONDITIONS.

THE EQUIPMENT DESCRIBED IN THIS MANUAL IS NEITHER
DESIGNED NOR INTENDED FOR ANY APPLICATION ALONE OR IN
CONJUNCTION WITH ANY OTHER EQUIPMENT THAT INVOLVES
THE LIFTING OR MOVING OF PERSONS.

ALWAYS CONSULT THE VEHICLE LIFTING GUIDE FOR THE PROPER
LIFTING POINTS ON ANY VEHICLE. THESE GUIDES ARE AVAILABLE
FROM THE VEHICLE MANUFACTURERS.

AFTER LIFTING THE VEHICLE TO THE DESIRED HEIGHT, ALWAYS
LOWER THE UNIT ONTO THE MECHANICAL SAFETIES. THE
FORMING OF GOOD OPERATIONAL WORK HABITS WILL ELIMINATE

OVERSIGHTS IN THE USE OF PROVIDED SAFETY DEVICES.

8

MOHAWK MODEL TR - 25A

TR - 25A SPECIFICATIONS

TR-25A SPECIFICATIONS (20’ TRACKS)

LIFT TYPE / FOUR POST ELECTRIC /

LIFTING CAPACITY 25,000 LBS.
LIFTING SPEED APPROX. 120 SECONDS
LIFTING HEIGHT 69 - 5/16 INCHES
STROKE 60 INCHES
OVERALL LENGTH 316 - 5/8 INCHES
OVERALL WIDTH 150 - 3/16 INCHES
OVERALL HEIGHT 101 - 1/2 INCHES
WIDTH BETWEEN POST 132 INCHES
TRACK LENGTH 20 FEET
TRACK WIDTH 24 INCHES
TRACK ADJUSTMENT 4 FT TO 8 FT.
SHIPPING WEIGHT 4,725 LBS.

HYDRAULIC

PERFORMANCE TABLE

25,000

22,500

20,000

17,000

15,000

LOAD

12,500

( LBS )

10,000

7,500

5,000

2,500

0

1000 1500 2000 3000

PUMP PRESSURE ( PSI )

2500300

SUGGESTED SITE SELECTION / BAY SIZE

WIDTH DEPTH HEIGHT

15 FEET 30 FEET 12 FEET

NOTE

THE PLACEMENT OF THE UNIT IS DETERMINED BY THE TYPE

( LENGTH, WIDTH, HEIGHT ) OF VEHICLE BEING SERVICED.

WEJ-IT ANCHOR SPECIFICATIONS

LENGTH DRILL

5

INCH

*REFER TO ANCHOR BOLT SPECIFICATION IN BACK OF MANUAL

DEPTH

5 ½

INCH ¾ INCH

DRILL

SIZE

DRILL SIZE

MIN. MAX.

.775 .787

INCH INCH

TORQUE

(N/A)

3-5 TURNS

PAST

HAND

TIGHT*

POWER UNIT SPECIFICATIONS

BRAND NAME MONARCH
MODEL M-413-0118
POWER UNIT TYPE VERTICAL
MOTOR VOLTAGE 208 / 230
F.L.A. AT RATED CAPACITY 13.3 / 12.2
MOTOR HORSEPOWER 2
MOTOR PHASE SINGLE
MOTOR CYCLE / HERTZ 60
MOTOR SPEED ( R.P.M. ) 3450
PUMP FLOW ( G.P.M. ) 1.8 @ 3450 R.P.M.
RELIEF VALVE SETTING 2980 P.S.I.
WORKING PRESSURE 2591 P.S.I.
RESERVOIR CAPACITY 3 GALLONS
HYDRAULIC FLUID MEDIUM DEXRON III

PRE-EXISTING FLOOR REQUIREMENTS

MINIMUM

THICKNESS

4 - 1/2 IN 4000 P.S.I. 28 DAYS

DO NOT INSTALL ANY MOHAWK LIFT ON ANY SURFACE OTHER
THAN CONCRETE CONFORMING TO THE MINIMUM COMPRESSIVE
STRENGTH, MINIMUM AGING, AND THE MINIMUM THICKNESS
STATED ABOVE.

DO NOT INSTALL ANY MOHAWK LIFT ON EXPANSION SEAMS OR

DO NOT INSTALL ANY MOHAWK LIFT ON SECONDARY FLOOR
LEVELS OR ANY SURFACE WITH A BASEMENT BENEATH WITHOUT
WRITTEN AUTHORIZATION FROM THE BUILDING ARCHITECT.
NEVER HAND MIX YOUR OWN CONCRETE.

IF FOR ANY REASON A NEW CONCRETE SLAB SECTION IS
REQUIRED, FOLLOW THE INSTRUCTIONS PROVIDED IN THE NEW

SLAB RECOMMENDATION SECTION IN THE BACK OF THIS

MANUAL.

IF, FOR ANY REASON, A NEW CONCRETE SLAB SECTION IS
REQUIRED, MINIMUM THICKNESS, COMPRESSIVE STRENGTH, AND
PROPER AGING IS MANDATORY.

THE NEW SLAB SECTION MUST BE TOTALLY SURROUNDED BY AN
EXISTING CONCRETE FLOOR WHICH IS STRUCTURALLY SOUND.
CERTIFIED STRENGTH DOCUMENTATION SHOULD BE OBTAINED
FROM THE FIRM WHO SUPPLIES THE CONCRETE MIXTURE AT THE
TIME OF THE POUR.

NEVER HAND MIX THE CONCRETE.

MINIMUM COMPRESSIVE

STRENGTH

ON CRACKED, OR DEFECTIVE CONCRETE.

MINIMUM

AGING

9

MOHAWK MODEL TR - 25A

TR - 25A PACKING LIST

*** ALSO SEE DRAWINGS MAN 906 - 908 - 929 - 967 IN PARTS MANUAL ***

ORDER

NUMBER

025-002-025 PARTS BOX # 1 CONTENTS 1

192 601-300-024 POWER UNIT ASSEMBLY 1

025-002-030 POWER UNIT HANDLE ASSEMBLY 1

587 600-640-003 BOLT, 3/4 X 2-1/2 IN 16
475 025-000-107 CHAIN CONNECTOR 6

600-830-017 CHAIN, LONG ( 450-3/4 IN ) 2
600-830-015 CHAIN, MEDIUM ( 213-3/4 IN ) 2

600-830-012 CHAIN, SHORT (98-1/4 IN ) 2
640 601-800-045 DECAL, CAPACITY ( 25,000 ) 2
618 601-800-035 DECAL, CAUTION 1
124 601-800-061 DECAL, MOHAWK 4
616 601-800-030 DECAL, MADE IN AMERICA 4
617 601-800-034 DECAL, WARNING 1
637 025-002-052 HOSE ASSEMBLY ( 1/4 IN ) 1
646 025-002-053 HOSE ASSEMBLY ( 3/8 IN ) 1
647 025-002-067 LOCK RELEASE HANDLE ASSEMBLY 4
649 601-800-007 MANUAL, ( ALI / SAFETY REQUIREMENTS) 1
613 601-800-006 MANUAL, ( ALI / SAFETY TIPS CARD) 1
612 601-800-003 MANUAL, ( ALI / LIFTING IT RIGHT ) 1
305 601-800-010 MANUAL, ( INSTALLATION ) 1
118 600-690-003 NUT, 3/4 NLN 16
759 600-690-010 NUT, 7/8 NLN 6
112 601-630-001 SPRAY PAINT ( RED ) 1
113 601-630-002 SPRAY PAINT ( YELLOW ) 1
624 025-002-050 SMALL PARTS BAG # 1 ( SHIM BAG ) 1

025-020-017 SMALL PARTS BAG # 2 1

600-710-012 WASHER, 7/8 FLAT 2
042 600-670-002 WEJ-IT ANCHOR ( 3/4 X 5 ) 16
311 600-930-001 WHEEL CHOCKS 4

025-020-017 SMALL PARTS BAG # 2 CONTENTS 1

641 600-640-014 BOLT, 1/2 X 2 IN 4
585 600-640-001 BOLT, 5/16 X 1 IN 8
021 601-310-005 BREATHER CAP 1
137 600-830-026 CHAIN, MASTER LINK ASSY. 12
092 601-420-003 FITTING, FERRULE # 6 JIC 4
645 601-430-022 HYDRAULIC HOSE CLAMPS 3
460 601-170-008 HUBBLE CONNECTOR ( FEMALE ) 1
593 600-690-001 NUT, 5/16 NLN 4
642 600-690-009 NUT, 1/2 NLN 4

025-020-014 SAFETY RELEASE CABLE ASSY. (19-1/2 IN 2
249 600-600-004 SCREW, 5/16 SELF TAP 3
595 600-710-003 WASHER, 5/16 SAE FLAT 8
597 600-710-008 WASHER 1/2 IN FLAT 4

624 025-002-050 SHIM BAG CONTENTS 1

633 600-740-001 SHIM, 1/16 ( BLUE ) 16
634 600-740-002 SHIM, 1/8 ( RED ) 16
635 600-740-003 SHIM, 1/4 ( BLACK ) 16

PART

NUMBER

PART

DESCRIPTION

MAN929 PARTS BOX #2 CONTENTS

QTY.

1

10

MOHAWK MODEL TR - 25A

RECOMMENDED TOOL LIST

SIZE / QTY DESCRIPTION USED IN

1 - 1/4 IN WRENCH & SOCKET RAMP FASTENERS NUTS / CHAIN CONNECTOR NUTS
1 - 1/8 IN WRENCH & SOCKET WEJ-IT ANCHORS

1 - 1/16 IN WRENCH & SOCKET RAMP FASTENER BOLTS

1 IN WRENCH CHAIN CONNECTORS

11/16 IN WRENCH HYDRAULIC HOSES

5/8 IN WRENCH HYDRAULIC HOSES
1/2 IN WRENCH & SOCKET POWER UNIT MOUNTING / 19-1/2” RELEASE CABLE /

HOSE CLAMP SELF TAPING SCREWS

1 RATCHET WRENCH AS NEEDED
1 SNAP RING PLIERS RAMP ROLLER ASSEMBLIES
1 VICE GRIPS AS NEEDED
1 CRESCENT WRENCH AS NEEDED
1 50 FT FISH TAPE PULL CHAIN
1 4 FT BUBBLE LEVEL VERIFY LEVEL ASSEMBLY
1 PRY BAR MOVING HEAVY ITEMS
1 TIN SNIPS PACKAGING BANDING
1 CHALK LINE FLOOR LAYOUT
1 SOAP STONE FLOOR LAYOUT
1 25 FT TAPE MEASURE FLOOR LAYOUT / SQUARING POST
1 50 FT TAPE MEASURE FLOOR LAYOUT / SQUARING POST
1 MEDIUM HAMMER WEJ-IT ANCHORS

8 FT STEP LADDER ASSEMBLE ELEVATED ITEMS

100 FT LEAD CORD OPERATE ELECTRICAL TOOLS

4 4 X 4 X 12 IN DUNNAGE SUPPORT CROSSRAILS
4 8 X 8 X 24 IN DUNNAGE SUPPORT TRACKS

POSSIBLE RENTAL EQUIPMENT REQUIRED

1 FORK TRUCK LIFTING / MOVING HEAVY ITEMS
1 HAMMER DRILL DRILLING CONCRETE
1 DRILL BIT ( 3/4 INCH ) DRILLING CONCRETE

11

MOHAWK MODEL TR - 25A

BEFORE INSTALLING A LIFT

IMPORTANT

BEFORE INSTALLING A MOHAWK LIFT THERE ARE A FEW ITEMS THAT MUST BE INSPECTED. EACH REPAIR SHOP BAY IS DIFFERENT. IN AN
ATTEMPT TO PREVENT OVERSIGHTS, ALL OF THE FOLLOWING INFORMATION IS TO BE VERIFIED.

OVERHEAD OBSTRUCTIONS

THE AREA IN WHICH THE LIFT WILL BE LOCATED SHALL BE FREE
OF OBSTRUCTIONS. HEATERS, BUILDING SUPPORTS, ELECTRICAL
CONDUIT; ALL OF THESE ITEMS ARE TO BE NINETEEN FEET
MINIMUM ABOVE THE BAY FLOOR. SEE FIGURE 3.

DEFECTIVE CONCRETE

VISUALLY INSPECT THE BAY FLOOR AREA. THE UNIT CAN NOT BE
INSTALLED ON EXPANSION SEAMS, OR CONCRETE WHICH IS
CRACKED. THE UNIT IS ONLY AS STRONG AS THE FLOOR IT IS
INSTALLED ON.

FLOOR REQUIREMENTS

THIS INFORMATION IS IN THE GENERAL FLOOR REQUIREMENTS. IF
THE BAY FLOOR DOES NOT CONFORM TO THESE SPECIFICATIONS,

REFER TO THE NEW SLAB RECOMMENDATIONS SECTION
IN THE BACK OF THIS MANUAL.

ALWAYS USE SHIM PLATES TO LEVEL POST INSPECT BAY FOR
EXCESSIVE SLOPE AND DETERMINE WHAT IS NEEDED FOR
SHIMMING BEFORE INSTALLING LIFT. SEE FIGURE 2.

POWER SUPPLY

THE STANDARD POWER UNIT IS 220 VOLT SINGLE PHASE. REFER
TO THE LIFT VERIFICATION SHEET FOR SPECIFICATIONS ON
SPECIAL ORDERS.

THE POWER SUPPLY SHOULD BE AVAILABLE PRIOR TO
INSTALLATION. IT IS ADVISED TO HAVE A LICENSED ELECTRICIAN
PERFORM ALL ELECTRICAL.

BAY SIZE

NOTE WALKWAYS, OVERHEAD OBSTRUCTIONS, AND ABILITY TO
MOVE EQUIPMENT IN THE BAY AREA.

REFER TO THE LIFT SPECIFICATIONS. REFER TO THE LIFT
VERIFICATION SHEET FOR SPECIFICATIONS ON SPECIAL ORDERS.

SPECIFICATIONS

REFERENCE ALL SPECIFICATIONS PRIOR TO INSTALLING A LIFT.

WARNING

BEFORE DRILLING THE MOUNTING HOLES

• REFERENCE ALL FIGURES PERTAINING TO DRILLING, WEJ-IT

WARNINGS, AND INSTALLATION INSTRUCTIONS

• ALWAYS VERIFY SQUARE AND LEVEL STRUCTURE BEFORE

DRILLING.

• USE A SHARP DRILL BIT TO PREVENT DRILLING AN UNDERSIZED

HOLE. DRILL THE HOLE EQUAL TO THE LENGTH OF THE WEJ-IT
ANCHOR. BLOW OUT THE HOLE WITH SHOP AIR, OR VACUUM.
INSERT THE WEJ-IT ANCHOR SO THAT THE WASHER RESTS
AGAINST THE POST FOOTING. TIGHTEN THE NUT 3 TO 5 FULL
TURNS PAST HAND TIGHT. ( 175 FOOT POUNDS )

12

• NEVER USE AN IMPACT TOOL TO TIGHTEN THE WEJ-IT

ANCHORS. USE A TORQUE WRENCH ONLY.

• MAKE SURE THE CONCRETE IS SOLID WHEN DRILLING. CRACKS

AND EXPANSION SEAMS REDUCE THE EFFECTIVENESS OF THE
WEJ-IT ANCHOR. NEVER INSTALL THE ANCHOR UNDER THESE
CONDITIONS.

MOHAWK MODEL TR - 25A

INSTALLATION INSTRUCTIONS

IMPORTANT

READ THIS MANUAL IN ITS ENTIRETY. BE FAMILIAR WITH PART NAMES AND HAVE A GOOD UNDERSTANDING OF
HOW THIS UNIT IS TO BE ASSEMBLED AND OF HOW INDIVIDUAL PARTS OPERATE, BEFORE ASSEMBLING THE
UNIT.

USING A CHALK LINE, LAYOUT THE FLOOR DIMENSIONS WHERE
THE UNIT WILL BE LOCATED.

NOTE

• ALWAYS VERIFY A TRUE SQUARE BY MEASURING FROM

CORNER TO OPPOSITE CORNER.

USING A TRANSIT OR WATER LEVEL, VERIFY LEVEL FLOOR AT
EACH POST LOCATION. REFERENCING THE HIGHEST POINT, USE
SHIM PLATES TO INSURE A LEVEL ASSEMBLY. (MOHAWK PART #
025-000-110)

CUT ALL BANDING AND DISCARD. USE THE PACKING LIST TO
VERIFY PARTS COUNT. PLEASE NOTIFY THE MOHAWK SERVICE
DEPARTMENT TO ORDER ANY MISSING PARTS ( 1-800-833-2006 ).

NOTE

• SAVE ALL PACKING BOLTS AS THEY ARE USED IN THE

ASSEMBLY. DO NOT RE-USE THE NYLON LOCK NUTS.

ALIGN THE MAINSIDE POSTS BASE PLATES TO THE CHALK LINE
LAYOUT.

USING A FOR LIFT TRUCK, ALIGN THE TOP RAIL TO THE MAIN SIDE
POSTS.

SECURE THE TOP RAIL TO THE MAIN SIDE POST USING THE
FOUR 1/2 X 2 “ BOLTS, WASHERS AND NYLON LOCK NUTS.

NOTE

• ALL BOLTS USING NYLON LOCK NUTS. ALL BOLTS MUST

EXTEND PAST THE NYLON BY THREE THREADS. THIS
INCLUDES THE ADJUSTABLE CHAIN CONNECTORS.

WARNING

• DO NOT REMOVE THE FORK LIFT TRUCK FROM BENEATH THE

TOP RAIL UNTIL THE POST HAVE BEEN SECURELY MOUNTED
TO THE TOP RAIL AND SHOP FLOOR.

INSURE THE MAIN POSTS ARE SQUARE AND LEVEL TO EACH
OTHER, AND ARE IN PROPER ALIGNMENT TO THE FLOOR LAYOUT.
DRILL THE MOUNTING HOLES IN THE CONCRETE USING THE
HOLES IN THE BASE PLATE AS A DRILL GUIDE. SECURE THE MAIN
SIDE POSTS TO THE SHOP FLOOR USING THE EIGHT 3/4 X 5” WEJ-IT
ANCHORS.

MOUNT THE POWER UNIT ON THE APPROPRIATE MAIN SIDE POST
USING THE FOUR 5/16 X 1” BOLT, WASHER, AND NYLON LOCK
NUTS.

REMOVE THE BREATHER CAP PORT PLUG AND DISCARD. INSERT
AND HAND TIGHTEN THE BREATHER CAP.

ASSEMBLE THE POWER UNIT LOWERING HANDLE TO THE EYE
BOLT ON THE LOWERING VALVE ASSEMBLY USING THE WASHER
AND COTTER PIN.

ASSEMBLE THE TWO HYDRAULIC HOSES TO THE HYDRAULIC
CYLINDER. CONNECT THE HOSE FROM THE ROD END OF THE
CYLINDER TO THE POWER UNIT RESERVOIR. CONNECT THE HOSE
FROM THE BLIND END OF THE CYLINDER TO THE PRESSURE PORT
ON THE POWER UNIT.

AT THIS TIME HAVE A QUALIFIED ELECTRICIAN

CONNECT THE POWER SUPPLY TO THE UNIT

ENGAGE THE UP BUTTON ON THE POWER UNIT. FULLY EXTEND
THE HYDRAULIC CYLINDER.

NOTE

• KEEP THE CHAIN CONNECTOR AT THE END OF THE CYLINDER

IN PROPER ALIGNMENT (CAM BEARING ON BOTTOM ) AS THE
CYLINDER IS BEING EXTENDED.

TURN OFF THE ELECTRIC CIRCUIT BREAKER TO THE UNIT AFTER
EXTENDING THE HYDRAULIC CYLINDER.

PULL DOWN ON THE POWER UNIT LOWERING HANDLE TO RELIEVE
FLUID PRESSURE. REVERSE THE TWO HYDRAULIC HOSES AT THE
POWER UNIT.

WARNING / DANGER

DO NOT TWIST OR CROSS THE LIFTING CHAINS WHEN
ROUTING. THIS WILL CAUSE THE CHAIN TO FAIL UNDER LOAD.

ALL LEAVES MUST BE USED IN THE ASSEMBLY OF ALL
MASTER LINKS. NOTE CHAIN CONNECTING DIAGRAMS.

ALWAYS USE A FLASH LIGHT TO VERIFY CHAIN CONDITION.

NOTE

• REEFER TO CHAIN ROUTING DRAWINGS

ASSEMBLE THE TWO CHAIN CONNECTORS TO THE MEDIUM
LENGTH CHAINS. ASSEMBLE THE OPPOSITE END TO THE CHAIN
CONNECTOR AT THE BASE OF THE MAIN SIDE POST.

ROUTE THE TWO LONG CHAINS THROUGH THE TOP RAIL AND
BOTTOM BEARINGS ON THE TOP RAIL. ASSEMBLE THE TWO CHAIN
CONNECTORS TO THE CYLINDER END OF THE CHAINS. ASSEMBLE
THE CHAIN CONNECTORS TO THE CHAIN BLOCK AT THE END OF
THE CYLINDER. TIGHTEN THE CHAIN CONNECTORS SO THAT THE
CONNECTOR IS PAST / INTO THE NYLON.

ASSEMBLE THE TWO CHAIN CONNECTOR TO THE TWO SHORT
CHAINS. ASSEMBLE THE CHAIN CONNECTORS TO THE CHAIN
BLOCK AT THE END OF THE CYLINDER. TIGHTEN THE CHAIN
CONNECTORS SO THAT THE CONNECTOR IS PAST / INTO THE
NYLON. ROUTE THE TWO SHORT CHAINS OVER THE TOP
BEARINGS ON THE TOP RAIL.

ROUTE THE OPPOSITE END OF THE TWO SHORT AND TWO LONG
CHAINS THROUGH THE TOP OF THE MAIN SIDE POSTS.

13

MOHAWK MODEL TR - 25A

INSTALLATION INSTRUCTIONS

ASSEMBLE THE 19-1/2“ RELEASE CABLE TO THE MECHANICAL
LOCK ON THE INSIDE OF THE MAIN SIDE CROSSRAIL. (THE MAIN
SIDE OF THE CROSSRAIL IS THE END WITH THE CHAIN BLOCK) .

SET THE MAIN SIDE OF THE FORE CROSSRAIL INTO PLACE AT THE
BASE OF THE MAIN SIDE POSTS. BLOCK UP USING THE 4 X 4 X 12”
DUNNAGE.
ROUTE THE FORE CROSSRAIL CHAIN THROUGH THE FORE
CROSSRAIL.

SET THE MAIN SIDE TRACK INTO PLACE. BLOCK UP USING THE 8 X
8 X 24” DUNNAGE. THE LOCK RELEASE ASSEMBLY ON THE MAIN
SIDE TRACK IS TO FACE THE MAIN SIDE OF THE UNIT.

SET THE OFF SIDE TRACK INTO PLACE. BLOCK UP USING THE 8 X 8
X 24” DUNNAGE NOTE THAT THE RACE FOR THE RJ-25 IS TO BE TO
THE INSIDE OF THE TRACKS.

SET THE MAIN SIDE OF THE FORE CROSSRAIL INTO PLACE AT THE
BASE OF THE MAIN SIDE POSTS. BLOCK UP USING THE 4 X 4 X 12”
DUNNAGE.

ROUTE THE AFT CROSSRAIL CHAIN THROUGH THE AFT
CROSSRAIL.

ASSEMBLE THE FOUR LIFTING CHAINS (TWO SHORT & TWO LONG)
FROM THE HYDRAULIC CYLINDER TO THE CHAIN BLOCKS ON THE
CROSSRAILS.

SET THE TWO OFF SIDE POST INTO PLACE ON THE FLOOR LAYOUT.
ASSEMBLE THE CHAIN CONNECTORS AT THE THROUGH HOLES AT
THE TOP OF THE OFF SIDE POSTS. TIGHTEN THE CHAIN
CONNECTORS SO THAT THE CONNECTOR IS PAST / INTO THE
NYLON.

NOTE

• DO NOT DRILL THE ANCHOR HOLES FOR THE OFF SIDE POST.

THIS WILL BE PERFORMED AS A FINAL PART OF THE
INSTALLATION.

ASSEMBLE THE TWO TRACK STOPS TO THE FORE END OF THE
TRACKS USING THE EIGHT 3/4 X 2-1/2” BOLTS, AND NYLON LOCK
NUTS.

ASSEMBLE THE RAMPS TO THE AFT END OF THE TRACKS USING
THE EIGHT 3/4 X 2-1/2” BOLTS, AND NYLON LOCK NUTS.

TURN THE ELECTRIC CIRCUIT BREAKER FOR THE UNIT ON.

NOTE THE POSITION OF THE MAIN SIDE TRACK. ALIGN THE TABS
ON THE CROSSRAILS TO THE MAIN SIDE TRACKS. ALSO SET THE
OFF SIDE TRACK AT EIGHT FEET FROM THE OUTSIDE OF THE MAIN
SIDE TRACK.

ENGAGE THE UP BUTTON RAISING THE UNIT APPROXIMATELY
THREE FEET.

ASSEMBLE THE 19-1/2 “ RELEASE CABLE FROM THE MECHANICAL
LOCK ON THE INSIDE OF THE MAIN SIDE CROSSRAIL TO THE LOCK
RELEASE CAM ON THE MAIN SIDE TRACK.

ASSEMBLE THE LOCK RELEASE ARM TO THE LOCK RELEASE
ASSEMBLY.

CYCLE THE UNIT 2 TIMES NOTING THE POSITION OF THE
CROSSRAILS INSIDE THE POSTS.

LOWER THE UNIT ONTO THE MECHANICAL LOCKS. VERIFY A
POSITIVE LOCK SEAT ON THE MAIN AND OFF SIDE POSTS.
(MECHANICAL LOCK TO LATCH RACK IN POST) ADJUST THE OFF
SIDE POST AS NEEDED TO ACHIEVE A GOOD SEAT.

NOTE

• ENSURE LEVEL POSTS AND A GOOD LOCK SEAT ON THE MAIN

AND OFF SIDE POST BEFORE DRILLING THE MOUNTING
HOLES.

DRILL THE MOUNTING HOLES IN THE CONCRETE USING THE
HOLES IN THE BASE PLATE AS A DRILL GUIDE.. SECURE THE OFF
SIDE POSTS TO THE SHOP FLOOR USING THE EIGHT 3/4 X 5” WEJ-IT
ANCHORS.

LEVELING THE TRACKS

LEVEL THE TRACKS FRONT TO REAR BY ADJUSTING THE CHAIN
CONNECTORS AT THE END OF THE HYDRAULIC CYLINDER.

LEVEL THE TRACKS SIDE TO SIDE BY ADJUSTING THE CHAIN
CONNECTORS AT THE TOP OF THE OFF SIDE POSTS.

NOTE

• ALL BOLTS USING NYLON LOCK NUTS. ALL BOLTS MUST

EXTEND PAST THE NYLON BY THREE THREADS. THIS
INCLUDES THE ADJUSTABLE CHAIN CONNECTORS.

SECURE THE TWO HYDRAULIC HOSES TO THE TOP RAIL USING THE
THREE HOSE CLAMPS AND 5/16 SELF TAPING SCREWS.

REFERENCE DIAGRAM IN BACK OF MANUAL. APPLY ALL DECAL IN
APPROPRIATE LOCATIONS.

NOTE

• APPLY DECALS TO A CLEAN, OIL & DIRT FREE SURFACE.

14

MOHAWK MODEL TR - 25A

SAFETY TIPS

PLEASE POST THE AUTOMOTIVE LIFT SAFETY TIPS CARD, ( A COPY IS INCLUDED IN
THE PARTS BOX ) WHERE THEY WILL BE CONSTANTLY REMINDED TO YOUR LIFT OPERATOR.

FOR INFORMATION SPECIFIC TO THE LIFT, ALWAYS REFER TO THE MOHAWK MANUAL.

• INSPECT YOUR LIFT DAILY. NEVER OPERATE IT

IF IT MALFUNCTIONS OR IF IT HAS BROKEN OR
DAMAGED PARTS. REPAIRS SHOULD BE MADE
WITH ORIGINAL MOHAWK PARTS.

• OPERATING CONTROLS ARE DESIGNED TO CLOSE

WHEN RELEASED. DO NOT BLOCK OPEN OR
OVERRIDE THEM.

• NEVER OVERLOAD YOUR LIFT BEYOND STATED

LIFTING CAPACITY. RATED CAPACITY IS SHOWN
ON NAMEPLATE AFFIXED TO THE LIFT.

• POSITIONING OF VEHICLE AND OPERATION OF

THE LIFT SHOULD BE DONE ONLY BY TRAINED
AND AUTHORIZED PERSONNEL.

• DO NOT ALLOW CUSTOMERS OR BY- STANDERS

TO OPERATE THE LIFT OR TO BE IN A LIFTING
AREA DURING ITS OPERATION. ONLY PROPERLY
TRAINED PERSONNEL SHOULD BE ALLOWED TO
OPERATE LIFT.

• NEVER RAISE A VEHICLE WITH PERSONS INSIDE.

• ALWAYS KEEP LIFT AREA FREE OF

OBSTRUCTIONS, DEBRIS, GREASE, OIL.

• PERFORM THE PRE-OPERATION CHECK LIST, PER

INSTRUCTIONS, BEFORE RAISING VEHICLE TO
DESIRED HEIGHT.

• BEFORE DRIVING VEHICLE INTO THE BAY,

POSITION ARMS AND SUPPORTS TO PROVIDE
UNOBSTRUCTED CLEARANCE. DO NOT HIT OR

RUN OVER LIFT ARMS, ADAPTERS, OR AXLE
SUPPORTS. THIS COULD DAMAGE LIFT OR
VEHICLE.

• LOAD VEHICLE ON LIFT CAREFULLY. POSITION

LIFT SUPPORTS TO CONTACT AT THE VEHICLE
MANUFACTURER’S RECOMMENDED LIFTING
POINTS. RAISE LIFT UNTIL SUPPORTS CONTACT
VEHICLE. CHECK SUPPORTS FOR SECURE
CONTACT WITH VEHICLE. RAISE LIFT TO

DESIRED WORKING HEIGHT. CAUTION: IF YOU
ARE WORKING UNDER VEHICLE, LIFT SHOULD BE
RAISED HIGH ENOUGH FOR LOCKING DEVICE TO
BE ENGAGED.

• NOTE THAT WITH SOME VEHICLES, THE

REMOVAL OR INSTALLATION OF COMPONENTS
MAY CAUSE A CRITICAL SHIFT IN THE CENTER
OF GRAVITY, AND RESULT IN RAISED VEHICLE
INSTABILITY. REFER TO THE VEHICLE
MANUFACTURER’S SERVICE MANUAL FOR
RECOMMENDED PROCEDURES WHEN VEHICLE
COMPONENTS ARE REMOVED.

• BEFORE LOWERING LIFT, BE SURE TOOL TRAY’S,

STANDS, ETC. ARE REMOVED FROM UNDER
VEHICLE. RELEASE LOCKING DEVICES BEFORE
ATTEMPTING TO LOWER LIFT.

• BEFORE REMOVING VEHICLE FROM THE LIFT

AREA, POSITION LIFT ARMS AND SUPPORTS TO
PROVIDE AN UNOBSTRUCTED EXIT.

15

MOHAWK MODEL TR - 25A

IF WORK IS COMPLETE, CONTINUE LOWERING THE

PRE - OPERATION CHECK LIST

TRAINED OPERATOR

• THE OPERATOR MUST BE FULLY TRAINED AND QUALIFIED TO

SAFELY AND EFFECTIVELY OPERATE THIS EQUIPMENT OF
THIS SPECIFIC MAKE AND MODEL.

ABSENCE OF OBSTRUCTIONS

• THE TOTAL WORK AREA MUST BE FREE OF ANY AND ALL

OBSTRUCTIONS AND BE GENERALLY CLEAN. ( FREE OF OIL
AND DEBRIS )

VISUAL INSPECTION

• THOROUGHLY INSPECT THE UNIT WITH A TRAINED EYE,

NOTING ANY PROBLEM AREAS. INSPECT THE FLOOR AND
THE ANCHORING FASTENERS AS WELL. REPORT ANY
QUESTIONABLE ITEMS.

NO LOAD PERFORMANCE CHECK

• ALL MECHANICAL SAFETIES OPERATE PROPERLY AND

CONSISTENTLY.

• NO EXTERNAL FLUID LEAKS.

• NO BLEED DOWN.

• EFFORTLESS AND SIMULTANEOUS MOVEMENT.

• LEVEL LIFTING.

• CONTROLS FUNCTION PROPERLY.

• ALL SAFETY MECHANISMS FULLY FUNCTIONAL.

PREVIOUS DAY' S OPERATION REPORT

• VERIFY WITH SUPERVISOR THAT THERE WERE NO PROBLEMS

EXPERIENCED THE PREVIOUS DAY. IF THERE WERE ANY
PROBLEMS, VERIFY THAT ALL NECESSARY REPAIRS HAVE

BEEN COMPLETED.

LIFTING PROCEDURES

OPERATION

PERFORM PRE-OPERATION CHECK LIST ITEM BY ITEM.

ENSURE UNIT IS COMPLETELY LOWERED.

POSITION THE VEHICLE ONTO THE UNIT.

CAUTION

• AVOID SUDDEN STARTS AND STOPS DURING LOADING AND

UNLOADING OF VEHICLE.

POSITION THE VEHICLE AS INDICATED BY THE MFG’S
RECOMMENDED LIFT POINTS.

NOTE

• ALIGN THE CENTER OF GRAVITY ( C.G. ) OF THE VEHICLE

WITH THE CENTERLINE OF THE TRACKS.

POSITION THE WHEEL CHOCKS AS INDICATED BY THE MFG’S
RECOMMENDED LIFTING INSTRUCTIONS.

TO RAISE

• ENGAGE THE UP-BUTTON ON THE POWER UNIT.

• RAISE VEHICLE TO THE DESIRED WORKING HEIGHT.

• LOWER THE UNIT ONTO THE MECHANICAL SAFETIES.

TO LOWER

• INSPECT THE LIFTING AREA TO INSURE THAT ALL PERSONNEL

AND DEBRIS HAVE BEEN CLEARED FROM THE LIFTING AREA.

• ENGAGE THE UP-BUTTON ON THE POWER UNIT.

• RAISE UNIT APPROXIMATELY THREE TO FOUR INCHES.

• DISENGAGE THE MECHANICAL SAFETIES.

• LOWER UNIT TO THE DESIRED WORKING HEIGHT.

• ALWAYS ENGAGE THE UP-BUTTON ON THE POWER UNIT AND

RAISE UNIT UNTIL BOTH MECHANICAL SAFETIES RE-ENGAGE.

• LOWER THE UNIT ONTO THE MECHANICAL SAFETIES.

•

UNIT TO FLOOR.

16

MOHAWK MODEL TR - 25A

MAINTENANCE PROCEDURES

QUALIFIED MAINTENANCE PERSONNEL ONLY

DAILY

• PERFORM THE PRE-OPERATION CHECK LIST.

• REPORT ANY AND ALL EQUIPMENT MALFUNCTIONS

IMMEDIATELY.

• CLEAN ALL MOVING PARTS. IF OXIDIZATION IS OCCURRING

USE A LIGHT LUBRICANT. (WD - 40 OR EQUIVALENT )

• KEEP AREA AROUND THIS EQUIPMENT FREE OF DIRT, SAND,

WATER, ETC.

WEEKLY

PERFORM THE DAILY OPERATION CHECK LIST.

WIPE CLEAN, THE CYLINDERS' WIPER SEAL. REMOVE ANY
WEEPING OIL AND DUST.

VERIFY FLUID LEVEL. WITH THE UNIT FULLY LOWERED, THE
FLUID LEVEL WILL BE 1/2 INCH BELOW THE BREATHER CAP PORT.
USE DEXRON III AS REPLACEMENT FLUID.

LUBRICATE THE SAFETY RELEASE ROD PILLOW BLOCKS WITH OIL.
(DO NOT USE GREASE )

CYCLE UNIT TO FULL HEIGHT, NOTE ANY UNUSUAL NOISES,
INSPECT UNIT FOR WORN OR BENT PARTS.

MONTHLY

INSPECT LIFTING CHAINS AND COMPONENTS FOR DEFORMATION,
WEAR OR CORROSION.

INSPECT ALL HYDRAULIC COMPONENTS FOR LEAKS,
DEFORMATION, WEAR OR CORROSION.

TIGHTEN ALL FASTENERS AND HYDRAULIC FITTINGS AS
REQUIRED.

1. ALL O - RING BOSS FITTINGS JAM NUTS ARE TO BE
TIGHTENED TO 15 FOOT POUNDS TORQUE.

2. ALL PIPE FITTINGS, IF LEAKING ARE TO BE REMOVED, RE­SEALED, AND RE - INSTALLED. ( SELECT - UNITE THREAD
SEALANT OR EQUIVALENT ON FITTING THREADS )

INSPECT ANCHOR CONDITIONS FOR ANY POSSIBLE CORROSION
AND INSPECT THE FLOOR FOR ANY SIGNS OF FATIGUE OR
FRACTURES.

INSPECT ALL BEARINGS FOR UNUSUAL OR EXCESSIVE
WEAR.(REPLACE IF NEEDED)

SEMI- ANNUAL TRAINING

QUALIFY / RE-QUALIFY ALL PERSONNEL IN THE SAFE OPERATION
OF THIS UNIT.

ANNUALLY

REPLACE AND RE-BLEED THE HYDRAULIC FLUID. ALWAYS USE A
CLEAN FUNNEL AND FILTER. USE DEXRON III HYDRAULIC FLUID.

INSPECT ALL BEARINGS FOR UNUSUAL OR EXCESSIVE WEAR.
(REPLACE IF NEEDED)

REMOVE THE EQUALIZING CHAINS. ( MEDIUM LENGTH CROSSRAIL
CHAINS ) THOROUGHLY CLEAN, LUBRICATE AND RE-INSTALL.
(REPLACE IF UNUSUAL OR EXCESSIVE WEAR IS NOTED )

REMOVE THE LIFTING CHAINS, ( THE FOUR CHAINS CONNECTED
TO THE HYDRAULIC CYLINDER ) THOROUGHLY CLEAN,
LUBRICATE AND RE-INSTALL. ( REPLACE IF UNUSUAL OR
EXCESSIVE WEAR IS NOTED )

PERFORM THE DAILY, WEEKLY, AND MONTHLY MAINTENANCE
PROCEDURES.
