Mohawk LMF-12 User Manual

MOHAWK

MADE IN THE USA

MODEL LMF-12

12,000 LB. CAPACITY TWO POST

VEHICLE LIFT MANUAL

INSTALLATION
OPERATION
MAINTENANCE
PARTS

MOHAWK RESOURCES LTD.

65 VROOMAN AVE.
AMSTERDAM, NY 12010

TOLL FREE: 1-800-833-2006
LOCAL: 1-518-842-1431
FAX: [phone]
INTERNET: WWW.MOHAWKLIFTS.COM
E-MAIL: [e-mail]

LMF-12-Master.doc
Rev Date 4/23/2002
Part #601-800-067

MOHAWK MODEL LMF

-12 i

IMPORTANT SAFETY INSTRUCTIONS

When using your garage equipment, basic safety precautions should always be followed, including the
following:

1. Read all instructions.

2. Care must be taken as burns can occur from touching hot parts.

3. Do not operate equipment with a damaged cord or if the equipment has been dropped or damaged ­until it has been examined by a qualified serviceman.

3. Do not let cord or hoses come in contact with hot manifolds or moving fan blades.

4. If an extension cord is necessary, a cord with a current rating equal to or more than that of the
equipment should be used. Cords rated for less current than the equipment may overheat. Care
should be taken to arrange the cord so that it will not be tripped over or pulled.

5. Always unplug equipment from electrical outlet when not in use. Never use the cord to pull the
plug from the outlet. Grasp plug and pull to disconnect

6. To reduce the risk of fire, do not operate equipment in the vicinity of open containers of flammable
liquids (gasoline). WARNING: Risk of Explosion: This equipment has internal arcing and
sparking parts which should not be exposed to flammable vapors. This equipment is only suitable
for installation in a garage having sufficient air circulation to be considered a non-hazardous
location.

7. Adequate ventilation should be provided when working on operating internal combustion engines.

8. Keep hair, loose clothing, fingers, and all parts of body away from moving parts.

9. To reduce the risk of electric shock, do not use on wet surfaces or expose to rain.

10. Use only as described in this manual. Use only manufacturer’s recommended attachments.

11. ALWAYS WEAR SAFETY GLASSES. Everyday eyeglasses only have impact resistant lenses,
they are NOT safety glasses.

SAVE THESE INSTRUCTIONS

Rev (8/3/98)

MOHAWK MODEL LMF

-12 ii

APPENDAGE: Rev (8/3/98)

NOTE:

All accessories (i.e. Lifting Pads, Height Adapters, Wheel Adapters, Turf Adapters) supplied with this lift are
to be used on this lift only. Accessories from other lifts are not acceptable and could result in injury to the
user.

WARNING:

Latches do not automatically reset after disengagement. After the latches have been manually disengaged, this
lift must be raised approximately 2 inches to reactivate the latches.

PROPER SELECTION OF POWER SUPPLY CORD:

Acceptable Cord Types: SO, SEO,STO, SOW, SEOO, SOW-A
Cord Size: 12/4
Cord Ampacity: 20 Amps
Cord Wiring: Use Female NEMA Plug supplied with lift and wire as follows (See Diagram Below),

G: Ground (green)
W: Neutral (white)
X: 208 VAC Hot, 110 VAC to ground (Red)
Y: 208 VAC Hot, 110 VAC to ground (Black)

Face of Plug Represented:

MOHAWK MODEL LMF

-12 iii

HAVE A QUESTION?

Call your local

Mohawk distributor

For parts, service and technical support.

Distributor Place Card Here

Please have this unit’s model and serial number when calling for service.

Model Number ______________________
Serial Number ______________________

OR CONTACT:

MOHAWK RESOURCES LTD.

65 Vrooman Ave.
P.O. Box 110
Amsterdam, NY 12010
Toll Free: 1-800-833-2006
Local: 1-518-842-1431
Fax: [phone]
Internet: www.MOHAWKLIFTS.com
E-Mail: [e-mail]

MOHAWK MODEL LMF

-12 iv

The Automotive Lift Institute (ALI) is a trade association comprised of US and Canadian manufacturers and
certain national distributors of automotive lifts. For almost 50 years, the ALI in cooperation with the
American National Standards Institute (ANSI) has continued to sponsor the national standard ANSI/ALI
ALCTV-1998 "Safety Requirements for Construction, Testing, and validation for Automotive Lifts.”

The new "ALI/ETL Automotive Lift Certification Program" is based on ALI developed methods and criteria
for third party testing of automotive lifts to validate conformance with ANSI/ALI ALCTV- 1998.

For automotive lifts to be certified, manufacturers must execute an agreement with the ALI and ETL / Intertek
Testing Services and must meet certain requirements:

♦ Must be structurally tested in accordance with the test requirements as outlined in ANSI/ALI ALCTV-

1998.

♦ All motor operated units must be listed by a nationally recognized testing laboratory (NRTL) in

accordance with ANSI/UL 73.

♦ The manufacturer's production facility must meet quality control requirements as set forth in the ANSI

Z34.1-1987 and the ALI/ETL Automotive Lift Certification Program Procedural Guide.

♦ All manufacturer-provided instructions, manuals, and operator safety documents, must meet the

requirements of the ANSI/ALI ALCTV–1998 and ANSI/UL73.

Lifts meeting these rigid requirements may be listed in the directory of certified lifts and be labeled with the
"ALI/ETL certification mark" (Above on right), and, if applicable, the ETL listing mark to ANSI/UL-73.

Mohawk has been a long-standing member of ALI and most of Mohawk’s popular models are currently listed
and certified. Other Mohawk models are in various stages of testing. To obtain a complete and current
certification listing, contact Mohawk Resources Ltd. To obtain a copy of the current automotive lift standard,
contact ALI or ANSI.

Some people purchase quality products and others do not. You are assured of quality when you purchase a
Mohawk product in compliance with the certification program.

MOHAWK MODEL LMF

-12 v

MOHAWK WARRANTIES

DOWNTIME EXPENSES INCURRED WHEN UNIT IS IN REPAIR. THE MODEL NAME AND SERIAL NUMBER OF THE EQUIPMENT

TRANSFERABLE WARRANTY APPLIES TO THE ORIGINAL PURCHASER ONLY. THIS WARRANTY IS APPLICABLE TO

AND/OR MATERIALS

WING MOHAWK LIFTS ONLY:

DATE OF INVOICE, AGAINST DEFECTS IN WORKMANSHIP AND/OR MATERIALS

TEED FOR ONE YEAR

EFFECTIVE DATE: 1/1/2002

GENERAL WARRANTY INFORMATION:

MOHAWK’S OBLIGATION UNDER THIS WARRANTY IS LIMITED TO REPAIRING OR REPLACING ANY PART OR PARTS
RETURNED TO THIS FACTORY, TRANSPORTATION CHARGES PREPAID, WHICH PROVE UPON INSPECTION TO BE
DEFECTIVE AND WHICH HAVE NOT BEEN MISUSED. DAMAGE OR FAILURE TO ANY PART DUE TO FREIGHT DAMAGE OR
FAULTY MAINTENANCE IS NOT COVERED UNDER THIS WARRANTY. MOHAWK RESERVES THE RIGHT TO DECLINE
RESPONSIBILITY WHEN REPAIRS HAVE BEEN MADE OR ATTEMPTED BY OTHERS. THIS WARRANTY DOES NOT COVER

MUST BE FURNISHED WITH ALL WARRANTY CLAIMS. THIS WARRANTY STATEMENT CONTAINS THE ENTIRE AGREEMENT
BETWEEN MOHAWK RESOURCES LTD. AND THE PURCHASER UNLESS OTHERWISE SPECIFICALLY EXPRESSED IN WRITING.
THIS NON­UNITS LOCATED ONLY IN THE UNITED STATES OF AMERICA AND CANADA. CONTACT MOHAWK RESOURCES LTD. FOR
SPECIFIC WARRANTY PROVISIONS FOR UNITS LOCATED OUTSIDE OF THESE COUNTRIES.

5-YEAR WARRANTY:

THIS WARRANTY IS APPLICABLE TO THE FOLLOWING MOHAWK LIFTS ONLY: A -7, SYSTEM I, LMF-12, TP-15, TP-18, TP-20,
TP-26, TP -30 AND STANDARD OPTIONS.

3-YEAR WARRANTY:

THIS WARRANTY IS APPLICABLE TO THE FOLLOWING MOHAWK LIFTS ONLY: TSL-7, PL-6000, TR-19, TR-25, FL-25, TR-33, TR­35, TR-40, TR -50, TR-60, TR-75, TR-110, MP -SERIES AND RP-SERIES MOBILE COLUMN LIFTS, SL-SERIES SCISSOR LIFTS, FP­SERIES LIGHT DUTY FOUR POST LIFTS, TL-SERIES LIFTS AND STANDARD OPTIONS.

2-YEAR WARRANTY:

THIS WARRANTY IS APPLICABLE TO THE FOLLOWING MOHAWK LIFTS ONLY: USL-6000 AND STANDARD OPTIONS.

1-YEAR WARRANTY:

THIS WARRANTY IS APPLICABLE TO THE FOLLOWING MOHAWK LIFTS ONLY: HR-6, TOMAHAWK, TD-1000, CT-1000 AND
STANDARD OPTIONS.

STRUCTURAL COMPONENTS:

ALL STRUCTURAL AND MECHANICAL COMPONENTS OF THIS UNIT ARE GUARANTEED FOR THE ABOVE STATED TIME
FRAME, SPECIFIC TO MODEL, FROM THE DATE OF INVOICE, AGAINST DEFECTS IN WORKMANSHIP
WHEN LIFT IS INSTALLED AND USED ACCORDING TO SPECIFICATIONS.
SEE MOHAWK’S “EXTENDED LIFETIME CYLINDER WARRANTY” FOR SPECIFIC WARRANTY PROVISIONS FOR HYDRAULIC
CYLINDERS. THE “EXTENDED LIFETIME CYLINDER WARRANTY” IS APPLICABLE TO THE FOLLO
A-7, SYSTEM I, LMF-12, TP-15, TP-18, TP-20, TP -26, TP-30, MP-SERIES AND TL-SERIES LIFTS.

POWER UNIT:

ALL POWER UNIT COMPONENTS (MOTOR, PUMP AND RESERVOIR) ARE GUARANTEED FOR THE ABOVE STATED TIME
FRAME, SPECIFIC TO MODEL, FROM THE
WHEN THE LIFT IS INSTALLED AND USED ACCORDING TO SPECIFICATIONS.

ELECTRICAL COMPONENTS:

ALL ELECTRICAL COMPONENTS (EXCLUDING MOTOR) ARE GUARANTEED FOR ONE YEAR FOR PARTS ONLY
(EXCLUDING LABOR), FROM THE DATE OF INVOICE, AGAINST DEFECTS IN WORKMANSHIP AND/OR MATERIALS WHEN
THE LIFT IS INSTALLED AND USED ACCORDING TO SPECIFICATIONS.

PNEUMATIC (AIR) COMPONENTS:

ALL PNEUMATIC (AIR) COMPONENTS (I.E. AIR CYLINDERS AND POPPET AIR VALVES) ARE GUARAN
FOR PARTS ONLY (EXCLUDING LABOR), FROM THE DATE OF INVOICE, AGAINST DEFECTS IN WORKMANSHIP AND/OR
MATERIALS WHEN THE LIFT IS INSTALLED AND USED ACCORDING TO SPECIFICATIONS.

WARRANTY EXCEPTIONS:

ALL “SPECIAL” LIFTS AND/OR “CUSTOMIZED” OPTIONS ON THIS UNIT ARE GUARANTEED FOR ONE YEAR FOR PARTS ONLY (EXCLUDING LABOR),
FROM THE DATE OF INVOICE, AGAINST DEFECTS IN WORKMANSHIP AND/OR MATERIALS WHEN THE LIFT IS INSTALLED AND USED ACCORDING TO
SPECIFICATIONS.

THIS WARRANTY SUPERSEDES ALL OTHER WARRANTY POLICIES PREVIOUSLY STATED AND IN ALL OTHER MOHAWK PRODUCT SPECIFIC LITERATURE.

MOHAWK MODEL LMF

-12 vi

EXTENDED LIFETIME CYLINDER WARRANTY

AS THE ORIGINAL PURCHASER OF A MOHAWK LIFT MANUFACTURED BY MOHAWK
RESOURCES, LTD. YOU ARE ENTITLED TO AN EXTENDED CYLINDER SEAL KIT REPAIR
WARRANTY. TO QUALIFY FOR THIS WARRANTY, THE FOLLOWING CONDITIONS MUST BE
MET:

ALL LIFTS MUST BE REGISTERED WITH MOHAWK RESOURCES, LTD., P.O. BOX 110, 65

♦

VROOMAN AVENUE, AMSTERDAM, NY 12010, WITH THE ORIGINAL CUSTOMER NAME,
ADDRESS AND PHONE NUMBER, WITHIN 30 DAYS OF INSTALLATION.

(PLEASE USE THE POSTAGE PAID WARRANTY REGISTRATION CARD ATTACHED TO THE

FRONT OF THIS MANUAL.)

ANY CYLINDER THAT IS PAST ITS NORMAL 5-YEAR WARRANTY PERIOD MUST BE

♦

SHIPPED FREIGHT PRE-PAID TO THE MOHAWK PLANT.

♦ UPON COMPLETION OF INSTALLING A COMPLETE SEAL KIT, MOHAWK WILL SHIP THE

CYLINDER TO YOU, FREIGHT COLLECT.
MOHAWK’S OBLIGATION UNDER THIS WARRANTY IS LIMITED TO REPAIRING ANY

♦

CYLINDER, WHICH UPON INSPECTION HAS NOT BEEN MISUSED. MOHAWK RESERVES
THE RIGHT TO DECLINE RESPONSIBILITY WHEN THE REPAIRS HAVE BEEN MADE, OR
ATTEMPTED BY OTHERS. THE FOREGOING CONTAINS THE ENTIRE AGREEMENT
BETWEEN MOHAWK RESOURCES, LTD. AND THE PURCHASER, UNLESS SPECIFICALLY
EXPRESSED IN WRITING. THIS WARRANTY IS NON-TRANSFERABLE AND RUNS TO THE
ORIGINAL PURCHASER ONLY.

THIS IS NOT A “LEND A CYLINDER” POLICY. AS STATED ABOVE, YOUR ORIGINAL CYLINDER
(WHEN OUT OF ITS ORIGINAL 5-YEAR WARRANTY) WILL HAVE ITS SEALS REPLACED, WITH
ALL FREIGHT CHARGES THE RESPONSIBILITY OF YOU, THE CUSTOMER.

MOHAWK MODEL LMF

-12 1

CONTENTS

TEXT

PAGE

APPENDAGES 2
SPECIFICATIONS 3
PACKING LIST 4
RECOMMENDED TOOL LIST 5
BEFORE INSTALLING A LIFT / WEJ-IT INSTALLATION 6
INSTALLATION INSTRUCTIONS 7-8
SAFETY TIPS 9
PRE - OPERATION CHECK LIST / LIFTING PROCEDURES 10
MAINTENANCE PROCEDURES 11
HYDRAULIC SAFETY CHECKS 12
TROUBLE SHOOTING 13-14
SERVICE CHART 15
MAINTENANCE CHART 15

FIGURES / DIAGRAMS

FIGURE PAGE

BAY SIGHT LAYOUT / INSTALLATION DIMENSIONS 1 17
CARRIAGE STOP ASSEMBLY 2 18
WEJ-IT INSTALLATION 3-4 19-20

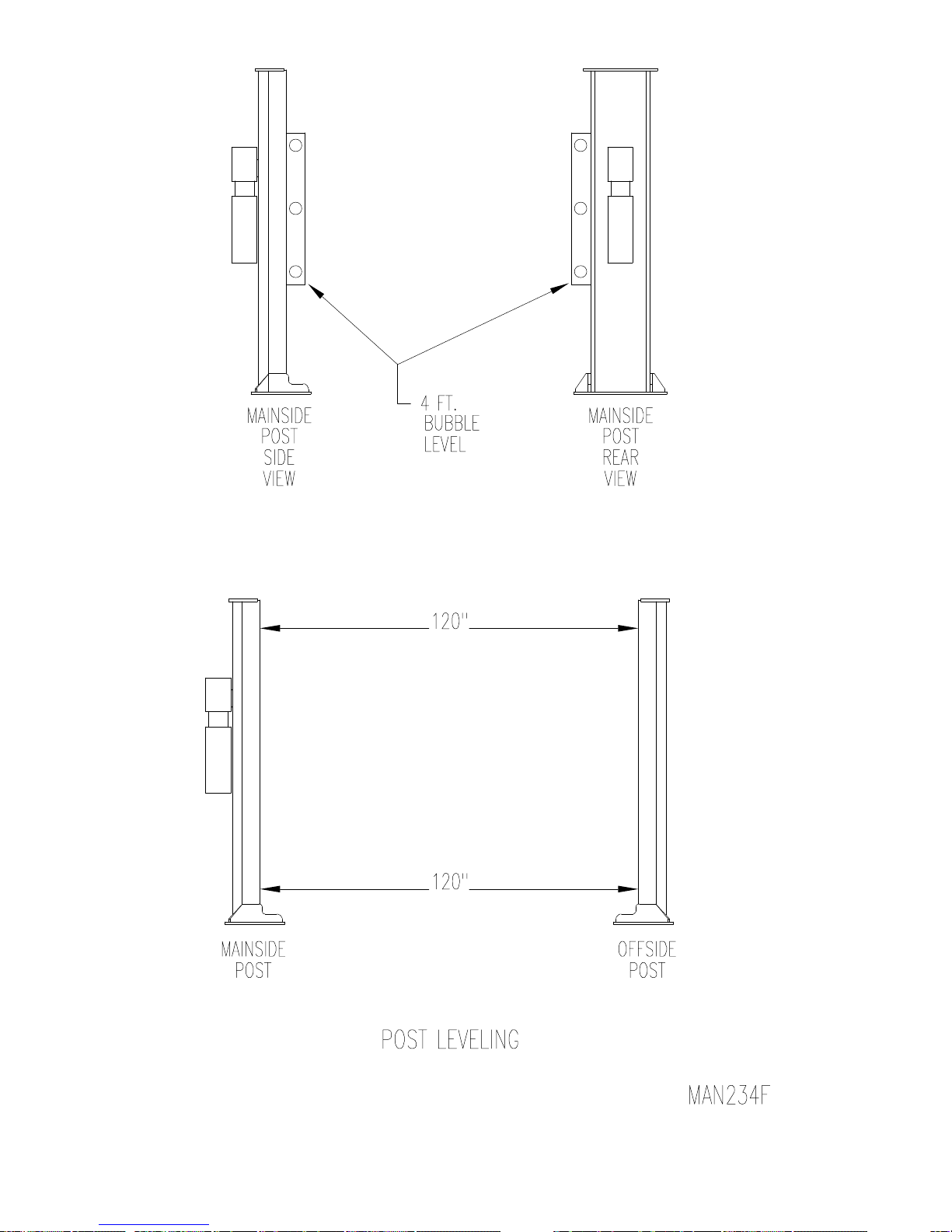

POST-LEVELING 5 21
POST-SHIMMING 6 22
ADJUSTING CARRIAGE NUTS 7 23
CENTERING VEHICLE 8 24
UNEVEN FLOORS 9 25
SPECIAL LIFTING PADS 10 26
POWER UNIT 11-11A 27-28
RELIEF VALVE ADJUSTMENT PROCEDURE 12 29
ELECTRICAL SCHEMATIC 13 30

PARTS

FIGURE PAGE

ISOMETRIC FINAL ASSEMBLY MAN450 32
MAIN SIDE ASSEMBLY MAN450-A 33
OFF SIDE ASSEMBLY MAN450-B 34
HYDRAULIC SYSTEM MAN451 35
CARRIAGE ASST & ARM LOCK MAN502 36
LATCH BODY ASSEMBLY MAN503 37
DIVERTER VALVE ASSEMBLY MAN504 38

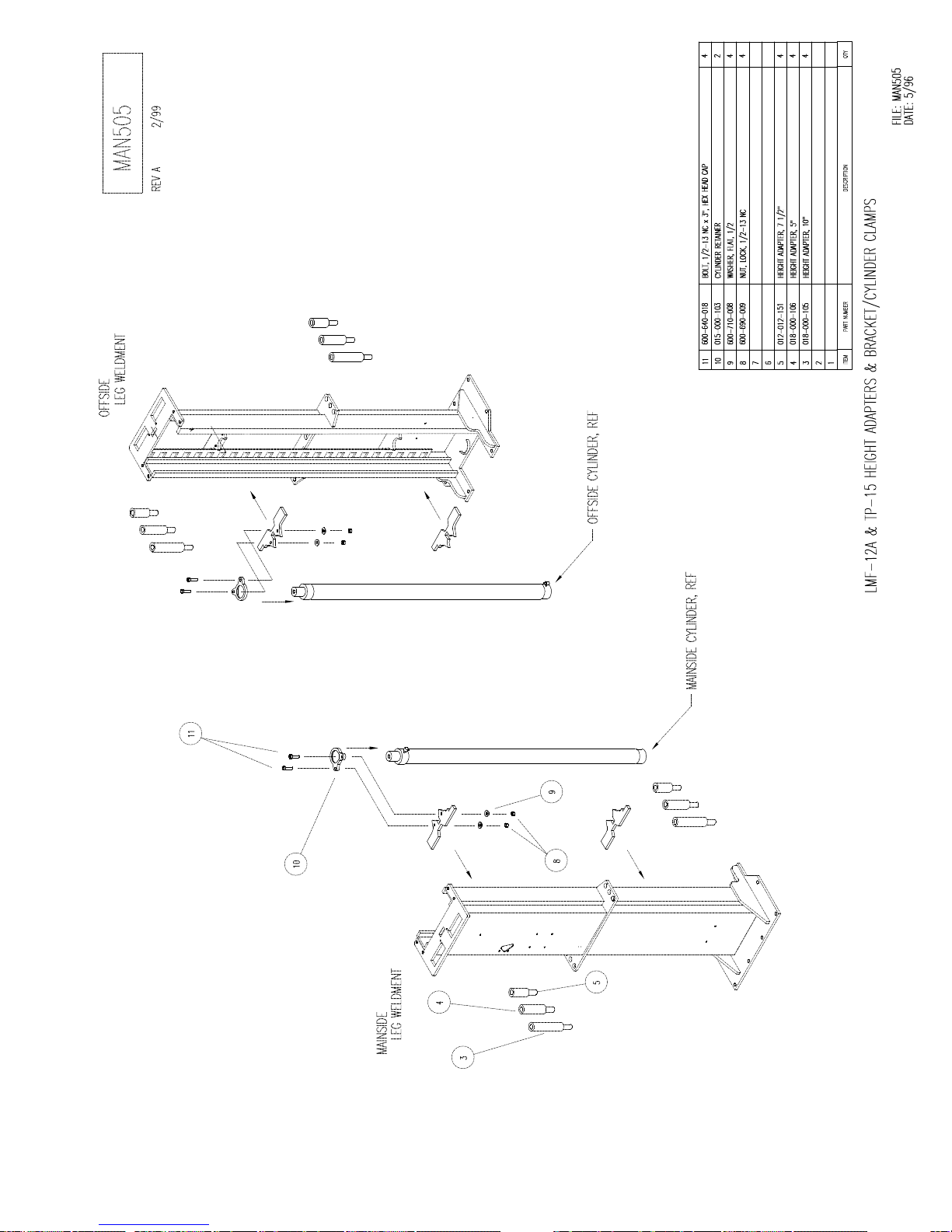

HEIGHT ADAPTER & BRACKET / CYLINDER CLAMPS MAN505 39

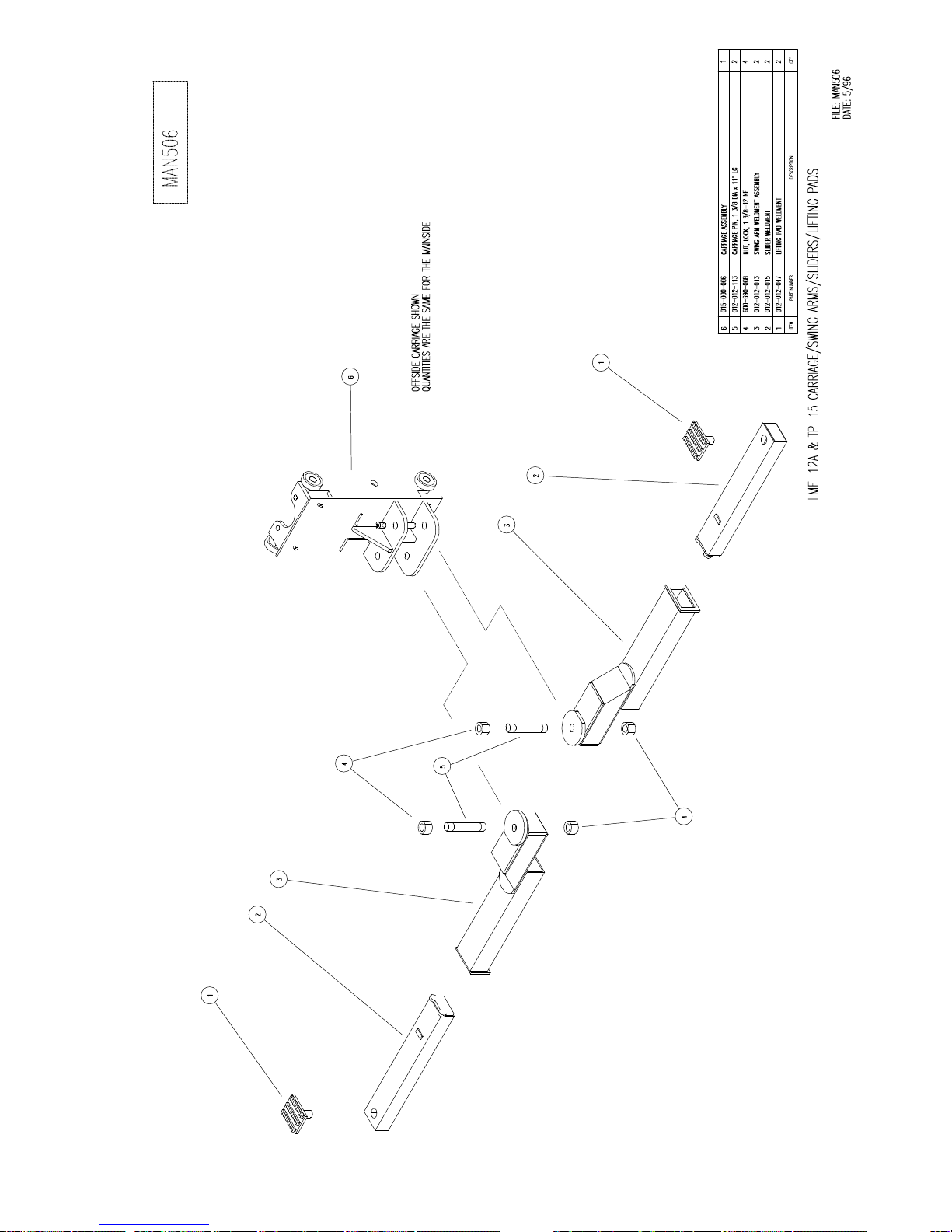

CARRIAGE / SWING ARMS / SLIDERS / LIFTING PADS MAN506 40
LEG WELDMENT / LINE SUPPORTS / CARRIAGE STOPS MAN507 41

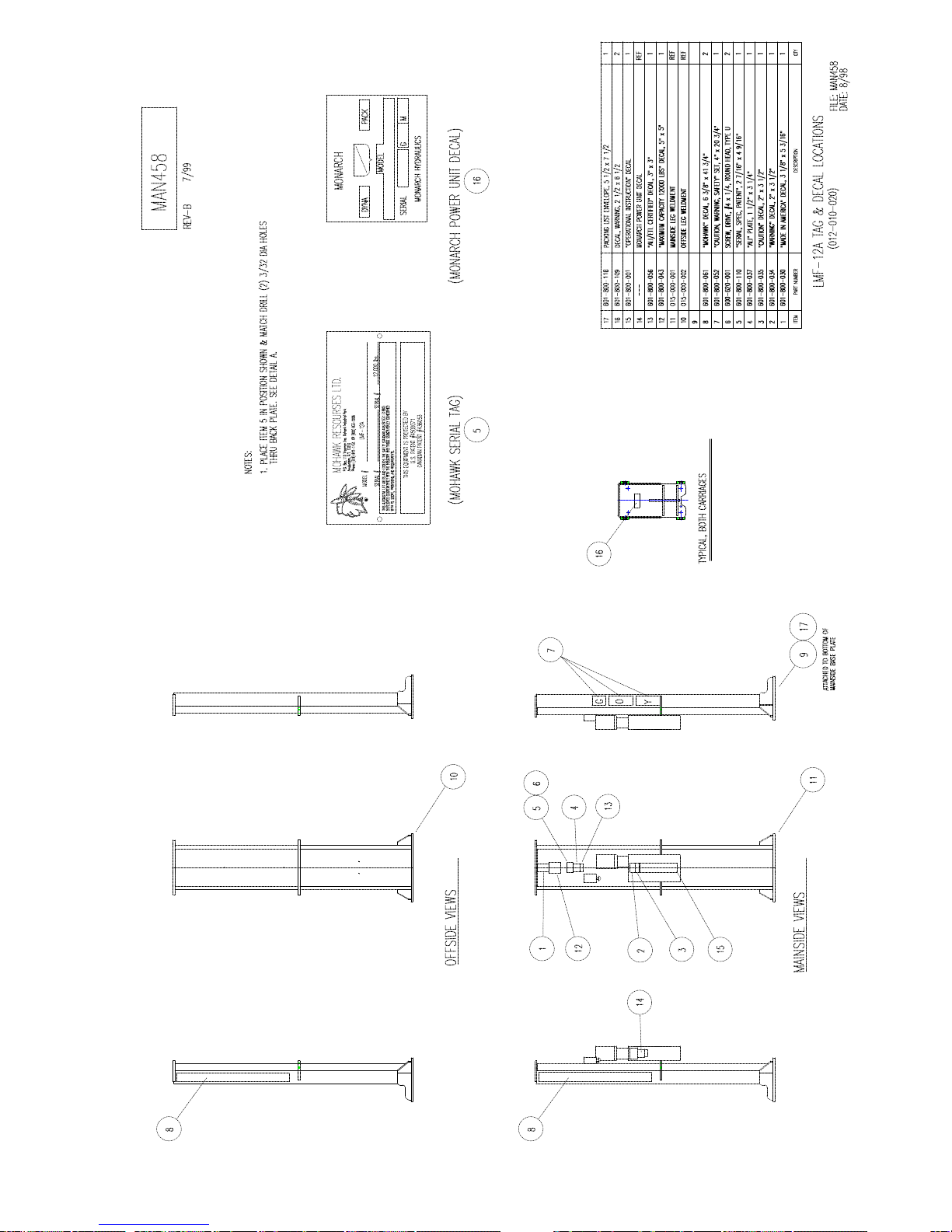

TAG & DECAL LOCATIONS MAN508 42

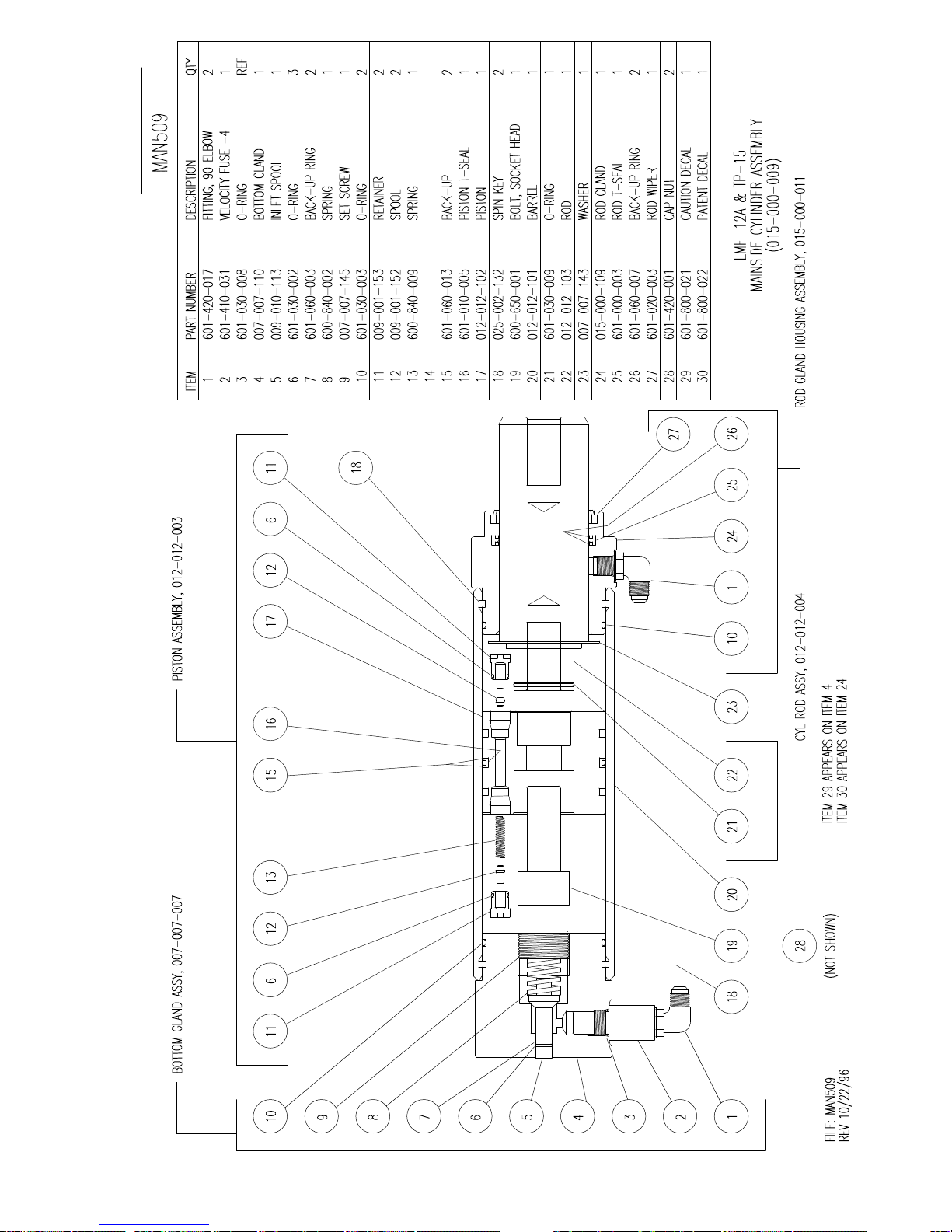

MAIN SIDE CYLINDER ASSEMBLY MAN509 43
OFF SIDE CYLINDER ASSEMBLY MAN510 44
SMALL PARTS BAG MAN511 45

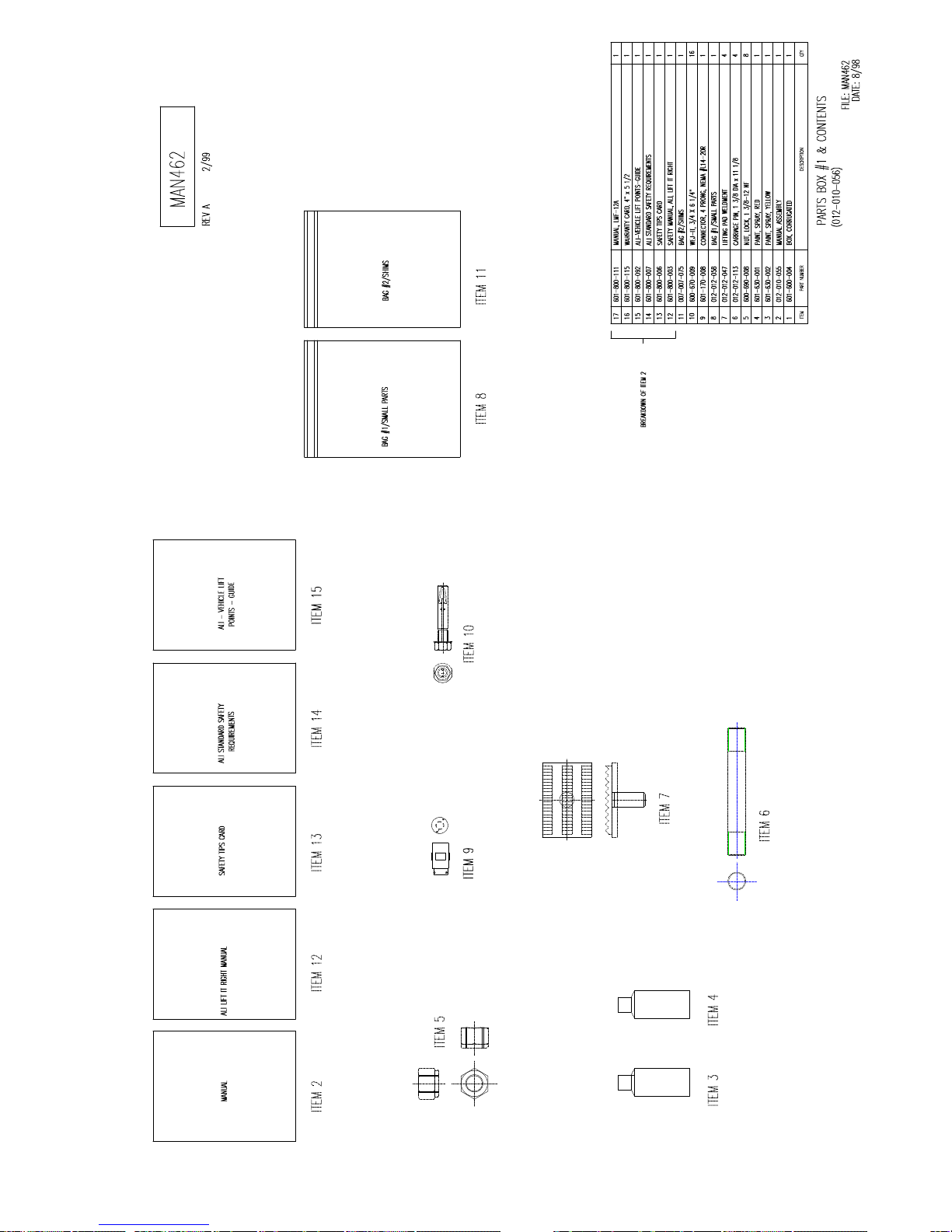

PARTS BOX #1 MAN462 46
PARTS BOX #2 MAN513 47

NEW SLAB RECOMMENDATIONS

PAGE

NEW SLAB RECOMMENDATIONS 48-51
ALI WARNING, CAUTION AND SAFETY MESSAGES 52-53

ALL INFORMATION, ILLUSTRATIONS, AND SPECIFICATIONS IN THIS MANUAL ARE BASED ON THE LATEST PRODUCT INFORMATION
AVAILABLE AT THE TIME OF PRINTING. WE RESERVE THE RIGHT TO MAKE CHANGES AT ANY TIME WITHOUT NOTICE.

MOHAWK MODEL LMF

-12 2

APPENDAGES

RECOMMENDATIONS BY THE INDIVIDUAL USER OR USING
ORGANIZATION FOR IMPROVING THIS PUBLICATION OR ANY
ASPECT OF THE PRODUCT ARE ENCOURAGED AND SHOULD BE
FORWARDED IN WRITING TO:

MOHAWK RESOURCES LTD.

PRODUCT IMPROVEMENTS
65 VROOMAN AVE.

AMSTERDAM, NY, 12010

THIS IS NOT A VEHICLE LIFTING PROCEDURE MANUAL AND NO
ATTEMPT IS MADE OR IMPLIED HEREIN TO INSTRUCT THE USER
IN LIFTING METHODS PARTICULARLY TO THE INDIVIDUAL
APPLICATION OF THE EQUIPMENT DESCRIBED IN THIS MANUAL.
RATHER, THE CONTENTS OF THIS MANUAL ARE INTENDED AS A
BASE LINE FOR OPERATION, MAINTENANCE, TROUBLE
SHOOTING, AND PARTS LISTING OF THE UNIT AS IT STANDS
ALONE AND AS IT IS INTENDED AND ANTICIPATED TO BE USED
IN CONJUNCTION WITH OTHER EQUIPMENT.

PROPER APPLICATION OF THE EQUIPMENT DESCRIBED HEREIN
IS LIMITED TO THE PARAMETERS DETAILED IN THE
SPECIFICATIONS AND THE USES SET FORTH IN THE
DESCRIPTIVE PASSAGES. ANY OTHER PROPOSED APPLICATION
OF THIS EQUIPMENT SHOULD BE DOCUMENTED AND
SUBMITTED IN WRITING TO MOHAWK RESOURCES LTD. FOR
EXAMINATION. THE USER ASSUMES FULL RESPONSIBILITY FOR
ANY EQUIPMENT DAMAGE, PERSONAL INJURY, OR ALTERATION
OF THE EQUIPMENT DESCRIBED IN THIS MANUAL OR ANY
SUBSEQUENT DAMAGES.

DO NOT WELD, APPLY HEAT, OR MODIFY THIS EQUIPMENT IN ANY
MANNER WITHOUT WRITTEN AUTHORIZATION FROM MOHAWK

RESOURCES LTD. CERTAIN ALLOY OR HEAT-TREATED

COMPONENTS MAY BE DISTORTED OR WEAKENED, RESULTING IN
AN UNSAFE CONDITION.

MOHAWK RESOURCES LTD. IS NOT RESPONSIBLE FOR

DISTORTIONS, WHICH RESULT FROM WELDING ON THIS
EQUIPMENT AFTER MANUFACTURING IS COMPLETED.
UNAUTHORIZED WELDING, APPLICATION OF HEAT, OR
MODIFICATION OF THIS EQUIPMENT VOIDS ANY AND / OR ALL
APPLICABLE WARRANTIES COVERING THIS EQUIPMENT.

ALL WARRANTIES APPLICABLE TO THIS EQUIPMENT ARE
CONTINGENT ON STRICT ADHERENCE TO THE MAINTENANCE
SCHEDULES AND PROCEDURES IN THIS MANUAL.

KEEP ALL SHIELDS AND GUARDS IN PLACE. INSURE ALL SAFETY
MECHANISMS ARE OPERABLE. KEEP HANDS, FEET, AND
CLOTHING AWAY FROM POWER-DRIVEN AND MOVING PARTS.

WARNING

• DO NOT INSTALL THIS UNIT IN A PIT OR DEPRESSION DUE

TO FIRE OR EXPLOSION RISK

IMPORTANT NOTE

A LEVEL FLOOR IS SUGGESTED FOR A PROPER INSTALLATION
SITE AND WILL ENSURE LEVEL LIFTING. SMALL DIFFERENCES
IN FLOOR SLOPES MAY BE COMPENSATED FOR WITH SPECIAL
LIFTING PADS. ANY MAJOR SLOPE CHANGES WILL AFFECT THE
LOW PROFILE HEIGHT OF THE LIFTING PADS AND / OR THE
UNITS LEVEL LIFTING PERFORMANCE. IF A FLOOR IS OF
QUESTIONABLE SLOPE, CONSIDER A SURVEY OF THE SIGHT
AND / OR THE POSSIBILITY OF POURING A NEW LEVEL
CONCRETE SLAB SECTION. SIMPLY STATED, FOR OPTIMUM
LEVEL LIFTING, THE EQUIPMENT, AT BEST, CAN LIFT ONLY AS

LEVEL AS THE FLOOR ON WHICH IT IS LOCATED... AND SHOULD
NOT BE EXPECTED TO COMPENSATE FOR DRASTIC FLOOR
SLOPE DIFFERENCES.

THIS EQUIPMENT MUST BE INSTALLED ON A LEVEL CONCRETE
FLOOR WITH A MINIMUM THICKNESS OF 6-1/2 INCHES THE
CONCRETE MUST BE AGED AT LEAST (28) TWENTY EIGHT DAYS
PRIOR TO INSTALLATION AND HAVE A MINIMUM COMPRESSIVE
STRENGTH OF 4000 P.S.I.

DO NOT INSTALL THIS UNIT ON ANY ASPHALT SURFACE.

DO NOT INSTALL THIS UNIT ON ANY SURFACE OTHER THAN
CONCRETE CONFORMING TO THE MINIMUM SPECIFICATIONS

STATED IN THE PRE-EXISTING FLOOR

REQUIREMENTS SECTION.

DO NOT INSTALL THIS UNIT ON EXPANSION SEAMS OR ON
CRACKED, DEFECTIVE CONCRETE. CHECK WITH BUILDING
ARCHITECT.

DO NOT INSTALL THIS UNIT ON A SECOND FLOOR OR ANY
GROUND FLOOR WITH A BASEMENT BENEATH WITHOUT
WRITTEN AUTHORIZATION FROM THE BUILDING ARCHITECT.

INSTALL THIS EQUIPMENT ON CONCRETE ONLY

IF, FOR ANY REASON, A NEW CONCRETE SLAB SECTION IS
REQUIRED, THE MINIMUM THICKNESS, COMPRESSIVE
STRENGTH, AND AGING ARE MANDATORY. FOR YOUR
PROTECTION, CERTIFIED STRENGTH DOCUMENTATION SHOULD
BE OBTAINED FROM THE FIRM WHO SUPPLIES THE CONCRETE
MIXTURE AT THE TIME OF THE POUR. SPECIAL CONSIDERATION
SHOULD BE MADE TO THE JOINING OF THE EXISTING FLOOR
AND THE NEW SECTION BEING ADDED. CHECK WITH BUILDING
ARCHITECT. THE SUGGESTED SIZE OF THE NEW CONCRETE

SLAB SECTION IS SHOWN IN THE NEW SLAB

RECOMMENDATIONS SECTION.

CAUTION

THE EQUIPMENT DESCRIBED IN THIS MANUAL COULD BE
POTENTIALLY DANGEROUS IF IMPROPERLY OR CARELESSLY
OPERATED. FOR THE PROTECTION OF ALL PERSONS AND
EQUIPMENT, ONLY COMPETENTLY TRAINED OPERATORS WHO
ARE CRITICALLY AWARE OF THE PROPER OPERATING
PROCEDURES, POTENTIAL DANGERS, AND SPECIFIC
APPLICATION OF THIS EQUIPMENT SHOULD BE ALLOWED TO
TOUCH THE CONTROLS AT ANY TIME.

SAFE OPERATION OF THIS EQUIPMENT IS DEPENDENT ON USE,
IN COMPLIANCE WITH THE OPERATION PROCEDURES OUTLINED
IN THIS MANUAL ALONG WITH THE MAINTENANCE AND
INSPECTION PROCEDURES WITH CONSIDERATION OF
PREVAILING CONDITIONS.

THE EQUIPMENT DESCRIBED IN THIS MANUAL IS NEITHER
DESIGNED NOR INTENDED FOR ANY APPLICATION ALONE OR IN
CONJUNCTION WITH ANY OTHER EQUIPMENT THAT INVOLVES
THE LIFTING OR MOVING OF PERSONS.

ALWAYS CONSULT THE VEHICLE LIFTING GUIDE FOR THE
PROPER LIFTING POINTS ON ANY VEHICLE. THESE GUIDES ARE
AVAILABLE FROM THE VEHICLE MANUFACTURERS.
AFTER LIFTING THE VEHICLE TO THE DESIRED HEIGHT,
ALWAYS LOWER THE UNIT ONTO THE MECHANICAL SAFETIES.
THE FORMING OF GOOD OPERATIONAL WORK HABITS WILL
ELIMINATE OVERSIGHTS IN THE USE OF PROVIDED SAFETY

DEVICES.

MOHAWK MODEL LMF

-12 3

LMF-12 SPECIFICATIONS

LIFT TYPE / TWO POST ELECTRIC /

GROSS LIFTING CAPACITY 12,000 LBS.
PER ARM CAPACITY 3,000 LBS.
LIFTING SPEED APPROX. 120 SECONDS
LIFTING HEIGHT 72 INCHES
OVERALL WIDTH 151-1/2 INCHES
WIDTH BETWEEN POST 120 INCHES
WIDTH BETWEEN LIFTING
ARMS
POST HEIGHT 104 INCHES
CYLINDER EXTENSION 162 INCHES
OVERHEAD HYDRAULIC LINES 180 INCHES
LIFTING PAD HEIGHT (MIN) 5 INCHES
LIFTING PAD HEIGHT (MAX) 87 INCHES
SHIPPING WEIGHT 3,100 LBS.

HYDRAULIC

102 –7/8 INCHES

POWER UNIT SPECIFICATIONS

BRAND NAME MONARCH
MODEL M-4509-0101
POWER UNIT TYPE VERTICAL
MOTOR VOLTAGE 208 / 230
F.L.A. AT RATED CAPACITY 17.4 / 14.6
MOTOR HORSEPOWER 2
MOTOR PHASE SINGLE
MOTOR CYCLE / HERTZ 60
MOTOR SPEED (R.P.M.) 3450
PUMP FLOW (G.P.M.) 2.39 @ 3450 R.P.M.
RELIEF VALVE SETTING 1650 P.S.I.
WORKING PRESSURE 1430 P.S.I.
RESERVOIR CAPACITY 5 GALLONS
HYDRAULIC FLUID MEDIUM DEXRON III

Performance Table

14000
12000
10000

8000
6000

Load (LBS)

4000
2000

0

0 500 1000 1500 2000

Pump Pressure (PSI)

LMF-12 SPECIFICATIONS

SUGGESTED SITE SELECTION / BAY SIZE

WIDTH DEPTH HEIGHT

15 FEET 30 FEET 15 FEET

THE PLACEMENT OF THE UNIT IS DETERMINED BY THE TYPE

(LENGTH, WIDTH, HEIGHT) OF VEHICLE BEING SERVICED.

WEJ-IT ANCHOR SPECIFICATIONS

LENGTH DRILL

6 1/4 IN. 6 1/4 IN. 3/4 IN. .775 IN. .787 IN. 80

PRE-EXISTING FLOOR REQUIREMENTS

MINIMUM

THICKNESS

6 - 1/2 IN 4000 P.S.I. 28 DAYS

DO NOT INSTALL ANY MOHAWK LIFT ON ANY SURFACE OTHER
THAN CONCRETE CONFORMING TO THE MINIMUM
COMPRESSIVE STRENGTH, MINIMUM AGING, AND THE
MINIMUM THICKNESS STATED ABOVE.

DO NOT INSTALL ANY MOHAWK LIFT ON EXPANSION SEAMS OR
ON CRACKED, OR DEFECTIVE CONCRETE.

DO NOT INSTALL ANY MOHAWK LIFT ON SECONDARY FLOOR
LEVELS OR ANY SURFACE WITH A BASEMENT BENEATH
WITHOUT WRITTEN AUTHORIZATION FROM THE BUILDING
ARCHITECT. NEVER HAND MIX YOUR OWN CONCRETE.

IF FOR ANY REASON A NEW CONCRETE SLAB SECTION IS
REQUIRED, FOLLOW THE INSTRUCTIONS FOR THE FLOOR
MODIFICATION DATA.

FLOOR MODIFICATION DATA

THICKNESS SLAB SIZE

12 INCHES 6 FT X 15 FT 2.1

IF, FOR ANY REASON, A NEW CONCRETE SLAB SECTION IS
REQUIRED, MINIMUM THICKNESS, COMPRESSIVE STRENGTH,
AND PROPER AGING IS MANDATORY.

THE NEW SLAB SECTION MUST BE TOTALLY SURROUNDED BY
AN EXISTING CONCRETE FLOOR THAT IS STRUCTURALLY
SOUND. CERTIFIED STRENGTH DOCUMENTATION SHOULD BE
OBTAINED FROM THE FIRM WHO SUPPLIES THE CONCRETE
MIXTURE AT THE TIME OF THE POUR.

NEVER HAND MIX THE CONCRETE. REFER TO NEW SLAB

RECOMMENDATIONS SECTION.

NOTE

DEPTH

DRILL

SIZE

DRILL SIZE

MIN. MAX.

MINIMUM COMPRESSIVE

STRENGTH

NEW FLOOR SECTION

WIDTH X LENGTH

TORQUE

MINIMUM

AGING

CUBIC

YARDS

MOHAWK MODEL LMF

-12 4

LMF-12 PACKING LIST

*** ALSO SEE DRAWINGS MAN511, MAN512, & MAN513 IN PARTS MANUAL ***

ORDER

NUMBER

623 007-007-075 SHIM BAG 1
040 012-012-047 LIFTING PAD 4
627 012-012-058 SMALL PARTS BAG 1
145 012-012-113 SWING ARM PIN 4
297 600-670-009 WEJ-IT ANCHOR (3/4 X 6 1/4) 16
482 600-690-008 LOCK NUT, 1-3/8-12 NF 8
460 601-170-008 HUBBLE CONNECTOR (FEMALE) 1
112 601-630-001 SPRAY PAINT (RED) 1
113 601-630-002 SPRAY PAINT (YELLOW) 1

012-010-055 MANUAL ASSEMBLY (INSTALLATION) 1

627 012-012-058 SMALL PARTS BAG CONTENTS
171 600-640-019 BOLT, 1/4-20 X 1-1/2 10
258 600-690-005 LOCK NUT, 1/4-20 NC 10
259 600-710-004 WASHER, 1/4 SAE FLAT 4
021 601-310-005 BREATHER CAP 1
094 601-420-011 FITTING, DOUBLE MALE UNION # 6 JIC 4
409 601-710-001 DOUBLE LINE CLIP 6

600-710-006 WASHER, FLAT, FENDER, 5/16 ID X 1 ½ OD 6

623 007-007-075 SHIM BAG CONTENTS

633 600-740-001 SHIM, 1/16 (BLUE) 8
634 600-740-002 SHIM, 1/8 (RED) 8
635 600-740-003 SHIM, 1/4 (BLACK) 8

012-012-057 PARTS BOX #2 CONTENTS

057 012-012-151 HEIGHT ADAPTER (7 1/2 INCH) 4
047 018-000-105 HEIGHT ADAPTER (10 INCH) 4
046 018-000-106 HEIGHT ADAPTER (5 INCH) 4

PART

NUMBER

012-012-056 PARTS BOX #1CONTENTS

PART

DESCRIPTION

QTY.

1

MOHAWK MODEL LMF

-12 5

RECOMMENDED TOOL LIST

SIZE / QTY DESCRIPTION USED IN

1 - 1/8 IN WRENCH & SOCKET WEJ-IT ANCHORS

15 / 16 IN WRENCH & SOCKET CARRIAGE STOPS

11/16 IN WRENCH HYDRAULIC LINES

5/8 IN WRENCH HYDRAULIC LINES
1/2 IN WRENCH & SOCKET BACK BOARD / CYLINDER RETAINER

7/16 IN WRENCH SWING ARM RESTRAINT ASSEMBLIES

1 RATCHET WRENCH AS NEEDED
1 SNAP RING PLIERS SWING ARM PINS
1 VICE GRIPS AS NEEDED
1 CRESCENT WRENCH AS NEEDED
1 4 FT BUBBLE LEVEL VERIFY LEVEL ASSEMBLY
1 PRY BAR MOVING HEAVY ITEMS
1 TIN SNIPS PACKAGING BANDING
1 CHALK LINE FLOOR LAYOUT
1 SOAP STONE FLOOR LAYOUT
1 25 FT TAPE MEASURE FLOOR LAYOUT / SQUARING POST
1 MEDIUM HAMMER WEJ-IT ANCHORS
1 HAMMER DRILL DRILLING CONCRETE
1 DRILL BIT (3/4 INCH) DRILLING CONCRETE

1 TON LIFTING DEVICE LIFTING / MOVING HEAVY ITEMS

8 FT STEP LADDER ASSEMBLE ELEVATED ITEMS

100 FT LEAD CORD OPERATE ELECTRICAL TOOLS

MOHAWK MODEL LMF

-12 6

MAKE SURE THE CONCRETE IS SOLID WHEN DRILLING.

CRACKS AND EXPANSION SEAMS REDUCE THE

IT ANCHOR. NEVER INSTALL

INCH HOLES ON THE OUTSIDE OF THE MAIN

SIDE POST USING THE HOLES AT THE BASE OF THE POST AS A

IT ANCHOR 2 TO 3

BETWEEN THE MAIN AND

INCH HOLES ON THE OUTSIDE OF THE OFF

SIDE POST USING THE HOLES AT THE BASE OF THE POST AS A

3

BEFORE INSTALLING A LIFT

IMPORTANT

BEFORE INSTALLING A MOHAWK LIFT THERE ARE A FEW ITEMS THAT MUST BE INSPECTED. EACH REPAIR SHOP BAY IS DIFFERENT. IN
AN ATTEMPT TO PREVENT OVERSIGHTS, ALL OF THE FOLLOWING INFORMATION IS TO BE VERIFIED.

OVERHEAD OBSTRUCTIONS

THE AREA WHERE THE LIFT WILL BE LOCATED SHALL BE FREE
OF OBSTRUCTIONS. HEATERS, BUILDING SUPPORTS,
ELECTRICAL CONDUIT; ALL OF THESE ITEMS ARE TO BE
TWELVE FEET ABOVE THE BAY FLOOR. SEE FIGURE 1 & 8.

DEFECTIVE CONCRETE

VISUALLY INSPECT THE BAY FLOOR AREA. THE UNIT CANNOT
BE INSTALLED ON EXPANSION SEAMS, OR CONCRETE THAT IS
CRACKED. THE UNIT IS ONLY AS STRONG AS THE FLOOR IT IS
INSTALLED ON.

FLOOR REQUIREMENTS

THIS INFORMATION IS IN THE GENERAL FLOOR REQUIREMENTS.
IF THE BAY FLOOR DOES NOT CONFORM TO THESE
SPECIFICATIONS, REFER TO THE “NEW SLAB
RECOMMENDATIONS” SECTION IN THIS MANUAL.

LOCATE THE MAIN SIDE POST ON THE HIGH SIDE OF THE FLOOR
IF A SLOPE IS NOTED. REFER TO FIGURE 9.

POWER SUPPLY

THE STANDARD POWER UNIT IS 220-VOLT SINGLE PHASE. REFER
TO THE POWER UNIT SPECIFICATIONS SECTION. REQUIREMENTS
MAY VARY ON SPECIAL ORDERS.

THE MAIN SIDE POST WILL REQUIRE THE POWER SUPPLY FOR
THE UNIT. NOTE THE LOCATION OF THE POWER SUPPLY.

BAY SIZE

TO OPTIMIZE SHOP SPACE, IT IS ADVISED TO LOCATE A VEHICLE
IN THE BAY PRIOR TO LAYOUT. NOTE WALKWAY’S OVERHEAD
OBSTRUCTIONS, AND ABILITY TO MOVE EQUIPMENT IN THE
BAY AREA. REFER TO FIGURE 1 & 8.

REQUIREMENTS MAY VARY ON SPECIAL ORDERS.

SPECIFICATIONS

REFERENCE ALL SPECIFICATIONS PRIOR TO INSTALLING A LIFT.

WARNING

BEFORE DRILLING THE MOUNTING HOLES

• REFERENCE ALL FIGURES PERTAINING TO DRILLING, WEJ -IT

WARNINGS, AND INSTALLATION INSTRUCTIONS. REFER TO

FIGURES 3 & 4.

• CHECK THE INSIDE DIMENSIONS OF THE POST AT THE

BOTTOM FROM THE FACE OF THE MAIN SIDE POST TO THE
FACE OF THE OFF SIDE POST. THE INSIDE DIMENSION IS 120
INCHES.

• USE A SHARP DRILL BIT TO PREVENT DRILLING AN

UNDERSIZED HOLE. DRILL THE HOLE EQUAL TO THE LENGTH
OF THE WEJ-IT ANCHOR. BLOW OUT THE HOLE WITH SHOP
AIR, OR VACUUM. INSERT THE WEJ-IT ANCHOR SO THAT THE
WASHER RESTS AGAINST THE POST FOOTING. TIGHTEN THE
NUT 2 TO 3 FULL TURNS. (60 TO 80 FOOT POUNDS)

• NEVER USE AN IMPACT TOOL TO TIGHTEN THE WEJ-IT

ANCHORS. USE A TORQUE WRENCH ONLY.

•

EFFECTIVENESS OF THE WEJ­THE ANCHOR UNDER THESE CONDITIONS.

• DRILL EIGHT 3/4 -

GUIDE. INSERT AND TIGHTEN THE WEJ­FULL TURNS. (60 TO 80 FOOT POUNDS)

• INSURE THE INSIDE DIMENSIONS

OFF SIDE POST IS STILL CORRECT. 120 INCHES.

• DRILL EIGHT 3/4-

GUIDE. INSERT AND TIGHTEN THE WEJ-IT ANCHOR 2 TO
FULL TURNS. (60 TO 80 FOOT POUNDS)

MOHAWK MODEL LMF

-12 7

INSTALLATION INSTRUCTIONS

IMPORTANT

READ THIS MANUAL IN ITS ENTIRETY. BE FAMILIAR WITH PART NAMES AND HAVE A GOOD UNDERSTANDING

OF HOW THIS UNIT IS TO BE ASSEMBLED AND OF HOW INDIVIDUAL

PARTS OPERATE, BEFORE ASSEMBLING THE UNIT.

USING A CHALK LINE, LAYOUT THE FLOOR DIMENSIONS WHERE
THE UNIT WILL BE LOCATED. REFER TO FIGURES 1 & 8.

CUT THE SWING ARM BANDING AND REMOVE THE SWING
ARMS.

SECURE THE OVERHEAD LIFTING DEVICE TO THE MAIN SIDE
POST USING STRAPS OR CHAINS.

WARNING

• EACH POST WEIGHS OVER 900 LBS. ERECT THE POSTS WITH

CHAINS AND STRAPS ATTACHED TO THE TOP OF THE POST.
DO NOT REMOVE THE CHAINS AND STRAPS UNTIL THE
POST HAS BEEN SECURED.

SEPARATE THE POSTS. REMOVE THE PARTS BOX, HYDRAULIC
LINES AND SUPPORTS. VERIFY PARTS BOX CONTENTS. IF
MISSING PARTS ARE NOTED, THEY CAN BE OBTAINED BY
CALLING 1-800-833-2006 OR BY CONTACTING YOUR LOCAL
MOHAWK DISTRIBUTOR.

USING THE 5/8-INCH PACKING BOLTS, NUTS AND WASHERS,
ASSEMBLE THE CARRIAGE STOPS TO THE TOP OF THE MAIN
SIDE POST. TIGHTEN TO 150 FOOT POUNDS. REFER TO FIGURE 2.

ERECT THE MAIN AND OFF SIDE POSTS TO THE UP-RIGHT
POSITION. ALIGN THE POST FOOTINGS TO THE CHALK LINE
LAYOUTS.

SECURE THE MAIN AND OFF SIDE POSTS TO THE BAY FLOOR
USING THE (16) 3/4 X 5 1/2 INCH WEJ-IT ANCHORS. REFER TO
“BEFORE DRILLING THE MOUNTING HOLES“ SECTION.

USING THE 5/8-INCH PACKING BOLTS, NUTS AND WASHERS,
ASSEMBLE THE CARRIAGE STOPS TO THE TOP OF THE OFF SIDE
POST. TIGHTEN TO 150 FOOT POUNDS. REFER TO FIGURE 2.

ASSEMBLE THE TWO OVERHEAD HYDRAULIC LINES (FLAT ON
THE FLOOR) USING THE FOUR DOUBLE MALE UNIONS. SEE

MAN501.

ASSEMBLE TWO OF THE DOUBLE LINE CLIPS TO THE CENTER
SPAN OF THE OVERHEAD LINES APPROXIMATELY 3 INCHES
FROM THE DOUBLE UNIONS.

ASSEMBLE THE TWO OVERHEAD LINE SUPPORT BRACKETS TO
THE TOP OF THE MAIN AND OFF SIDE POST.

ERECT THE OVERHEAD HYDRAULIC LINE ASSEMBLIES. ROUTE
THE LINES THROUGH THE TOP OF EACH POST. ASSEMBLE THE
LINES TO THE HYDRAULIC CONNECTIONS AT THE TOP OF EACH
POST.

SECURE THE LINES TO THE OVERHEAD LINE SUPPORTS USING
THE TWO DOUBLE LINE CLIPS.

REMOVE THE BREATHER PORT PLUG ON THE POWER UNITS
RESERVOIR AND DISCARD. REFER TO FIGURE 11.

VERIFY FLUID LEVEL. (1/2 IN. BELOW BREATHER PORT IN THE
POWER UNIT RESERVOIR WHEN BOTH CYLINDERS ARE FULLY
RETRACTED) INSTALL THE BREATHER CAP.

AT THIS TIME HAVE A QUALIFIED ELECTRICIAN

CONNECT THE POWER SUPPLY TO THE UNIT

ENGAGE THE UP BUTTON ON THE POWER UNIT AND RAISE THE
CARRIAGES APPROX. 3 FEET, OR TO A HEIGHT SUITABLE FOR
INSTALLING THE SWING ARMS.

REMOVE & REASSEMBLE THE FOUR SWING ARM RESTRAINTS
ONTO THE MAIN AND OFF SIDE CARRIAGES. REFER TO MAN502.

LIFTING UP ON THE SWING ARM RESTRAINT. INSERT THE FOUR
SWING ARMS INTO THE CARRIAGES. REFER TO MAN506.

ALIGN THE THROUGH HOLES IN THE CARRIAGES WITH THE
THROUGH HOLES IN THE SWING ARMS. SECURE THE SWING
ARMS TO THE CARRIAGES USING THE FOUR SWING ARM PINS
AND EIGHT NYLON LOCK NUTS.

PLACE THE FOUR LIFTING PADS INTO PLACE IN THE MOUNTING
HOLE AT THE END OF EACH SLIDER. REFER TO MAN506.

MOHAWK MODEL LMF

-12 8

INSTALLATION INSTRUCTIONS

BLEEDING PROCEDURE

ENGAGE THE UP BUTTON ON THE POWER UNIT. OBSERVE THE
CARRIAGE. WHEN THE MAIN AND OFF SIDE CARRIAGES HAVE
REACHED FULL HEIGHT CONTINUE TO RUN THE UNIT FOR TWO
MINUTES. (THIS WILL PURGE THE AIR FROM THE HYDRAULIC
SYSTEM)

NOTE

• LISTEN FOR THE PRESSURE RELIEF VALVE. A NOTICEABLE

INCREASE IN POWER UNIT VOLUME THIS MAY INDICATE
THAT THE NUTS ON THE LIFTING RODS NEED TO BE
ADJUSTED. ADJUST THE NUTS EVENLY ON BOTH SIDES OF
THE CARRIAGE TO ALLOW THE CYLINDERS TO FULLY
STOKE AT THE TOP.

ASSEMBLE THE TWO HEIGHT ADAPTERS BRACKETS TO THE
BACK OF THE MAIN AND OFF SIDE POST USING THE FOUR 5/16
BOLT, WASHER & NYLON LOCK NUTS. REFER TO MAN505

PLACE THE FOUR 5 INCH., 7 ½ INCH AND 10 INCH HEIGHT
ADAPTERS INTO PLACE INTO THE HEIGHT ADAPTER BRACKETS.

SHIMMING THE POST

LEVEL THE POST BY INSERTING THE SUPPLIED SHIMS UNDER
THE POST FOOTING AROUND THE WEJ-IT ANCHOR. THE LIFT
MUST BE LEVEL BOTH FRONT TO REAR AND SIDE TO SIDE. A
LEVELING DEVICE AND A MEASURING TAPE MUST BE USED.

REFER TO FIGURES 5 & 6.

• LEVEL THE MAIN SIDE POST FRONT TO REAR AND SIDE -TO-

SIDE USING A BUBBLE LEVEL.

• LEVEL THE OFF SIDE POST FRONT TO REAR USING A

BUBBLE LEVEL. SET THE POST PARALLEL TO THE MAIN
SIDE POST USING A MEASURING TAPE, MEASURING FROM
THE EDGE OF THE MAIN SIDE CHANNEL TO THE EDGE OF
THE OFF SIDE CHANNEL AT THE BASE AND AT THE TOP OF
THE POST.

• THE MEASUREMENT AT THE TOP OF THE POST MUST BE

THE SAME AS THE MEASUREMENT AT THE BASE OF THE
POST.

AT THIS TIME PERFORM THE PRE-OPERATION CHECK LIST AND
MAINTENANCE PROCEDURES (DAILY - WEEKLY - MONTHLY)
MAKE ALL ADJUSTMENTS PERTAINING TO THESE PROCEDURES.

DIVERTER VALVE OPERATION

WARNING

AS WITH ALL FUNCTIONS OF THE LIFT UNIT, NEVER OPERATE
THE DIVERTER VALVE UNLESS YOU HAVE FIRST PERFORMED
THIS OPERATION WITH NO VEHICLE, AND FULLY UNDERSTAND
ITS FUNCTIONS.

BOTH MECHANICAL SAFETIES MUST BE ENGAGED BEFORE
OPERATING THE DIVERTER VALVE.

PURPOSE

• THE PURPOSE OF THE DIVERTER VALVE IS TO ENABLE THE

OPERATOR TO RAISE OR LOWER THE OFF SIDE CARRIAGE
INDEPENDENTLY OF THE MAIN SIDE CARRIAGE.

TO OPERATE THE DIVERTER VALVE

ENGAGE THE DIVERTER VALVE BY PULLING DOWN ON THE
DIVERTER VALVE PULL KNOB. REFER TO MAN504

• THIS WILL DIVERT ALL FUNCTIONS OF THE POWER UNIT TO

THE OFF SIDE CYLINDER.

WITH THE VALVE ENGAGED, ENERGIZE THE POWER UNIT BY
PUSHING THE UP BUTTON.

WHEN THE DESIRED HEIGHT HAS BEEN ACHIEVED, RELEASE
THE DIVERTER VALVE PULL KNOB AND THE UP BUTTON.

PULLING DOWN ON THE LOWERING HANDLE, LOWER THE UNIT
ONTO BOTH MECHANICAL SAFETIES ENDING THIS PROCEDURE.

MOHAWK MODEL LMF

-12 9

SAFETY TIPS

PLEASE POST THE AUTOMOTIVE LIFT SAFETY TIPS CARD, (A COPY IS INCLUDED
IN THE PARTS BOX) WHERE THEY WILL BE CONSTANTLY REMINDED TO YOUR LIFT

OPERATOR. FOR INFORMATION SPECIFIC TO THE LIFT, ALWAYS REFER TO THE MOHAWK
MANUAL.

• INSPECT YOUR LIFT DAILY. NEVER OPERATE IT

IF IT MALFUNCTIONS OR IF IT HAS BROKEN OR
DAMAGED PARTS. REPAIRS SHOULD BE MADE
WITH ORIGINAL MOHAWK PARTS.

• OPERATING CONTROLS ARE DESIGNED TO

CLOSE WHEN RELEASED. DO NOT BLOCK OPEN
OR OVERRIDE THEM.

• NEVER OVERLOAD YOUR LIFT BEYOND

STATED LIFTING CAPACITY. RATED CAPACITY
IS SHOWN ON NAMEPLATE AFFIXED TO THE
LIFT.

• ONLY TRAINED AND AUTHORIZED PERSONNEL

SHOULD DO POSITIONING OF VEHICLE AND
OPERATION OF THE LIFT.

• DO NOT ALLOW CUSTOMERS OR BY - STANDERS

TO OPERATE THE LIFT OR TO BE IN A LIFTING
AREA DURING ITS OPERATION. ONLY
PROPERLY TRAINED PERSONNEL SHOULD BE
ALLOWED TO OPERATE LIFT.

• NEVER RAISE A VEHICLE WITH PERSONS

INSIDE.

• ALWAYS KEEP LIFT AREA FREE OF

OBSTRUCTIONS, DEBRIS, GREASE, AND OIL.

• PERFORM THE PRE-OPERATION CHECK LIST,

PER INSTRUCTIONS, BEFORE RAISING VEHICLE
TO DESIRED HEIGHT.

• BEFORE DRIVING VEHICLE INTO THE BAY,

POSITION ARMS AND SUPPORTS TO PROVIDE

UNOBSTRUCTED CLEARANCE. DO NOT HIT OR
RUN OVER LIFT ARMS, ADAPTERS, OR AXLE
SUPPORTS. THIS COULD DAMAGE LIFT OR
VEHICLE.

• LOAD VEHICLE ON LIFT CAREFULLY. POSITION

LIFT SUPPORTS TO CONTACT AT THE VEHICLE
MANUFACTURER’S RECOMMENDED LIFTING
POINTS. RAISE LIFT UNTIL SUPPORTS CONTACT
VEHICLE. CHECK SUPPORTS FOR SECURE
CONTACT WITH VEHICLE. RAISE LIFT TO

DESIRED WORKING HEIGHT. CAUTION: IF
YOU ARE WORKING UNDER VEHICLE, LIFT
SHOULD BE RAISED HIGH ENOUGH FOR
LOCKING DEVICE TO BE ENGAGED.

• NOTE THAT WITH SOME VEHICLES, THE

REMOVAL OR INSTALLATION OF COMPONENTS
MAY CAUSE A CRITICAL SHIFT IN THE CENTER
OF GRAVITY, AND RESULT IN RAISED VEHICLE
INSTABILITY. REFER TO THE VEHICLE
MANUFACTURER’S SERVICE MANUAL FOR
RECOMMENDED PROCEDURES WHEN VEHICLE
COMPONENTS ARE REMOVED.

• BEFORE LOWERING LIFT, BE SURE TOOL

TRAY’S, STANDS, ETC. ARE REMOVED FROM
UNDER VEHICLE. RELEASE LOCKING DEVICES
BEFORE ATTEMPTING TO LOWER LIFT.

• BEFORE REMOVING VEHICLE FROM THE LIFT

AREA, POSITION LIFT ARMS AND SUPPORTS TO
PROVIDE AN UNOBSTRUCTED EXIT.

MOHAWK MODEL L

MF-12

10

PRE - OPERATION CHECK LIST

TRAINED OPERATOR

• THE OPERATOR MUST BE FULLY TRAINED AND QUALIFIED

TO SAFELY AND EFFECTIVELY OPERATE THIS EQUIPMENT
OF THIS SPECIFIC MAKE AND MODEL.

ABSENCE OF OBSTRUCTIONS

• THE TOTAL WORK AREA MUST BE FREE OF ANY AND ALL

OBSTRUCTIONS AND BE GENERALLY CLEAN. (FREE OF OIL
AND DEBRIS)

VISUAL INSPECTION

• THOROUGHLY INSPECT THE UNIT WITH A TRAINED EYE,

NOTING ANY PROBLEM AREAS. INSPECT THE FLOOR AND
THE ANCHORING FASTENERS AS WELL. REPORT ANY
QUESTIONABLE ITEMS.

LIFTING PROCEDURES

OPERATION

• PERFORM PRE-OPERATION CHECK LIST ITEM BY ITEM.

• POSITION THE SWING ARM TO THE OUTSIDE OF THE UNIT.

• POSITION THE VEHICLE AS INDICATED BY THE MFG’S

RECOMMENDED LIFT POINTS. SEE ALI/LP-GUIDE.

NOTE

ALIGN THE VEHICLE’S CENTER OF GRAVITY WITH THE
CENTERLINE OF THE POSTS. THIS CAN BE VERIFIED BY VIEWING
THE CAM FOLLOWER BEARINGS ON THE CARRIAGE. THESE
BEARINGS ARE LOCATED AT EACH CORNER OF THE CARRIAGE.
CENTERING OF VEHICLE IS ACHIEVED WHEN ALL 4 CAM
FOLLOWER BEARINGS ARE FREE TO SPIN.

• PLACE THE LIFTING PADS PER MFG’S RECOMMENDED LIFT

POINTS. SEE ALI/LP-GUIDE.

TO RAISE

• ENGAGE THE UP-BUTTON ON THE POWER UNIT.

• RAISE VEHICLE TO THE DESIRED WORKING HEIGHT.

• LOWER THE UNIT ONTO THE MECHANICAL SAFETIES.

NO LOAD PERFORMANCE CHECK

• ALL MECHANICAL SAFETIES OPERATE PROPERLY AND

CONSISTENTLY.

• NO EXTERNAL FLUID LEAKS.

• NO BLEED DOWN.

• EFFORTLESS AND SIMULTANEOUS MOVEMENT.

• LEVEL LIFTING.

• CONTROLS FUNCTION PROPERLY.

• ALL SAFETY MECHANISMS FULLY FUNCTIONAL.

PREVIOUS DAY' S OPERATION REPORT

• VERIFY WITH SUPERVISOR THAT THERE WAS NO

PROBLEMS EXPERIENCED THE PREVIOUS DAY. IF THERE
WERE ANY PROBLEMS, VERIFY THAT ALL NECESSARY

REPAIRS HAVE BEEN COMPLETED.

TO LOWER

• INSPECT THE LIFTING AREA TO INSURE THAT ALL

PERSONNEL AND DEBRIS HAVE BEEN CLEARED FROM THE
LIFTING AREA.

• ENGAGE THE UP-BUTTON ON THE POWER UNIT.

• RAISE UNIT APPROXIMATELY TWO INCHES.

• DISENGAGE THE MECHANICAL SAFETIES.

• LOWER UNIT TO THE DESIRED WORKING HEIGHT.

• ALWAYS ENGAGE THE UP-BUTTON ON THE POWER UNIT

AND RAISE UNIT UNTIL BOTH MECHANICAL SAFETIES RE­ENGAGE.

• LOWER THE UNIT ONTO THE MECHANICAL SAFETIES.

• IF WORK IS COMPLETE, CONTINUE LOWERING THE

UNIT UNTIL BOTH CARRIAGES ARE FULLY LOWERED.

MOHAWK MODEL LMF

-12 11

MAINTENANCE PROCEDURES

QUALIFIED MAINTENANCE PERSONNEL ONLY

DAILY

• PERFORM THE PRE -OPERATION CHECK LIST.

• REPORT ANY AND ALL EQUIPMENT MALFUNCTIONS

IMMEDIATELY.

• CLEAN ALL MOVING PARTS. (IT IS NOT RECOMMENDED TO

GREASE THE INSIDE OF THE CHANNEL ON THE POST,
SWING ARMS OR SWING ARM RESTRAINTS.) IF
OXIDIZATION IS OCCURRING USE A LIGHT LUBRICANT. (WD

- 40 OR EQUIVALENT)

• KEEP AREA AROUND THIS EQUIPMENT FREE OF DIRT,

SAND, WATER, ETC.

WEEKLY

• PERFORM THE DAILY OPERATION CHECK LIST.

• WIPE CLEAN, THE CYLINDERS' WIPER SEALS AND THE BASE

OF EACH POST TO REMOVE ANY WEEPING OIL AND DUST.

• VERIFY FLUID LEVEL. WITH THE UNIT FULLY LOWERED,

THE FLUID LEVEL WILL BE 1/2 INCH BELOW THE BREATHER
CAP PORT. USE DEXRON III AS REPLACEMENT FLUID.

• LUBRICATE THE ARM RESTRAINT ASSEMBLIES AS NEEDED

TO INSURE FREE, AND SMOOTH OPERATION.

(DO NOT USE GREASE)

• CYCLE UNIT TO FULL HEIGHT, AND BLEED

APPROXIMATELY 30 SECONDS.

MONTHLY

• INSPECT LIFTING COMPONENTS FOR DEFORMATION, WEAR

OR CORROSION.

• INSPECT ALL HYDRAULIC COMPONENTS FOR LEAKS,

DEFORMATION, WEAR OR CORROSION.

• TIGHTEN ALL FASTENERS AND HYDRAULIC FITTINGS AS

REQUIRED.

1. ALL O - RING BOSS FITTINGS JAM NUTS ARE TO BE
TIGHTENED TO 15-FOOT POUNDS TORQUE.

2. ALL PIPE FITTINGS, IF LEAKING IS TO BE REMOVED,
RE-SEALED, AND RE - INSTALLED. (SELECT - UNITE
THREAD SEALANT OR EQUIVALENT ON FITTING
THREADS)

• INSPECT ANCHOR CONDITIONS FOR ANY POSSIBLE

CORROSION AND INSPECT THE FLOOR FOR ANY SIGNS OF
FATIGUE OR FRACTURES.

SEMI- ANNUAL TRAINING

• QUALIFY / RE-QUALIFY ALL PERSONNEL IN THE SAFE

OPERATION OF THIS UNIT.

ANNUALLY

• REPLACE AND RE -BLEED THE HYDRAULIC FLUID. ALWAYS

USE A CLEAN FUNNEL AND FILTER. USE DEXRON III
HYDRAULIC FLUID.

• INSPECT ALL BEARINGS FOR UNUSUAL OR EXCESSIVE

WEAR. (REPLACE IF NEEDED)

• REMOVE THE SWING ARM RESTRAINTS. THOROUGHLY

CLEAN. USE A LIGHT LUBRICANT (WD-40 OR EQUIVALENT)
REINSTALL. DO NOT USE GREASE.

• REMOVE THE SWING ARMS. THOROUGHLY CLEAN. USE A

LIGHT LUBRICANT (WD-40 OR EQUIVALENT) REINSTALL.
DO NOT USE GREASE.

• PERFORM THE DAILY, WEEKLY, AND MONTHLY

MAINTENANCE PROCEDURES.

MOHAWK MODEL LMF

-12 12

CYCLE THE LIFT UP AND DOWN FOUR TIMES WITHOUT

HYDRAULIC SAFETY CHECKS / TROUBLE SHOOTING

WARNING: NEVER ATTEMPT TO LOOSEN HYDRAULIC FITTINGS, OR OVERRIDE SAFETY

DEVICES IN AN ATTEMPT TO CORRECT A PROBLEM. ALL TESTS ARE TO BE PERFORMED
WITH NO VEHICLE.

NOTE: THE HYDRAULIC SAFETY CHECK IS TO BE PERFORMED WITH NO VEHICLE ON THE
UNIT. THE HYDRAULIC SYSTEM CHECKS WILL DETECT INTERNAL HYDRAULIC LEAKS.
CONTACT YOUR LOCAL MOHAWK DISTRIBUTOR OR THE MOHAWK FACTORY SERVICE
DEPARTMENT IF A CHECK SHOULD FAIL.

MAINSIDE SAFETY CHECK:

1. RAISE THE UNIT APPROXIMATELY 3 FEET

2. DISENGAGE THE OFFSIDE MECHANICAL SAFETY

3. LOWER THE UNIT ONTO THE MAINSIDE MECHANICAL

SAFETY

4. WHILE CONTINUING TO HOLD DOWN THE POWER UNIT

LOWERING HANDLE, OBSERVE THE OFFSIDE
CARRIAGE FOR MOVEMENT. THE UNIT HAS CHECK
OUT OK IF THERE IS NO MOVEMENT (OFFSIDE
CARRIAGE DOES NOT CONTINUE TO LOWER)

OFFSIDE SAFETY CHECK:

1. RAISE THE UNIT APPROXIMATELY 3 FEET

2. DISENGAGE THE MAINSIDE MECHANICAL SAFETY

3. LOWER THE UNIT ONTO THE OFFSIDE MECHANICAL

SAFETY

4. WHILE CONTINUING TO HOLD DOWN THE POWER UNIT

LOWERING HANDLE, OBSERVE THE MAINSIDE
CARRIAGE FOR MOVEMENT. THE UNIT HAS CHECK
OUT OK IF THERE IS NO MOVEMENT (MAINSIDE
CARRIAGE DOES NOT CONTINUE TO LOWER)

OFFSIDE CYLINDER / DIVERTER VALVE CHECK:
(TO BE PERFORMED WHEN OFFSIDE CYLINDER DRIFTS
DOWN)

1. RAISE THE UNIT APPROXIMATELY 3 FEET

2. DISENGAGE BOTH MECHANICAL SAFETIES

3. REMOVE THE BLEED LINE FROM THE TOP OF THE
OFFSIDE CYLINDER AND CAP USING MOHAWK PN #601­420-001.

4. IF THE OFFSIDE CYLINDER NO LONGER DRIFTS DOWN,
THEN THE OFFSIDE CYLINDER WILL NEED TO BE
SERVICED.

5. IF THE OFFSIDE CYLINDER CONTINUES TO DRIFT
DOWN, THEN THE DIVERTER PULL VALVE WILL NEED
TO BE SERVICED.

MAINSIDE CYLINDER PISTON CHECK:
(THIS CHECK IS TO BE PERFORMED AFTER ALL THE OTHER
HYDRAULIC SAFETY CHECKS HAVE BEEN PERFORMED)

1. RAISE A VEHICL E SO THAT ALL FOUR TIRES ARE OFF
THE FLOOR.

2. MEASURE AND RECORD THE CARRIAGE HEIGHTS ON
THE MAINSIDE AND OFFSIDE.

3.
GOING TO FULL HEIGHT OR LETTING THE VEHICLE
TIRES CONTACT THE FLOOR.

4. LOWER THE UNIT, STOPPING WHEN THE TIRES ARE AT
THE APPROXIMATE HEIGHT AT THE BEGINNING.

5. MEASURE MAINSIDE AND OFFSIDE CARRIAGE
HEIGHTS AGAIN.

6. THE CHECK HAS FAILED IF THE MEASUREMENTS
CHANGE MORE THAN ¼ INCH.
