Mofi Network RR User Manual

Zhibotong(ShenZhen)Electronics CO., Ltd

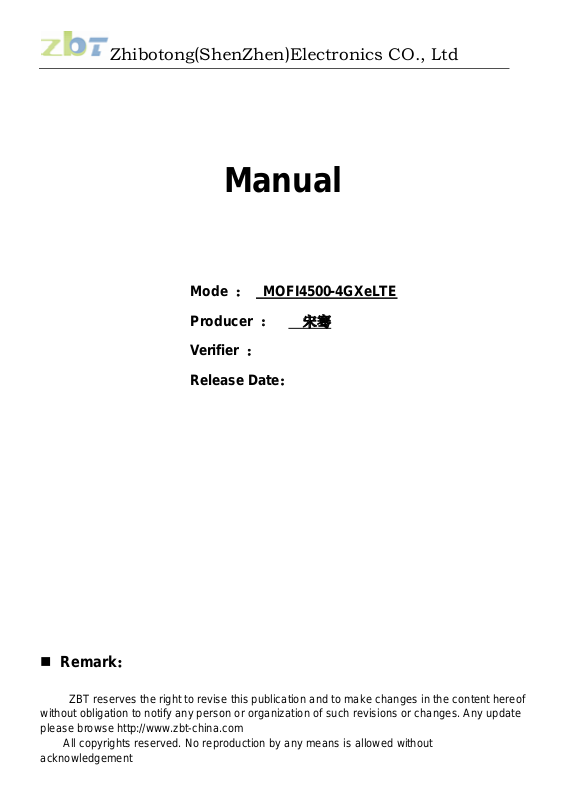

Manual
Mode MOFI4500-4GXeLTE
Producer 宋骞 Verifier Release Date
Remark
ZBT reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Any update please browse http://www.zbt-china.com All copyrights reserved. No reproduction by any means is allowed without
acknowledgement
Zhibotong(ShenZhen)Electronics CO., Ltd
Table of Contents
1. Product Overview
1.1 Simply Description………………………………………………………………
1.2 Main Feature.……………………………………………………………………
1.3 Specification……………………………………………………………………
2. Hardware Description
2.1 Product Appearance……………………………………………………………
2.1.1 Front Panel………………………………………………………………………………
2.1.2 Back Panel………………………………………………………………………………
2.2 Reboot……………………………………………………………………………
2.3 System Requirements…………………………………………………………
2.4 Install Condition………………………………………………………………
3. TCP/IP Setting
4. Configuration Guide
4.1 Start and Login …………………………………………………………………
4.2 Status………………………………………………………………………………
4.2.1 Overview…………………………………………………………………………………

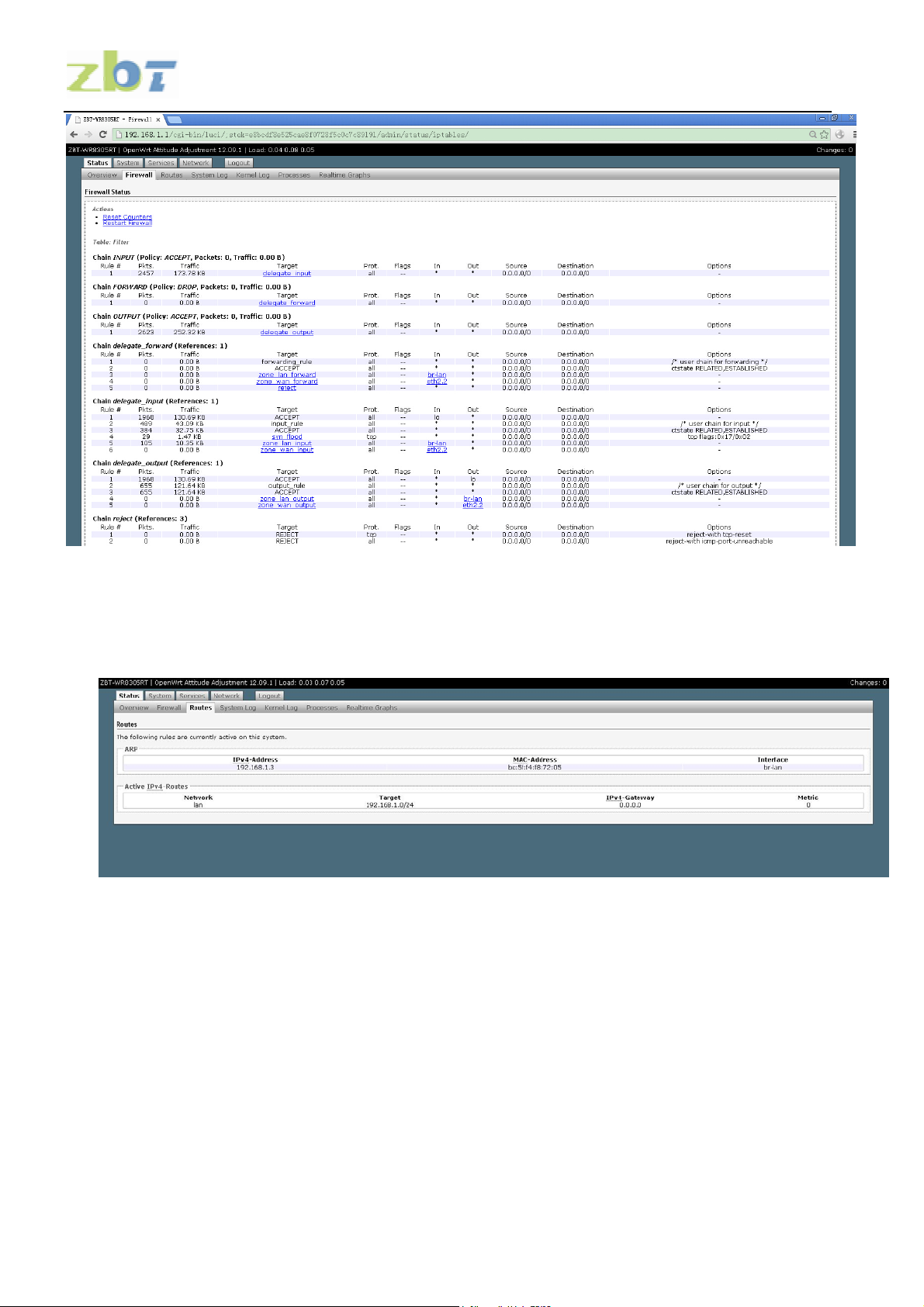

4.2.2 Firewall…………………………………………………………………………………
4.2.3 Routing List ……………………………………………………………………………
4.2.4 System Log ……………………………………………………………………………
4.2.5 Kernel Log………………………………………………………………………………

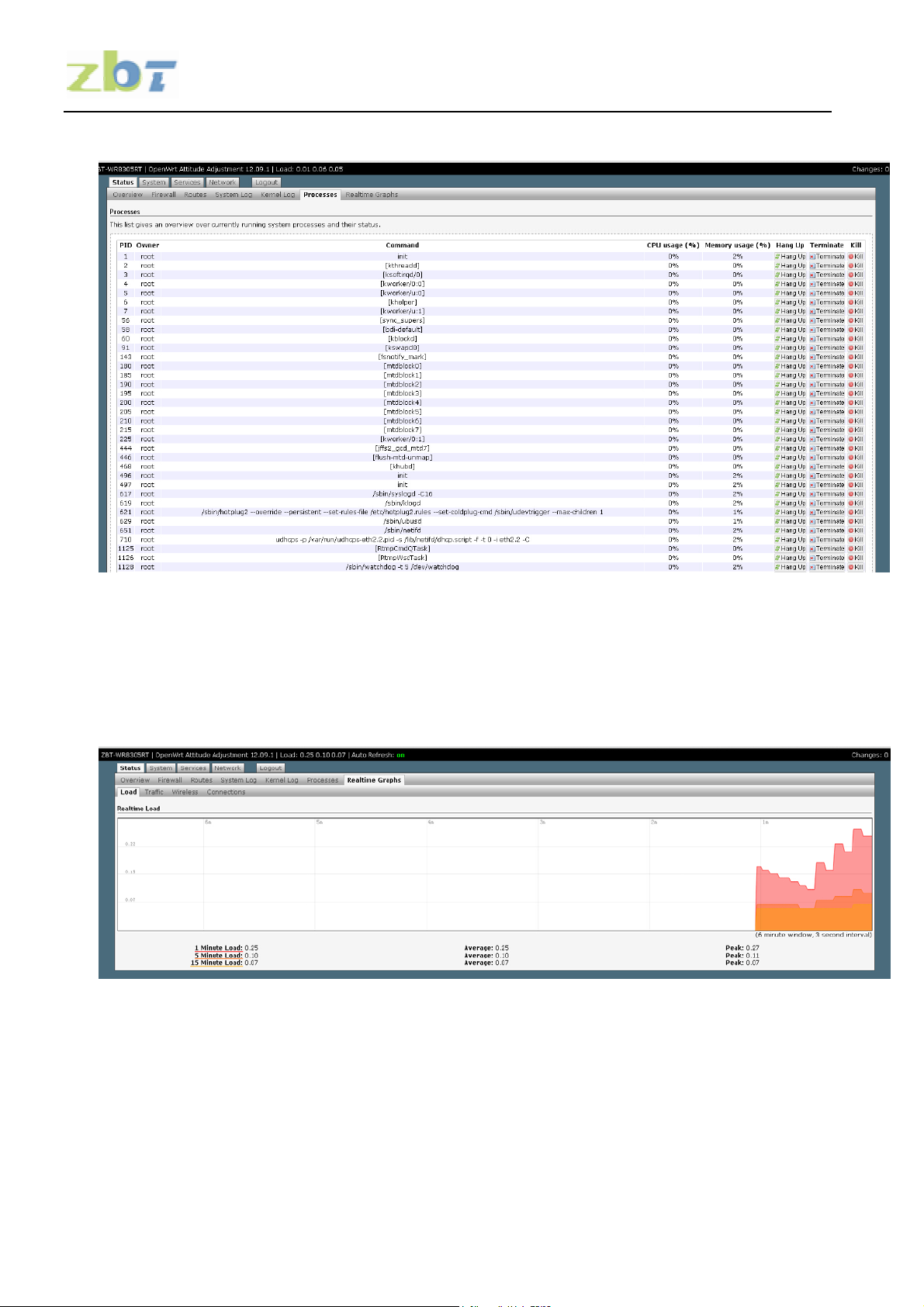

4.2.6 Processes………………………………………………………………………………
4.2.7 Realtime Graphs…………………………………………………………………………
4.3 System……………………………………………………………………………

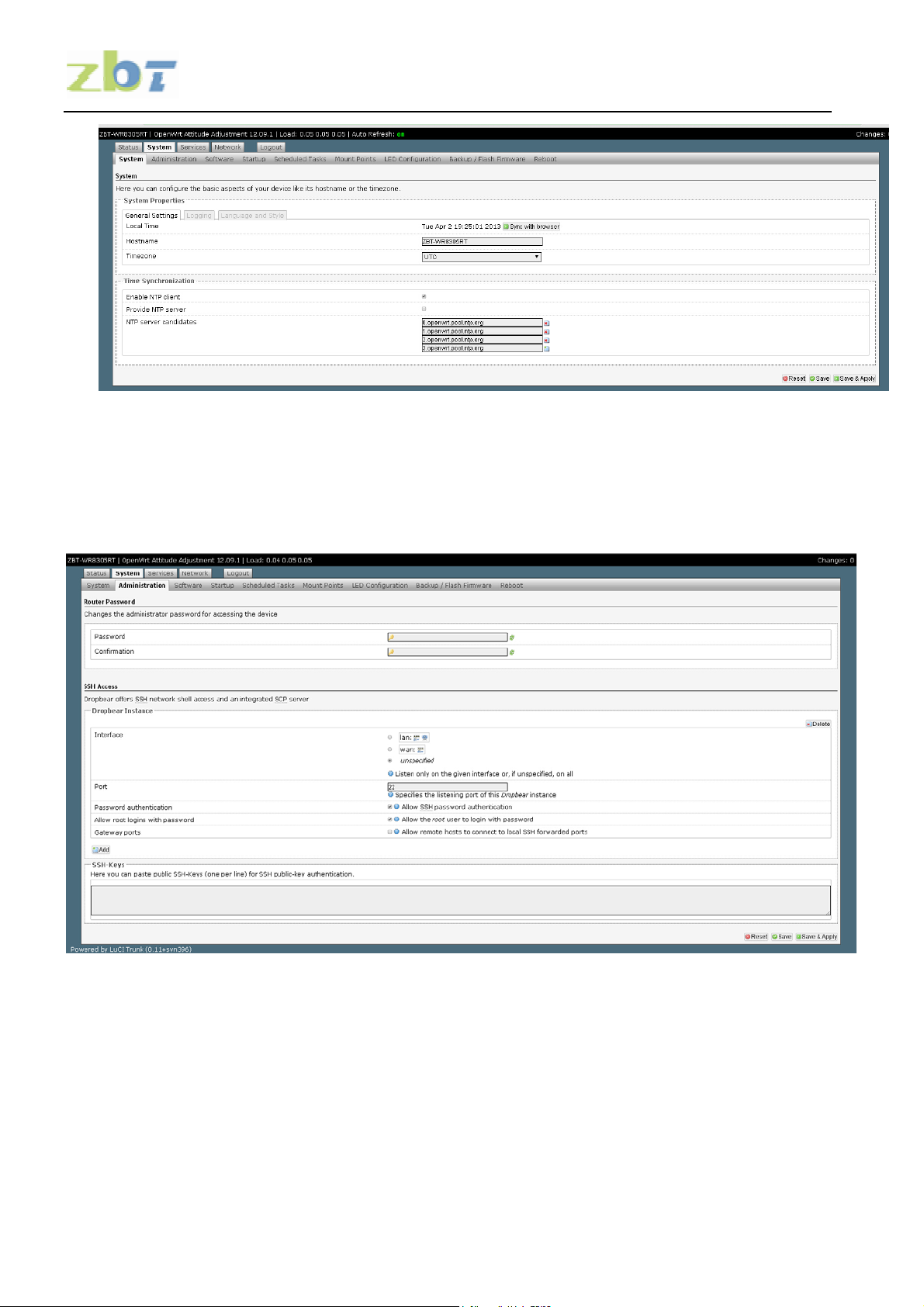

4.3.1 System……………………………………………………………………………………
4.3.2 Administration…………………………………………………………………………
4.3.3 Software…………………………………………………………………………………
4.3.4 Startup……………………………………………………………………………………
4.3.5 Schedule Tasks…………………………………………………………………………
4.3.6 Mount Points, LED Configuration……………………………………………………
4.3.7 Backup/Flash Firmware…………………………………………………………………
4.3.8 Reboot………………………………………………………………………………………
Zhibotong(ShenZhen)Electronics CO., Ltd
4.4 Service……………………………………………………………………………
4.4.1 Dynamic DNS……………………………………………………………………………
4.5 Network……………………………………………………………………………

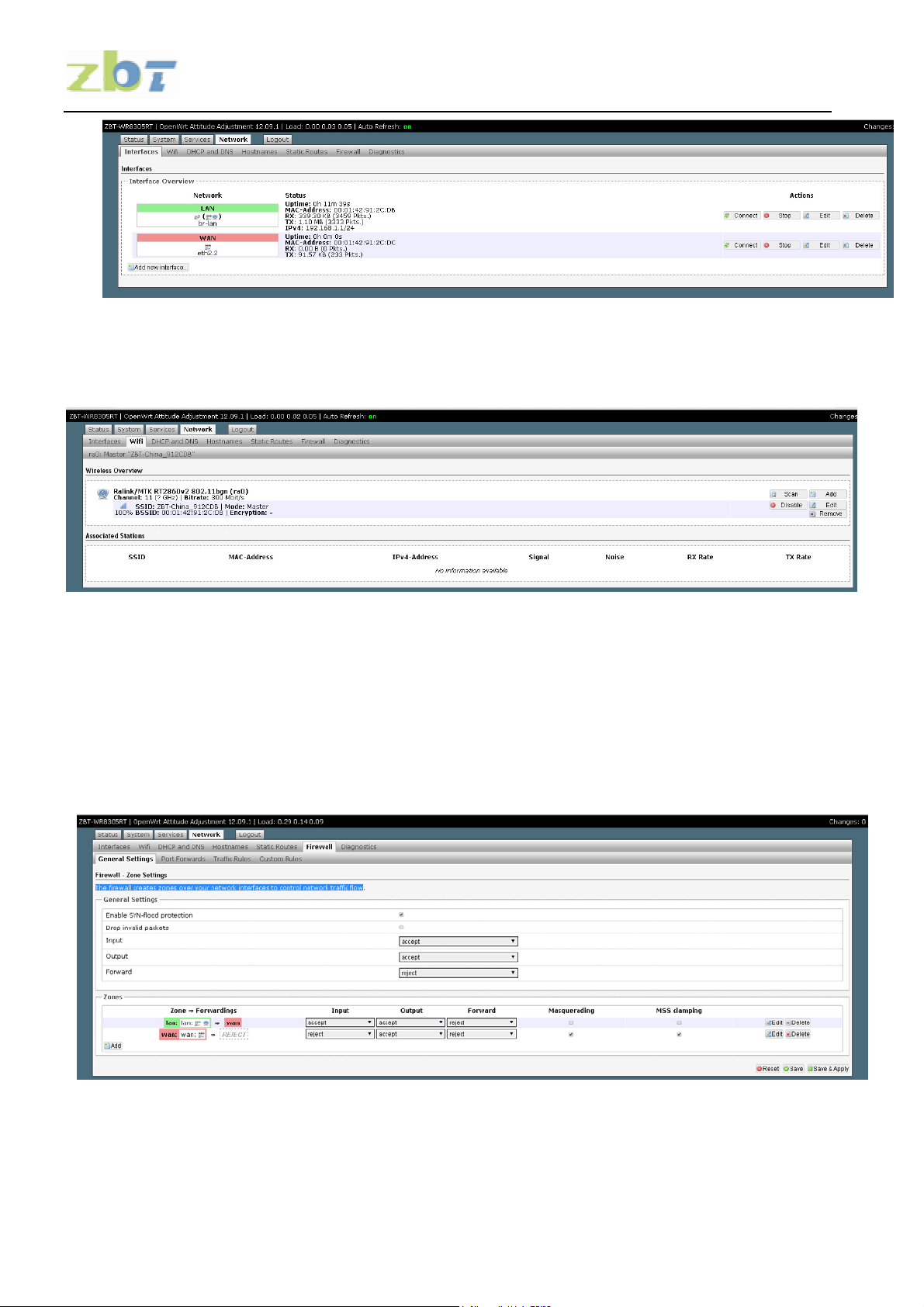

4.5.1 Interfaces ………………………………………………………………………………
4.5.2 Wireless……………………………………………………………………………………
4.5.3 DHCP/DNS、Hostnames, Static Routes………………………………………………
4.5.4 Firewall……………………………………………………………………………………
4.5.5 QOS ………………………………………………………………………………………
4.6 Log Out……………………………………………………………………………

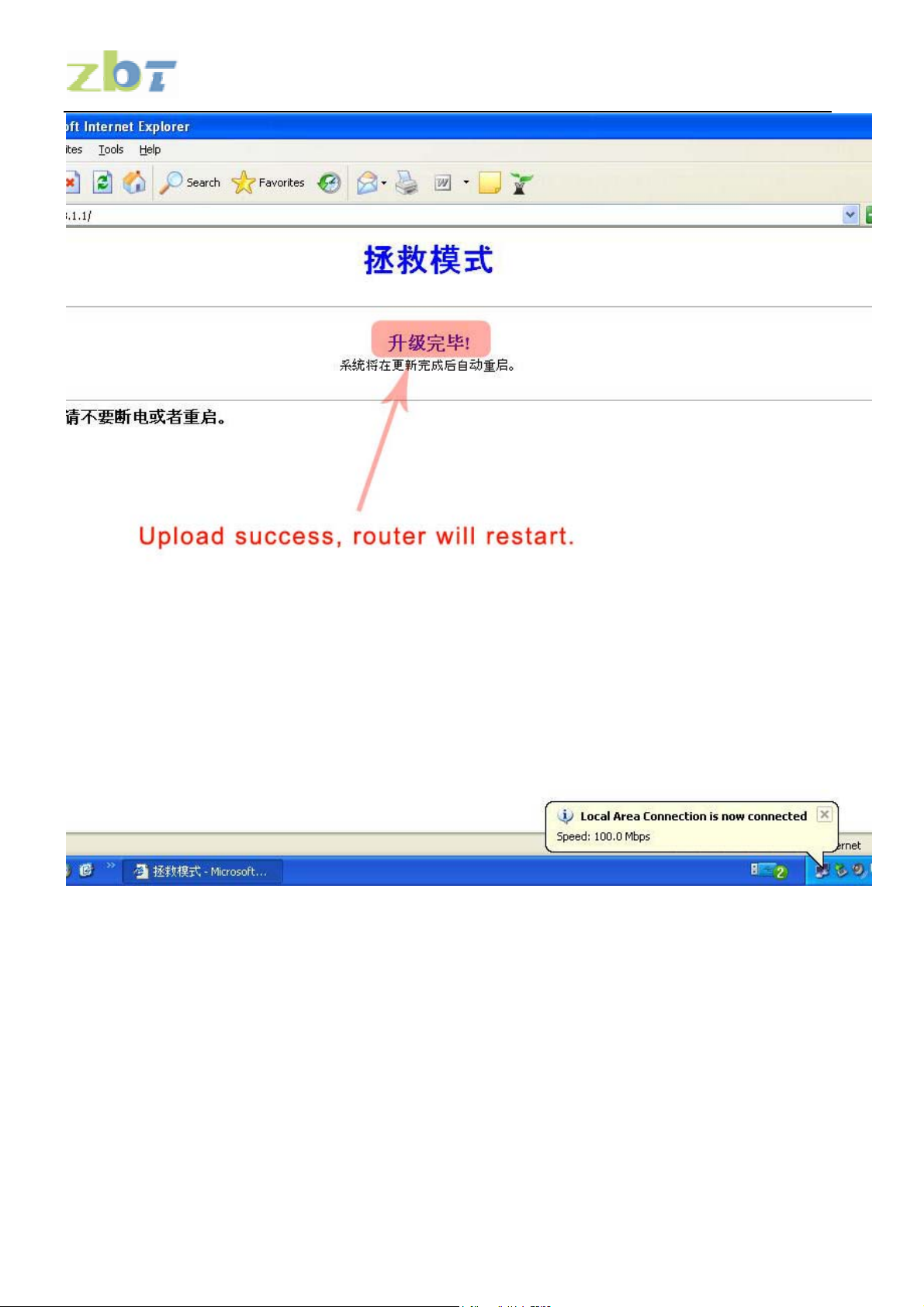

4.7 Flash Firmware……………………………………………………………………
5.FAQ ……………………………………………………………………………………
Zhibotong(ShenZhen)Electronics CO., Ltd
1. Product Overview
1.1 Simply Description
ZBT-WE826 provide an easy way to expend your wired Ethernet to wireless. It work well on gateway, and you could configure it via Web. It could meet both enterprise and the home’s requirements economically, its user could browser the internet and time and anywhere. It has multi-function ,highly-perfomance and easy install. Will be your best choice to build your own WLAN. About the wireless security, WE826 provide multi-protection, support unable SSID broadcast , also provide 64/128/152 bit WEP encryption , support for WPA / WPA-PSK, WPA2/WPA2-PSK security mechanism , in order to protect your data .Comply with 802.11n/
802.11g/ 802.11b/ 802.113/802.113u standard has 300Mbps , Our smart antenna management, makes the ZBT -WE826 performs much better than other similar product in WiFi transmission distance, perfectly compitable with other network device.
1.2 Features and Specification
1.2.1 Main Features
Provide 5 10M/100M Ethernet ports DHCP server Support RTS/CTS protocol , ensure the communication quality Roaming technology , efficient wireless connect DHCP serve static IP address Web manage
1.2.2 Specification
Comply with 802.11n/802.11g/802.11b/802.113/802.113u standard
Support TCP/IPDHCPICMP protocol
Auto MDI/MDIX port
Indictor LED, power adapter(12V 1A)
Work temperature 0- 40
Operating Humidity10%~90% non-condensing
2. Hardware Description
2.1 Panel Layout
2.1.1 Front Panel
Zhibotong(ShenZhen)Electronics CO., Ltd
Pic 2-1 Front Panel
Indictor LED (Will adjust with the specific mode)
Indictor LED Description Function
POWER Power LED
Mode or USB Mode or USB LED
LAN LAN LED
WLAN Wifi LED
Interface((Will adjust with the specific mode)
Keep ON - Power in Keep Off - No Power
Flashing - Mode or USB work Keep Off - Mode or USB not work
On - The relevant port connect Off - No connect to the relevant port Flashing- Data transmission on the relevant port
Off - Wireless function unable On - Wireless function enable
Interface Description Function
USB USB2.0 Port
Micro SD(TF) Micro SD(TF) slot
External USB device or USB net card
External Micro SD card slot, data exchange
2.1.2 Back Panel
Zhibotong(ShenZhen)Electronics CO., Ltd
Pic 2-2 Back Panel
Port(Will adjust with the specific mode)
Port Description Function
DC Power Port Connect the supplied power
adapter.
LAN LAN Port (RJ45) Connect to the devices in the
LAN, such as HUB, switches or PC
WAN WAN Port (RJ45) Connect to the WAN device, data
exchange with the internet
Button(Will adjust with the specific mode)
Button Description Function
REST/WPS
Antenna 2* 5Dbi omni antenna
REST/WPS Multi-function button
Rest: Press for 8 seconds WPS: Press one times.
Wireless data transfer and receive
2.2 Rest
If you want to rest to the factory default settings, please refer the below steps
1) To plug the power adapter.
2) When the router works normally, press the REST/WPS button for 8 seconds.
3) All the router’s LEDs will off and then on again, wait until it work normally.
4) When above 3 steps done, the router will rest to the factory default setting.
Warming:
Before steps finishing, don’t cut the power off, or it will break your router.
2.3 System Requirements.
Zhibotong(ShenZhen)Electronics CO., Ltd
Network card and Ethernet cable TCP/TP net software (Windows 95 or higher version has pre-install) IE 5.0 or higher version
2.4 Install Condition
When you install the router, please refer the below
Put the device horizontally Keep away from any heat device Do not put it in some place which is too dirty or too humidity.
Remark:
The environment will effect the transfer distance , recommend using environment: Temperature: 0~40℃℃ ,Humidity: 10%~95% RH
3. TCP/IP Configuration
Before using the device, you need to configure the network correctly, this manual is based
on the Windows 2000/XP, the IP of the device is 192.168.1.1 , subnet mask is 255.255.255.0 .
Firstly, connect your PC to the LAN port, and then you can configure the IP of your PC in 2
ways.

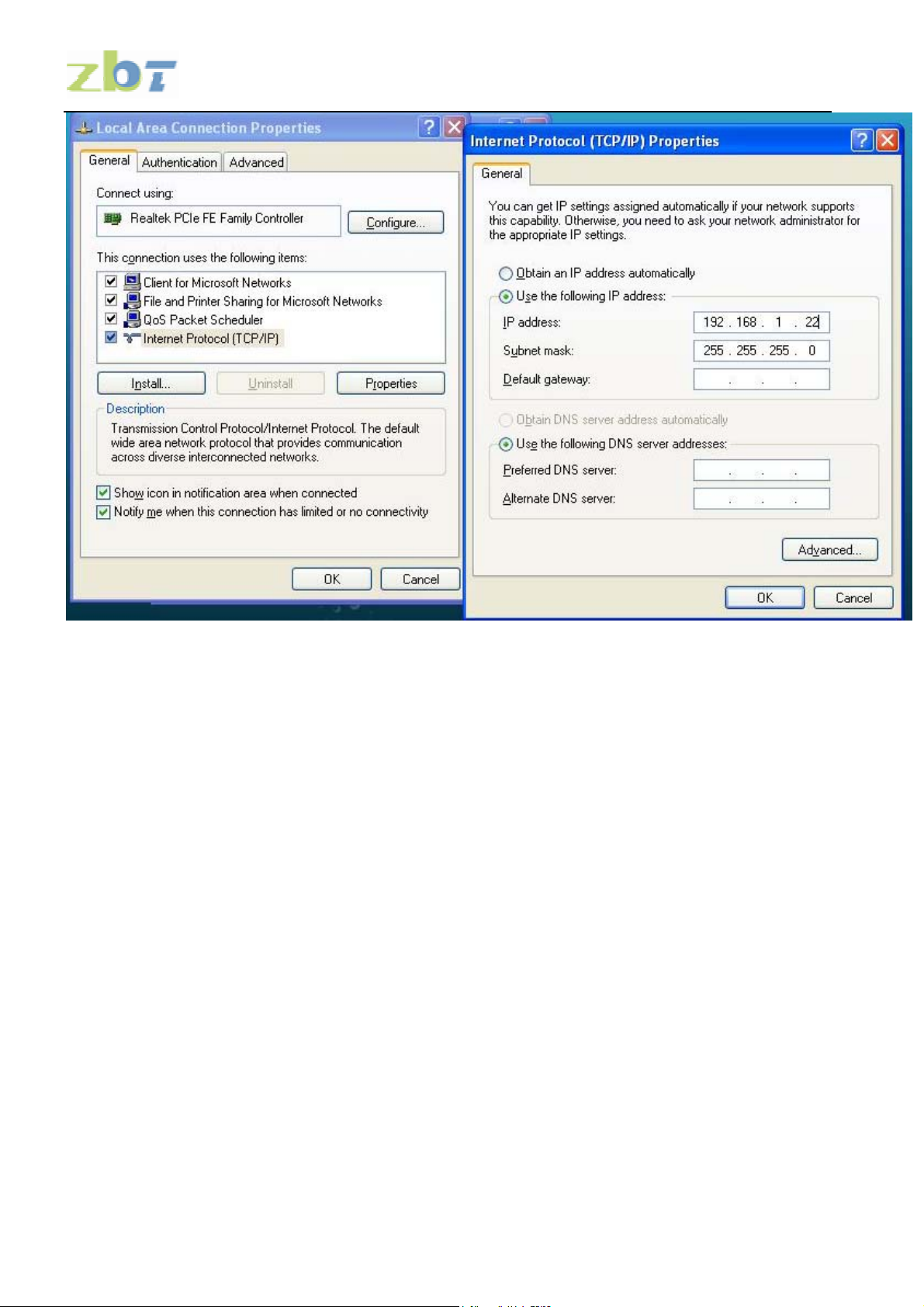

Set the IP
Set your PC’s IP as 192.168.1.xxx(xxx could be any number in 2~254), subnet mask
to be 255.255.255.0 , default gateway 192.168.1.1 , DNS server 192.168.1.1

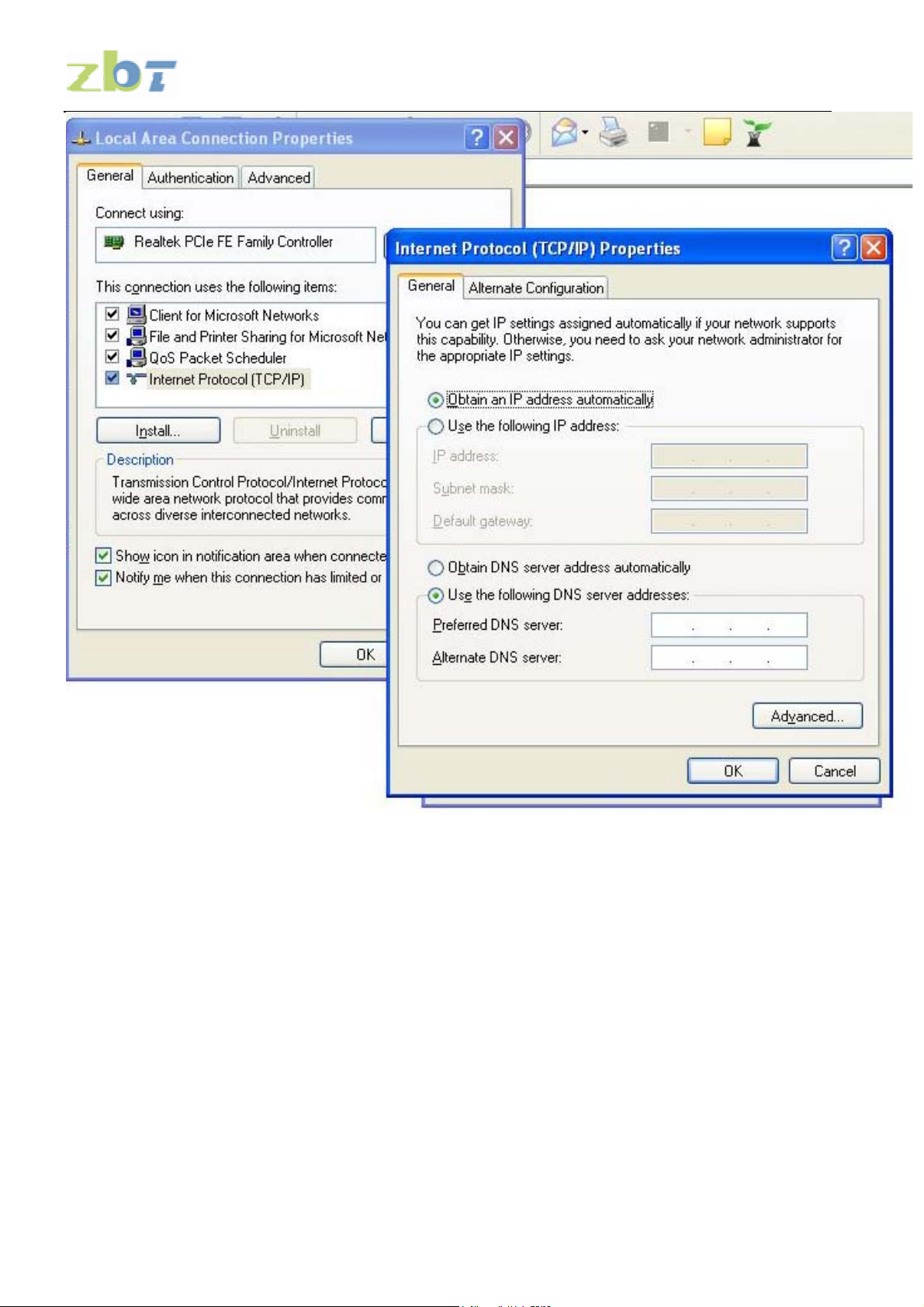

Auto set the IP by the DHCP server.
Set the TCP/IP to “automatically get IP address”, after setting , you could use the Ping command to check if the device has connected to the PC. For an example, in Windows 2000, run the cmd.exe , and the enter ping 192.168.1.1 If the screen shows as the below, means OK, the device connected to the PC.

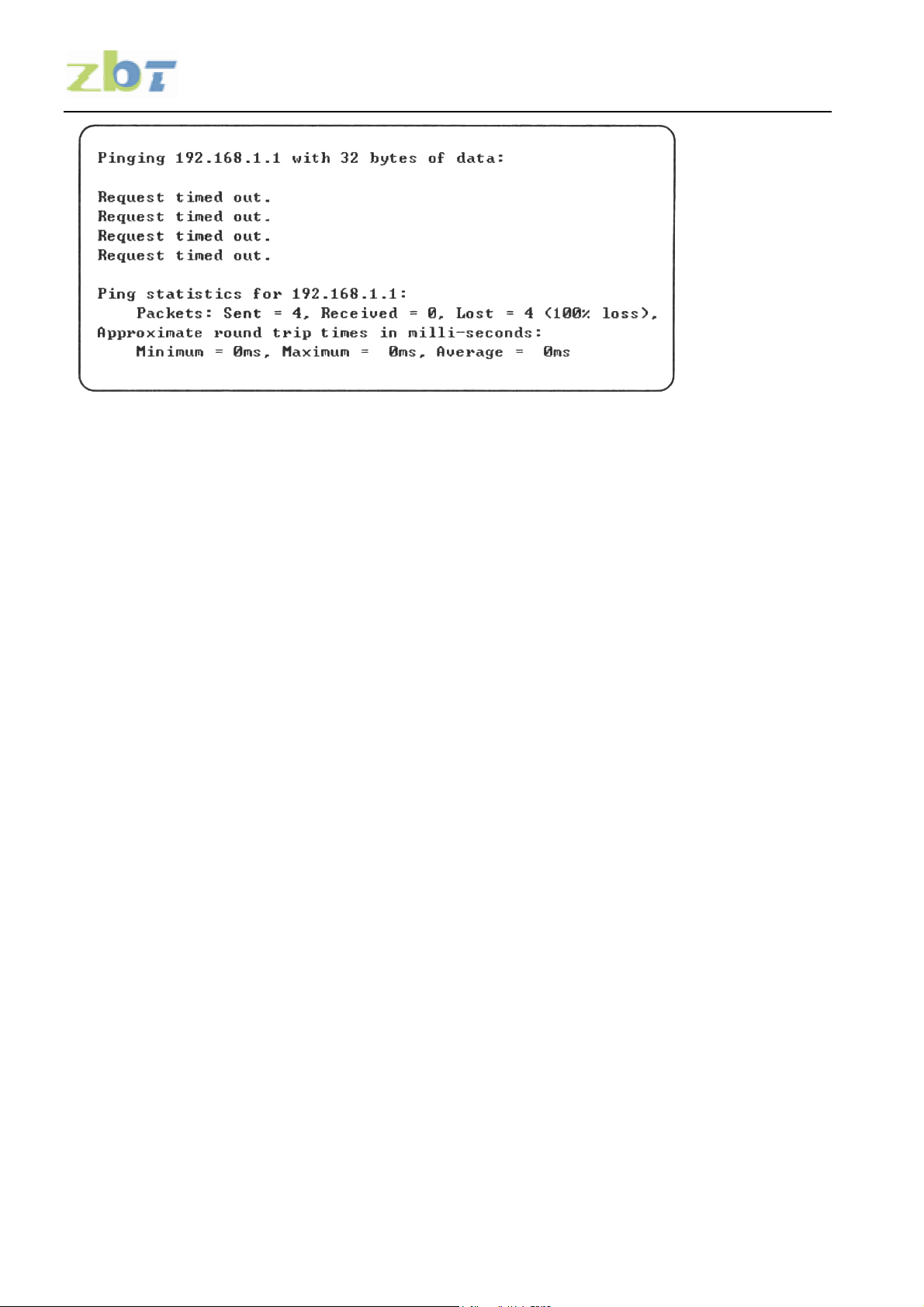

If it shows as below, it means fail
