Moffat, Inc. GLV General Manual

Undercounter Dishwashers

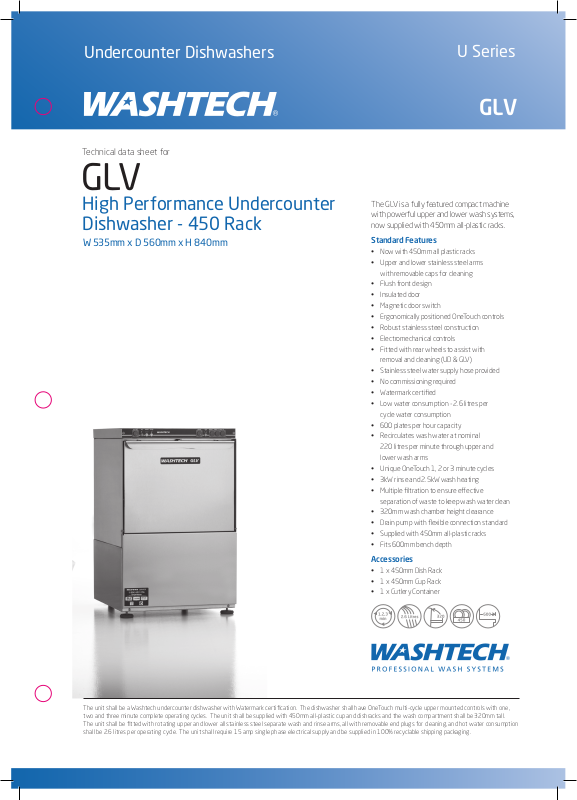

Technical data sheet for

GLV

U Series

GLV

High Performance Undercounter
Dishwasher - 450 Rack

W 535mm x D 560mm x H 840mm

The GLV is a fully featured compact machine
with powerful upper and lower wash systems,
now supplied with 450mm all-plastic racks.

Standard Features

• Now with 450mm all plastic racks

• Upper and lower stainless steel arms

with removable caps for cleaning

• Flush front design

• Insulated door

• Magnetic door switch

• Ergonomically positioned OneTouch controls

• Robust stainless steel construction

• Electromechanical controls

• Fitted with rear wheels to assist with

removal and cleaning (UD & GLV)

• Stainless steel water supply hose provided

• No commissioning required

• Watermark certified

• Low water consumption - 2.6 litres per

cycle water consumption

• 600 plates per hour capacity

• Recirculates wash water at nominal

220 litres per minute through upper and

lower wash arms

• Unique OneTouch 1, 2 or 3 minute cycles

• 3kW rinse and 2.5kW wash heating

• Multiple filtration to ensure eective

separation of waste to keep wash water clean

• 320mm wash chamber height clearance

• Drain pump with flexible connection standard

• Supplied with 450mm all-plastic racks

• Fits 600mm bench depth

Accessories

• 1 x 450mm Dish Rack

• 1 x 450mm Cup Rack

• 1 x Cutlery Container

The unit shall be a Washtech undercounter dishwasher with Watermark certification. The dishwasher shall have OneTouch multi-cycle upper mounted controls with one,
two and three minute complete operating cycles. The unit shall be supplied with 450mm all-plastic cup and dishracks and the wash compartment shall be 320mm tall.
The unit shall be fitted with rotating upper and lower all stainless steel separate wash and rinse arms, all with removable end plugs for cleaning, and hot water consumption
shall be 2.6 litres per operating cycle. The unit shall require 15 amp single phase electrical supply and be supplied in 100% recyclable shipping packaging.

GLV

Undercounter Dishwashers

A

B

Hot Water

Waste

temperature
connection
pressure
flow
quality

connection

65C
3/4” hose supplied
200-350 kpa
20 litres per min
potable & soft

hose supplied

U Series

GLV

Australia

www.moat.com.au

New Zealand

www.moat.co.nz

Australia
Moat Pty Limited

Victoria/Tasmania
740 Springvale Road
Mulgrave, Victoria 3170
Telephone [phone]
Facsimile 03-9518 3833
vsales@moat.com.au
www.moat.com.au

New South Wales
Telephone [phone]
nswsales@moat.com.au

South Australia
Telephone [phone]
vsales@moat.com.au

Queensland
Telephone [phone]
qldsales@moat.com.au

Western Australia
Telephone [phone]
bgarcia@moat.com.au

New Zealand
Moat Limited
Christchurch
16 Osborne Street
Christchurch 8011
Telephone [phone]
Facsimile [phone]
Auckland
Telephone [phone]
export@moat.co.nz
www.moat.co.nz

C

Electrical

Dimensions

Width
Depth
Height
Weight

single phase 240V 50Hz

Refer operator manual for complete installation instructions.

535mm
550mm
860mm
66kg

15 amp

Packed Dimensions

Width
Depth
Height
Weight
Cubicmetres

645mm
610mm
965mm
83kg

0.40m³
