Moffat, Inc. AL General Manual

Passthrough Dishwashers

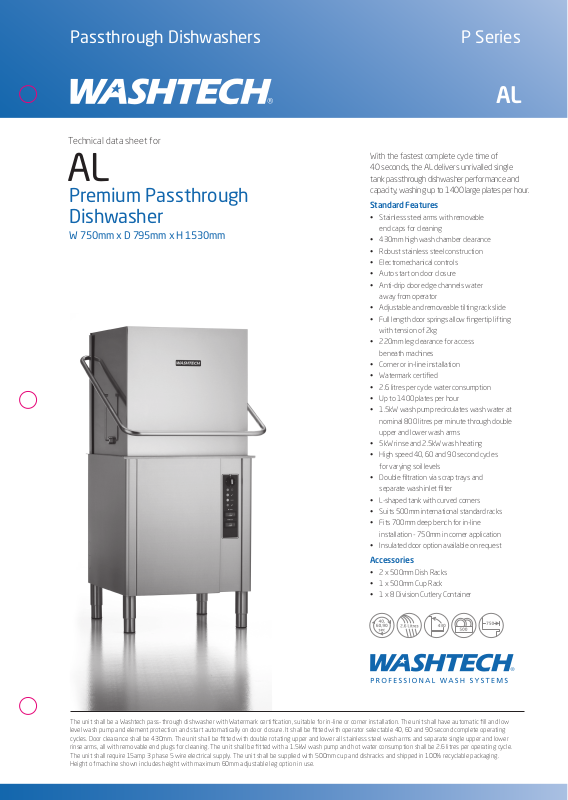

Technical data sheet for

AL

Premium Passthrough
Dishwasher

W 750mm x D 795mm x H 1530mm

P Series

AL

With the fastest complete cycle time of
40 seconds, the AL delivers unrivalled single
tank passthrough dishwasher performance and
capacity, washing up to 1400 large plates per hour.

Standard Features

• Stainless steel arms with removable

end caps for cleaning

• 430mm high wash chamber clearance

• Robust stainless steel construction

• Electromechanical controls

• Auto start on door closure

• Anti-drip door edge channels water

away from operator

• Adjustable and removeable tilting rack slide

• Full length door springs allow fingertip lifting

with tension of 2kg

• 220mm leg clearance for access

beneath machines

• Corner or in-line installation

• Watermark certified

• 2.6 litres per cycle water consumption

• Up to 1400 plates per hour

• 1.5kW wash pump recirculates wash water at

nominal 800 litres per minute through double

upper and lower wash arms

• 5kW rinse and 2.5kW wash heating

• High speed 40, 60 and 90 second cycles

for varying soil levels

• Double filtration via scrap trays and

separate wash inlet filter

• L-shaped tank with curved corners

• Suits 500mm international standard racks

• Fits 700mm deep bench for in-line

installation - 750mm in corner application

• Insulated door option available on request

Accessories

• 2 x 500mm Dish Racks

• 1 x 500mm Cup Rack

• 1 x 8 Division Cutlery Container

The unit shall be a Washtech pass-through dishwasher with Watermark certification, suitable for in-line or corner installation. The unit shall have automatic fill and low
level wash pump and element protection and start automatically on door closure. It shall be fitted with operator selectable 40, 60 and 90 second complete operating
cycles. Door clearance shall be 430mm. The unit shall be fitted with double rotating upper and lower all stainless steel wash arms and separate single upper and lower
rinse arms, all with removable end plugs for cleaning. The unit shall be fitted with a 1.5kW wash pump and hot water consumption shall be 2.6 litres per operating cycle.
The unit shall require 15amp 3 phase 5 wire electrical supply. The unit shall be supplied with 500mm cup and dishracks and shipped in 100% recyclable packaging.
Height of machine shown includes height with maximum 60mm adjustable leg option in use.

AL

Passthrough Dishwashers

P Series

AL

Australia

www.moat.com.au

New Zealand

www.moat.co.nz

Australia
Moat Pty Limited

Victoria/Tasmania
740 Springvale Road
Mulgrave, Victoria 3170
Telephone [phone]
Facsimile 03-9518 3833
vsales@moat.com.au
www.moat.com.au

New South Wales
Telephone [phone]
nswsales@moat.com.au

South Australia
Telephone [phone]
vsales@moat.com.au

Queensland
Telephone [phone]
qldsales@moat.com.au

Western Australia
Telephone [phone]
bgarcia@moat.com.au

New Zealand
Moat Limited
Christchurch
16 Osborne Street
Christchurch 8011
Telephone [phone]
Facsimile [phone]
Auckland
Telephone [phone]
export@moat.co.nz
www.moat.co.nz

A

B

C

Hot Water

Waste

Electrical

Dimensions

Width
Depth
Height
Weight

temperature
connection
pressure
flow
quality

connection
line

3 phase 400-415V 50Hz

Refer operator manual for complete installation instructions.

750mm
795mm
1530mm
120kg

65C
3/4”
200-350 kPa
20 litres per min
potable & soft

1.5 BSP
2” BSP

15 amp

Packed Dimensions

Width 800mm
Depth 950mm
Height 1475mm
Weight 141kg
Cubicmetres 1.1m³
