Moffat XP User Manual

Passthrough Dishwasher

X Series

ECONOMY

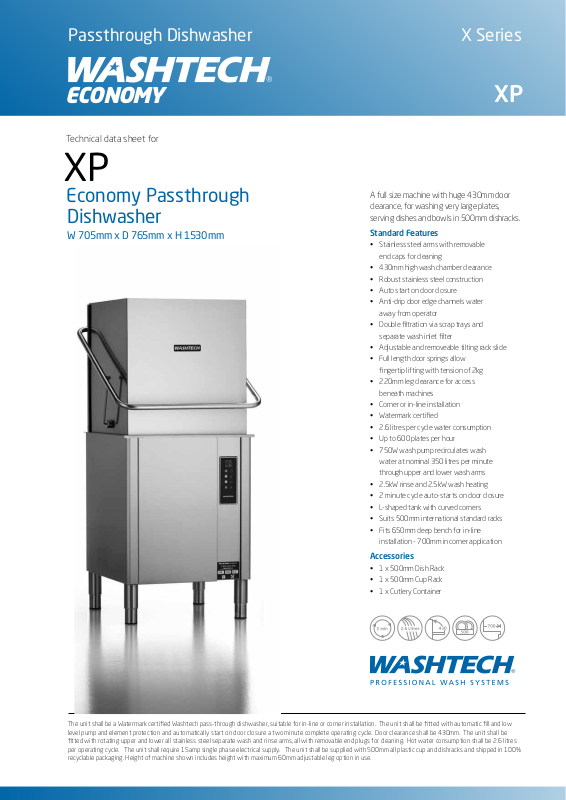

Technical data sheet for

Economy Passthrough Dishwasher

W 705mm x D 765mm x H 1530mm

A full size machine with huge 430mm door clearance, for washing very large plates, serving dishes and bowls in 500mm dishracks.

Standard Features

• Stainless steel arms with removable

end caps for cleaning

• 430mm high wash chamber clearance

• Robust stainless steel construction

• Auto start on door closure

• Anti-drip door edge channels water

away from operator

• Double ﬁltration via scrap trays and

separate wash inlet ﬁlter

• Adjustable and removeable tilting rack slide

• Full length door springs allow

ﬁngertip lifting with tension of 2kg

• 220mm leg clearance for access

beneath machines

• Corner or in-line installation

• Watermark certiﬁed

• 2.6 litres per cycle water consumption

• Up to 600 plates per hour

• 750W wash pump recirculates wash

water at nominal 350 litres per minute

through upper and lower wash arms

• 2.5kW rinse and 2.5kW wash heating

• 2 minute cycle auto-starts on door closure

• L-shaped tank with curved corners

• Suits 500mm international standard racks

• Fits 650mm deep bench for in-line

installation - 700mm in corner application

Accessories

• 1 x 500mm Dish Rack

• 1 x 500mm Cup Rack

• 1 x Cutlery Container

The unit shall be a Watermark certiﬁed Washtech pass-through dishwasher, suitable for in-line or corner installation. The unit shall be ﬁtted with automatic ﬁll and low level pump and element protection and automatically start on door closure a two minute complete operating cycle. Door clearance shall be 430mm. The unit shall be ﬁtted with rotating upper and lower all stainless steel separate wash and rinse arms, all with removable end plugs for cleaning. Hot water consumption shall be 2.6 litres per operating cycle. The unit shall require 15amp single phase electrical supply. The unit shall be supplied with 500mm all plastic cup and dishracks and shipped in 100% recyclable packaging. Height of machine shown includes height with maximum 60mm adjustable leg option in use.

Passthrough Dishwasher

X Series

ECONOMY

Australia

www.moat.com.au

New Zealand

www.moat.co.nz

Australia Moat Pty Limited

Victoria/Tasmania 740 Springvale Road Mulgrave, Victoria 3170 Telephone 03-9518 3888 Facsimile 03-9518 3833 vsales@moat.com.au www.moat.com.au

New South Wales Telephone 02-8833 4111 nswsales@moat.com.au

South Australia Telephone 03-9518 3888 vsales@moat.com.au

Queensland Telephone 07-3630 8600 qldsales@moat.com.au

Western Australia Telephone 08-9202 6820 bgarcia@moat.com.au

New Zealand Moat Limited Christchurch 16 Osborne Street Christchurch 8011 Telephone +64 3-389 1007 Facsimile +64 3-389 1276 Auckland Telephone +64 9-574 3150 export@moat.co.nz www.moat.co.nz

Hot Water

Waste

Electrical

Dimensions

Width Depth Height Weight

temperature connection pressure ﬂow quality

connection line

single phase 240V 50Hz

Refer operator manual for complete installation instructions.

705mm 765mm 1530mm 97kg

65C 3/4” 200-350 kPa 20 litres per min potable & soft

1.5 BSP 2” BSP

15 amp

Packed Dimensions

Width Depth Height Weight Cubicmetres

760mm 810mm 1450mm 120kg

0.9m³
