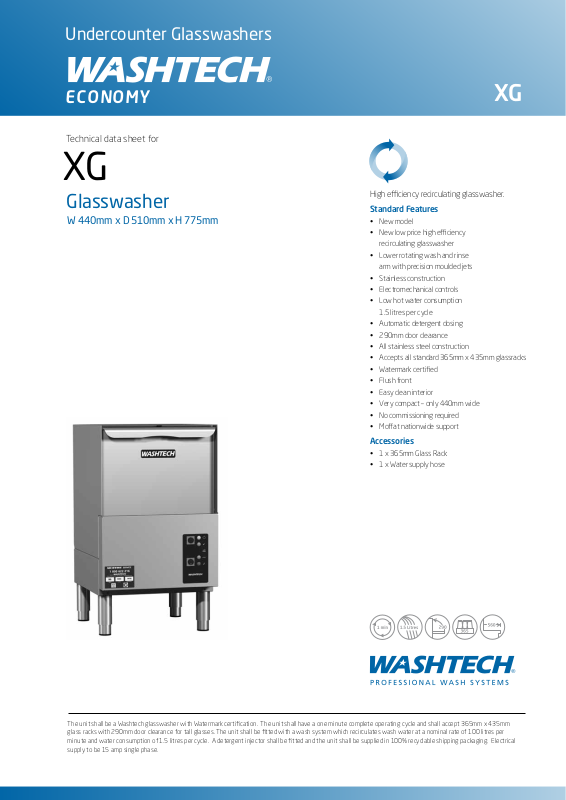

Moffat XG User Manual

Undercounter Glasswashers

ECONOMY

Technical data sheet for

Glasswasher

W 440mm x D 510mm x H 775mm

High eciency recirculating glasswasher.

Standard Features

• New model

• New low price high eciency

recirculating glasswasher

• Lower rotating wash and rinse

arm with precision moulded jets

• Stainless construction

• Electromechanical controls

• Low hot water consumption

1.5 litres per cycle

• Automatic detergent dosing

• 290mm door clearance

• All stainless steel construction

• Accepts all standard 365mm x 435mm glassracks

• Watermark certiﬁed

• Flush front

• Easy clean interior

• Very compact – only 440mm wide

• No commissioning required

• Moat nationwide support

Accessories

• 1 x 365mm Glass Rack

• 1 x Water supply hose

The unit shall be a Washtech glasswasher with Watermark certiﬁcation. The unit shall have a one minute complete operating cycle and shall accept 365mm x 435mm glass racks with 290mm door clearance for tall glasses. The unit shall be ﬁtted with a wash system which recirculates wash water at a nominal rate of 100 litres per minute and water consumption of 1.5 litres per cycle. A detergent injector shall be ﬁtted and the unit shall be supplied in 100% recyclable shipping packaging. Electrical supply to be 15 amp single phase.

Undercounter Glasswashers

Ensure dual check valve is located at water supply entry point.

Hot Water

Waste

Electrical

temperature connection pressure ﬂow quality

connection line

single phase 240V 50Hz

65C 3/4” hose supplied 200-350 kPa 20 litres per min potable & soft

1.5 BSP 2” BSP

15 amp

Australia

www.moat.com.au

New Zealand

www.moat.co.nz

Australia Moat Pty Limited

Victoria/Tasmania 740 Springvale Road Mulgrave, Victoria 3170 Telephone 03-9518 3888 Facsimile 03-9518 3833 vsales@moat.com.au www.moat.com.au

New South Wales Telephone 02-8833 4111 nswsales@moat.com.au

South Australia Telephone 03-9518 3888 vsales@moat.com.au

Queensland Telephone 07-3630 8600 qldsales@moat.com.au

Western Australia Telephone 08-9202 6820 bgarcia@moat.com.au

New Zealand Moat Limited Christchurch 16 Osborne Street Christchurch 8011 Telephone +64 3-389 1007 Facsimile +64 3-389 1276 Auckland Telephone +64 9-574 3150 export@moat.co.nz www.moat.co.nz

Dimensions

Width Depth Height Weight

Refer operator manual for complete installation instructions.

Packed Dimensions

440mm 510mm 775mm 26kg

Width Depth Height Weight Cubicmetres

505mm 575mm 775mm 38kg

0.25m³
