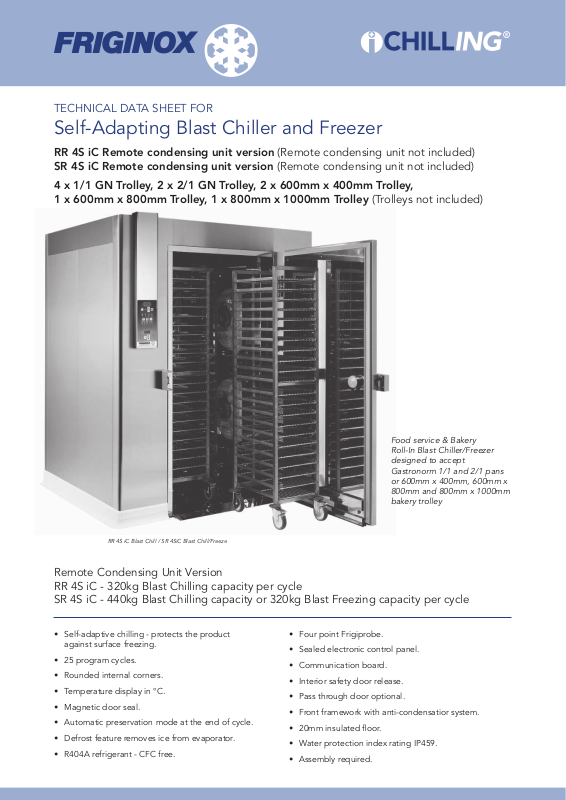

Moffat RR 4S iC User Manual

TECHNICAL DATA SHEET FOR
RR 4S iC Remote condensing unit version (Remote condensing unit not included) SR 4S iC Remote condensing unit version (Remote condensing unit not included)
4 x 1/1 GN Trolley, 2 x 2/1 GN Trolley, 2 x 600mm x 400mm Trolley, 1 x 600mm x 800mm Trolley, 1 x 800mm x 1000mm Trolley (Trolleys not included)
Food service & Bakery Roll-In Blast Chiller/Freezer designed to accept Gastronorm 1/1 and 2/1 pans or 600mm x 400mm, 600mm x 800mm and 800mm x 1000mm bakery trolley
RR 4S iC Blast Chill / SR 4SiC Blast Chill/Freeze
Remote Condensing Unit Version RR 4S iC - 320kg Blast Chilling capacity per cycle SR 4S iC - 440kg Blast Chilling capacity or 320kg Blast Freezing capacity per cycle
• Self-adaptive chilling - protects the product against surface freezing.
• 25 program cycles.
• Rounded internal corners.
• Temperature display in °C.
• Magnetic door seal.
• Automatic preservation mode at the end of cycle.
• Defrost feature removes ice from evaporator.
• R404A refrigerant - CFC free.
• Four point Frigiprobe.
• Sealed electronic control panel.
• Communication board.
• Interior safety door release.
• Pass through door optional.
• Front framework with anti-condensatior system.
• 20mm insulated floor.
• Water protection index rating IP459.
• Assembly required.
Specification
www.moffat.com.au
RR 4S iC, SR 4S iC
860 (D')
700 (D)
280 (B)
)B( 082
)D( 024
)'D( 057
)B( 082
(CP)
280 (B)
(A) Electrical power supply
(any position over the whole surface of the chiller roof)
(B) De-icing water runoff
(D) Liquid line 3/8" (D’) Suction line 1" 1/8
(CP) Control panel (E) Duct (F) Distance from the wall
(CU) Useful
1720
280 (B)
)B( 082
0251
)B( 082
280 (B)
50 50
(AS) With floor (SS) Without floor
(A1) Single access (A2) Double access
)1A( 0362
70 (F)
280 (B)
)B( 082
)2A( 0473
)B( 082
280 (B)
)F( 07
70 (F)
Refrigeration Equipment RR 4S iC only
• Complete remote condensing unit. Suitable for local conditions.
• Condensing capacity upright Blast Chiller 12300/26000W for the respective evaporation temperatures of -20/0°C.
• Remote condensing unit with ‘pump down’ control.
Refrigeration Equipment SR 4S iC only
• Complete remote condensing unit. Suitable for local conditions.
• Condensing capacity upright Blast Chiller/Freezer 18300/42000W for the respective evaporation temperatures of -40/-20°C.
• Remote condensing unit with ‘pump down’ control.
)UC( 0031
900 (CU)
1720
860 (D')
700 (D)
280 (B)
)B( 082
)D( 024
)'D( 057
)B( 082
(CP) 280 (B)
1766 (A2)
1643
1590
)'D( 5802
)A( )D( 5991
)B( 57
80
)S S
( 088
1
0312
)SA( 0681
(E)
Australia Moffat Pty Limited
Victoria/Tasmania
740 Springvale Road Mulgrave, Victoria 3170 Telephone 03-9518 3888 Facsimile 03-9518 3833 vsales@moffat.com.au
New South Wales
Telephone 02-8833 4111 nswsales@moffat.com.au
South Australia
Telephone 03-9518 3888 vsales@moffat.com.au
Queensland
Telephone 07-3630 8600 qldsales@moffat.com.au
Western Australia
Telephone 08-9202 6820 bgarcia@moffat.com.au
New Zealand Moffat Limited
Christchurch
16 Osborne Street Christchurch 8011 Telephone 03-389 1007 Facsimile 03-389 1276 sales@moffat.co.nz
Auckland
Telephone 09-574 3150 sales@moffat.co.nz
RR 4FS iC
Dimensions
W 1720mm x D 1643mm x H 2130mm
Kg capacity per cycle
Blast chilling from +70°C to +3°C temperature, capacity per cycle 320kg
Electrical rating
400 - 415Vac 3P+N+E 50Hz 14kW
Refrigerant type
R404A
Standard pan capacity
4 x 1/1 GN 2 x 2/1 GN 2 x 600mm x 400mm 1 x 600mm x 800mm 1 x 800mm x 1000mm
Clearances
Sides / rear 70mm
SR 4FS iC
Dimensions
W 1720mm x D 1643mm x H 2130mm
Kg capacity per cycle
Blast chilling from +70°C to +3°C temperature, capacity per cycle 440kg Blast freezing from +70°C to -18°C temperature, capacity per cycle 320kg
Electrical rating
400 - 415Vac 3P+N+E 50Hz 14kW
Refrigerant type
R404A
Standard pan capacity
4 x 1/1 GN 2 x 2/1 GN 2 x 600mm x 400mm 1 x 600mm x 800mm 1 x 800mm x 1000mm
Clearances
Sides / rear 70mm
Disclaimer: All unit capacities are based on subjective testing. Moffat accepts no liability for production values.
In line with policy to continually develop and improve its products, Moffat Limited reserves the right to change specifications and design without notice.
© Copyright Moffat Ltd Moffat 07.11
