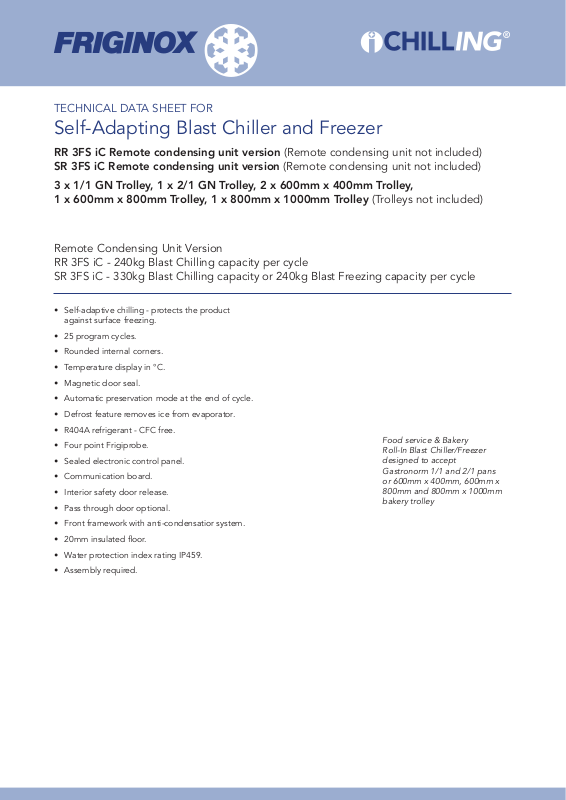

TECHNICAL DATA SHEET FOR
Self-Adapting Blast Chiller and Freezer
RR 3FS iC Remote condensing unit version (Remote condensing unit not included)
SR 3FS iC Remote condensing unit version (Remote condensing unit not included)
3 x 1/1 GN Trolley, 1 x 2/1 GN Trolley, 2 x 600mm x 400mm Trolley,
1 x 600mm x 800mm Trolley, 1 x 800mm x 1000mm Trolley (Trolleys not included)
Remote Condensing Unit Version
RR 3FS iC - 240kg Blast Chilling capacity per cycle
SR 3FS iC - 330kg Blast Chilling capacity or 240kg Blast Freezing capacity per cycle
• Self-adaptive chilling - protects the product
against surface freezing.
• 25 program cycles.
• Rounded internal corners.
• Temperature display in °C.
• Magnetic door seal.
• Automatic preservation mode at the end of cycle.
• Defrost feature removes ice from evaporator.
• R404A refrigerant - CFC free.
• Four point Frigiprobe.
• Sealed electronic control panel.
• Communication board.
• Interior safety door release.
• Pass through door optional.
• Front framework with anti-condensatior system.
• 20mm insulated floor.
• Water protection index rating IP459.
• Assembly required.
Food service & Bakery
Roll-In Blast Chiller/Freezer
designed to accept
Gastronorm 1/1 and 2/1 pans
or 600mm x 400mm, 600mm x
800mm and 800mm x 1000mm
bakery trolley
Specification
www.moffat.com.au
RR 3FS iC, SR 3FS iC
1446 (A2)
1323
1270
)SS( 0881
)SA( 0681
80
220 (D')
)'D( 055
390 (D)
330 (B)
)B( 082
)B( 082
330 (B)
70 (F)
)D( 091
)2A( 0243
0021
)1A( 0132
(CP)
(E)
1560
50 50
)F( 07
(A) Electrical power supply
(any position over the
whole surface of the
chiller roof)
70 (F)
(B) De-icing water runoff
)UC( 0601
900 (CU)
390 (D)
330 (B)
091
(CP)
330 (B)
1560
(D) Liquid line 3/8"
(D’) Suction line 1" 1/8
(CP) Control panel
(E) Duct
(F) Distance from the wall
220 (D')
)B( 082
)B( 082
)'D( 055
)'D( 5802
)A( )D( 5991
)B( 57
(CU) Useful
(AS) With floor
(SS) Without floor
(A1) Single access
(A2) Double access
Refrigeration Equipment RR 3FS iC only
• Complete remote condensing unit. Suitable for local conditions.
• Condensing capacity upright Blast Chiller 12000/22000W for the respective
evaporation temperatures of -20/0°C.
• Remote condensing unit with ‘pump down’ control.
Refrigeration Equipment SR 3FS iC only
• Complete remote condensing unit. Suitable for local conditions.
• Condensing capacity upright Blast Chiller/Freezer 11300/28000W for the
respective evaporation temperatures of -40/-20°C.
• Remote condensing unit with ‘pump down’ control.
Australia
Moffat Pty Limited
Victoria/Tasmania
740 Springvale Road
Mulgrave, Victoria 3170
Telephone 03-9518 3888
Facsimile 03-9518 3833
vsales@moffat.com.au
0312
New South Wales
Telephone 02-8833 4111
nswsales@moffat.com.au
South Australia
Telephone 03-9518 3888
vsales@moffat.com.au
(E)
Queensland
Telephone 07-3630 8600
qldsales@moffat.com.au
Western Australia
Telephone 08-9202 6820
bgarcia@moffat.com.au
New Zealand
Moffat Limited
Christchurch
16 Osborne Street
Christchurch 8011
Telephone 03-389 1007
Facsimile 03-389 1276
sales@moffat.co.nz
Auckland
Telephone 09-574 3150
sales@moffat.co.nz
RR 3FS iC
Dimensions
W 1560mm x D 1323mm x H 2130mm
Kg capacity per cycle
Blast chilling from +70°C to +3°C
temperature, capacity per cycle 240kg
Electrical rating
400 - 415Vac 3P+N+E 50Hz 11.5kW
Refrigerant type
R404A
Standard pan capacity
3 x 1/1 GN
1 x 2/1 GN
2 x 600mm x 400mm
1 x 600mm x 800mm
1 x 800mm x 1000mm
Clearances
Sides / rear 70mm
SR 3FS iC
Dimensions
W 1560mm x D 1323mm x H 2130mm
Kg capacity per cycle
Blast chilling from +70°C to +3°C
temperature, capacity per cycle 330kg
Blast freezing from +70°C to -18°C
temperature, capacity per cycle 240kg
Electrical rating
400 - 415Vac 3P+N+E 50Hz 11.5kW
Refrigerant type
R404A
Standard pan capacity
3 x 1/1 GN
1 x 2/1 GN
2 x 600mm x 400mm
1 x 600mm x 800mm
1 x 800mm x 1000mm
Clearances
Sides / rear 70mm
Disclaimer:
All unit capacities are based on
subjective testing. Moffat accepts
no liability for production values.
In line with policy to continually
develop and improve its products,
Moffat Limited reserves the right to
change specifications and design
without notice.
