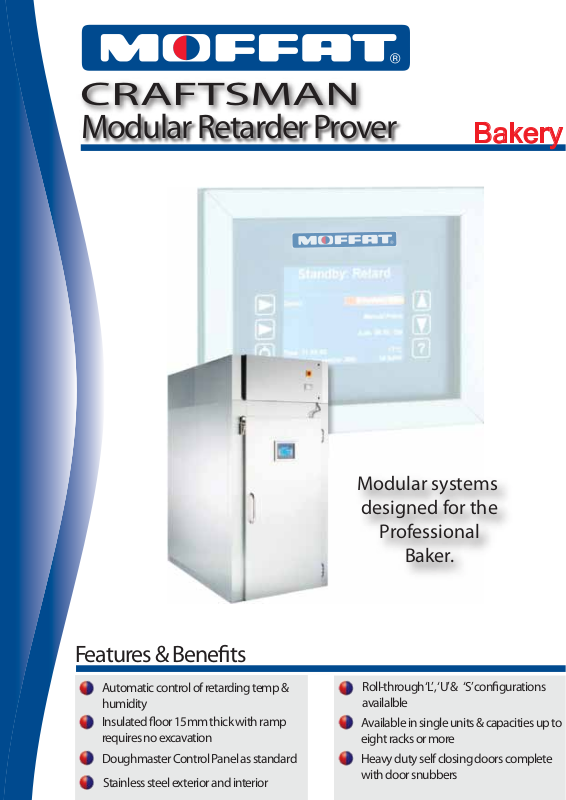

CRAFTSMAN
Modular Retarder Prover
Bakery
Features & Benets
Automatic control of retarding temp &
humidity
Insulated oor 15mm thick with ramp
requires no excavation
Doughmaster Control Panel as standard
Stainless steel exterior and interior
Modular systems
designed for the
Professional
Baker.
Roll-through ‘L’ , ‘U’ & ‘S’ congurations
availalble
Available in single units & capacities up to
eight racks or more
Heavy duty self closing doors complete
with door snubbers
CRAFTSMAN
Modular Retarder Prover
TECHNICAL DATA
Controls
The controller can be used in fully automatic
or manual modes to control the retard and prove cycles
ensuring the chamber temperature and humidity are
correct.
Doughmaster computerised LCD panel features:
•
Easier operation with menu driven faster, simpler
programming
User friendly auto cycle programming
•
Easy and simple to use cycle timer set ups
•
Single recovery cycle at the touch of a button
•
Full automatic or manual control
•
Adjustable humidity control
•
Adjustable prove temperature to + 40 C
•
Adjustable retard temperature - 5 to + 5 C
•
Fast chill facility
•
Digital temperature and humidity display
•
Hold before bake facility
•
On / O switch
•
•
Automatic defrost
o
o
o
1000mm
1250mm
RPBRM 1/1/18FE
1250mm
1000mm
RPBRM 1/1/30FE
Roll In Modular Bakery 18” Range
1850mm
1250mm
RPBRM 2/1/18U
2000mm
1250mm
RPBRM 3/1/18U
Roll In Modular Bakery 30” Range
2500mm
1500mm
RPBRM 2/1/30U
Designed for eective and ecient performance in 43 C ambient
Overall height of chambers is 2580mm
1250mm
1500mm
RPBRM 1/2/30FE
2500mm
1500mm
RPBRM 2/2/30FE
o
2750mm
1250mm
RPBRM 4/1/18U
2500mm
2000mm
RPBRM 2/3/30FE
Construction
•
Stainless steel interior and exterior
Self closing doors
•
•
Surface mounted 15mm insulated oor
•
90mm ODP Zero insulation
•
Protective crash bars (internal)
•
Glazed viewing panels (optional)
Exterior bumper bars (optional)
•
Temperature Control
•
Microprocessor controlled temperature change from retard
to prove temperatures
•
100% CFC-free top mounted or remote refrigeration system
Electronically controlled humidity system
•
Drain required
•
Technical Specications
MODEL POWER REQUIREMENTS
Single Rack 415V, 3P + N + E, 50Hz, 4kW, 20 amps supply
Double Rack
Thriple Rack
Quad Rack
Six Rack
In line with policy to continually develop and improve its products, Moat reserves the
right to change specications and design without notice.
415V, 3P + N + E, 50Hz, 5kW, 20 amps supply
415V, 3P + N + E, 50Hz, 8kW, 20 amps supply
415V, 3P + N + E, 50Hz, 12kW, 20 amps supply
415V, 3P + N + E, 50Hz, 16kW, 32 amps supply
Complete unit face
1250mm
Straight
Floor & bumper bar
3240mm
Pass Through Conguration
options available
‘U’
Conguration
Floor & Jamb
1250mm
‘L’
Conguration
2000mm
1250mm
2430mm
Control Panel
‘S’
Conguration
