Moffat PC8140G Installation Manual

Installation and Operation Manual

Gas Pasta Cooker

PC8140G PCL8140G

Date Purchased

Serial Number

Dealer

Service Provider

For use in GB & IE

230008-10

MANUFACTURED BY

Moffat Limited
PO Box 10001
Christchurch
New Zealand
Ph: [phone]
Fax: [phone]

WORLD-WIDE BRANCHES

UNITED KINGDOM

Blue Seal
67 Gravelly Business Park
Gravelly Park
Birmingham
West Midlands
B24 8TQ
Ph: [phone]
Fax: [phone]

UNITED STATES

Moffat Inc
3765 Champion Blvd
Winston-Salem
North Carolina 27115
Ph: [phone]
Fax: [phone]

CANADA

Serve Canada
22 Ashwarren Road
Downview
Ontario M3J1Z5
Toll Free:800 263 1455
Ph: [phone]
Fax: [phone]
[e-mail]
www.servecanada.com
www.moffat.com

NEW ZEALAND

Christchurch

Moffat Limited Moffat Limited
PO Box 10-001 4 Waipuna Road
16 Osborne Street Mt Wellington
Christchurch Auckland
Ph: [phone] Ph: [phone]
Fax: [phone] Fax: [phone]

AUSTRALIA

Victoria

Moffat Pty Limited Moffat Pty Limited
740 Springvale Road 3/142 James Ruse Drive, Rose Hill
Mulgrave, Melbourne PO Box 913, Smithfield
Victoria 3171 Sydney, N.S.W. 2142
Ph: [phone] Ph: [phone]
Fax: [phone] Fax: [phone]

Western Australia

Moffat Pty Limited Moffat Pty Limited
67 Howe Street 30 Prosperity Place
Osbourne Park Geebung, Brisbane
WA 6017 Queensland 4034
Ph: [phone] Ph: [phone]
Fax: [phone] Fax [phone]

Auckland

New South Wales

Queensland

The reproduction or copying of any part of this manual by any means whatsoever is strictly forbidden unless authorized previously
in writing by the manufacturer.

In line with policy to continually develop and improve its products, Moffat Ltd. reserves the right to change the specifications and
design without prior notice.

© Copyright Moffat Ltd. August 2009.

Contents

PC(L)8140G GAS PASTA COOKER (Single Tank - 40 Ltr)

Introduction ............................................................................................. 2

Specifications ........................................................................................... 3

Model Numbers Covered in this Specification
General
Optional Accessories
Gas Supply Requirements
Gas Connection
Water Supply Requirements

Dimensions ............................................................................................... 5

Installation ............................................................................................... 6

Installation Requirements
Unpacking
Location
Clearances
Assembly
Gas Connection
Water Connection
Drainage Connection
Commissioning

Operation ................................................................................................ 10

Operation Guide
Description of Controls
Before Use
Filling the Tank
Lighting the Pilot Burner
Lighting the Main Burner
Turning ‘OFF’ the Pasta Cooker

Cleaning and Maintenance ..................................................................... 13

General
Draining and Cleaning
After Each Use
Daily Cleaning
Weekly Cleaning
Periodic Maintenance

Fault Finding ........................................................................................... 16

Wiring Schematic.................................................................................... 17

Gas Conversion and Specifications......................................................... 18

Conversion Procedure
Gas Specifications

Replacement Parts List........................................................................... 22

1

Introduction

We are confident that you will be delighted with your WALDORF GAS PASTA COOKER and it will become a
most valued appliance in your commercial kitchen.

To ensure you receive the utmost benefit from your new Waldorf appliance, there are two important things
you can do.

Firstly:

Please read the instruction book carefully and follow the directions given. The time taken will be well
spent.

Secondly:

If you are unsure of any aspect of the installation, instructions or performance of your appliance,
contact your WALDORF dealer promptly. In many cases a phone call could answer your question.

CE Only:

These instructions are only valid if the country code appears on the appliance. If the code does not
appear on the appliance, refer to the supplier of this appliance to obtain the technical instructions for
adapting the appliance to the conditions for use in that country.

WARNING:

MPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE PROPERTY

I

DAMAGE, INJURY OR DEATH. READ THE INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS

THOROUGHLY BEFORE INSTALLING OR SERVICING THIS APPLIANCE.

WARNING:

INSTRUCTIONS TO BE FOLLOWED IN THE EVENT THE USER SMELLS GAS ARE TO BE POSTED IN A PROMINENT
LOCATION. THIS INFORMATION SHALL BE OBTAINED BY CONSULTING THE LOCAL GAS SUPPLIER.

WARNING:

REAT CARE MUST BE TAKEN BY THE OPERATOR TO USE THE EQUIPMENT SAFELY TO GUARD IT AGAINST RISK

G

OF FIRE.

HE APPLIANCE MUST NOT BE LEFT ON UNATTENDED.

• T

• I

T IS RECOMMENDED THAT A REGULAR INSPECTION IS MADE BY A COMPETENT SERVICE PERSON TO

ENSURE CORRECT AND SAFE OPERATION OF YOUR APPLIANCE IS MAINTAINED.

• DO NOT

THIS OR ANY OTHER APPLIANCE.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.

•

STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPOURS OR LIQUIDS IN THE VICINITY OF

C

AUTION

:

This appliance is;

•

For professional use and is to be used by suitably qualified / trained
persons only.

•

Only authorised service persons are to carry out installation, servicing and
gas conversion operations.

•

Components having adjustments protected (e.g. paint sealed) by the
manufacturer should not be adjusted by the user / operator.

•

DO NOT operate the appliance without the legs supplied fitted.

2

Model Numbers Covered in this Specification

Specifications

PC[1]8140G GAS PASTA COOKER (Single Tank - 40 Ltr)

NOTE:

[1]: - Back Options;

- - Standard Models.
L - Low Back Models.

General

A commercial heavy duty, gas fired high performance Pasta Cooker designed for pasta cooking
commercial high production output, using LPG (Propane) or Natural Gas. The boiling medium is
contained within a heavy gauge stainless steel tank, heated by one infra red surface burner from
beneath the tank.
This Pasta Cooker features an Over Temperature Safety Cut Out System with Full Flame Failure
Safety Controls.
An open tank design to make cleaning a simple and easy task.

Optional Accessories

This appliance can be fitted with the following optional accessories, (refer to the 'Replacement Parts
List' for details).

• Plinth Kit.

Gas Supply Requirements

- Australia New Zealand Only:

Natural Gas LP Gas / (Propane)

Input Rating 46 MJ/hr 47 MJ/hr
(N.H.G.C.) (44,547 Btu/hr)

Supply Pressure

Burner Operating Pressure

1.13 - 3.40 kPa 2.75 - 4.50 kPa

(4.5" - 13.5" w.c.) (11" - 18.0" w.c.)

0.92 kPa (*) 2.6 kPa (*)
(3.7” w.c.) (10.2" w.c.)

(44,547 Btu/hr)

Gas Connection ¾” BSP Male

- UK Only

:

Natural Gas (G20) Propane (G31)

Nominal Reduced Nominal Reduced
Heat Input (nett) 12.0 kW 5.4 kW 12.5 kW 6.2 kW
Gas Rate 1.27 m3/hr 0.42 m3/hr 0.97 kg/hr 0.48 kg/hr
Supply Pressure 20 mbar 37 mbar

Burner Operating Pressure 9.5 mbar (*)

Gas Connection

3

/4” BSP Male

27.7 mbar (*)

Appliance Classification

Category: II
Flue Type: A

2H3P.

1.

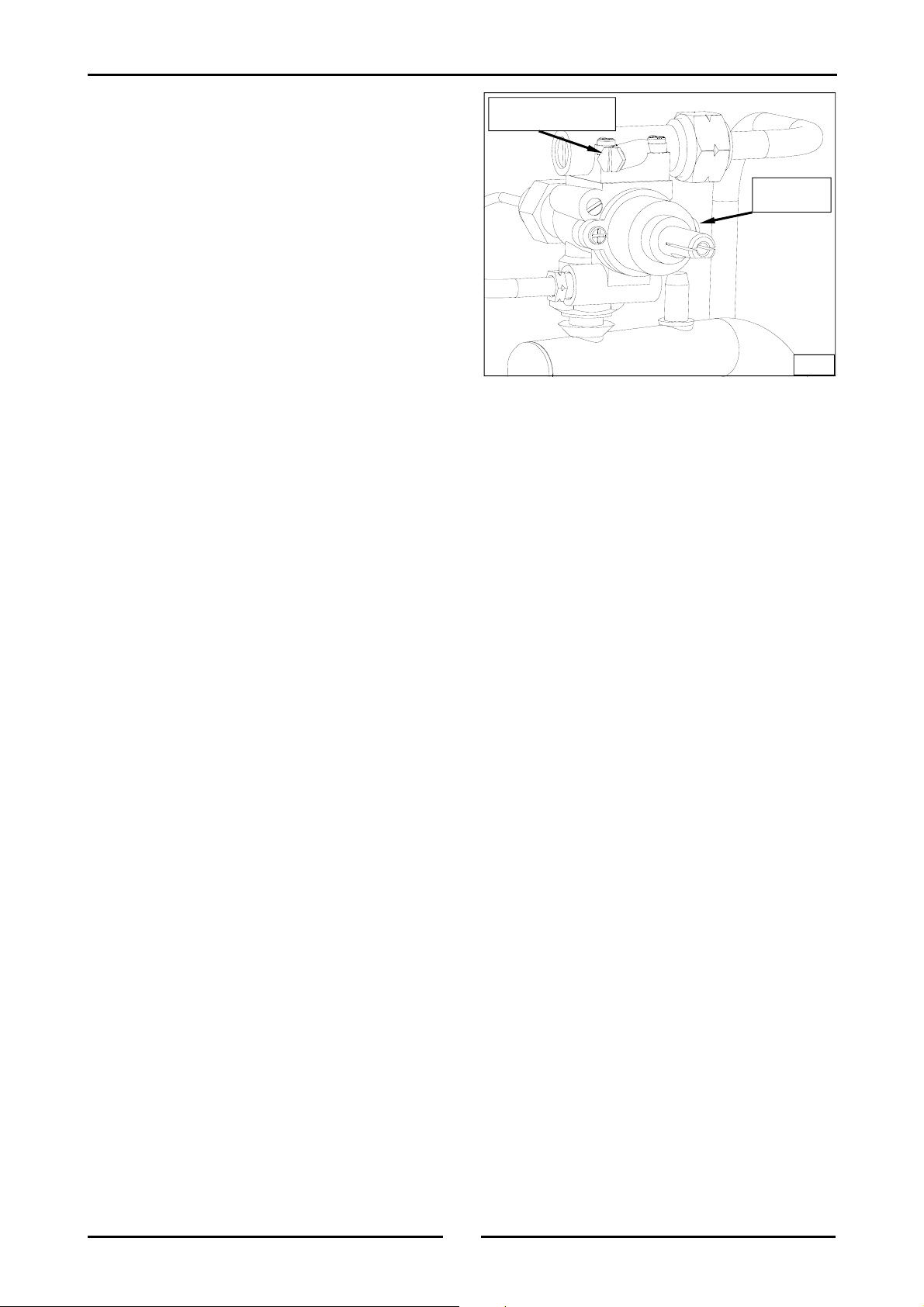

NOTE: (*) The burner operating pressure is to be measured at the upper test point (Supply

Pressure) on the gas control valve located behind the control panel, this is to be carried
out with the burner operating at the ‘High Flame’ setting. Refer to the ‘Gas Conversion
and Specification’ Section for further details.

3

Specifications

Gas Connection

Gas supply connection point is located 190 mm from the right hand side, 36 mm from the rear of the
appliance and 124 mm from the floor and is entered from beneath the appliance. An optional rear
connection is available.

Connection is

Water Supply Requirements

Cold water connection is 1/2" tube connection via 15 mm crox fitting located 50 mm from the LH
side, 556 mm from rear and 151 mm from the floor. The water connection should be plumbed in, in
accordance with National / Local Codes covering installation.

Maximum water supply pressure 550 kPa (80 psi).

Tank max capacity - 40 ltrs of water.

3

/4” BSP male.

4

PC

(L)

8140G

Dimensions

5

Installation

Installation Requirements

NOTE:

• It is most important that this appliance is installed correctly and that operation is
correct before use. Installation shall comply with local, gas, health and safety
requirements.

• This appliance shall be installed with sufficient ventilation to prevent the occurrence
of unacceptable concentrations of health harmful substances in the room, the
appliance is installed in.

Waldorf pasta cookers are designed to provide years of satisfactory service and correct installation is
essential to achieve the best performance, efficiency and trouble-free operation.

This appliance must be installed in accordance with National installation codes and in addition, in
accordance with relevant National / Local codes covering gas and fire safety.

Australia: - AS5601 - Gas Installations.
New Zealand: - NZS5261 - Gas Installation.
Australia / New Zealand - AUS /NZS3500 - Plumbing & Drainage.
United Kingdom: - Gas Safety (Installation & Use) Regulations 1998.

- BS6173 - Installation of Catering Appliances.

- BS5440 - Parts 1 & 2 Installation Flueing & Ventilation.

Ireland: - IS 820 - Non Domestic Gas Installations.

Installations must be carried out by qualified service persons only. Failure to install
equipment to the relevant codes and manufacturer’s specifications shown in this section will
void the warranty.

Components having adjustments protected (e.g. paint sealed) by manufacturer, are only
allowed to be adjusted by an authorised service agent. They are not to be adjusted by the
installation person.

Unpacking

• Remove all packaging and transit protection from the appliance including all protective plastic
coating from the door outer panel and exterior stainless steel panels.

• Check equipment and parts for damage. Report any damage immediately to the carrier and
distributor.

• Report any deficiencies to the distributor who supplied the appliance.

• Check that the available gas supply is correct to that shown on the rating plate located on the inside

of the access door.

• Check that the following parts have been supplied with the appliance:

FN8140G

Baskets 4
Basket Trays 1

Location

1. This appliance must be installed in a suitably ventilated room to prevent dangerous build up of
combustion products.

2. Installation must allow for a sufficient flow of fresh air for the combustion air supply.

Combustion Air Requirements

PC8140G

Natural Gas (G20) 13 m3/hr

LPG / Propane (G31) 13 m3/hr

3. Position the appliance in its approximate working position.

6

Installation

4. All air for burner combustion is supplied from underneath the appliance. The legs must always be
fitted and no obstructions placed on the underside or around the base of the appliance, as
obstructions will cause incorrect operation and / or failure of the appliance.

5. Components having adjustments protected (e.g. paint sealed) by manufacturer are only allowed to
be adjusted by an authorised service agent. They are not to be adjusted by the installation person.

NOTE: Do not obstruct or block the appliances flue. Never directly connect a ventilation system to

the appliance flue outlet.

Clearances

Combustible Surface Non Combustible Surface

Left / Right hand side 50 mm 0 mm

Rear 50 mm 0 mm

NOTE:

• Only non-combustible materials can be used in close proximity to this appliance.

• In order to facilitate easy operation, drainage and servicing of the appliance, a

minimum of 600 mm clearance should be maintained at the front of the appliance.

Any gas burning appliance requires adequate clearance and ventilation for optimum and trouble-free
operation. The following minimum installation clearances are to be adhered to:

Assembly

This model is delivered completely assembled. Ensure that the adjustable feet are securely attached.

NOTE:

• This appliance is fitted with adjustable feet to enable the appliance to be positioned
securely and level. This should be carried out on completion of the gas connection.
Refer to the ‘Gas Connection’ section overleaf.

Optional Accessories (Refer to Replacement Parts List)

• Plinth Kit. For installation details, refer to the instructions supplied with each kit.

7

Installation

Gas Connection

NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY A QUALIFIED SERVICE PERSON.

1. Waldorf Pasta Cookers do not require an electrical connection, they function totally on the gas
supply only.

2. It is essential that the gas supply is correct for the appliance to be installed and that adequate
supply pressure and volume are available. The following checks should therefore be made before
installation:-

a. The Gas Type the appliance has been supplied for is shown on

coloured stickers located above the gas entry point and next to
the rating plate. Check that this is correct for the gas supply
the appliance is being installed for. The gas conversion
procedure is detailed in this manual.

b. Supply Pressure required for this appliance is shown in the

‘Specifications’ section of this manual. Check the gas supply to

Rating Plate
Location

ensure that adequate supply pressure exists.

c. Input Rate of this appliance is also stated on the Rating Plate

fitted to the inside of the access door and in the ‘Specifications’
section of this manual. The input rate should be checked
against the available gas supply line capacity. Particular note

should be taken if the appliance is being added to an

Fig 1

existing installation.

NOTE: It is important that adequately sized piping runs directly to the connection joint on the

appliance, with as few tees and elbows as possible to give maximum supply volume.

3. Fit the gas regulator supplied, into the gas supply line as close to the appliance as possible.

NOTE: The gas pressure regulator provided with this appliance is convertible between Natural Gas

and LPG as per the ‘Gas Conversion Section’ in this manual.
Ensure the regulator is converted to the correct gas type that the appliance will operate on.
The regulator outlet pressure is fixed ex-factory for the gas type that the regulator is

converted to and it is NOT to be adjusted

.

The regulator connections are 3/4" BSP female.

3

The connection to the appliance is

/4" BSP male.

(Refer to the 'Specifications' section for the gas supply location dimensions).

NOTE: A Manual Isolation Valve must be fitted to the individual appliance supply line.

4. Correctly locate the appliance into its final operating position and using a spirit level, adjust the legs

so that the unit is level and at the correct height.

5. Connect the gas supply to the appliance.

6. Check gas operating pressure to as shown in the ‘Specifications’ section. If the pressure is incorrect,

adjust the pressure by adjusting the regulator screw of the gas control valve as shown in the ‘Gas
Conversion and Specifications’ section.

7. Check all gas connections for leakages using soapy water or other gas detecting equipment.

WARNING:

DO NOT USE A NAKED FLAME TO CHECK FOR GAS LEAKAGES.

NOTE: The operating pressure is to be measured at the Burner Operating Pressure test point on

the gas control valve, this is to be carried out with the burner operating at the 'High Flame'

setting. The operating pressure is ex-factory set, through the appliance regulator and not to

be adjusted, apart from when carrying out gas conversion, if required. Refer to the ‘Gas

Conversion and Specification’ Section for further details.

8

Installation

8. Turn ‘OFF’ the mains gas supply and bleed the

gas out of the appliance gas lines.

Burner Operating

Pressure Test Point

9. Turn ‘ON’ the gas supply and the appliance.

10. Verify the operating pressure remains correct

11. Check the pilot flame size. (Re-adjust if

required by changing the pilot injector. Refer

Gas Control

Valve

to the Gas Conversion Section).

Fig 2

Water Connection

NOTE: The water connection shall be installed in accordance with local water regulations in force

and the applicable standard/code, e.g. EN 1717 in UK / Ireland, PCA in Australia.

1

A cold water supply must be connected to the water inlet connection (R

/2" BSP), located 50 mm from

the LH side, 556 mm from rear and 151 mm from the floor.

The water inlet pressure must be as follows:-

Minimum water supply pressure 150 kPa (22 psi).
Maximum water supply pressure 550 kPa (80 psi).

Drainage Connection

• The water is drained from the appliance by means of a valve located behind the front control panel.

• A waste water tundish must be fitted below the appliance drain outlet. This should be a minimum of

127mm (5”) major diameter.

• If required the drain outlet can be extended in order to exit above the tundish. All drain piping must
be with materials suitable for conveying boiling water.

• Drain connection is R1" BSP drain / overflow.

Commissioning

The following commissioning checks must be carried out before the pasta cooker is handed
over for use, to ensure that the unit operates correctly and the operator(s) understand the
correct operating procedure.

1. Before leaving the new installation;
a. Check the following functions in accordance with the operating instructions specified in the

‘Operation’ section of this manual.

• Light the Pilot Burner.

• Light the Main Burner.

b. Ensure that each operator has been instructed in the areas of correct lighting, operation, and

shutdown procedures for the appliance.

2. This manual must be kept by the owner for future reference and a record of

Date of Installation

and

Serial Number of Unit

recorded and kept with this manual. (These

Date of Purchase

,

details can be found on the Rating Plate attached to the inner R/H side of the front
access door panel. Refer to Figure 1 in the 'Installation' section).

NOTE: If for some reason it is not possible to get the appliance to operate correctly, shut off the

gas supply and contact the supplier of this unit.

9

Operation

Operation Guide

C

AUTION

•

This appliance is for professional use and is only to be used by suitably
qualified / trained persons.

•

Only qualified service persons are to carry out installation, servicing or gas
conversion operations.

•

Components having adjustments protected (e.g. paint sealed) by the
manufacturer should not be adjusted by the user / operator.

:

1. WALDORF 'Pasta Cookers have been designed to provide simplicity of operation and 100% safety
protection.

2. Improper operation is therefore almost impossible, however bad operation practices can produce a
poor quality product. To use this pasta cooker correctly please read the following sections carefully;

• Filling the Tank with Water.

• Lighting the Pilot Burner.

• Lighting the Main Burner.

• Draining and Cleaning.

Description of Controls

• A commercial heavy duty, gas fired pasta cooker using an infra red burner system.

• Available in single model type.

• This model is fitted with single main burner and pilot burner and is controlled by a single gas

controller with flame failure protection to control both main burner and pilot.

• Open tank design to simplify cleaning operation.

PC8140G Pasta Cooker Controls

WARNING:

EVER OPERATE THE APPLIANCE WITH THE GAS CONTROL VALVE IN THE POSITION BETWEEN THE 'HIGH'

N

LAME POSITION AND THE 'PILOT' POSITION.

F

Gas Control Knob

Burner Control

OFF Position

PILOT Burner

Fig 3

HIGH Flame

LOW Flame

Piezo Igniter
(Behind Access Door)

Water Control Valve

10

Operation

WARNING:

REAT CARE MUST BE TAKEN BY THE OPERATOR TO USE THE PASTA COOKER SAFELY, TO GUARD AGAINST

G

THE RISK OF INJURY AND FIRE.

• DO NOT

• DO NOT

• DO NOT

• DO NOT

COOKER WHILST THE PASTA COOKER IS STILL HOT.

Before Use

1. Check that the gas supply is turned on.

2. Check that no foreign articles are in the tank.

ANGER OF FIRE EXISTS IF THE WATER LEVEL IS BELOW THE MINIMUM 'LOW' INDICATED LEVEL.

D

LEAVE THE PASTA COOKER UNATTENDED DURING OPERATION.
OVER FILL THE WATER IN THE PASTA COOKER ABOVE THE UPPER FILL LEVEL MARK.
ALLOW THE WATER IN THE PASTA COOKER TO FALL BELOW THE LOWER LEVEL MARK.
USE FLAMMIBLE SOLVENTS AND CLEANING AIDS ON OR IN CLOSE PROXIMITY TO THE PASTA

WARNING:

EVER OPERATE THE APPLIANCE EMPTY.

N

CORRECT LEVEL FOR WATER WHEN COOKING,
KEEP TOPPED UP.

INDICATES MINIMUM (SAFE) LEVEL. WATER
LEVEL SHOULD BE TOPPED UP.

Fig 4

Filling the Tank

NOTE: Tank capacity - 40 Ltrs of water.

1. Before filling the tank, always check that the drain valve behind the door is closed. A locking slide is
provided on the valve and this should always be locked in position during use.

2. Turn the water supply 'ON'. Open the appliance water valve and fill the tank with water.

3. The water level will remain at a constant height as there is an overflow at the front of the tank.

4. During cooking, the water level will reduce as it evaporates as steam when boiling and when it
overflows as loaded baskets are dropped into the tank.

5. To maintain the correct water level, the water tap should be adjusted to give a water flow out of the
water supply nozzle that just causes water to continually flow out of the overflow.

This method provides:

• Maintained water level for cooking.

• Skimming or flushing effect to prevent the cooking water becoming gummed up with pasta

residue.

11

Operation

Lighting the Pilot Burner

C

AUTION

Do NOT ignite the burner if the tank is empty (No Water). Ensure that the tank
is filled to the correct level before igniting the main burner.

:

1. With the pasta cooker tank full of water, the pilot burner can be lit.

2. Check that the gas supply is turned on at the mains supply.

3. Depress and rotate the gas control knob to the position marked ‘PILOT’ and hold the knob
depressed.

4. Open the front access door of the appliance and depress the piezo igniter located on the bulkhead
panel until the pilot burner ignites.

5. Continue holding the gas control knob depressed for approx. 10 to 15 seconds after igniting the pilot
burner, then release, the pilot burner should remain alight.

6. Ensure that the pilot burner is alight, by checking that the pilot flame is alight with the access door
open.

7. If the pilot burner does not ignite, repeat Items 1 to 6 above.

Lighting the Main Burner

1. Depress and rotate the gas control knob to the ‘High Flame’ position, the main burner will now ignite
automatically off the pilot burner.

2. The gas control knob can be regulated between the 'High Flame' and the 'Low Flame' position to
regulate the cooking temperature.

3. It will take approximately 30 minutes to heat the water in the tank from 20°C to 100°C.

Turning 'Off' the Pasta Cooker

To the ‘Pilot’ Position

a. Depress and rotate the gas control valve clockwise to the ‘Pilot’ position.
b. The main burner will extinguish and the ‘Pilot’ will remain alight.

To the ‘Off’ Position

a. Depress and rotate the gas control valve fully clockwise to the ‘Off’ position.
b. The ‘Pilot’ burner will extinguish.

12

Cleaning and Maintenance

WARNING:

DO NOT

WHILST THE COOKER IS STILL HOT.

USE FLAMMIBLE SOLVENTS AND CLEANING AIDS ON OR IN CLOSE PROXIMITY TO THE PASTA COOKER

C

AUTION

:

Always turn off the gas supply at the mains supply before cleaning.

This appliance is not water proof.

Do not use water jet spray to clean interior or exterior of this appliance.

General

Clean the pasta cooker regularly. A clean pasta cooker looks better, will last longer and will perform
better. A dirty pasta cooker will hinder the transfer of heat from the cooking surface to the food.
This will result in loss of cooking efficiency.

C

AUTION

:

If cleaning detergents are allowed to enter the inner parts of the appliance,
rusting will occur on the pipe work, installation elements, heating
elements, gas fittings and electrical components, this will cause premature
failure of the appliance.

NOTE:

• DO NOT clean the appliance using high pressure water or steam jets.

• DO NOT pour water directly over the appliance.

• DO NOT use wire brushes. Clean the pan regularly after each use.

• DO NOT use combustible liquids to clean the appliance.

• DO NOT use harsh abrasive detergents, sharp scrapers, strong solvents or caustic

detergents as they will damage the appliance.

• DO NOT use any chloric or bleaching detergents to clean the appliance.

• Ensure that any detergent or cleaning material have been completely removed after

each cleaning.

• DO NOT use saline or sulfuric acid preparations for descaling the appliance.

• Ensure that protective gloves are worn during the cleaning process.

• Clean the pan regularly after each use.

Draining and Cleaning

Opening the Drain Valve

a. Lift the locking slide on valve handle (Fig 5) to release the valve.
b. While holding the locking slide in the withdrawn position, rotate the handle anticlockwise (Fig 6)

to open the valve.

c. When the valve is closed, slide the locking slide down over the locking valve to prevent accidental

opening of the valve as shown in Fig.5.

13

Cleaning and Maintenance

Locking Slide

Locking Slide

Fig 5

After Each Use

WARNING:

HOT WATER WILL SCALD - DO NOT RUSH THIS JOB.

1. Clean the interior of the pan regularly after each use. Do not use wire brushes on the pan. Clean
using a mild detergent and a hot water solution using soft cloth or a soft bristled brush. Dry the
appliance thoroughly using a dry clean cloth.

Daily Cleaning

WARNING:

DO NOT ATTEMPT TO MOVE THE PASTA COOKER WHILST THE COOKER IS FULL OF WATER.

BEFORE ATTEMPTING TO MOVE THE PASTA COOKER, ENSURE THAT ALL THE WATER HAS
BEEN DRAINED FROM THE TANK. REFER TO THE INFORMATION ON THE PREVIOUS PAGE
ON HOW TO DRAIN THE WATER FROM THE PASTA COOKER.

Fig 6

1. The water should be drained and re-filled regularly. Open the drain valve slowly to minimise
splashing. Waste water will drain into the tundish fitted below the appliance drain outlet.

2. When the tank is empty, open the drain valve fully and check for any particles or residue lodged in
the valve. Clean out with a stiff nylon brush. Do not use wire brush or metal rods as these damage
the seating in the valve and will eventually lead to valve leakage.

3. If the obstruction in the valve cannot be removed with a brush, use a wooden probe to dislodge any
obstruction.

4. Clean the interior and exterior of the pan regularly at the end of each day. Do not use wire brushes
on the pan. Clean using a mild detergent and a hot water solution using soft cloth or a soft bristled
brush. Dry the appliance thoroughly using a dry clean cloth.

5. Once the daily cleaning operation is completed, ensure that the drain valve has been closed.

6. At the end of each day or at the end of each shift, clean the exterior of the pasta cooker using a
mild detergent and a hot water solution using soft cloth or a soft bristled brush.

14

Cleaning and Maintenance

Weekly Cleaning

WARNING:

DO NOT ATTEMPT TO MOVE THE PASTA COOKER WHILST THE COOKER IS FULL OF WATER.

BEFORE ATTEMPTING TO MOVE THE PASTA COOKER, ENSURE THAT ALL THE WATER HAS
BEEN DRAINED FROM THE TANK. REFER TO THE INFORMATION ON THE PREVIOUS PAGE
ON HOW TO DRAIN THE WATER FROM THE PASTA COOKER.

NOTE:

• If the pasta cooker usage is very high, we recommend that the weekly cleaning
procedure is carried out on a more frequent basis.

• Ensure that protective gloves are worn during the cleaning process.

• DO NOT use harsh abrasive detergents, strong solvents, sharp scrapers or caustic

detergents as they will damage the surface of the pasta cooker.

• Ensure that the water circuit is free of ferrous particles. Any such particles deposited
in the bottom of the tank may cause it to rust.

Thoroughly clean the interior and exterior of the pasta cooker regularly. Do not use wire brushes on the
pan. Clean using a mild detergent and a hot water solution using soft cloth or a soft bristled brush. Dry
the appliance thoroughly using a dry clean cloth.

NOTE: In order to prevent the forming of rust on the steel components, ensure that the detergent

or cleaning material has been entirely removed after each cleaning process.

Stainless Steel Surfaces

a. Clean the interior and exterior surfaces of the pasta cooker with hot water, a mild detergent

solution and a soft scrubbing brush. Note that the gas control knobs are a push fit onto the gas
and water control valve spindles and can be removed to allow cleaning of the front of the control
panel.

b. Baked on deposits or discolouration may require a good quality stainless steel cleaner or stainless

steel wool. Always apply cleaner when the appliance is cold and rub in the direction of the grain.

c. Dry all components thoroughly with a dry cloth and polish with a soft dry cloth.

Periodic Maintenance

NOTE: All maintenance operations should only be carried out by a qualified service person.

To achieve the best results cleaning must be regular and thorough and all controls and mechanical parts
should be checked and adjusted periodically by a qualified service person. If any small faults occur, have
them attended to promptly. Don't wait until they cause a complete breakdown. It is recommended that
the appliance is serviced every 6 months.

If the appliance is not used for long periods, close the gas shut-off valve upstream of the appliance and
clean the appliance thoroughly.

The appliance should be inspected and the gas exhaust flue cleaned by an authorized service person at
least every 6 months.

15

Fault Finding

This section provides an easy reference guide to the more common problems that may occur during the
operation of your equipment. The fault finding guide in this section is intended to help you correct, or at
least accurately diagnose problems with your equipment.

Although this section covers the most common problems reported, you may encounter a problem not
covered in this section. In such instances, please contact your local authorised service agent who will
make every effort to help you identify and resolve the problem. Please note that the service agent will
require the following information:-

• The Model Trade Name and the Serial Number of the Appliance. (both can be found
on the Technical Data Plate located on the appliance.

Fault Possible Cause Remedy

Pilot Burners will not
ignite or ignites with
difficulty and will not stay
alight.

Check gas supply is turned on. Turn on gas supply.

Check gas supply is low or empty. Replenish gas supply.

Thermocouple connection loose. Tighten thermocouple connection.

Replace any damaged connectors.

Over temperature lead connection
to interrupter on thermocouple is
loose. Loose connections will
cause resistance to millivolt circuit
and result in pilot outage.

Tighten over temperature lead to the
interrupter on the thermocouple.

Pilot Burner delay in
ignition of main burners.

Main Burners will not
ignite or ignites with
difficulty.

If sufficient pilot flame cannot be
obtained, remove pilot orifice
from pilot burner and check for
blockage of the pilot burner and /
or gas line also correct size gas
pipe used.
If pilot can be lit but flame too
small to impinge on the
thermocouple.

If pilot flame OK but goes out
after control knob released (after
holding in for approx. 30 secs).

If all of the above in the pilot and
thermocouple system checks out
satis. but the problem still
persists.

Check operating pressure as
stated in ‘Installation’ section.

Check pilot flame adjustment. Pilot flame for main burner ignition

Insufficient gas pressure.

The main injector is blocked.

The gas valve is faulty.

If connections OK, check for gas at
the pilot burner by manually lighting
the pilot burner.

Call service provider.

Check adjustment of pilot flow by
adjusting screw below control knob
on gas control. Check the supply.

Check for faulty thermocouple.

Call service provider.

The gas control valve is defective
and needs replacement.

Increase by adjusting pilot
adjustment screw on gas control.

should be approximately 1 inch long.
Check pilot burner size is correct.
(See ‘Specifications’ section).

Check the gas pressure and adjust
as necessary.
Remove the main injector and clean
or replace.
Replace.
Call service provider.

16

PC8140G Pasta Cooker

Wiring Schematics

17

Gas Conversion and Specifications

Conversion Procedure

C

AUTION

Ensure the unit is isolated from the gas supply before commencing servicing.

NOTE:

• These conversions should only be carried out by qualified service persons. All
connections must be checked for leaks before re-commissioning the appliance.

• For all relevant information and specifications refer to the table at the end of this
section.

1. Ensure that the gas supply has been turned off.

2. Remove the gas control knob from the gas tap spindle by
pulling the knobs away from the control panel.

3. Remove the water control knob by popping out the
centre of the knob and using a suitable screwdriver,
unscrew the centre screw and remove the knob.

4. Open the front door, unscrew and remove the two
screws on the underside of the control panel, securing
the control panel to the appliance.

5. Remove the control panel from the front of the
appliance.

6. Connect a manometer to the upper test point (Line
Pressure) on the gas control valve. Turn on the gas and
ensure that the supply pressure is within the specification
shown in the ‘Gas Specifications Table’ at the end of this
section.

Main Burner Injectors

:

Burner

Operating

Pressure Test

Point

Gas Control

Valve

Main Burner

Injector

Fig 7

1. Unscrew and remove the main burner injectors (12.7 mm
A/F) located in front of main burner venturi openings.

2. Determine the correct injectors for the corresponding gas
from the ‘Gas Specifications Table’ at the end of this
section.

3. Screw in the correct sized injectors. Refer to the ‘Gas
Specifications Table’ at the end of this section.

Pilot Burner Injectors

1. Unscrew the pilot supply tube from the pilot burner fitted
to the mounting bracket and remove the pilot injector.

NOTE: On appliances fitted with piezo igniter electrodes, to

prevent damage to the electrode, unscrew and
remove the electrode from the mounting bracket
before unscrewing the pilot supply tube.

2. Determine the correct sized pilot injectors for the
corresponding gas from the table overleaf.

3. Fit the correct sized injector into the pilot burner and
re-connect the gas supply tube to the pilot burner.

4. Refit the piezo igniter electrode to the mounting bracket
and tighten hand tight.

Fig 8

Thermocouple

Pilot Burner

Piezo

Igniter

Fig 9

18

Gas Conversion and Specifications

Low Fire Adjustment

a. To adjust the burner low fire adjustment, adjust the

low fire adjustment screw on the open burner gas

Low Fire

Adjusting Screw

control valves to obtain the desired flame size.

NOTE: The ‘Low Fire Screw’ should be sealed with

coloured paint on completion of the low fire
adjustment.

On completion of the main and pilot burner adjustments, check
all gas connections for leakages and then turn off the main
burners at the gas control knob. Turn off the main gas supply.

Refit all the panels and control knobs to the appliance.

Fig 10

Gas Regulator

NOTE: The regulator supplied is convertible between Natural Gas and LPG, but it’s outlet pressure

is fixed ex-factory and is NOT to be adjusted.

NOTE, Pin rotated
for Natural Gas

NOTE, Pin
rotated for LPG

Fig 11

1. Ensure that the gas supply is turned ‘OFF’ at the mains.

2. Unscrew the hexagonal cap (23mm A/F) from the regulator.

3. Un-clip the plastic pin from the cap, rotate the pin and re-fit it back to
the cap the correct way for the gas type to be used. (Either ‘LP’ or

‘NAT’ should be visible on the flank of the pin once
re-fitted to the cap).

4. Screw the cap back into the regulator.

Gas Type Identification Label

On completion of the gas conversion, replace the gas type identification label located at:-

- The rear of the appliance, above the gas connection.

- Beside the rating plate.

19

Gas Conversion and Specifications

Commissioning

Before leaving the converted installation;

1. Check all gas connections for leakages using soapy water or other gas detecting equipment.

WARNING:

DO NOT USE A NAKED FLAME TO CHECK FOR GAS LEAKAGES.

2. Check the following functions in accordance with the operating instructions specified in the

‘Operation’ section of this manual.

• Light the Pilot Burners.

• Light the Main Burners.

• Check the Thermostat operation.

• Ensure that all the controls operate correctly.

NOTE: If for some reason it is not possible to get the appliance to operate correctly, shut off the

gas supply and contact the supplier of this appliance.

20

Gas Specifications

- Australia / New Zealand Only:

Gas Conversion and Specifications

Natural Gas. LP Gas (Propane)

Main Burner Injectors Ø 3.10mm Ø 1.90mm

Pilot Burner Injectors

Low Fire Screw

High Fire Screw

Supply Pressure

Burner Operating Pressure

2 turns out (c.c.w.)

0.62 0.35

Ø 1.55mm

Ø 1.55mm

Fully In (c.w.)

Fully Out (c.c.w.) Fully Out (c.c.w.)

1.13 - 3.40 kPa 2.75 - 4.50 kPa

0.92 kPa (*) 2.6 kPa (*)

Gas Regulator Cap Screw

- UK Only:

Natural Gas (G20) Propane (G31)

Main Burner Injectors Ø 3.10mm Ø 1.90mm

Pilot Burner Injectors

Low Fire Screw

High Fire Screw

Supply Pressure

Burner Operating Pressure

2 turns out (c.c.w.)

0.62 0.35

Ø 1.55mm

Ø 1.55mm

Fully In (c.w.)

Fully Out (c.c.w.) Fully Out (c.c.w.)

20 mbar 37 mbar

9.5 mbar (*) 27.7 mbar (*)

Gas Regulator Cap Screw

Appliance Classification

Category: II
Flue Type: A

2H3P.

1.

NOTE: (*) The burner operating pressure is to be measured at the Burner Operating Pressure test

point on the gas control valve, this is to be carried out with the burner operating at the
'High Flame' setting. The operating pressure is ex-factory set, through the appliance
regulator and not to be adjusted, apart from when carrying out gas conversion, if
required. Refer to the ‘Gas Conversion and Specification’ Section for further details.

21

Replacement Parts List

Replacement Parts List

IMPORTANT:

Only genuine authorized replacement parts should be used for the servicing and
repair of this appliance. The instructions supplied with the parts should be followed
when replacing components.
For further information and servicing instructions, contact your nearest authorized
service branch (contact details are as shown on the reverse of the front cover of this
manual).

When ordering spare parts, please quote the part number and the description as listed below. If the part
required is not listed below, request the part by description and quote model number and serial number
which is shown on the rating plate.

Controls

018094 Thermocouple.
229702 Overtemp 115°.
032190 Main Burner Injector (LPG/Propane) - ø 1.90mm.
032310 Main Burner Injector (Nat Gas) - ø 3.10mm.
018090K Pilot Burner.
018092 Pilot Injector (LPG/Propane) 0.35.
018091 Pilot Injector (Nat Gas) - 0.62.
229699 Gas Control Valve.
229693 Gas Control Knob.
229703 Water Valve 2F138.
018095 Piezo H.T. Lead.
227508 Piezo Ignitor.
022575 Burner Kit.

General

229837 Pasta Cooker Basket 320 x 165mm. (Optional Accessory).
229836 Pasta Cooker Basket 165 x 165mm.
229707 Pasta Cooker Basket Drain Tray.
229682 Basket Support Frame.
227856 Door Magnet.
019390 Water Drain Valve.
229823 Overflow Hose.
227850 Adjustable Leg - 150mm.

Regulator

228531 Regulator (RV48CLM) - (Natural Gas/LPG - convertible) - ¾” BSP female.

Gas Conversion Kits

Gas Type to Convert to:

Model

PC8140G 232061 232060 232061 232060

Australia / New Zealand Only UK Only

Nat. Gas LPG Nat. Gas LPG

Accessories (Optional)

228793 Plinth Kit.

22

23
