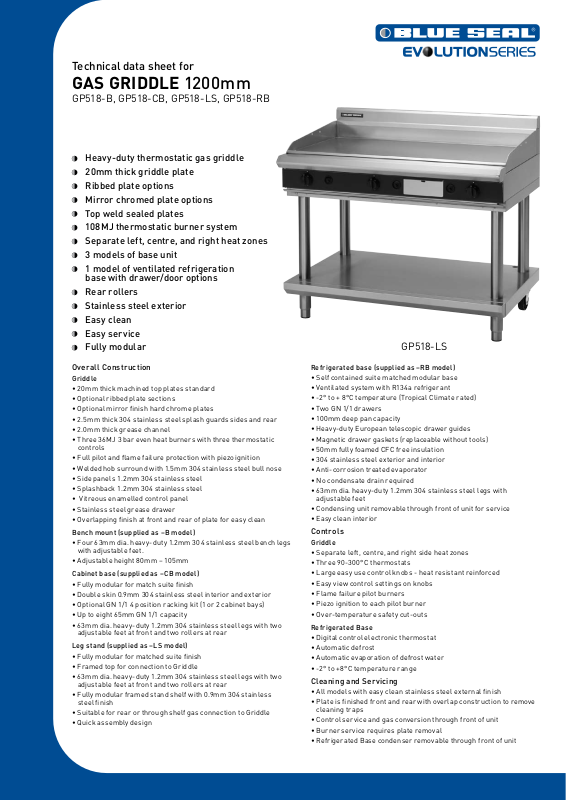

Technical data sheet for

GAS GRIDDLE 1200mm

GP518-B, GP518-CB, GP518-LS, GP518-RB

Heavy-duty thermostatic gas griddle 20mm thick griddle plate Ribbed plate options Mirror chromed plate options Top weld sealed plates 108MJ thermostatic burner system Separate left, centre, and right heat zones 3 models of base unit 1 model of ventilated refrigeration

base with drawer/door options

Rear rollers Stainless steel exterior Easy clean Easy service Fully modular

GP518-LS

Overall Construction

Griddle

• 20mm thick machined top plates standard

• Optional ribbed plate sections

• Optional mirror ﬁnish hard chrome plates

• 2.5mm thick 304 stainless steel splash guards sides and rear

• 2.0mm thick grease channel

• Three 36MJ 3 bar even heat burners with three thermostatic controls

• Full pilot and ﬂame failure protection with piezo ignition

• Welded hob surround with 1.5mm 304 stainless steel bull nose

• Side panels 1.2mm 304 stainless steel

• Splashback 1.2mm 304 stainless steel

• Vitreous enamelled control panel

• Stainless steel grease drawer

• Overlapping ﬁnish at front and rear of plate for easy clean

Bench mount (supplied as –B model)

• Four 63mm dia. heavy-dut y 1.2mm 304 stainless steel bench legs with adjustable feet.

• Adjustable height 80mm – 105mm

Cabinet base (supplied as –CB model)

• Fully modular for match suite ﬁnish

• Double skin 0.9mm 304 stainless steel interior and exterior

• Optional GN 1/1 4 position racking kit (1 or 2 cabinet bays)

• Up to eight 65mm GN 1/1 capacity

• 63mm dia. heavy-duty 1.2mm 304 stainless steel legs with two adjustable feet at front and two rollers at rear

Leg stand (supplied as –LS model)

• Fully modular for matched suite ﬁnish

• Framed top for connection to Griddle

• 63mm dia. heavy-duty 1.2mm 304 stainless steel legs with two adjustable feet at front and two rollers at rear

• Fully modular framed stand shelf with 0.9mm 304 stainless steel ﬁnish

• Suitable for rear or through shelf gas connection to Griddle

• Quick assembly design

Refrigerated base (supplied as –RB model)

• Self contained suite matched modular base

• Ventilated system with R134a refrigerant

• -2° to + 8°C temperature (Tropical Climate rated)

• Two GN 1/1 drawers

• 100mm deep pan capacity

• Heav y-duty European telescopic drawer guides

• Magnetic drawer gaskets (replaceable without tools)

• 50mm fully foamed CFC free insulation

• 304 stainless steel exterior and interior

• Anti-corrosion treated evaporator

• No condensate drain required

• 63mm dia. heavy-duty 1.2mm 304 stainless steel legs with adjustable feet

• Condensing unit removable through front of unit for service

• Easy clean interior

Controls

Griddle

• Separate lef t, centre, and right side heat zones

• Three 90-300°C thermostats

• Large easy use control knobs - heat resistant reinforced

• Easy view control settings on knobs

• Flame failure pilot burners

• Piezo ignition to each pilot burner

• Over-temperature safety cut-outs

Refrigerated Base

• Digital control electronic thermostat

• Automatic defrost

• Automatic evaporation of defrost water

• -2° to +8°C temperature range

Cleaning and Servicing

• All models with easy clean stainless steel external ﬁnish

• Plate is ﬁnished front and rear with overlap construction to remove cleaning traps

• Control service and gas conversion through front of unit

• Burner service requires plate removal

• Refrigerated Base condenser removable through front of unit

Technical data sheet for

GAS GRIDDLE 1200mm

Speciﬁcations

Griddle Burner

Three 3 bar chromed steel burners Individual pilot, ﬂame failure and piezo ignition

Gas power

108MJ/hr, 30kW

Plate

Cooking surface 1192mm x 530mm, 6318cm2

Gas connection

R 3/4 (BSP) male All units supplied with Natur al and LP gas regulator

Refrigerated Base Type

Ventilated system

Refrigerant

R134a (160grams)

Climate classiﬁcation

T – tropical

Electrical connection

220-240Vac, 50Hz, 1.8A , 1P+N+E 3 pin 10A plug cordset ﬁtted

Dimensions

Bench models

Width 1200mm Depth 812mm Height 315mm Incl. splashback 485mm

All models (excluding Bench model)

Width 1200mm Depth 812mm Height 915mm Incl. splashback 1085mm

Packing data

Bench and Leg Stand models

0.72m3 Width 1245mm Depth 870mm Height 665mm

Cabinet Base and Refriger ated Base models

1.36m3 Width 1245mm Depth 870mm Height 1255mm

Gas types

Available in Natural gas and LP gas, please specify when ordering Units supplied complete with gas type conversion kits Other gas types on request

Options

Adjustable feet at rear Joining caps Castors Ribbed plate options Mirror chromed plate options

GP518-B

GP518-LS

GP518-CB

GP518-RB

PLAN
