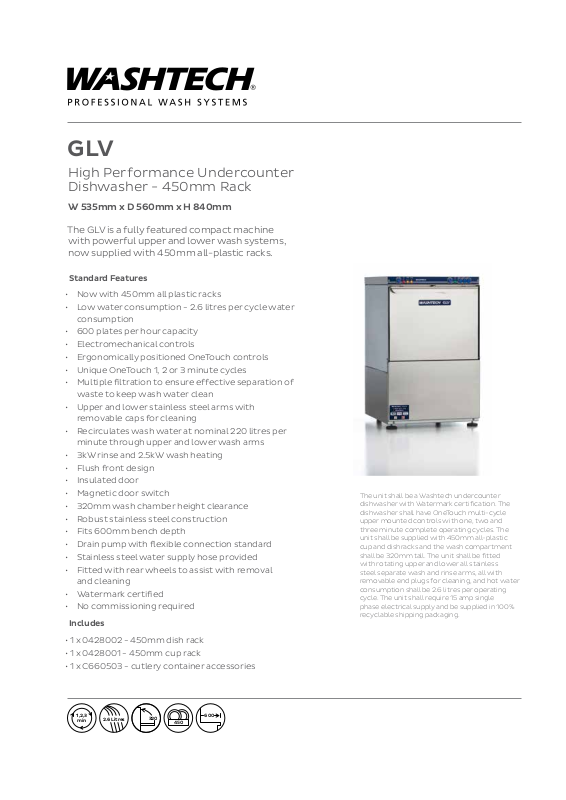

GLV

High Performance Undercounter
Dishwasher - 450mm Rack

W 535mm x D 560mm x H 840mm

The GLV is a fully featured compact machine

with powerful upper and lower wash systems,
now supplied with 450mm all-plastic racks.

Standard Features

• Now with 450mm all plastic racks

• Low water consumption - 2.6 litres per cycle water
consumption

• 600 plates per hour capacity

• Electromechanical controls

• Ergonomically positioned OneTouch controls

• Unique OneTouch 1, 2 or 3 minute cycles

• Multiple filtration to ensure effective separation of
waste to keep wash water clean

• Upper and lower stainless steel arms with
removable caps for cleaning

• Recirculates wash water at nominal 220 litres per
minute through upper and lower wash arms

• 3kW rinse and 2.5kW wash heating

• Flush front design

• Insulated door

• Magnetic door switch

• 320mm wash chamber height clearance

• Robust stainless steel construction

• Fits 600mm bench depth

• Drain pump with flexible connection standard

• Stainless steel water supply hose provided

• Fitted with rear wheels to assist with removal
and cleaning

• Watermark certified

• No commissioning required

Includes

The unit shall be a Washtech undercounter
dishwasher with Watermark certification. The
dishwasher shall have OneTouch multi-cycle
upper mounted controls with one, two and
three minute complete operating cycles. The
unit shall be supplied with 450mm all-plastic
cup and dishracks and the wash compartment
shall be 320mm tall. The unit shall be fitted
with rotating upper and lower all stainless
steel separate wash and rinse arms, all with
removable end plugs for cleaning, and hot water
consumption shall be 2.6 litres per operating
cycle. The unit shall require 15 amp single
phase electrical supply and be supplied in 100%
recyclable shipping packaging.

• 1 x 0428002 - 450mm dish rack

• 1 x 0428001 - 450mm cup rack

• 1 x C660503 - cutlery container accessories

1,2,3

min

2.6 Litres

320

450

600

GLV

GLV

High Performance Undercounter
Dishwasher - 450mm Rack

Australia
www.moffat.com.au

Australia
Moffat Pty Limited

Victoria/Tasmania
740 Springvale Road
Mulgrave, Victoria 3170
Telephone [phone]
Facsimile 03-9518 3833
[e-mail]
www.moffat.com.au

New South Wales
Telephone [phone]
[e-mail]

South Australia
Telephone [phone]
[e-mail]

Queensland
Telephone [phone]
[e-mail]

Western Australia
Telephone [phone]
[e-mail]

A Hot Water

temperature 65°C
connection 3/4” hose supplied
pressure 200-350kPa
flow 20 litres per min
quality potable & soft

B Waste

connection hose supplied

C Electrical

Single phase 240V 50Hz 15 amp
plugset supplied

Refer operator manual for complete
installation instructions

Dimensions

Width 535mm
Depth 560mm
Height 840mm
Weight 66kg

Packed Dimensions

Width 645mm
Depth 610mm
Height 965mm
Weight 83kg
Cubicmetres 0.40m³
