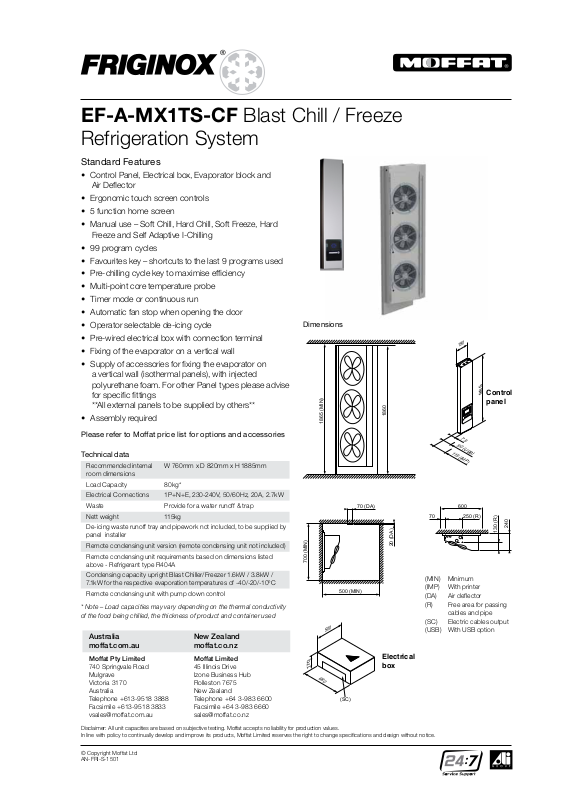

Moffat EF-A-MX1TS-CF User Manual
®
EF-A-MX1TS-CF Blast Chill / Freeze
Refrigeration System
Standard Features
• Control Panel, Electrical box, Evaporator block and
Air Deflector
• Ergonomic touch screen controls
• 5 function home screen
• Manual use – Soft Chill, Hard Chill, Soft Freeze, Hard
Freeze and Self Adaptive I-Chilling
• 99 program cycles
• Favourites key – shortcuts to the last 9 programs used
• Pre-chilling cycle key to maximise efficiency
• Multi-point core temperature probe
• Timer mode or continuous run
• Automatic fan stop when opening the door
• Operator selectable de-icing cycle
• Pre-wired electrical box with connection terminal
• Fixing of the evaporator on a vertical wall
• Supply of accessories for fixing the evaporator on
a vertical wall (isothermal panels), with injected
polyurethane foam. For other Panel types please advise
for specific fittings
**All external panels to be supplied by others**
• Assembly required
Please refer to Moat price list for options and accessories
Technical data
Recommended internal W 760mm x D 820mm x H 1885mm
room dimensions
Load Capacity 80kg*
Electrical Connections 1P+N+E, 230-240V, 50/60Hz, 20A, 2.7kW
Waste Provide for a water runoff & trap
Nett weight 115kg
De-icing waste runoff tray and pipework not included, to be supplied by
panel installer
Remote condensing unit version (remote condensing unit not included)
Remote condensing unit requirements based on dimensions listed
above - Refrigerant type R404A
Condensing capacity upright Blast Chiller/Freezer 1.6kW / 3.8kW /
7.1kW for the respective evaporation temperatures of -40/-20/-10ºC
Remote condensing unit with pump down control
* Note – Load capacities may var y depe nding on the ther mal conductivity
of the food being chilled, the thickness of product and container used
Australia
moffat.com.au
Moffat Pty Limited
740 Springvale Road
Mulgrave
Victoria 3170
Australia
Telephone +613-9518 3888
Facsimile +613-9518 3833
vsales@moffat.com.au
Disclaimer: All unit capacities are based on subjective testing. Moffat accepts no liability for production values.
In line with policy to continually develop and improve its products, Moffat Limited reserves the right to change specifications and design without notice.
New Zealand
moffat.co.nz
Moffat Limited
45 Illinois Drive
Izone Business Hub
Rolleston 7675
New Zealand
Telephone +64 3-983 6600
Facsimile +64 3-983 6660
sales@moffat.co.nz
Dimensions
1865 (MIN)
700 (MIN)
0
50
170
680
500 (MIN)
(SC)
1860
70 (DA)
20 (DA)
(MIN) Minimum
(IMP) With printer
(DA) Air deflector
(R) Free area for passing
cables and pipe
(SC) Electric cables output
(USB ) With USB option
Electrical
box
0
19
985
Control
panel
75
9
0
(US
B
11
)
5
(I
MP
)
600
250 (R)70
240
130 (R)
© Copyright Moffat Ltd
AN-FRI-S-1501
