Moffat E6AC DD Specifications
4517 BS ACSeries specs V3 24/6/05 10:52 AM Page 1
General features:
- Direct steam injection system
- Stainless steel construction
- Hygienic rounded corners in oven cavity
- Pivoting fan suction panel
- Front removable control panel for easy
servicing
- Hygienic plug-in door seal for easy to
remove day-to-day cleaning
- Adjustable door hinges
- Self draining door condensate drip tray
- Hand shower
- Oven lights
- Oven door handle mechanism allows either
left or right operation
- Cool to touch double glazed door
- Hinged inner glass for easy cleaning
- Constant self-diagnosis for error
recognition
Standard features:
- Electronic manual control panel with
cooking modes
- Electronic thermostat 30°C - 300°C
- Electronic timer
- Auto-reversing fan rotation
- Cavity fast cool down which automatically
stops at 50°C
- Automatic cavity cool down between high
temperature cycles and the next cycle
featuring a lower temperature
- Manual humidifier or programmable
- Manual vent to evacuate the excess humidity
- Automatic quenching of vapours into the
oven drain
- Cavity clean program
- Energy saving device for a reduced energy
consumption
Optional features:
- Interchangeable core probes with external
socket
- Right hinged door
- Two steps safety door handle mechanism
- Marine and special voltages
- Side runners for 600 x 400 trays (5 trays)
- Connection for an external printer
(type RS232)
- Connection for energy saving system
Cooking programmes:
Steaming 30°C - 130°C
- For steaming, stewing and
poaching
Combination 30°C - 300°C
- For roasting and baking
Convection 30°C - 300°C
- For grilling, quick roasting,
baking, toasting and gratinating
Regeneration (Reheating)
- Pre-set Programs
R1 for reheating of plated meals
R2 for reheating of gastronorm
containers
RP reheating with manual setting
of time and temperature
Optional : Core probe 30°C - 130°C

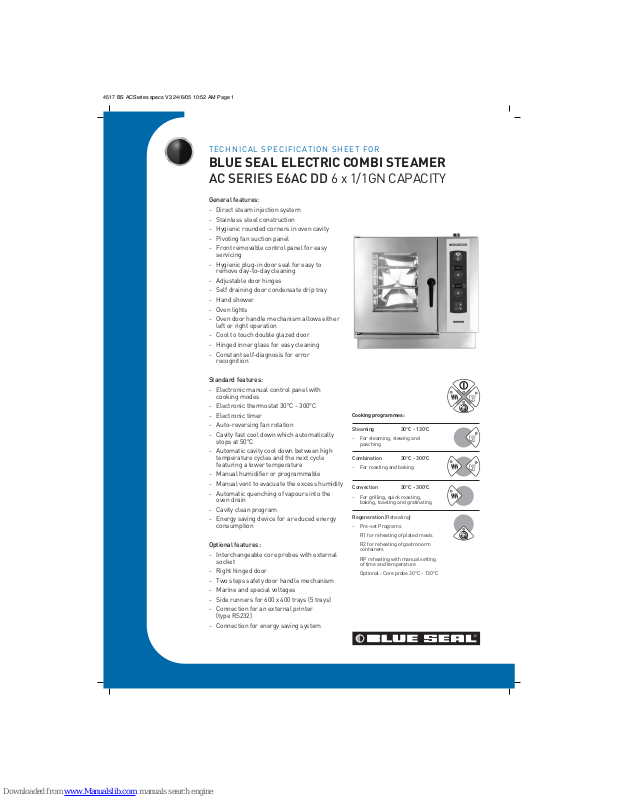

TECHNICAL SPECIFICATION SHEET FOR
BLUE SEAL ELECTRIC COMBI STEAMER
AC SERIES E6AC DD 6 x 1/1GN CAPACITY
4517 BS ACSeries specs V3 24/6/05 10:52 AM Page 2
Australia
Moffat Pty Limited
Victoria/Tasmania
740 Springvale Road
Mulgrave, Victoria 3170
Telephone 03-9518 3888
Facsimile 03-9518 3833
vsales@moffat.com.au
New South Wales
Telephone 02-8833 4111
nswsales@moffat.com.au
South Australia
Telephone
03-9518 3888
vsales@moffat.com.au
Queensland
Telephone 07-3630 8600
qldsales@moffat.com.au
Western Australia
Telephone 08-9562 0263
jberent@moffat.com.au
New Zealand
Moffat Limited
Christchurch
Telephone 03-389 1007
sales@moffat.co.nz
Auckland
Telephone 09-574 3150
sales@moffat.co.nz
Australia
www.moffat.com.au
New Zealand
www.moffat.co.nz
Printed in China
© Copyright Moffat Ltd
Moffat/4517-E6/BH/3.5M/6.05
Dimensions
Width 890mm
Depth 825mm
Height 810mm
Weight 137kg
Packed Dimensions
Width 1000mm
Depth 950mm
Height 1010mm
Weight 155kg
Shelves
1/1 GN 6
Shelf Spacings 70mm
Installation requirements
(for precise installation
instructions, please refer to the
unit’s installation manual).
Power connection requirements
Multi pole circuit breaker and all
pole disconnection isolator switch
installed near the appliance.
Supply line voltage;
400-415V ~ 50Hz, 3P+N+E
Special voltage options available
on request.
Power Connection
Total (kW) 8
Convection power (kW) 7.5
Rated Current (A) (400V) 12
IPX5 spray-proof and hose proof.
Installation clearances
- rear 25mm
- right 500mm*
- left 50mm
*Clearance required on fixed
installations for service
accessibility.
If heat sources are located near
the RH side of the AC combi,
ensure that a minimum distance
of 400mm is maintained.
Install in accordance with local
body regulations only on horizontal
surfaces and not against
combustible walls.
Water connection requirements
- Cold water
- Flow pressure (2 to 6 bar)
- soft water connection*
- shut-off valve with return flow
inhibitor and dirt filter
- water supply R3/4
- R50 waste water connection
(*Water softener may be required.
Please refer to installation manual
for water treatment values.)
In line with policy to continually develop
and improve its products, Moffat Limited
reserves the right to change
specifications and design without notice.
TECHNICAL SPECIFICATION SHEET FOR
BLUE SEAL ELECTRIC COMBI STEAMER
AC SERIES E6AC DD 6 x 1/1GN CAPACITY
A = WATER CONNECTION R3/4
(SOFTENED WATER) refer to installation
manual for water treatment values.
B = WATER CONNECTION R
3
/4
C = DRAIN CONNECTION Ø50
D = ELECTRICAL CONNECTION ENTRY
E = HIGH/LOW PRESSURE RELIEF VENT
F = OVEN VENT Ø50
Optional Extras
SC Core temperature probe
SPT06 Stainless steel stand with 1/1 GN shelves to suit 6AC DD
SST06 Removable rack complete with fitting frame alternative to side
runners to suit 6AC DD
TLT06 Removable frame for oven and plate racks to suit 6AC DD
SGT06 Removable oven rack to suit 6AC DD
PRT06 Plate banquet rack to suit 6AC DD / 14 plates
CRT06 Trolley for removable oven rack with drip tray to suit 6AC DD
CPT06 Thermal cover for plate banqueting system to suit 6AC DD
KP004 Set of four legs for bench mounting - Please note when mounted
on legs refer CRT62 trolley to suit 6AC DD
