Moen YG5412ORB Specs

 YG5412CH – 12” Grab Bar

Chrome Finish

 YG5412BN – 12” Grab Bar

Brushed Nickel Finish

 YG5412ORB – 12” Grab Bar

Oil Rubbed Bronze

 YG5418CH – 18” Grab Bar

Chrome Finish

 YG5418BN – 18” Grab Bar

Brushed Nickel Finish

 YG5418ORB – 18” Grab Bar

Oil Rubbed Bronze Finish

 YG5424CH – 24” Grab Bar

Chrome Finish

 YG5424BN – 24” Grab Bar

Brushed Nickel Finish

 YG5424ORB – 24” Grab Bar

Oil Rubbed Bronze

 YG5430CH – 30” Grab Bar

Chrome Finish

 YG5430BN – 30” Grab Bar

Brushed Nickel Finish

 YG5436CH – 36” Grab Bar

Chrome Finish

 YG5436BN – 36” Grab Bar

Brushed Nickel Finish

 YG5442CH – 42” Grab Bar

Chrome Finish

 YG5442BN – 42” Grab Bar

Brushed Nickel Finish

25300 AL MOEN DR IVE  N ORTH OLMSTED, OH 44070
CORPOR ATE HEAD QUARTER S: [phone]  FAX: [phone]
INTER N ATI ONAL: [phone]  FAX: [phone]
CUSTOMER SERVICE (USA): 800-882-0116  FAX: [phone]
WWW. MOEN . COM

Copyright Creative Specialties International Literature # BA1125

Grab Bar posts and bars are
stainless steel.

Cleaning Instructions:

1. Please note that screws MUST be mounted into a wood stud for secure installation.

2. Slide the end cov er away from the hub end to expose the Sec ureMount™ mounting flange.

3. Locate the studs behind the wall by using a stud sensor or other stud locating method. Studs

are usually 16 in. apart; locate the center of each stud.

4. Place the grab bar on the wall where desired so that the Sec ureMount™ mounting f lange is

positioned over a wood stud. Use a level to verify desired placement.

Decide whether you would like to position your grab bar horizontally, vertically or at an angle,
remembering that BOTH ends of the grab bar MUST be positioned over a wood stud.
Note: Diagonal/angled installation is possible only with grab bars 24 in. or longer.

5. With a pencil, mark three of the mounting locations on each other the two grab bar flanges.
Two marks to be made above the grab bar in the area indicated in the illustration, the third
mark to be made below the grab bar in the area indicated in the illustration.

To ensure pr oper i nstall ation, the SecureMount™ flange must have screws in each oth er the

positions indicated in the illustration.

6. Remove the grab bar from the wall and drill 1/8 in. diameter pilot holes at the marked screw
locations. If desired, apply silicone caulk to the back of the decorative cover to guard against
water penetration.

7. To mount the grab bar, reposition one end of the grab bar SecureMount™ mounting flange
over the marked holes. NOTE: THE MOUNTING FLANGE WILL ROTATE. ROTATE THE

FLANGE SO THAT IT IS FLUSH AGAINST THE WALL AND THEN PROCEED WITH THE
NEXT STEP.

8. Using the sc rewdriver, screw the wood screws int o the SecureMount™ mount ing flange at one
end of the grab bar. Then screw the wood screws into the mounting flange at the other end of
the grab bar.

9. Tighten the screws until secure

10. Slide the end c ov er over the SecureMount™ mounting flange, rotating to find t he correc t fit
before snapping into place.

Stock Number:______________________Tank Lever
By Creative Specialties

Materials:

Installation Instructions:

Stock Numbers:

Dimensions:

Grab Bar

YG5400

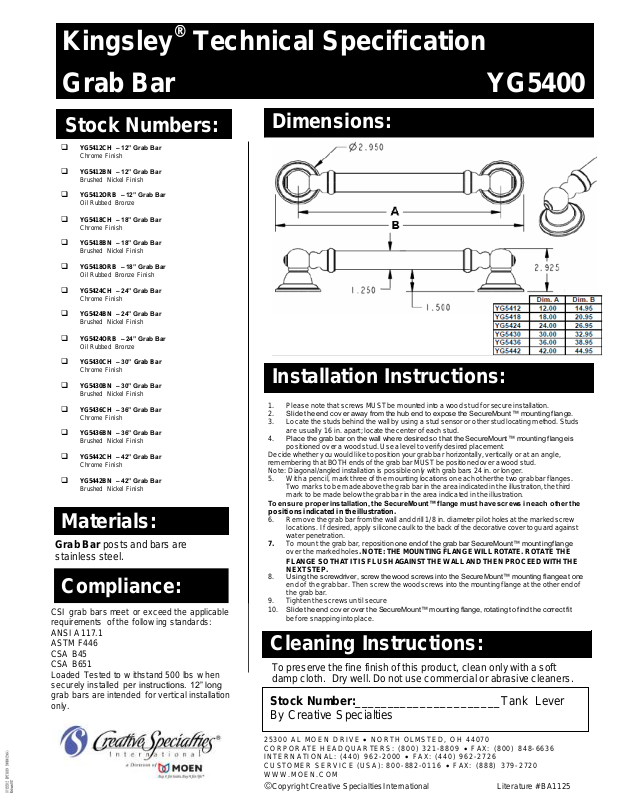

Kingsley® Technical Specification

To preserve the fine finish of this product, clean only with a soft
damp cloth. Dry well. Do not use commercial or abrasive cleaners.

Compliance:

CSI grab bars meet or exceed the applicable
requirements of the following standards:
ANSI A117.1
ASTM F446
CSA B45
CSA B651
Loaded Tested to w ithstand 500 lbs when
securely installed per instructions. 12” long
grab bars are intended for vertical installation
only.
