Moen YB9808CH Specs

Paper Holder is constructed of zinc.

 YB9808CH – Paper Holder

Chrome Finish

 YB9808BN – Paper Holder

Brushed Nickel Finish

 YB9808WR – Paper Holder

Wrought Iron Finish

 YB9808NL – Paper Holder

Nickel Finish

 YB9808ORB – Paper Holder

Oil Rubbed Bronze

Cleaning Instructions:

25300 AL MOEN DR IVE  NOR TH OLMSTED, OH 44070
CORPOR ATE H EADQUAR TERS: (800) 321 -8809  FAX: [phone]
IN TERN ATION AL: (440) 962 -2000  F AX: [phone]
CU STOMER SERVI CE (U SA): 800-882-0116  FAX: [phone]
WW W.MOEN.C OM

Copyright Creative Specialties International Literature #BA1186

1. Position the mounting template on the wall in the desired location. Using a

level, align the template and tape it to the wall.

2. Remove each mounting post from the body by loosening the setscrew.

3. Place each mounting post on the template with notch facing down.

4. One at a time, place each anchor screw through the mounting post, centered

in the hole. Using a Phillips screwdriver, turn the anchor screw while
applying pressure. Screw will self drill and tap into drywall.

5. Only insert screw ½ to ¾ into wall.

6. After all screws are installed, tear the template away from the wall.

7. Tighten all 4 screws. Do not over tighten.

8. Place skirt over each mounting post.

9. Place each post over the mounting plate (setscrew down). Pivoting post

with bar to be on left side. Tighten both setscrews.

Stock Number:______________________Paper Holder
By Creative Specialties

Materials:

Installation Instructions:

Stock Numbers:

Dimensions:

Paper Holder

YB9808

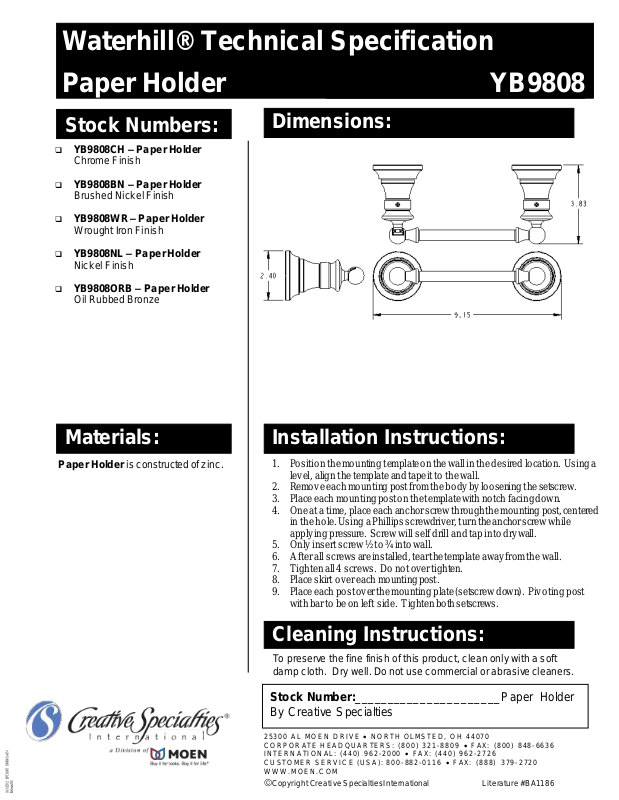

Waterhill® Technical Specification

To preserve the fine finish of this product, clean only with a soft
damp cloth. Dry well. Do not use commercial or abrasive cleaners.
