Moen YB5488CH Specs

25300 AL MOEN D RI VE  NOR TH OLMSTED , OH 44070
COR PORATE H EADQU ARTERS: [phone]  F AX: [phone]
IN TER NATION AL: [phone]  FAX: [phone]
CU STOMER SERVI CE (USA): 800 -882-0116  FAX: [phone]
WW W. MOEN .C OM

Copyright Creative Specialties International

Three Post Paper Holder is
constructed of zinc.

 YB5488CH – Three Post Paper

Holder

Chrome Finish

Cleaning Instructions:

Stock Number:___________________Three Post Paper Holder

By Creative Specialties

Materials:

Installation Instructions:

Stock Numbers:

Dimensions:

Three Post Paper Holder

YB5488

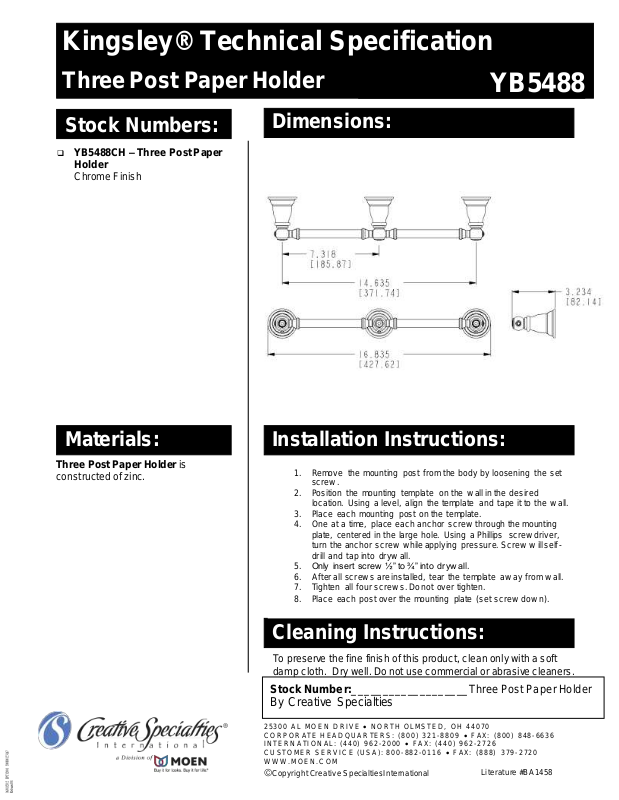

Kingsley® Technical Specification

To preserve the fine finish of this product, clean only with a soft
damp cloth. Dry well. Do not use commercial or abrasive cleaners.

Literature #BA1458

1. Remove the mounting post from the body by loosening the set
screw.

2. Position the mounting template on the w all in the desired
location. Using a level, align the template and tape it to the w all.

3. Place each mounting post on the template.

4. One at a time, place each anchor screw through the mounting
plate, centered in the large hole. Using a Phillips screwdriver,
turn the anchor screw while applying pressure. Screw will self­drill and tap into drywall.

5. Only insert screw ½” to ¾ ” into dryw all.

6. After all screw s are installed, tear the template aw ay from w all.

7. Tighten all four screws. Do not over tighten.

8. Place each post over the mounting plate (set screw down).
