DESCRIPTION
• Brass construction
• Pressure balancing, four port valve design with volume
control and integral check stops, 1/2” CC or IPS
connections
OPERATION
• Adjustable temperature limit stop to control
maximum hot water temperature
• Pressure balancing mechanism maintain selected
discharge temperature to ± 2°F
CARTRIDGE
• 1225 cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
STANDARDS
• Third party certified by CSA to meet CSA B-125,
ASME A112.18.1M and all applicable requirements
referenced therein and complies with the applicable
requirements of ANSI A117.1
WARRANTY
• Lifetime limited warranty against leaks, drips and
finish defects to the original consumer purchaser
• 5 year warranty if used in commercial installations

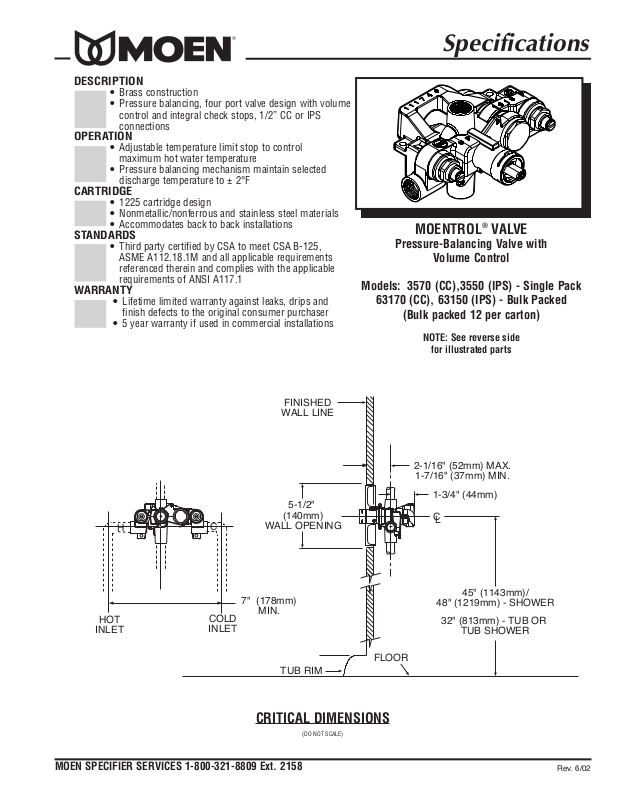

Specifications
MOENTROL®VALVE
Pressure-Balancing Valve with
Volume Control
Models: 3570 (CC),3550 (IPS) - Single Pack
63170 (CC), 63150 (IPS) - Bulk Packed
(Bulk packed 12 per carton)
NOTE: See reverse side
for illustrated parts
HOT
INLET
FINISHED
WALL LINE
2-1/16" (52mm) MAX.
1-7/16" (37mm) MIN.
1-3/4" (44mm)
5-1/2"
(140mm)
H
C
COLD
INLET
WALL OPENING
7" (178mm)
MIN.
FLOOR
TUB RIM
C
L
45" (1143mm)/
48" (1219mm) - SHOWER
32" (813mm) - TUB OR
TUB SHOWER
CRITICAL DIMENSIONS
MOEN SPECIFIER SERVICES 1-800-321-8809 Ext. 2158
(DO NOT SCALE)
Rev. 6/02
