DESCRIPTION
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
Rev. 12/08
- Metal construction with chrome plated or LifeShine® brushed nickel finish
- 3/4” IPS connection
- Includes four single-function body sprays
- Includes 10” rainshower showerhead, arm and flange
- Includes single function hand shower with 69” hose assembly, drop ell and wall bracket
- For use with S936 3/4”thermostatic valve & model S956 volume control valve
- With integral checkstops
OPERATION
- Flow lever operates counterclockwise through a 90 degree arc with off at 6 o’clock and
maximum flow at the 3 o’clock position. Shut off in clockwise direction
- Temperature lever operates through a 340 degree arc with maximum cold at full clockwise
rotation and maximum hot at full counterclockwise rotation
- Safety stop preset temperature at 105 degrees F ( 41degrees C)
- Safety stop override allows maximum temperature at 120 degrees F (49 degrees C)
- Factory established temperature range from 70 degrees F (21 degrees C) to 120 degrees F
(49 degrees C)
FLOW
- Showerhead and handshower are limited to 2.5 gpm (9.5 L/min)
- Bodysprays are limited to 1.75 gpm each (6.6 L/min)
CARTRIDGE
- 130156 thermostatic cartridge design with non metallic/nonferrous materials
- 130157 volume ceramic disc cartridge design
STANDARDS
- Third party certified to meet CSA B-125.1, ASME A112.18.1 and all applicable requirements
referenced therein including ASSE1016
WARRANTY
- Lifetime limited warranty against leaks, drips and finish defects to the original consumer
purchaser
- 5 year warranty if used in commercial installations
Specifications

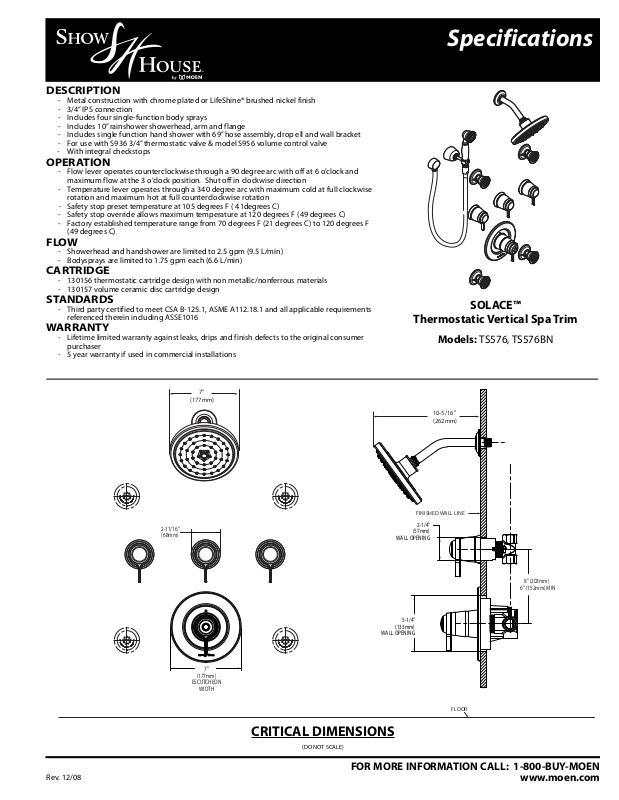

SOLACE™
Thermostatic Vertical Spa Trim
Models: TS576, TS576BN
2-11/16”
(68mm)
7"
(177mm)
7”
(177mm)
ESCUTCHEON
WIDTH
(57mm)
WALL OPENING
5-1/4”
(133mm)
WALL OPENING
10-5/16"
(262mm)
FINISHED WALL LINE
2-1/4”
8" (203mm)
6" (152mm) MIN
FLOOR
CRITICAL DIMENSIONS
(DO NOT SCALE)
Page 2
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
DESCRIPTION
-
Metal construction with a chrome plated or LifeShine
®
Brushed Nickel finish for use with S956 valve
OPERATION
- Lever style handle operation
STANDARDS
- Third party certified to meet CSA B-125.1, ASME A112.18.1
and all applicable requirements referenced therein
WARRANTY
- Lifetime limited warranty against leaks, drips and finish
defects to the original consumer purchaser
- 5 year warranty if used in commercial installations
CRITICAL DIMENSIONS
(DO NOT SCALE)
SOLACE™
Single Function Flow Valve Trim
Models: TS574, TS574BN
Valve: S956
Specifications
2-11/16”
(68mm)
2-1/4”
(57mm)
WALL OPENING
Page 3
CRITICAL DIMENSIONS
(DO NOT SCALE)

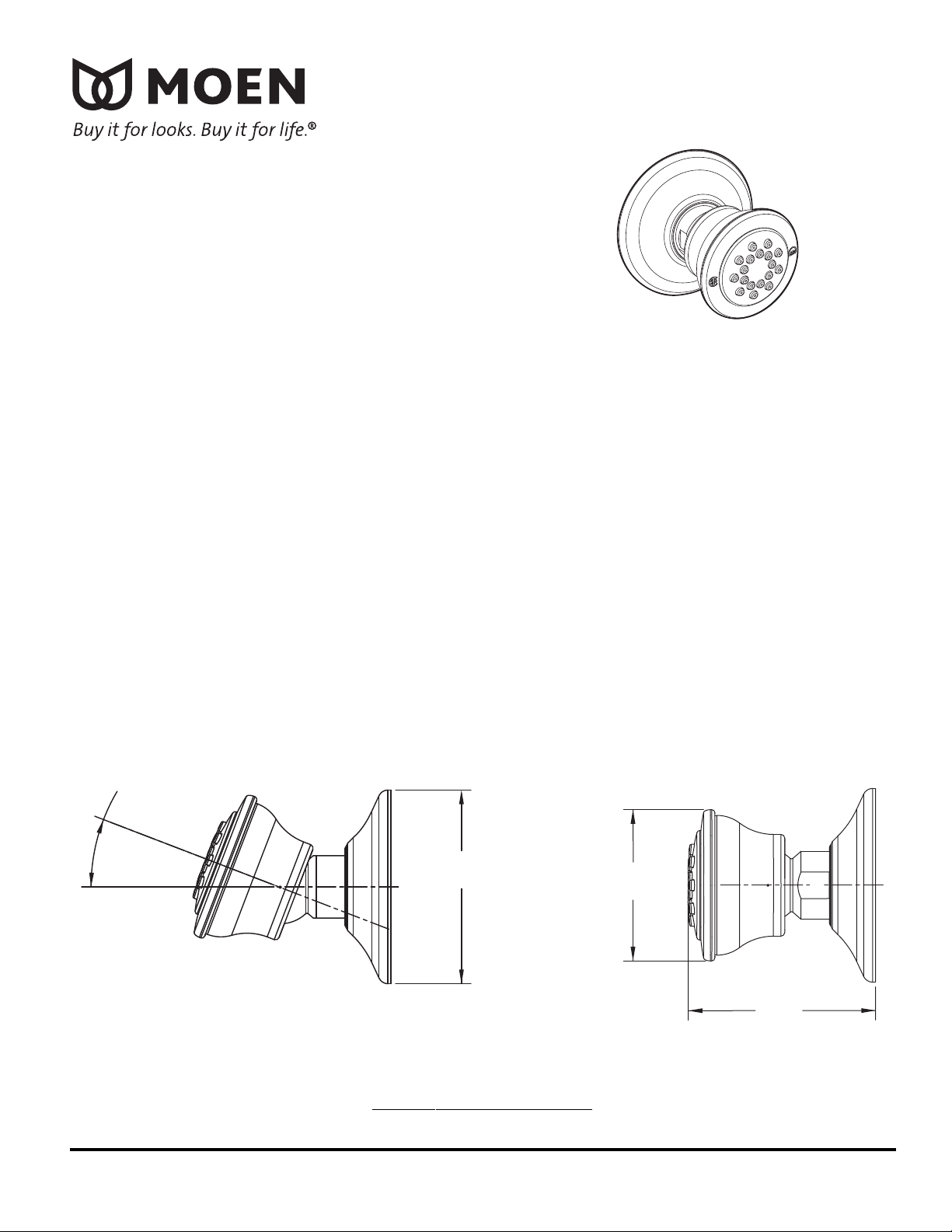

Small Single Function Body Spray
Models: A501, A501P, A501PM, A501AN,
A501BN, A501BB, A501ST, A501CG, A501NL,
A501ORB, A501WR
A501 Series
Rev. 12/08
Specifications
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
FAUCET DESCRIPTION
• Metallic spray face and shell
• Brass swivel ball assembly
• Available in chrome plated, LifeShine
®
Polished Brass,
Satine
™
, Antique Nickel, Oil Rubbed Bronze, Classic Gold
™
Nickel, Brushed Nickel, LifeShine®Brushed Bronze, Platinum
or Wrought Iron finish
OPERATION
• Single spray function
FLOW
• Designed to deliver 1.75 gpm max (6.6 L/min) at 80 psi
STANDARDS
• Designed and manufactured to comply with the
requirements of: CSA B125 and ASME A112.18.1M and
all requirements referenced therein
WARRANTY
• Warranted for one year against material or
manufacturing defects
21˚
2-1/2“
(63mm)
2“
(51mm)
2-1/2“
(63mm)
Page 4
DESCRIPTION
• Handheld shower available in a chrome plated, chrome
w/LifeShine®polished brass, antique nickel, nickel, oil
rubbed bronze, wrought iron, LifeShine®polished brass,
brushed nickel or pewter finish
• Metal construction
• 69" double interlock spiral hose (metal)
• Vacuum breaker
OPERATION
• Single function
FLOW
• Designed to deliver 2.5 gpm (9.5 L/min) at 60 psi
STANDARDS
• Designed and manufactured to comply with the applicable
requirements of: CSA B-125 and ASME A112.18.1M and
ASSE 1014 and all applicable specifications referenced therein
WARRANTY
• Warranted for one year against material or
manufacturing defects

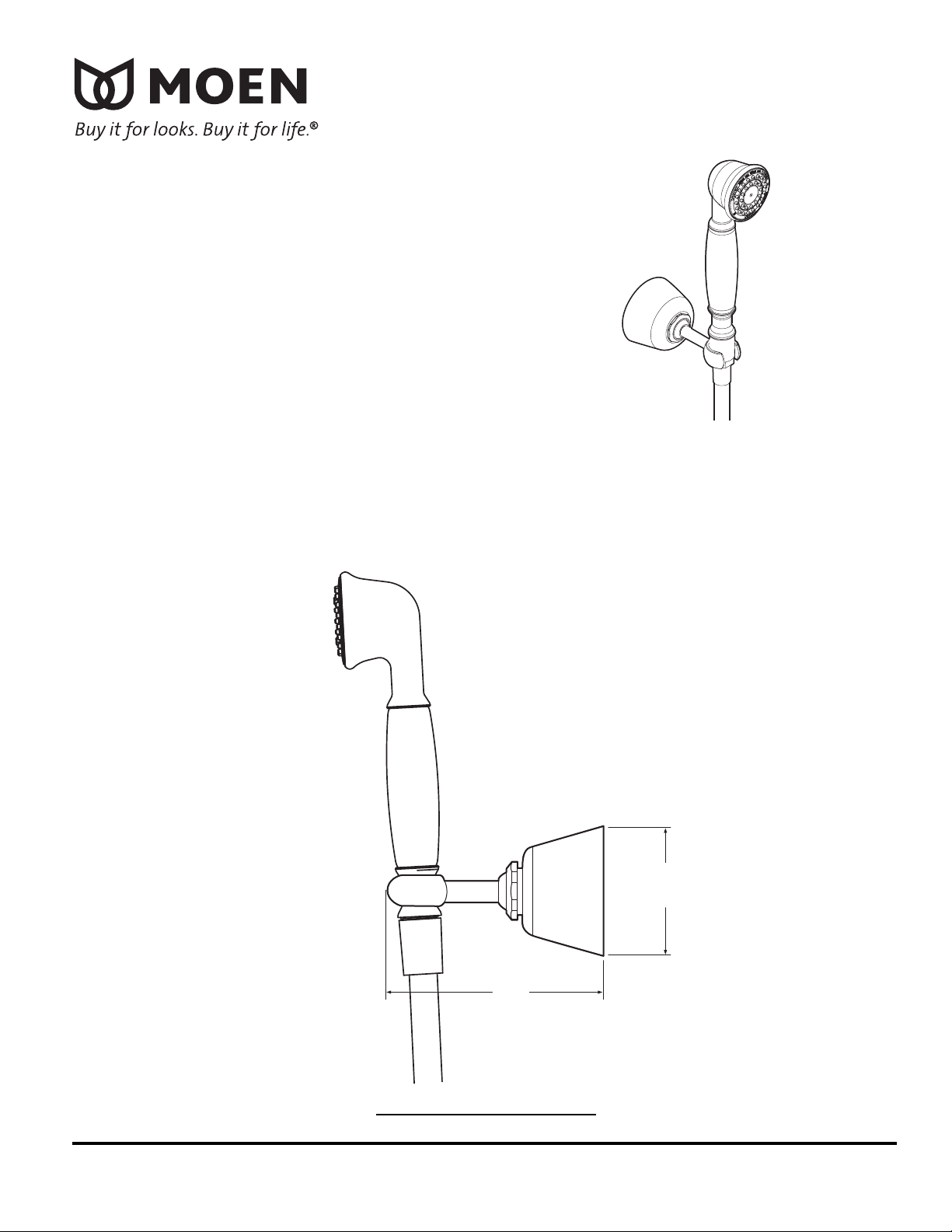

Handshower
w/Bracket & Hose
Models: 3861, 3861BB, 3861CP, 3861P, 3861PW
3861BN, 3861WR, 3861AN, 3861NL, 3861ORB
CRITICAL DIMENSIONS
(DO NOT SCALE)
Specifications
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
Rev. 3/06
Diam.
2-3/8"
(60mm)
4"
(101mm)
Page 5
CRITICAL DIMENSIONS
(DO NOT SCALE)
Specifications
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com

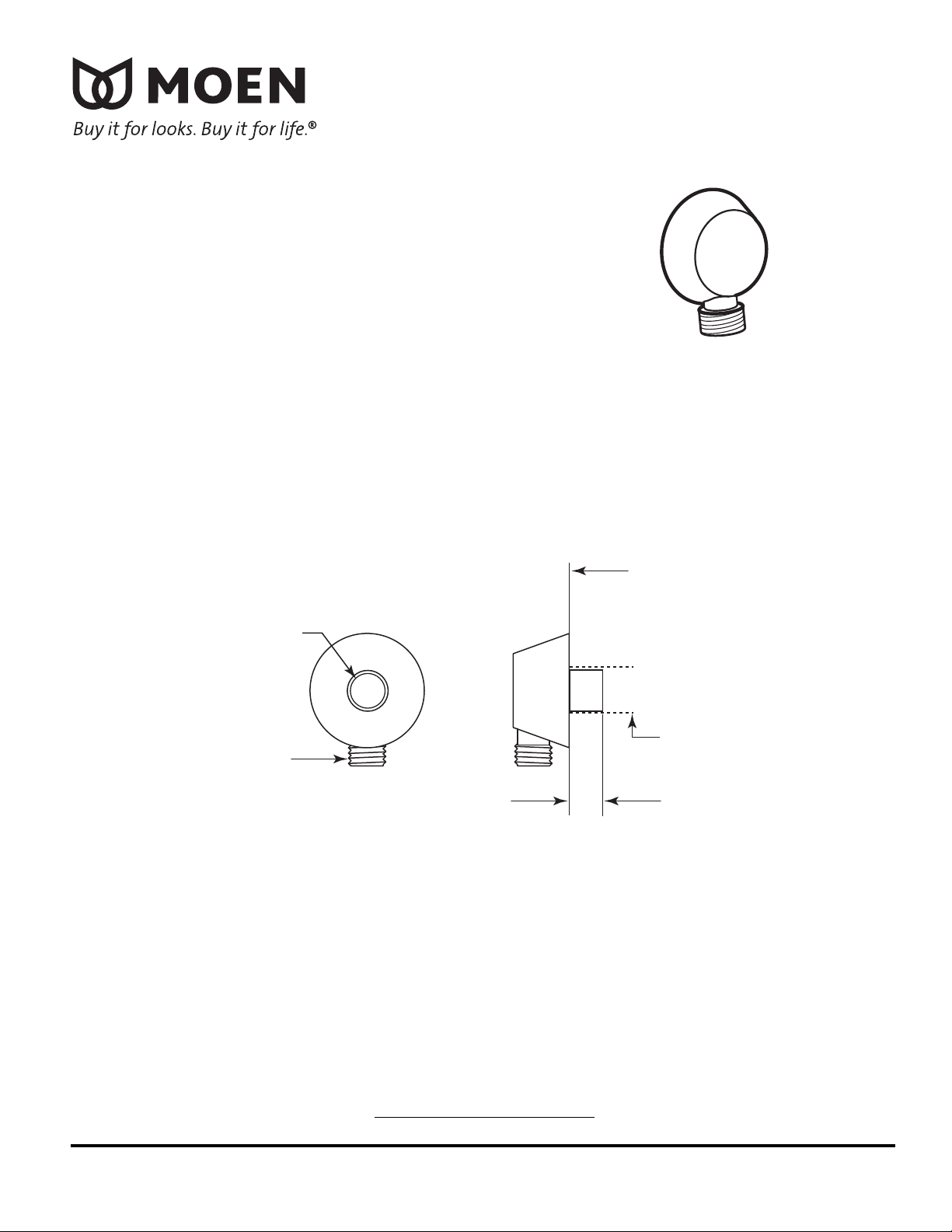

DROP ELL
Models: A725, A725P, A725W, A725ORB,
A725WR, A725AN, A725BB, A725BN, A725CG,
A725PM, A725ST, A725NL
DESCRIPTION
• Metal construction with a chrome plated, antique nickel,
brushed nickel, classic gold, platinum, satine, wrought
iron, polished brass, brushed bronze, nickel or glacier finish
WARRANTY
• Warranted for one year against material
or manufacturing defects
BACK VIEW SIDE VIEW
Rev. 4/06
1/2-14 NPT
1/2-14
NPSL THREAD
Finished
Wall Surface
1" (25mm) Minimum
Diameter Hole
3/8" (10mm)
