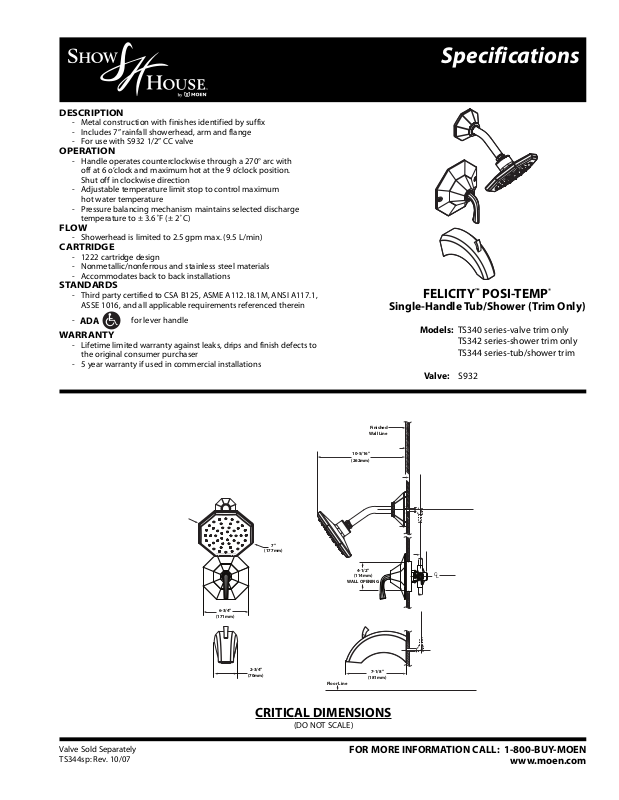

Moen TS344, TS342, TS340 User Manual

CRITIC

AL DIMENSIONS

(DO NOT SCALE)

Specifications

C

L

6-3/4"

(171mm)

7"

(177mm)

10-5/16"

(262mm)

4-1/2"

(114mm)

W ALL OPENING

F inished

W all Line

F loor Line

2-3/4"

(70mm)

7-1/8"

(181mm)

DESCRIPTION

- Metal construction with finishes identified by suffix

- Includes 7” rainfall showerhead, arm and flange

- For use with S932 1/2”CC valve

OPERATION

- Handle operates counterclockwise through a 270° arc with
off at 6 o’clock and maximum hot at the 9 o’clock position.
Shut off in clockwise direction

- Adjustable temperature limit stop to control maximum
hot water temperature

- Pressure balancing mechanism maintains selected discharge
temperature to ± 3.6˚F (± 2˚C)

FLOW

- Showerhead is limited to 2.5 gpm max. (9.5 L/min)

CARTRIDGE

- 1222 cartridge design

- Nonmetallic/nonferrous and stainless steel materials

- Accommodates back to back installations

STANDARDS

- Third party certified to CSA B125, ASME A112.18.1M, ANSI A117.1,
ASSE 1016, and all applicable requirements referenced therein

- for lever handle

WARRANTY

- Lifetime limited warranty against leaks, drips and finish defects to
the original consumer purchaser

- 5 year warranty if used in commercial installations

FELICITY™POSI-TEMP

®

Single-Handle Tub/Shower (Trim Only)

Models: TS340 series-valve trim only

TS342 series-shower trim only
TS344 series-tub/shower trim

Valve: S932

Valve Sold Separately
TS344sp: Rev. 10/07

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

www.moen.com

ADA
