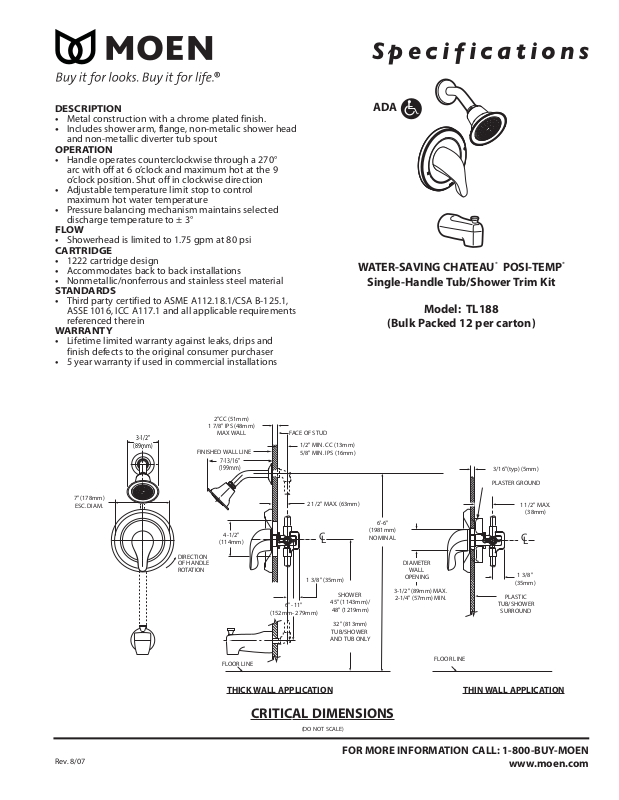

CRITICAL DIMENSIONS

(DO NOT SCALE)

Specifications

WATER-SAVING CHATEAU®POSI-TEMP

®

Single-Handle Tub/Shower Trim Kit

Model: TL188

(Bulk Packed 12 per carton)

DESCRIPTION

• Metal construction with a chrome plated finish.

•

Includes shower arm, flange, non-metalic shower head
and non-metallic diverter tub spout

OPERATION

• Handle operates counterclockwise through a 270°

arc with off at 6 o’clock and maximum hot at the 9
o’clock position. Shut off in clockwise direction

• Adjustable temperature limit stop to control
maximum hot water temperature

• Pressure balancing mechanism maintains selected
discharge temperature to ± 3°

FLOW

• Showerhead is limited to 1.75 gpm at 80 psi

CARTRIDGE

• 1222 cartridge design

• Accommodates back to back installations

• Nonmetallic/nonferrous and stainless steel material

STANDARDS

• Third party certified to ASME A112.18.1/CSA B-125.1,

ASSE 1016, ICC A117.1 and all applicable requirements
referenced therein

WARRANTY

• Lifetime limited warranty against leaks, drips and

finish defects to the original consumer purchaser

• 5 year warranty if used in commercial installations

THIN WALL APPLICATION

THICK WALL APPLICATION

ADA

Rev. 8/07

7" (178mm)

ESC. DIAM.

3-1/2”

(89mm)

FINISHED WALL LINE

DIRECTION
OF HANDLE
ROTATION

2"CC (51mm)

1 7/8" IPS (48mm)

MAX WALL

7-13/16”
(199mm)

4-1/2"

(114mm)

6"- 11"

(152mm- 279mm)

FLOOR LINE

FACE OF STUD

1/2" MIN. CC (13mm)
5/8" MIN. IPS (16mm)

2 1/2" MAX. (63mm)

C

L

1 3/8" (35mm)

SHOWER

45" (1143mm)/

48" (1219mm)

32" (813mm)

TUB/SHOWER

AND TUB ONLY

6'-6"
(1981mm)
NOMINAL

DIAMETER

WAL L

OPENING

3-1/2" (89mm) MAX.

2-1/4" (57mm) MIN.

FLOOR LINE

3/16"(typ) (5mm)

PLASTER GROUND

1 1/2" MAX.

(38mm)

C

L

1 3/8"

(35mm)

PLASTIC

TUB/SHOWER

SURROUND
