CRITICAL DIMENSIONS

(DO NOT SCALE)

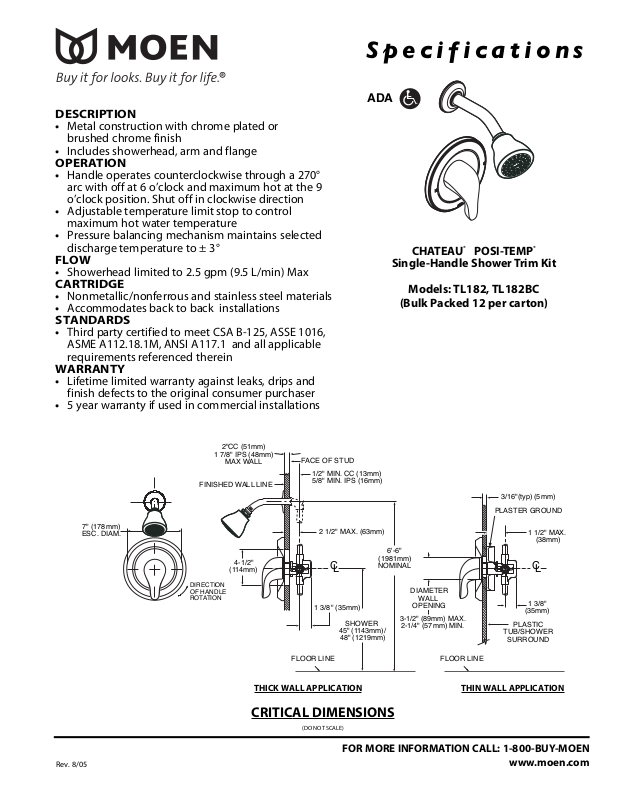

Specifications

DESCRIPTION

• Metal construction with chrome plated or

brushed chrome finish

• Includes showerhead, arm and flange
OPERATION

• Handle operates counterclockwise through a 270°

arc with off at 6 o’clock and maximum hot at the 9
o’clock position. Shut off in clockwise direction

• Adjustable temperature limit stop to control
maximum hot water temperature

• Pressure balancing mechanism maintains selected
discharge temperature to ± 3°

FLOW

• Showerhead limited to 2.5 gpm (9.5 L/min) Max

CARTRIDGE

• Nonmetallic/nonferrous and stainless steel materials

• Accommodates back to back installations

STANDARDS

• Third party certified to meet CSA B-125, ASSE 1016,

ASME A112.18.1M, ANSI A117.1 and all applicable
requirements referenced therein

WARRANTY

• Lifetime limited warranty against leaks, drips and

finish defects to the original consumer purchaser

• 5 year warranty if used in commercial installations

CHATEAU®POSI-TEMP

®

Single-Handle Shower Trim Kit

Models: TL182, TL182BC

(Bulk Packed 12 per carton)

Rev. 8/05

ADA

THIN WALL APPLICATION

THICK WALL APPLICATION

7" (178mm)

ESC. DIAM.

2"CC (51mm)

1 7/8" IPS (48mm)

MAX WALL

FINISHED WALL LINE

4-1/2"

(114mm)

DIRECTION
OF HANDLE
ROTATION

FACE OF STUD

1/2" MIN. CC (13mm)
5/8" MIN. IPS (16mm)

2 1/2" MAX. (63mm)

(1981mm)

C

L

1 3/8" (35mm)

SHOWER

45" (1143mm)/

48" (1219mm)

NOMINAL

6'-6"

DIAMETER

WALL

OPENING

3-1/2" (89mm) MAX.

2-1/4" (57mm) MIN.

3/16"(typ) (5mm)

PLASTER GROUND

PLASTIC

TUB/SHOWER

SURROUND

FLOOR LINEFLOOR LINE

1 1/2" MAX.

(38mm)

C

L

1 3/8"

(35mm)
