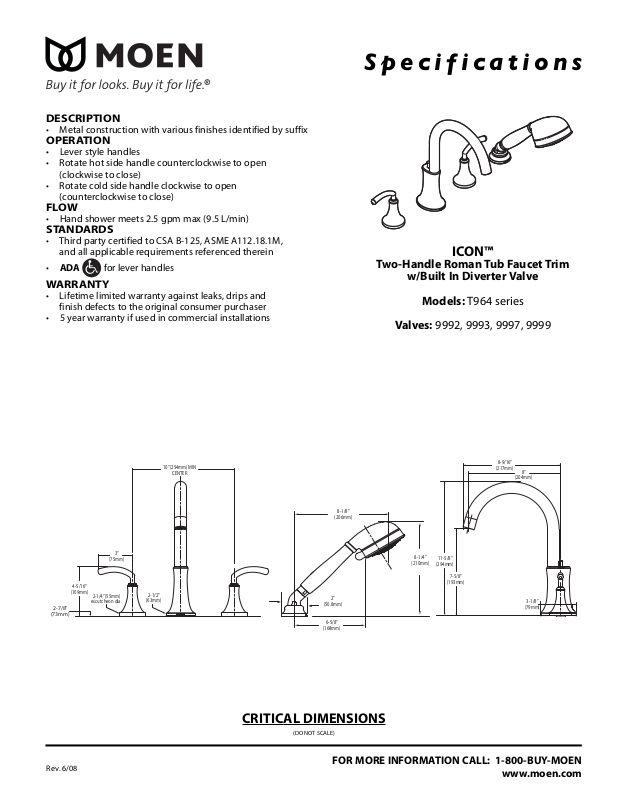

Moen T964 User Manual

ICON™

Two-Handle Roman Tub Faucet Trim

w/Built In Diverter Valve

Models: T964 series

Valves: 9992, 9993, 9997, 9999

CRITICAL DIMENSIONS

(DO NOT SCALE)

Specifications

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

www.moen.com

DESCRIPTION

• Metal construction with various finishes identified by suffix

OPERATION

• Lever style handles

• Rotate hot side handle counterclockwise to open
(clockwise to close)

• Rotate cold side handle clockwise to open
(counterclockwise to close)

FLOW

• Hand shower meets 2.5 gpm max (9.5 L/min)

STANDARDS

• Third party certified to CSA B-125, ASME A112.18.1M,
and all applicable requirements referenced therein

• ADA for lever handles

WARRANTY

• Lifetime limited warranty against leaks, drips and
finish defects to the original consumer purchaser

• 5 year warranty if used in commercial installations

Rev. 6/08

2-7/8"

(73mm)

4-5/16”

(109mm)

3“

(75mm)

2-1/4” (55mm)

escutcheon dia.

2-1/2”

(63mm)

10” (254mm) MIN

CENTER

8-1/8"

(206mm)

2"

(50.8mm)

6-5/8"

(168mm)

8-1/4"

(210mm)

11-5/8”

(294mm)

(193mm)

7-5/8”

8-9/16”

(217mm)

8”

(204mm)

3-1/8”

(79mm)
