CRITICAL DIMENSIONS
(DO NOT SCALE)

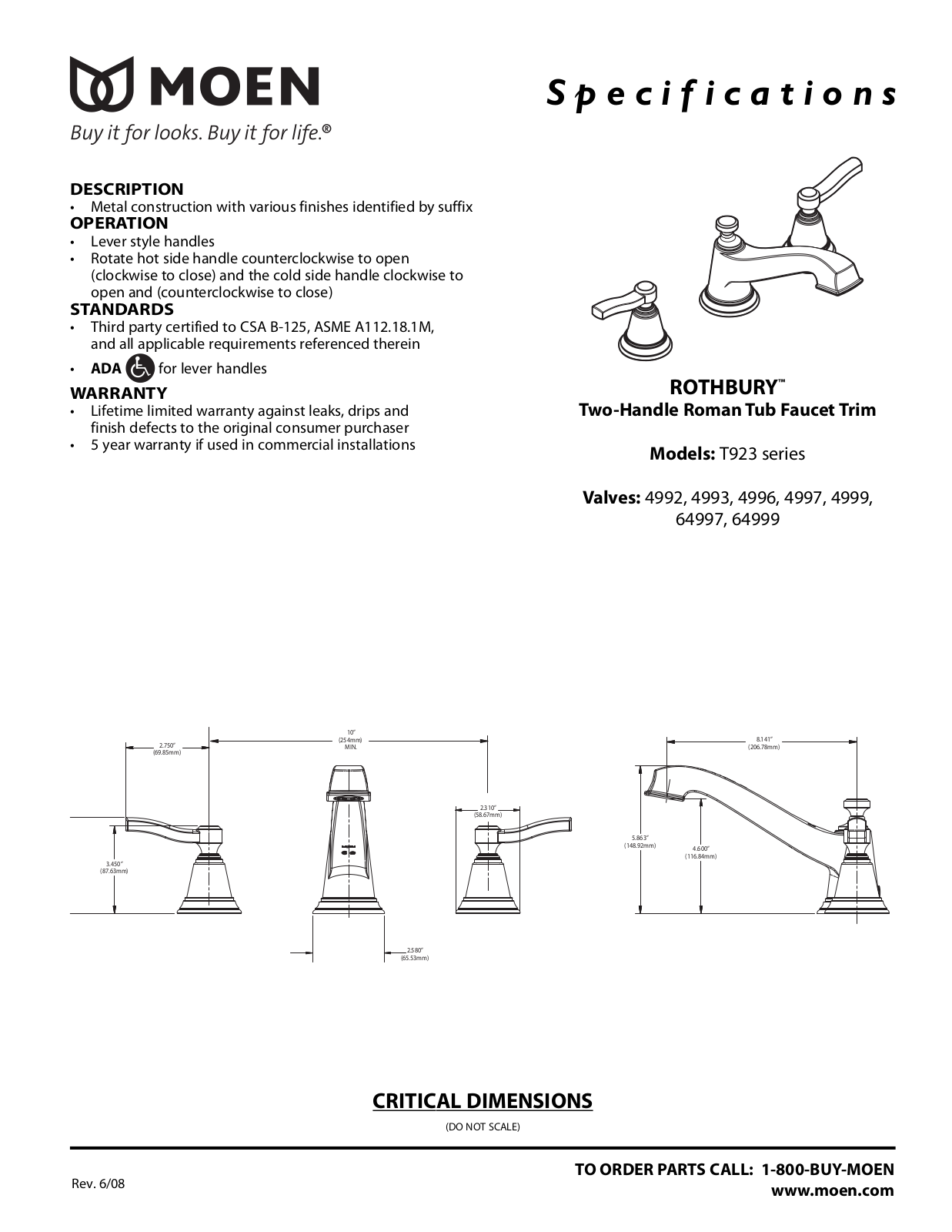

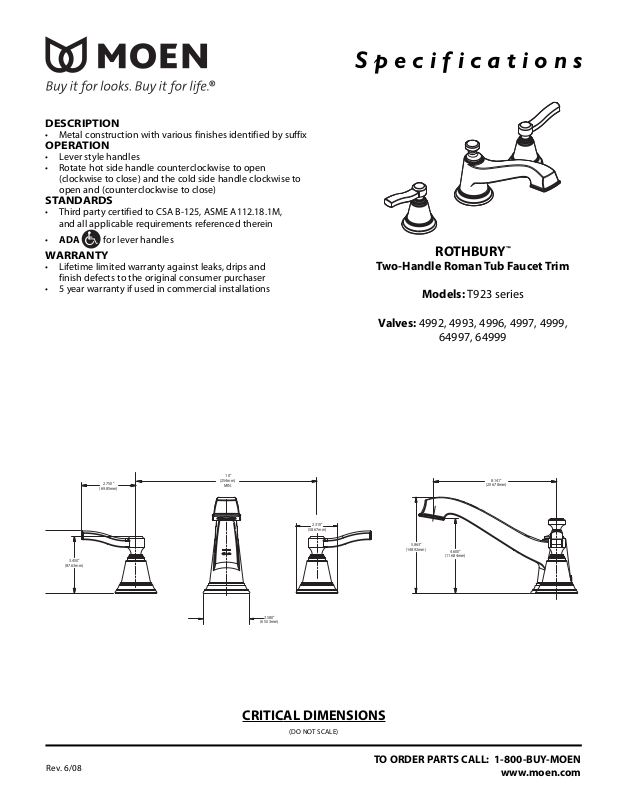

Specifications
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
Rev. 6/08
ROTHBURY
™
Two-Handle Roman Tub Faucet Trim
Models: T923 series
Valves: 4992, 4993, 4996, 4997, 4999,
64997, 64999
DESCRIPTION
• Metal construction with various finishes identified by suffix
OPERATION
• Lever style handles
• Rotate hot side handle counterclockwise to open
(clockwise to close) and the cold side handle clockwise to
open and (counterclockwise to close)
STANDARDS
• Third party certified to CSA B-125, ASME A112.18.1M,
and all applicable requirements referenced therein
• ADA for lever handles
WARRANTY
• Lifetime limited warranty against leaks, drips and
finish defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
3.450”
(87.63mm)
2.750”
(69.85mm)
10”
(254mm)
MIN.
2.310”
(58.67mm)
2.580”
(65.53mm)
8.141”
(206.78mm)
5.863”
(148.92mm)
4.600”
(116.84mm)
