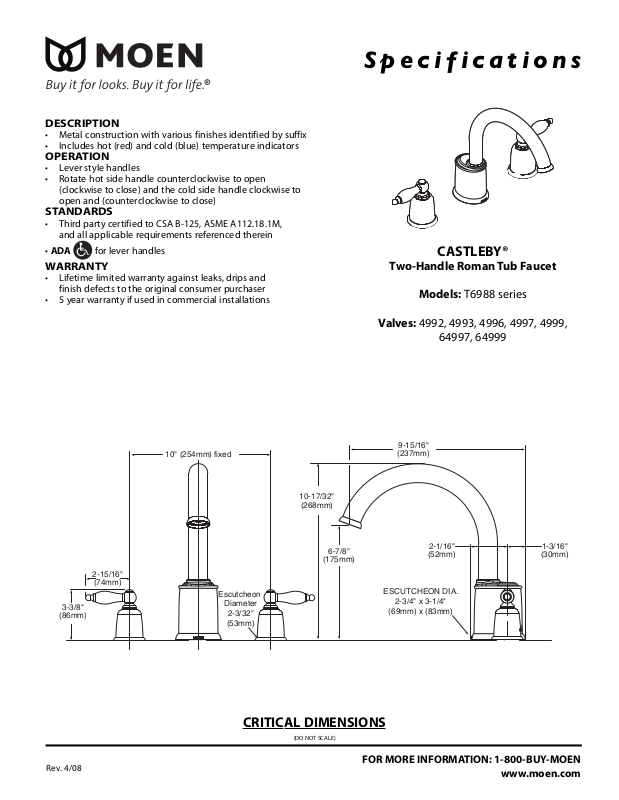

Moen T6988 User Manual
FOR MORE INFORMATION: 1-800-BUY-MOEN
www.moen.com
CRITICAL DIMENSIONS
(DO NOT SCALE)
Specifications
Escutcheon
Diameter
2-3/32"
(53mm)
ESCUTCHEON DIA.
2-3/4" x 3-1/4"
(69mm) x (83mm)
10" (254mm) fixed
6-7/8"
(175mm)
10-17/32"
(268mm)
3-3/8"
(86mm)
9-15/16"
(237mm)
1-3/16"
(30mm)
2-1/16"
(52mm)
2-15/16"
(74mm)
Rev. 4/08
CASTLEBY®
Two-Handle Roman Tub Faucet
Models: T6988 series
Valves: 4992, 4993, 4996, 4997, 4999,
64997, 64999
DESCRIPTION
• Metal construction with various finishes identified by suffix
• Includes hot (red) and cold (blue) temperature indicators
OPERATION
• Lever style handles
• Rotate hot side handle counterclockwise to open
(clockwise to close) and the cold side handle clockwise to
open and (counterclockwise to close)
STANDARDS
• Third party certified to CSA B-125, ASME A112.18.1M,
and all applicable requirements referenced therein
• ADA for lever handles
WARRANTY
• Lifetime limited warranty against leaks, drips and
finish defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
