Moen T6105BN Specs

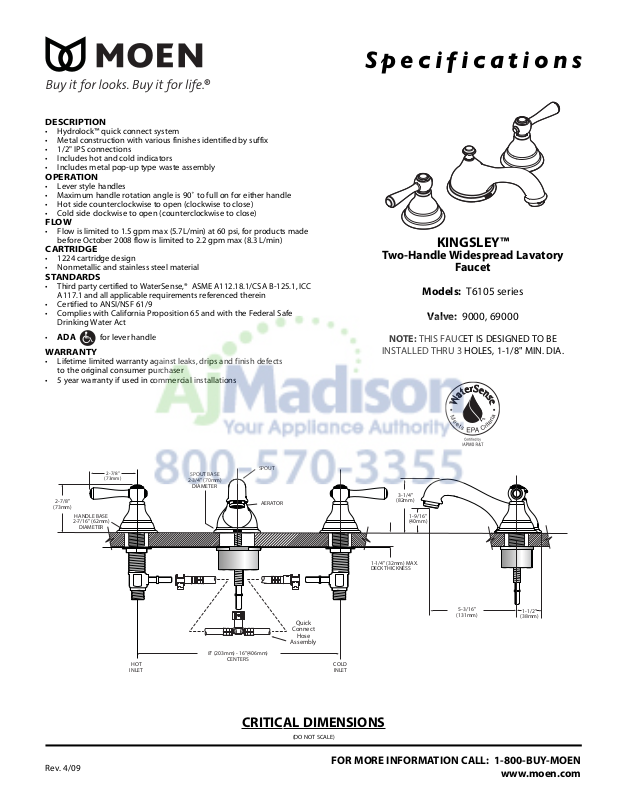

CRITICAL DIMENSIONS

(DO NOT SCALE)

Specifications

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

www.moen.com

Rev. 4/09

KINGSLEY™

Two-Handle Widespread Lavatory

Faucet

Models: T6105 series

Valve: 9000, 69000

NOTE: THIS FAUCET IS DESIGNED TO BE

INSTALLED THRU 3 HOLES, 1-1/8" MIN. DIA.

2-7/8"

(73mm)

1-9/16"

(40mm)

8" (203mm) - 16"(406mm)

CENTERS

2-7/8"

(73mm)

1-1/4" (32mm) MAX.
DECK THICKNESS

AERATOR

SPOUT

HANDLE BASE

2-7/16" (62mm)

DIAMETER

COLD
INLET

HOT

INLET

SPOUT BASE

2-3/4" (70mm)

DIAMETER

3-1/4"

(82mm)

Quick

Connect

Hose

Assembly

1-1/2"

(38mm)

5-3/16"

(131mm)

DESCRIPTION

• Hydrolock™ quick connect system

• Metal construction with various finishes identified by suffix

• 1/2" IPS connections

• Includes hot and cold indicators

• Includes metal pop-up type waste assembly

OPERATION

• Lever style handles

• Maximum handle rotation angle is 90˚ to full on for either handle

• Hot side counterclockwise to open (clockwise to close)

• Cold side clockwise to open (counterclockwise to close)

FLOW

• Flow is limited to 1.5 gpm max (5.7L/min) at 60 psi, for products made
before October 2008 flow is limited to 2.2 gpm max (8.3 L/min)

CARTRIDGE

• 1224 cartridge design

• Nonmetallic and stainless steel material

STANDARDS

• Third party certified to WaterSense,® ASME A112.18.1/CSA B-125.1, ICC
A117.1 and all applicable requirements referenced therein

• Certified to ANSI/NSF 61/9

• Complies with California Proposition 65 and with the Federal Safe
Drinking Water Act

•

ADA for lever handle

WARRANTY

• Lifetime limited warranty against leaks, drips and finish defects
to the original consumer purchaser

• 5 year warranty if used in commercial installations
