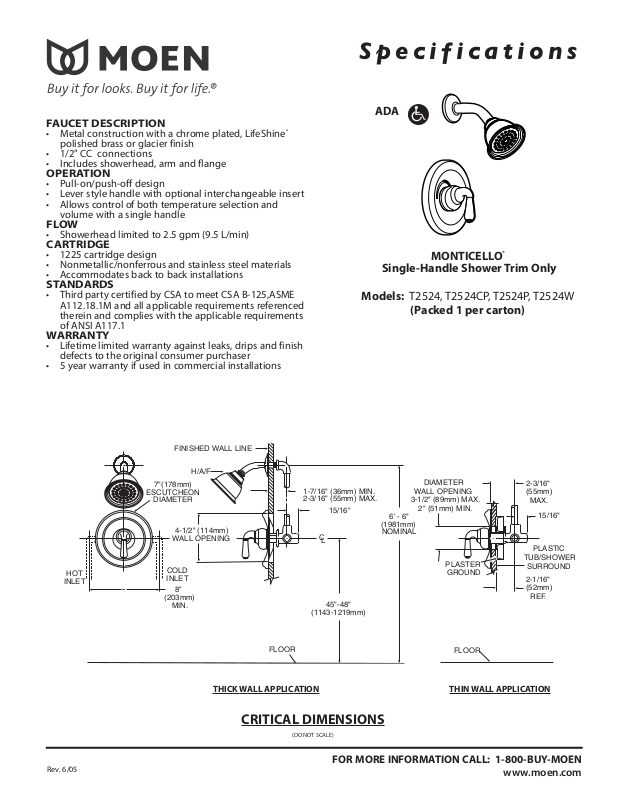

Specifications

CRITICAL DIMENSIONS

(DO NOT SCALE)

MONTICELLO

®

Single-Handle Shower Trim Only

Models: T2524, T2524CP, T2524P, T2524W

(Packed 1 per carton)

THIN

WALL APPLICATION

THICK WALL APPLICATION

Rev. 6/05

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

www.moen.com

ADA

FAUCET DESCRIPTION

• Metal construction with a chrome plated, LifeShine

®

polished brass or glacier finish

• 1/2" CC connections

• Includes showerhead, arm and flange

OPERATION

• Pull-on/push-off design

• Lever style handle with optional interchangeable insert

• Allows control of both temperature selection and
volume with a single handle

FLOW

• Showerhead limited to 2.5 gpm (9.5 L/min)

CARTRIDGE

• 1225 cartridge design

• Nonmetallic/nonferrous and stainless steel materials

• Accommodates back to back installations

STANDARDS

• Third party certified by CSA to meet CSA B-125,ASME
A112.18.1M and all applicable requirements referenced
therein and complies with the applicable requirements
of ANSI A117.1

WARRANTY

• Lifetime limited warranty against leaks, drips and finish
defects to the original consumer purchaser

• 5 year warranty if used in commercial installations

HOT

INLET

FINISHED WALL LINE

H/A/F

7"(178mm)

ESCUTCHEON

DIAMETER

4-1/2" (114mm)

WALL OPENING

COLD
INLET

8"

(203mm)

MIN.

1-7/16" (36mm) MIN.
2-3/16" (55mm) MAX.

C

(1143-1219mm)

FLOOR

15/16"

L

45"-48"

3-1/2" (89mm) MAX.

6' - 6"

(1981mm)

NOMINAL

DIAMETER

WALL OPENING

2" (51mm) MIN.

PLASTER

GROUND

FLOOR

2-3/16"

(55mm)

MAX.

15/16"

PLASTIC

TUB/SHOWER

SURROUND

2-1/16"
(52mm)

REF.
