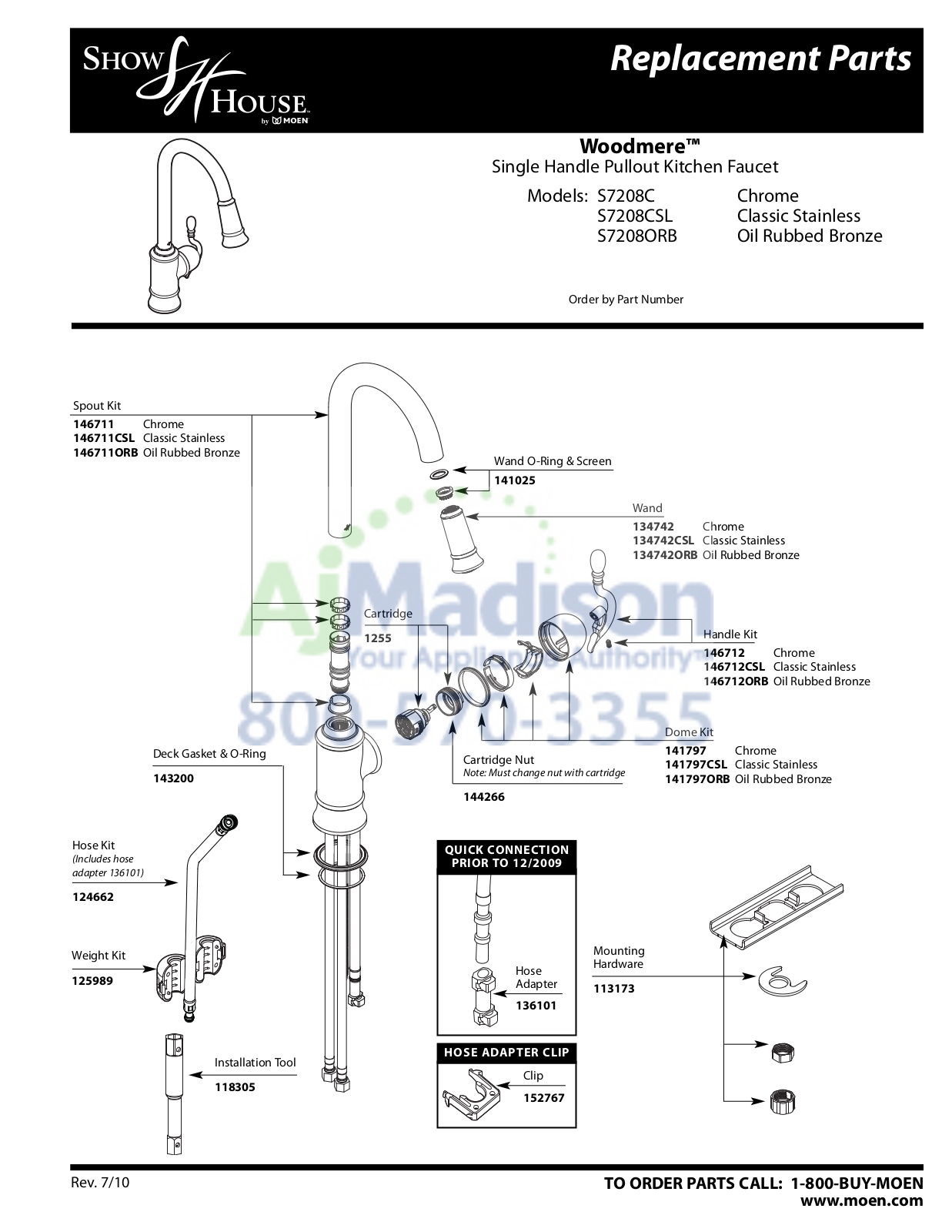

Moen S7208C Exploded View

Rev. 7/10

Replacement Parts

Order by Part Number

TO ORDER PARTS CALL: 1-800-BUY-MOEN

www.moen.com

Woodmere™

Single Handle Pullout Kitchen Faucet

Models: S7208C Chrome

S7208CSL Classic Stainless
S7208ORB Oil Rubbed Bronze

Spout Kit

146711 Chrome
146711CSL Classic Stainless
146711ORB Oil Rubbed Bronze

Wand

134742 Chrome
134742CSL Classic Stainless
134742ORB Oil Rubbed Bronze

Cartridge

1255

Installation Tool

118305

Dome Kit

141797 Chrome
141797CSL Classic Stainless
141797ORB Oil Rubbed Bronze

Hose Kit

(Includes hose
adapter 136101)

124662

Weight Kit

125989

Wand O-Ring & Screen

141025

Mounting
Hardware

113173

Handle Kit

146712 Chrome
146712CSL Classic Stainless
146712ORB Oil Rubbed Bronze

Cartridge Nut

Note: Must change nut with cartridge

144266

Hose
Adapter

136101

QUICK CONNECTION

PRIOR TO 12/2009

Clip

152767

HOSE ADAPTER CLIP

Deck Gasket & O-Ring

143200
