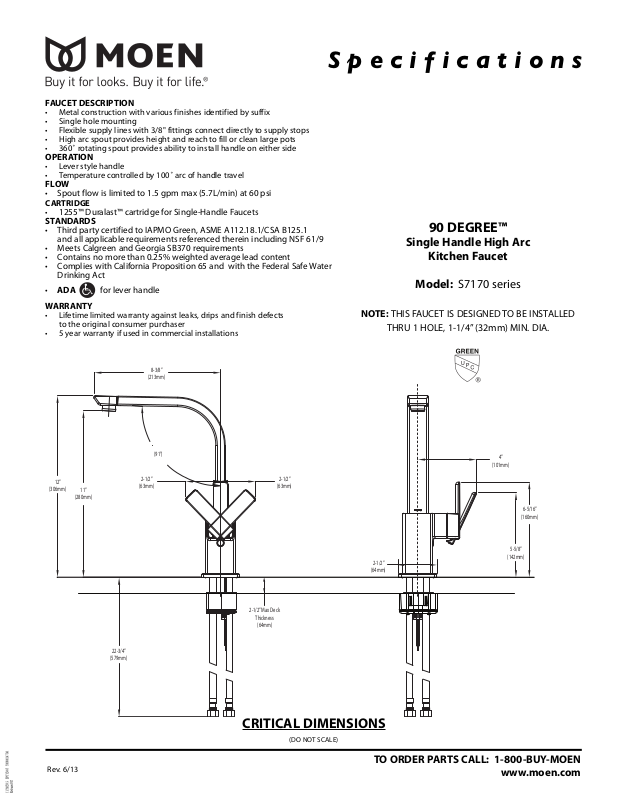

Moen S7170SRS Specifications
2-
1/
2”
M
ax
D
ec
k
Th
ic
kn
es
s
(6
4m
m
)
2-
1/
2”
(6
4m
m
)
(9
1°
)
12
”
(3
06
m
m
)
11
”
(2
80
m
m
)
22
-3
/4
”
(5
79
m
m
)
8-
3/
8”
(2
13
m
m
)
2-
1/
2”
(6
3m
m
)
2-
1/
2”
(6
3m
m
)
6-
5/
16
”
(1
60
m
m
)
4”
(1
01
m
m
)
5-
5/
8”
(1
42
m
m
)
FAUCET DESCRIPTION
• Metal construction with various finishes identified by suffix
• Single hole mounting
• Flexible supply lines with 3/8" fittings connect directly to supply stops
• High arc spout provides height and reach to fill or clean large pots
• 360˚ rotating spout provides ability to install handle on either side
OPERATION
• Lever style handle
• Temperature controlled by 100˚ arc of handle travel
FLOW
• Spout flow is limited to 1.5 gpm max (5.7L/min) at 60 psi
CARTRIDGE
•
1255™ Duralast™ cartridge for Single-Handle Faucets
STANDARDS
• Third party certified to IAPMO Green, ASME A112.18.1/CSA B125.1
and all applicable requirements referenced therein including NSF 61/9
• Meets Calgreen and Georgia SB370 requirements
• Contains no more than 0.25% weighted average lead content
• Complies with California Proposition 65 and with the Federal Safe Water
Drinking Act
• ADA for lever handle
WARRANTY
• Lifetime limited warranty against leaks, drips and finish defects
to the original consumer purchaser
• 5 year warranty if used in commercial installations
S p e c i f i c a t i o n s
90 DEGREE™
Single Handle High Arc
Kitchen Faucet
Model: S7170 series
NOTE: THIS FAUCET IS DESIGNED TO BE INSTALLED
THRU 1 HOLE, 1-1/4” (32mm) MIN. DIA.
CRITICAL DIMENSIONS
(DO NOT SCALE)
Rev. 6/13
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
