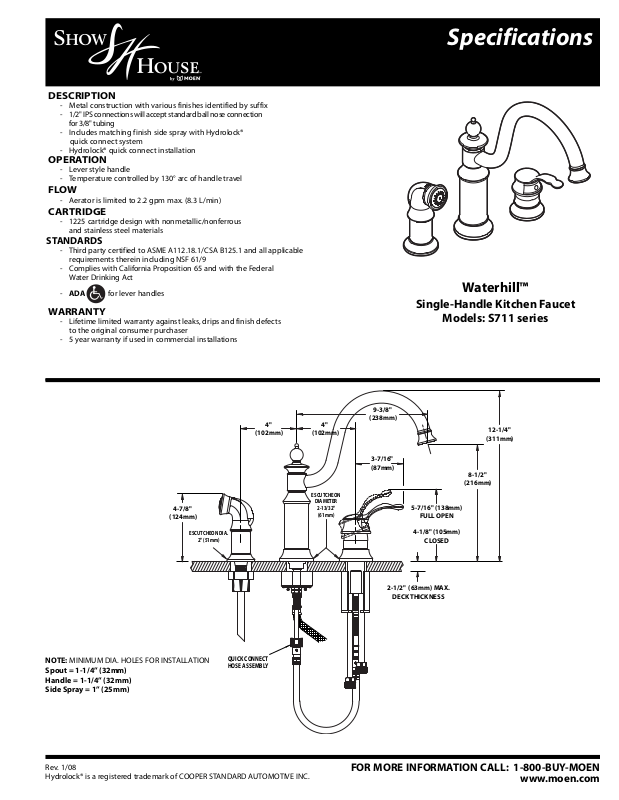

Moen S711 Specs

Specifications

FOR MORE INFORMATION CALL: 1-800-BUY-MOEN

www.moen.com

DESCRIPTION

- Metal construction with various finishes identified by suffix

- 1/2" IPS connections will accept standard ball nose connection
for 3/8" tubing

- Includes matching finish side spray with Hydrolock®
quick connect system

- Hydrolock® quick connect installation

OPERATION

- Lever style handle

- Temperature controlled by 130° arc of handle travel

FLOW

- Aerator is limited to 2.2 gpm max. (8.3 L/min)

CARTRIDGE

- 1225 cartridge design with nonmetallic/nonferrous
and stainless steel materials

STANDARDS

- Third party certified to ASME A112.18.1/CSA B125.1 and all applicable
requirements therein including NSF 61/9

- Complies with California Proposition 65 and with the Federal
Water Drinking Act

- ADA for lever handles

WARRANTY

- Lifetime limited warranty against leaks, drips and finish defects
to the original consumer purchaser

- 5 year warranty if used in commercial installations

Waterhill™

Single-Handle Kitchen Faucet

Models: S711 series

NOTE: MINIMUM DIA. HOLES FOR INSTALLATION
Spout = 1-1/4” (32mm)
Handle = 1-1/4” (32mm)
Side Spray = 1” (25mm)

Rev. 1/08
Hydrolock® is a registered trademark of COOPER STANDARD AUTOMOTIVE INC.

4-7/8"

(124mm)

ESCUTCHEON DIA.

2" (51mm)

(102mm)

QUICK CONNECT
HOSE ASSEMBLY

9-3/8"

4"

4"

(102mm)

ESCUTCHEON

DIAMETER

2-13/32"

(61mm)

(238mm)

3-7/16"
(87mm)

2-1/2" (63mm) MAX.

DECK THICKNESS

12-1/4"

(311mm)

8-1/2"

(216mm)

5-7/16" (138mm)

FULL OPEN

4-1/8" (105mm)

CLOSED
