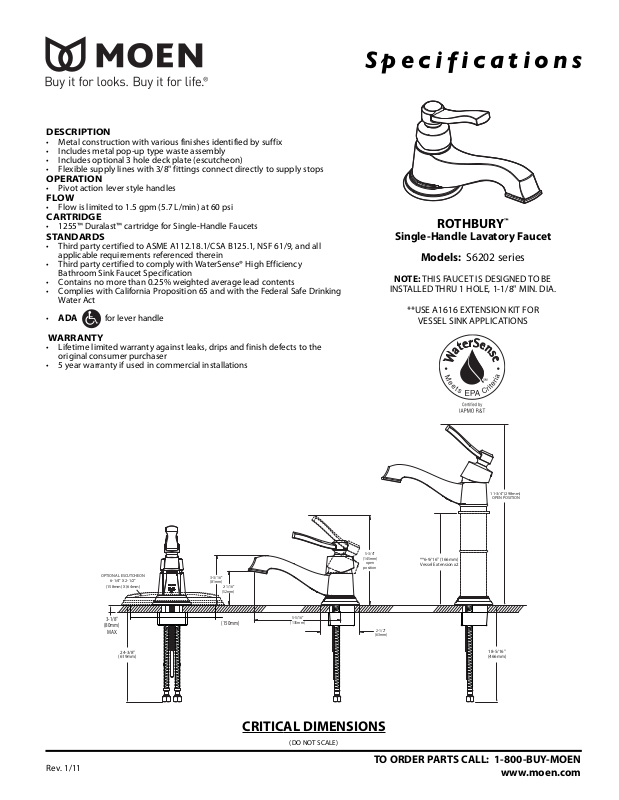

Moen S6202ORB Specs

ROTHBURY

™

Single-Handle Lavatory Faucet

Models: S6202 series

NOTE: THIS FAUCET IS DESIGNED TO BE

INSTALLED THRU 1 HOLE, 1-1/8" MIN. DIA.

**USE A1616 EXTENSION KIT FOR

VESSEL SINK APPLICATIONS

CRITICAL DIMENSIONS

(DO NOT SCALE)

Specifications

TO ORDER PARTS CALL: 1-800-BUY-MOEN

www.moen.com

DESCRIPTION

• Metal construction with various finishes identified by suffix

• Includes metal pop-up type waste assembly

• Includes optional 3 hole deck plate (escutcheon)

• Flexible supply lines with 3/8" fittings connect directly to supply stops

OPERATION

• Pivot action lever style handles

FLOW

• Flow is limited to 1.5 gpm (5.7 L/min) at 60 psi

CARTRIDGE

• 1255™ Duralast™ cartridge for Single-Handle Faucets

STANDARDS

• Third party certified to ASME A112.18.1/CSA B125.1, NSF 61/9, and all
applicable requirements referenced therein

• Third party certified to comply with WaterSense® High Efficiency
Bathroom Sink Faucet Specification

• Contains no more than 0.25% weighted average lead contents

• Complies with California Proposition 65 and with the Federal Safe Drinking
Water Act

• ADA for lever handle

WARRANTY

• Lifetime limited warranty against leaks, drips and finish defects to the
original consumer purchaser

• 5 year warranty if used in commercial installations

Rev. 1/11

OPTIONAL ESCUTCHEON

6-1/4" X 2-1/2"

(158mm) X (64mm)

3-1/8"

(80mm)

MAX.

24-3/8"

(619mm)

3-3/16”
(81mm)

2-1/16”
(52mm)

5-5/16”

(150mm)

(135mm)

11-3/4" (298mm)

OPEN POSITION

5-3/4”

(145mm)

open

position

2-1/2”

(63mm)

**6-9/16" (166mm)
Vessel Extension x2

18-5/16"
(466mm)
