MOEN SPECIFIER SERVICES 1-800-321-8809 Ext. 2158
CRITIC
AL DIMENSIONS
(DO NOT SCALE)
FINISHED WALL LINE
2" Max Wall
(51mm)
54"
(1372mm)
44"
(1142mm)
39"
(991mm)
Floor
7" Max
(178mm)
Escutcheon
3/16"(typ)
(5mm)
Plaster
Ground
Plastic
Tub/Shower
Surround
MONTICELLO®MOENTROL
®
with Built-In 3 Function Transfer Valve Trim
Models: RT4110, RT4110P, RT4110PM,
RT4110ST, RT4110BP, RT4110CG, T4110W
DESCRIPTION
• Metal construction with a chrome plated, LifeShine
®
Polished Brass, Satine™, Classic Gold, Black Opal,
Platinum or Glacier finish.
OPERATION
• Pull-on/push-off operation of temperature and volume,
rotational control of transfer valve
• Temperature operates through an 180˚ arc of handle
travel (full cold to full hot)
• Adjustable temperature limit stop to control
maximum hot water temperature
• 180˚ rotation of transfer valve handle with stops
• Pressure balancing mechanism maintains selected
discharge temperature to ± 2˚
STANDARDS
• Third party certified by CSA to meet CSA B-125,
ASME A112.18.1M
WARRANTY
• Lifetime limited warranty against leaks, drips and
finish defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
Rev. 9/01
THIN WALL APPLICATION
THICK
WALL APPLICATION
Specifications
®
This vertical spa set contains multiple components.
Please scroll down to see all components on
specification and parts pages.
Illustrated Parts
TO ORDER PARTS CALL: 1-800-BUY-MOEN
®
Rev. 11/03
■
Order by Part Name and
Part Number (Bold Face Type)
MONTICELLO® MOENTROL®
with Built-In 3 Function Diverter Shower
Valve Trim
MODEL HANDLE TYPE FINISH
RT4110 Lever/Knob Chrome
RT4110P Lever/Knob Polished Brass
RT4110PM Lever/Knob Platinum
RT4110ST Lever/Knob Satine™
T4110W Lever/Knob Glacier
DISCONTINUED SKUS
RT4110BP Lever/Knob Black Opal™
RT4110CG Lever/Knob Classic Gold
Replacement Cartridge
1225 or 1200
1" Extension Kit
110317
Stop Tube Kit
104249
Escutcheon Screws (2)
104243
Retainer Screws
(2)
104247
Retainer
Screws (2)
104247
Handle Adapter & Screw
100202
Mounting Cup
100203
Handle Hub &
Screw
100204
Set Screw
13903
Set Screw
100205
Handle Base
100208
Handle Insert
100207
Escutcheon
100210 Chrome
*
Escutcheon Retainer
104245 Chrome
*
Handle Cap & Screws
100209 Chrome
*
Handle Cap
Screws (2)
100206
Coupling & Screw
104248
*
See Chart on Next Page for
Other Available Finishes
*
*
*
Replacement Cartridge
1200 only
Stop Tube Kit
100024
*
Retainer Clip
883
Screw
94791
Mounting Plate
115074
TO ORDER PARTS CALL: 1-800-BUY-MOEN
Illustrated Parts
®
Rev. 11/03
Monticello
®

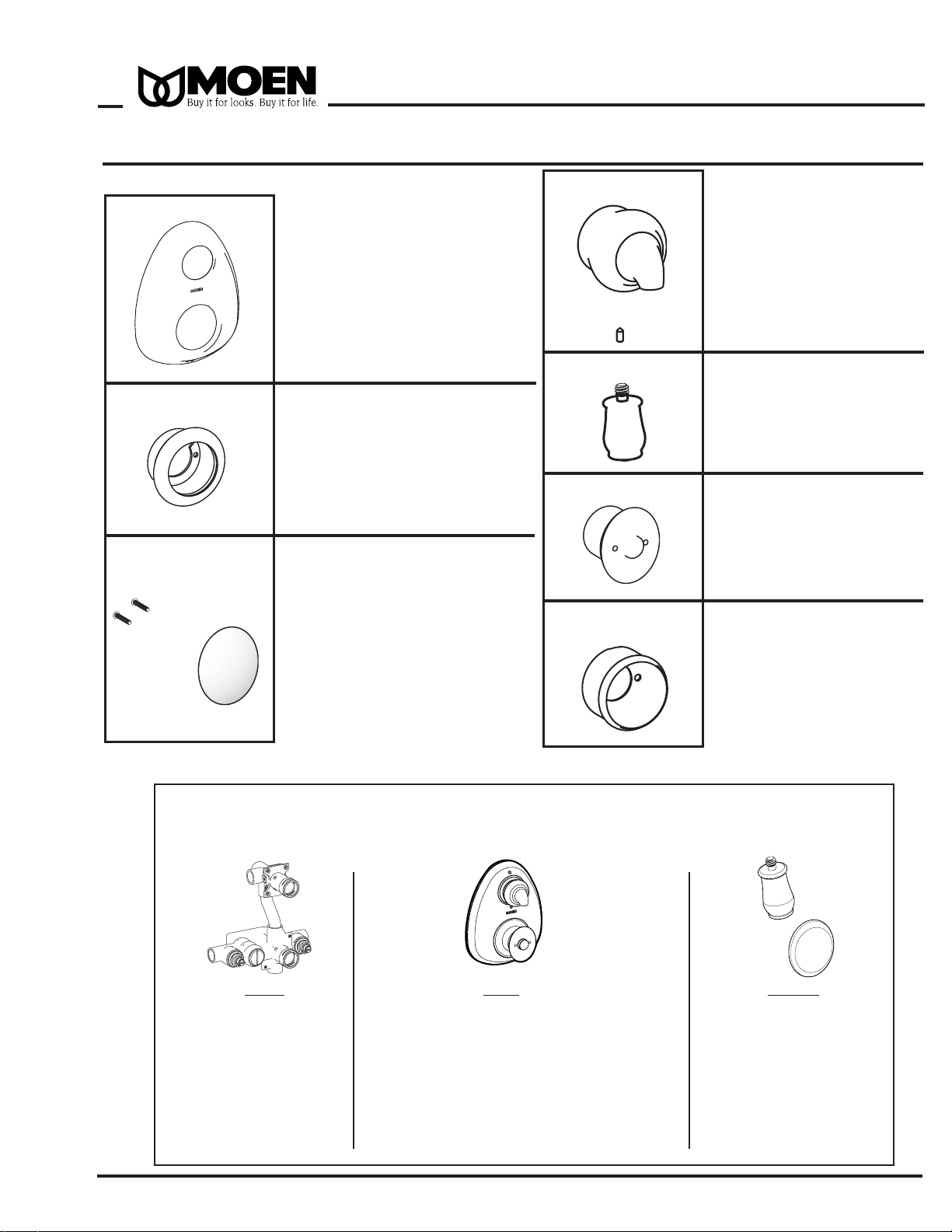

Moentrol®3-Function Transfer Valve Trim Kit Components
Select 1 from each column to make a complete faucet
RT4110-Chrome
RT4110P-Polished Brass
RT4110PM-Platinum
RT4110BP-Black Opal
RT4110CG-Classic Gold
RT4110ST-Satine
AT4110-Chrome
AT4110P-Polished Brass
AT4110PM-Platinum
AT4110BP-Black Opal
AT4110CG-Classic Gold
AT4110ST-Satine
100207 Chrome
100207P Polished Brass
100207ST Satine
100207BP Black Opal
100207CG Classic Gold
100207PM Platinum
100207W Glacier
Handle Insert
Handle Hub & Screw
Handle Cap &
Screws
Mounting Cup
Escutcheon Retainer
Escutcheon
100203 Chrome
100203P Polished Brass
100203ST Satine
100203BP Black Opal
100203CG ClassicGold
100203PM Platinum
100203W Glacier
100210 Chrome
100210P Polished Brass
100210ST Satine
100210BP Black Opal
100210CG Classic Gold
100210PM Platinum
100210W Glacier
Available Finishes
104245 Chrome
104245P Polished Brass
104245ST Satine
104245BP Black Opal
104245CG Classic Gold
104245PM Platinum
104245W Glacier
100204 Chrome
100204P Polished Brass
100204ST Satine
100204BP Black Opal
100204CG Classic Gold
100204PM Platinum
100204W Glacier
100209 Chrome
100209P Polished Brass
100209ST Satine
100209BP Black Opal
100209CG Classic Gold
100209PM Platinum
100209W Glacier
Part Finishes Chart
*
Core AccentValve
Handle Base
100208 Chrome
100208P Polished Brass
100208ST Satine
100208BP Black Opal
100208CG ClassicGold
100208PM Platinum
100208W Glacier
3320 - IPS
3330 - CC
Specifications
DESCRIPTION
• Metallic spray face and shell
• Brass swivel ball assembly
• Available in chrome plated, LifeShine
®
Polished Brass,
Satine
™
, Black Opal, Classic Gold™, Nickel, Platinum or
Glacier finish
OPERATION
• Single spray function
FLOW
• Designed to deliver 2.5 gpm max (9.5 L/min) at 80 psi
STANDARDS
• Designed and manufactured to comply with the
requirements of: CSA B125 and ASME A112.18.1M
and all requirements referenced therein
WARRANTY
• Warranted for one year against material or
manufacturing defects
Small Single Function Body Spray
Models: A499, A499P, A499W,
A499PM, A499ST, A499BP, A499CG, A499NL
Large Single Function Body Spray
Models: A500, A500P, A500W,
A500PM,A500ST, A500BP, A500CG, A500NL
A499 Series A500 Series
Rev. 4/01
MOEN SPECIFIER SERVICES 1-800-321-8809 Ext. 2158
CRITICAL DIMENSIONS
(DO NOT SCALE)
®
25˚
Max. Swivel Angle
2"
[51 mm]
2-3/8" - 2-3/4"
[60 mm - 70 mm]
25˚
Max. Swivel Angle
2 -9/16"
[65 mm]
2 -3/4"
[70 mm]
3-5/8"
[92 mm]
3-1/16" - 3-7/16"
[78mm - 87mm]
DESCRIPTION
• Metal construction with Chrome plating or decorative
antique brass, chrome/LifeShine
®
polished brass,
LifeShine
®
polished brass, black opal, classic gold
nickel, satine, platinum, platinum/polished brass,
platinum/chrome or glacier finishes
• Fixed mount shower head
• Nonmetallic spray face
• Brass shell and ball assembly
OPERATION
• Adjustable spray - rotate side lever to
select coarse to fine spray
FLOW
• Designed to deliver 2.5 gpm (9.5 L/min) max at 80 psi
STANDARDS
• Designed and manufactured to comply with
the requirements of: CSA B125 and ASME
A112.18.1M and all requirements referenced
therein
WARRANTY
• Lifetime limited warranty against leaks, drips and
finish defects to the original consumer purchaser
• 5 year warranty if used in commercial installations
MOEN SPECIFIER SERVICES 1-800-321-8809 Ext. 2158
CRITICAL DIMENSIONS
(DO NOT SCALE)
Specifications
Rev. 5/02
2-1/2"
(64mm)
2-5/8"
(67mm)
2-1/8"
(54mm)
1/2" IPS
THREADS
6" (152mm)
ARM
MOENFLO®40
Head only
Models: 3940, 3940A, 3940BP, 3940CP,
3940CG, 3940P, 3940PM, 3940PMC,
3940PMP, 3940NL, *3940S, 3940ST, 3940W
* Discontinued 5/31/02
®
TO ORDER PARTS CALL: 1-800-BUY-MOEN

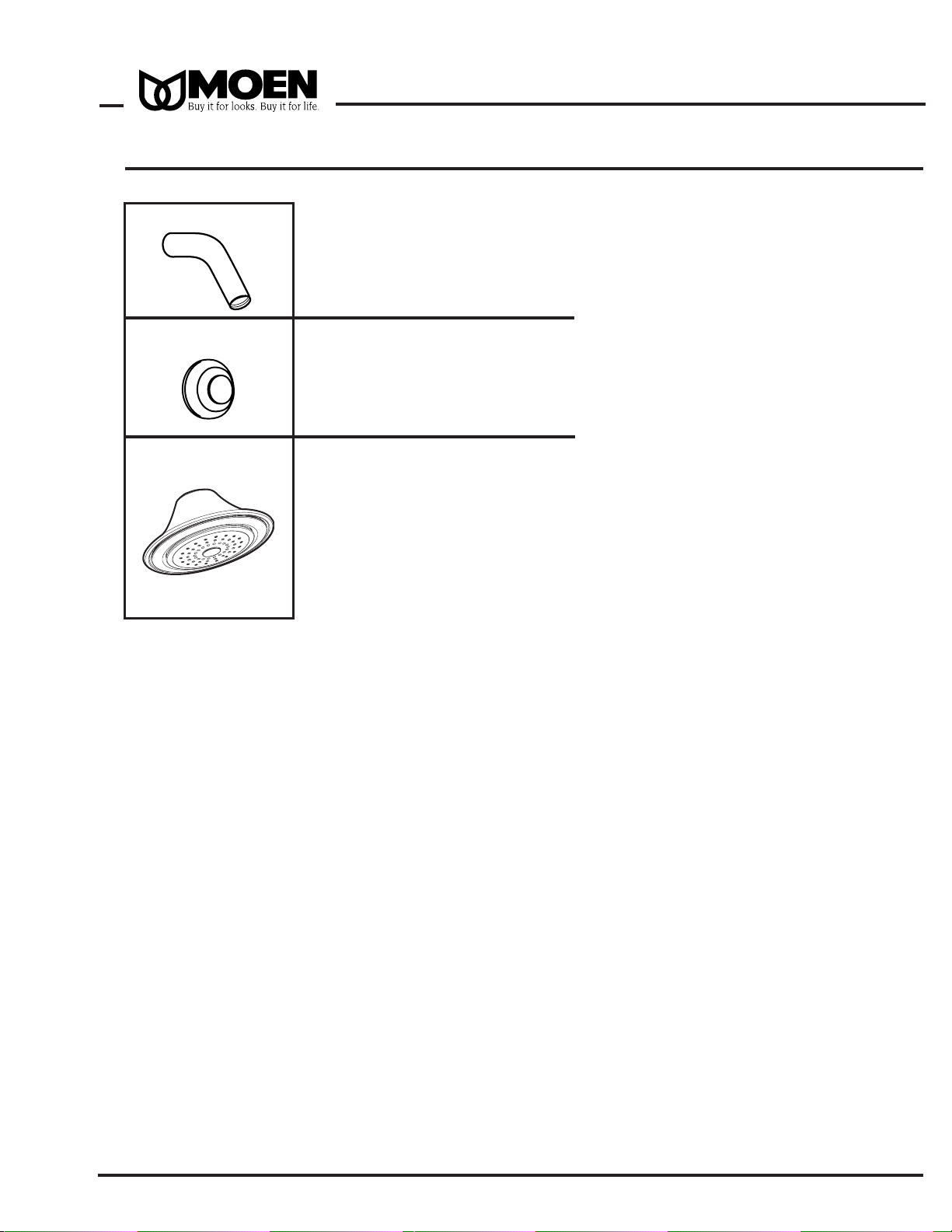

Showerhead
Accent Kit
AT2199 Chrome
AT2199 Polished Brass
AT2199PM Platinum
AT2199BP Black Opal
AT2199CG Classic Gold
AT2199ST Satine
AT2199W Glacier
AT2199NL Nickel
Available Finishes
10154 Chrome
10154P Polished Brass
10154PM Platinum
10154BP Black Opal
10154CG Classic Gold
10154ST Satine
10154W Glacier
10154NL Nickel
104239 Chrome
104239CP Chrome/Polished Brass
104239CPM Chrome/Platinum
104239NLBL Nickel/Matte Black
104239CGPC Classic Gold/Pebbled Cream
104239STV Satine/Ivory
Part Finishes Chart
Shower Arm
Illustrated Parts
®
Rev. 1/02
