Page 1

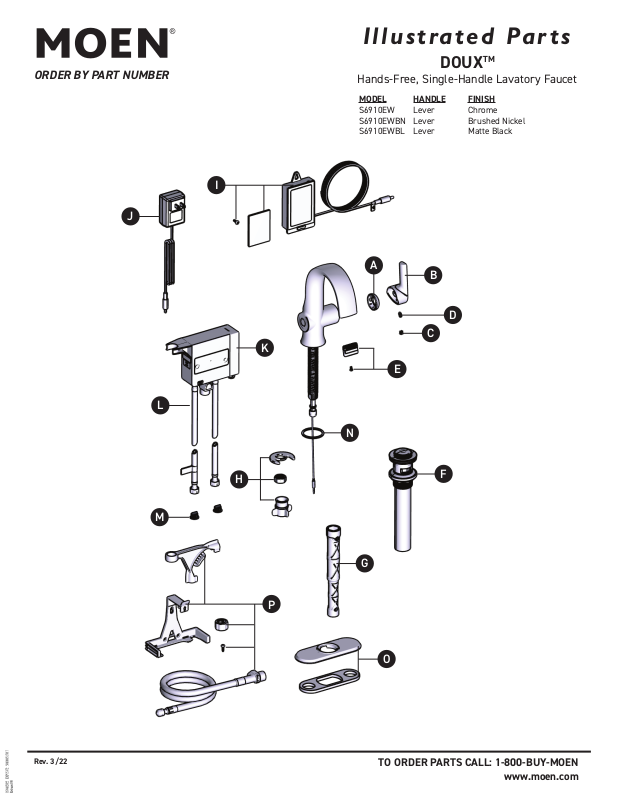

Illustrated Parts
ORDER BY PART NUMBER
J
DOUX
TM
Hands-Free, Single-Handle Lavatory Faucet
MODEL HANDLE FINISH
S6910EW Lever Chrome
S6910EWBN Lever Brushed Nickel
S6910EWBL Lever Matte Black
I
A
B
D
C
K
M
E
L
N
H
F
G
P
O
Rev. 3/22
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
Page 2
Illustrated Parts
ORDER BY PART NUMBER
ID Kit Description Kit Number Finish
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
Hands-Free, Single-Handle Lavatory Faucet
Handle Dome 160660 Chrome
160660BN
160660BL Matte Black
Handle Kit 190845 Chrome
190845BN
190845BL Matte Black
Plug Button Kit 152859 Chrome
152859CSL
152859BL Matte Black
Handle Kit Set Screw
155023
(Requires 3/32” Hex Key)
Aerator Kit (includes Tool) 190843 1.2 gpm
Waste Assembly (with Overflow) 131553 Chrome
131553CSL
131553BL Matte Black
Installation Tool 118305
Mounting Hardware 212267
Battery Holder & Hardware Pack
177567
(6AA Batteries Not Included)
AC Adapter with Power Splitter
169031
(sold Separetely)
Control Box Only (Includes (x2)
177569
Supply Hose Assemblies)
Control Box Supply Hose Assem-
177572
blies
Filter Screen (x2) 197171
Deck Gasket 150567
Escutcheon Kit 150568 Chrome
150568BN Brushed Nickel
150568BL Matte Black
Brushed Nickel
Brushed Nickel
Brushed Nickel
Brushed Nickel
Doux
TM
Rev. 3/22
P
Wall Mount Service Kit 177566
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
