Order by Part Number

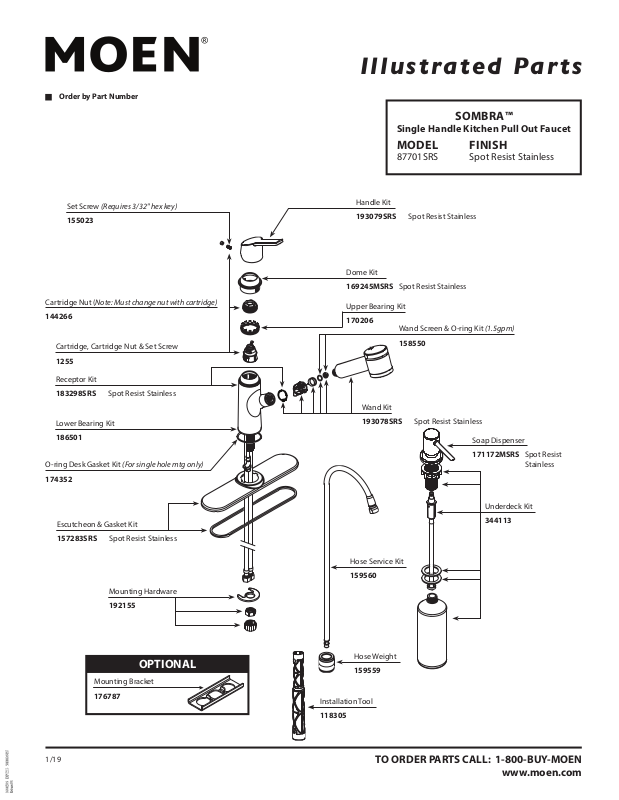

Illustrated Parts
SOMBRA™
Single Handle Kitchen Pull Out Faucet
MODEL FINISH
87701SRS Spot Resist Stainless
Set Screw (Requires 3/32" hex key)
155023
Cartridge Nut (Note: Must change nut with cartridge)
144266
Cartridge, Cartridge Nut & Set Screw
1255
Receptor Kit
183298SRS Spot Resist Stainless
Lower Bearing Kit
186501
O-ring Desk Gasket Kit (For single hole mtg only)
174352
Handle Kit
193079SRS Spot Resist Stainless
Dome Kit
169245MSRS Spot Resist Stainless
Upper Bearing Kit
170206
Wand Screen & O-ring Kit (1.5gpm)
158550
Wand Kit
193078SRS Spot Resist Stainless
Soap Dispenser
171172MSRS Spot Resist
Stainless
Escutcheon & Gasket Kit
157283SRS Spot Resist Stainless
Mounting Hardware
192155
OPTIONAL
Mounting Bracket
176787
1/19
Underdeck Kit
344113
Hose Service Kit
159560
Hose Weight
159559
Installation Tool
118305
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
