Moen NDPF2390 Specifications

25300 AL MOEN DRIVE  N ORTH OLMSTED, OH 44070
COR PORATE HEAD QUAR TER S: [phone]  F AX: [phone]
IN TERNATI ONAL: [phone]  FAX: [phone]
CU STOMER SER VIC E (U SA): 800-882-0116  FAX: [phone]
WW W.MOEN. COM

Copyright Creative Specialties International Literature #BA1401

Directions below are for installation into drywall. If installing product into a
stud, use the wood screws and washers provided only.

1) Position the mounting template on the w all in the desired location.

2) Using a level, align the template and tape it to the wall.

3) Drill tw o 5/16” holes as indicated on the template

4) Remove the template from the wall.

5) Fold ends of the plastic toggle together and insert into each hole in the wall.

6) Lightly tap anchors until flush with the wall.

7) One at a time, insert plastic pin into each of the anchors and lightly tap to activate
anchor. Remove pin and repeat on all anchors.

8) Remove mounting posts from the product assemblies by loosening each setscrew.

9) Place the mounting plate on the w all over the installed w all anchors with “UP”
facing you.

10) Insert screws through the mounting plate into the anchors. Tighten the screws.

11) Assemble the towel bar and posts.

12) While assembled, position each end post with setscrews facing down and place
over both mounting posts. Tighten the setscrew at the bottom of each post.

Towel bar posts are constructed of
zinc. Bars are constructed of

aluminum.

 DN0722CH – 24” Double Towel Bar

Chrome Finish

 DN0722BN – 24” Double Towel Bar

Brushed Nickel Finish

Cleaning Instructions:

Stock Number:__________________ Double Towel Bar

By Creative Specialties

Materials:

Installation Instructions:

Stock Numbers:

Dimensions:

24” Double Towel Bar

DN0722

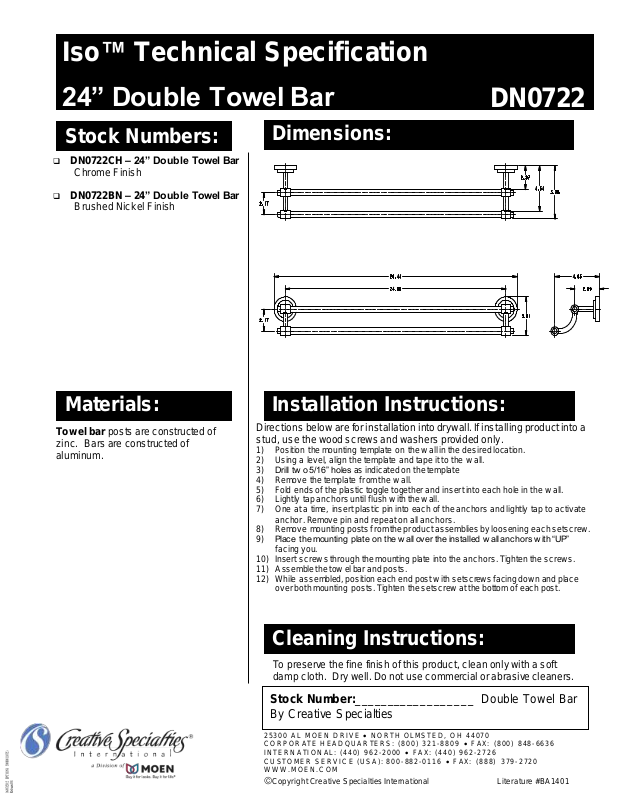

Iso™ Technical Specification

To preserve the fine finish of this product, clean only with a soft
damp cloth. Dry well. Do not use commercial or abrasive cleaners.
