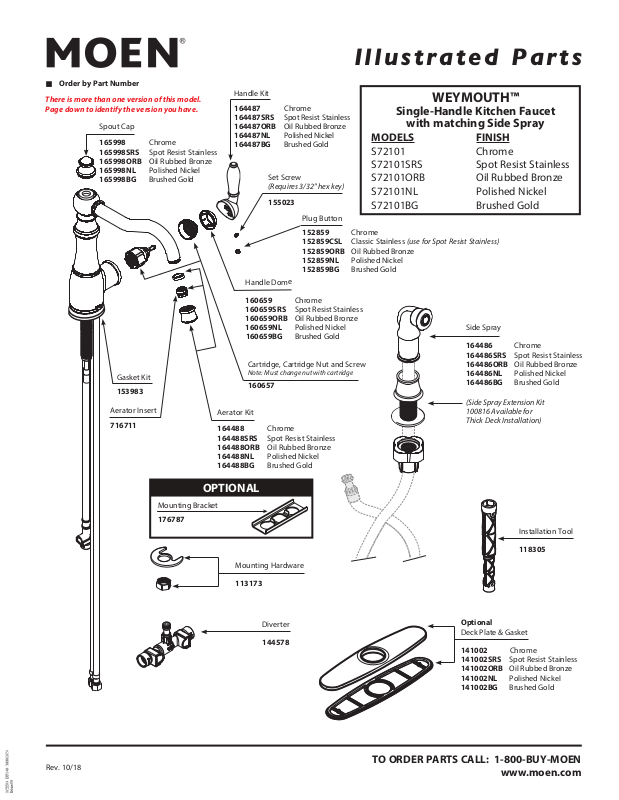

Page 1
Order by Part Number
There is more than one version of this model.
Page down to identify the version you have.
Spout Cap
165998 Chrome
165998SRS Spot Resist Stainless
165998ORB Oil Rubbed Bronze
165998NL Polished Nickel
165998BG Brushed Gold
Gasket Kit
153983
Aerator Insert
716711
Handle Kit
164487 Chrome
164487SRS Spot Resist Stainless
164487ORB Oil Rubbed Bronze
164487NL Polished Nickel
164487BG Brushed Gold
Set Screw
(Requires 3/32" hex key)
155023
Plug Button
152859 Chrome
152859CSL Classic Stainless (use for Spot Resist Stainless)
152859ORB Oil Rubbed Bronze
152859NL Polished Nickel
152859BG Brushed Gold
Handle Dome
160659 Chrome
160659SRS Spot Resist Stainless
160659ORB Oil Rubbed Bronze
160659NL Polished Nickel
160659BG Brushed Gold
Cartridge, Cartridge Nut and Screw
Note: Must change nut with cartridge
160657
Aerator Kit
164488 Chrome
164488SRS Spot Resist Stainless
164488ORB Oil Rubbed Bronze
164488NL Polished Nickel
164488BG Brushed Gold
Illustrated Parts
WEYMOUTH™
Single-Handle Kitchen Faucet
with matching Side Spray
MODELS FINISH
S72101 Chrome
S72101SRS Spot Resist Stainless
S72101ORB Oil Rubbed Bronze
S72101NL Polished Nickel
S72101BG Brushed Gold
Side Spray
164486 Chrome
164486SRS Spot Resist Stainless
164486ORB Oil Rubbed Bronze
164486NL Polished Nickel
164486BG Brushed Gold
(Side Spray Extension Kit
100816 Available for
Thick Deck Installation)
Rev. 10/18
OPTIONAL
Mounting Bracket
176787
Mounting Hardware
113173
Diverter
144578
Installation Tool
118305
Optional
Deck Plate & Gasket
141002 Chrome
141002SRS Spot Resist Stainless
141002ORB Oil Rubbed Bronze
141002NL Polished Nickel
141002BG Brushed Gold
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
Page 2
Order by Part Number
Spout Cap
165998 Chrome
165998SRS Spot Resist Stainless
165998ORB Oil Rubbed Bronze
165998NL Polished Nickel
Gasket Kit
153983
Aerator Insert
716711
Handle Kit
164487 Chrome
164487SRS Spot Resist Stainless
164487ORB Oil Rubbed Bronze
164487NL Polished Nickel
Set Screw
(Requires 3/32" hex key)
155023
Plug Button
152859 Chrome
152859CSL Classic Stainless (use for Spot
Resist Stainless)
152859ORB Oil Rubbed Bronze
152859NL Polished Nickel
Handle Dome
160659 Chrome
160659SRS Spot Resist Stainless
160659ORB Oil Rubbed Bronze
160659NL Polished Nickel
Cartridge, Cartridge Nut and Screw
Note: Must change nut with cartridge
160657
Aerator Kit
164488 Chrome
164488SRS Spot Resist Stainless
164488ORB Oil Rubbed Bronze
164488NL Polished Nickel
Illustrated Parts
WEYMOUTH™
Single-Handle Kitchen Faucet
with matching Side Spray
MODELS FINISH
S72101 Chrome
S72101SRS Spot Resist Stainless
S72101ORB Oil Rubbed Bronze
S72101NL Polished Nickel
Side Spray
164486 Chrome
164486SRS Spot Resist Stainless
164486ORB Oil Rubbed Bronze
164486NL Polished Nickel
(Side Spray Extension Kit
100816 Available for
Thick Deck Installation)
Rev. 10/18
Mounting Hardware
113173
Diverter
144578
Installation Tool
118305
Optional
Deck Plate & Gasket
141002 Chrome
141002SRS Spot Resist Stainless
141002ORB Oil Rubbed Bronze
141002NL Polished Nickel
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
