ORDER BY PART NUMBER
Trim can be used with U130 series
or U140 series valve
L
I
G
M
Valve Trim Only
MODEL FINISH
UT3361 Chrome
UT3361BN Brushed Nickel
UT3361BG Brushed Gold
UT3361BL Matte Black
Shower Trim Only
MODEL FINISH
UT3362 Chrome
UT3362BN Brushed Nickel
UT3362BG Brushed Gold
UT3362BL Matte Black
UT3362EP Chrome
UT3362EPBN Brushed Nickel
UT3362EPBG Brushed Gold
UT3362EPBL Matte Black
Tub Shower Trim
MODEL FINISH
UT3363 Chrome
UT3363BN Brushed Nickel
UT3363BG Brushed Gold
UT3363BL Matte Black
UT3363EP Chrome
UT3363EPBN Brushed Nickel
UT3363EPBG Brushed Gold
UT3363EPBL Matte Black
K
J
H
F
E
B

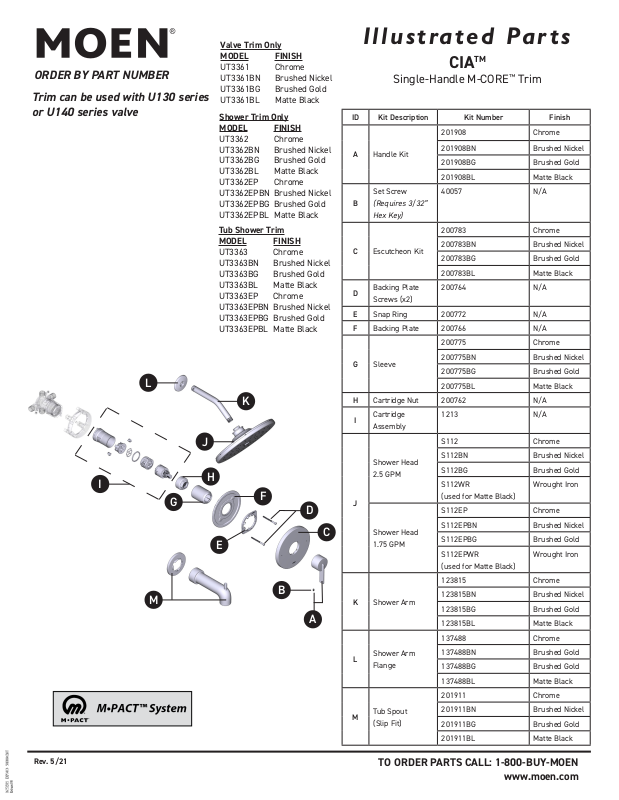

Illustrated Parts
TM
CIA
Single-Handle M-CORE™ Trim
ID Kit Description Kit Number Finish
201908 Chrome
A Handle Kit
Set Screw
B
(Requires 3/32”
Hex Key)
C Escutcheon Kit
Backing Plate
D
Screws (x2)
E Snap Ring 200772 N/A
F Backing Plate 200766 N/A
G Sleeve
H
Cartridge Nut
Cartridge
I
Assembly
Shower Head
2.5 GPM
J
D
C
Shower Head
1.75 GPM
K Shower Arm
A
Shower Arm
L
Flange
Tub Spout
M
(Slip Fit)
201908BN Brushed Nickel
201908BG Brushed Gold
201908BL
40057
200783 Chrome
200783BN Brushed Nickel
200783BG Brushed Gold
200783BL Matte Black
200764 N/A
200775 Chrome
200775BN Brushed Nickel
200775BG Brushed Gold
200775BL Matte Black
200762
1213 N/A
S112 Chrome
S112BN Brushed Nickel
S112BG Brushed Gold
S112WR
(used for Matte Black)
S112EP Chrome
S112EPBN Brushed Nickel
S112EPBG Brushed Gold
S112EPWR
(used for Matte Black)
123815 Chrome
123815BN Brushed Nickel
123815BG Brushed Gold
123815BL Matte Black
137488 Chrome
137488BN Brushed Gold
137488BG Brushed Gold
137488BL Matte Black
201911 Chrome
201911BN Brushed Nickel
201911BG Brushed Gold
201911BL Matte Black
Matte Black
N/A
N/A
Wrought Iron
Wrought Iron
Rev. 5/21
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
