DESCRIPTION
• Metal construction with various finishes identified by suffix
• Designed to be installed through 2, 1-1/4” and 1, 1” min. dia holes
8” on center
• 1/2” copper connections
• Adaptable for non-8” centers
• Hot and cold temperature indicators available
OPERATION
• Maximum handle rotation angle is 90˚ to full on for either handle
• Rotate hot side counterclockwise to open and clockwise to close
• Rotate cold side clockwise to open and counterclockwise to close
FLOW
• Water usage is limited to these maximum flow rates as indicated by
the corresponding product markings
° 1.2 gpm max (4.5L/min) at 60 psi
° 1.5 gpm max (5.7L/min) at 60 psi
CARTRIDGE
• 1224 cartridge design nonmetallic/nonferrous and
stainless steel material
STANDARDS
When trim kit is added to M-Pact valve, the product is:
• Third party certified to WaterSense,® ASME A112.18.1/CSA B125.1, and
all applicable requirements referenced therein
• Certified to NSF 61/9 & 372
• Products marked with 1.2 gpm are compliant with California water
efficiency regulations
• Complies with California Proposition 65 and with the Federal Safe
Drinking Water Act
• ADA
WARRANTY
• Lifetime limited warranty against leaks, drips and finish defects to the
original homeowner
• 10 year limited warranty when used in a multifamily installation
• 5 year limited warranty when used in a commercial installation
Visit www.moen.com/support for complete details and limitations
for lever handles

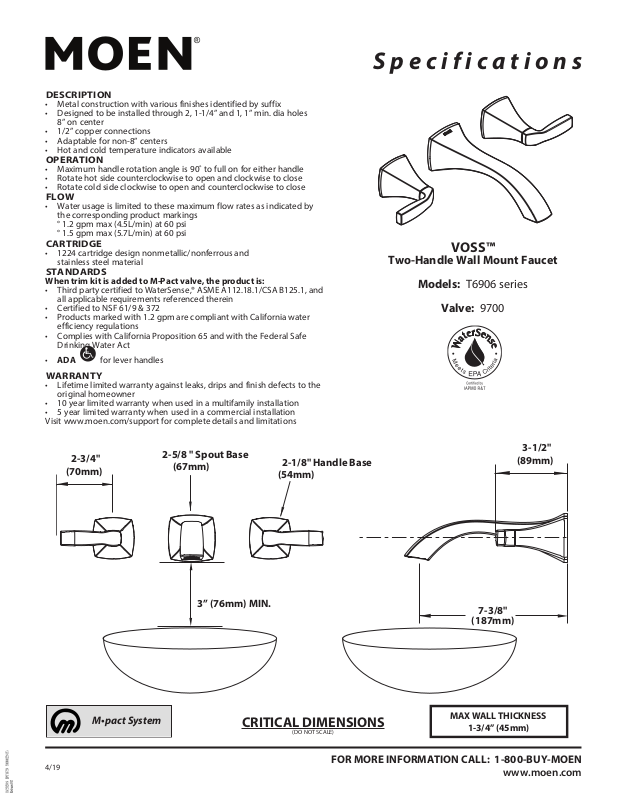

Spec i fi ca tions
VOSS™
Two-Handle Wall Mount Faucet
Models: T6906 series
Valve: 9700
2-3/4"
(70mm)
M•pact System
2-5/8 " Spout Base
(67mm)
3” (76mm) MIN.
2-1/8" Handle Base
(54mm)
CRITICAL DIMENSIONS
(DO NOT SCALE)
3-1/2"
(89mm)
7-3/8"
(187mm)
MAX WALL THICKNESS
1-3/4” (45mm)
4/19
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
