Page 1
Order by Part Number
Trim can be used with U130 series
or U140 series valve

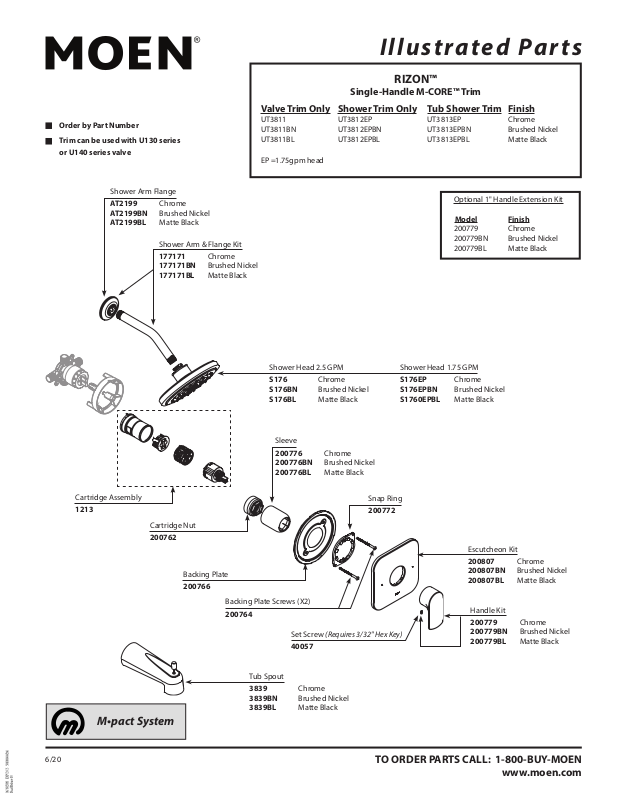

Illustrated Parts
RIZON™
Single-Handle M-CORE™ Trim
Valve Trim Only Shower Trim Only Tub Shower Trim Finish
UT3811 UT3812EP UT3813EP Chrome
UT3811BN UT3812EPBN UT3813EPBN Brushed Nickel
UT3811BL UT3812EPBL UT3813EPBL Matte Black
EP =1.75gpm head
Shower Arm Flange
AT2199 Chrome
AT2199BN Brushed Nickel
AT2199BL Matte Black
Shower Arm & Flange Kit
177171 Chrome
177171BN Brushed Nickel
177171BL Matte Black
Shower Head 2.5 GPM
S176 Chrome
S176BN Brushed Nickel
S176BL Matte Black
Sleeve
200776 Chrome
200776BN Brushed Nickel
200776BL Matte Black
Optional 1" Handle Extension Kit
Model Finish
200779 Chrome
200779BN Brushed Nickel
200779BL Matte Black
Shower Head 1.75 GPM
S176EP Chrome
S176EPBN Brushed Nickel
S1760EPBL Matte Black
6/20
Cartridge Assembly
1213
M•pact System
Cartridge Nut
200762
Backing Plate
200766
Backing Plate Screws (X2)
200764
Set Screw (Requires 3/32" Hex Key)
40057
Tub Spout
3839 Chrome
3839BN Brushed Nickel
3839BL Matte Black
Snap Ring
200772
Escutcheon Kit
200807 Chrome
200807BN Brushed Nickel
200807BL Matte Black
Handle Kit
200779 Chrome
200779BN Brushed Nickel
200779BL Matte Black
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
