Order by Part Number
Trim can be used with U130 series
or U140 series valve

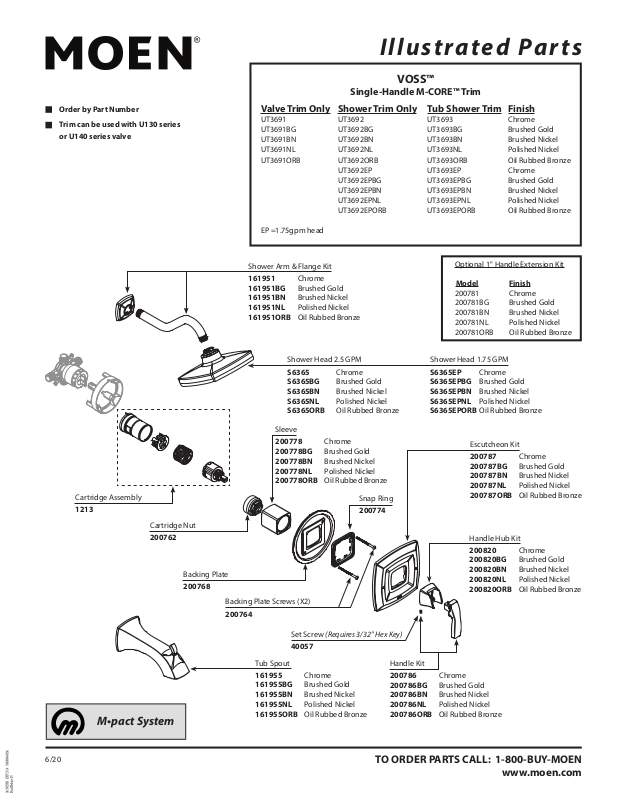

Illustrated Parts
VOSS™
Single-Handle M-CORE™ Trim
Valve Trim Only Shower Trim Only Tub Shower Trim Finish
UT3691 UT3692 UT3693 Chrome
UT3691BG UT3692BG UT3693BG Brushed Gold
UT3691BN UT3692BN UT3693BN Brushed Nickel
UT3691NL UT3692NL UT3693NL Polished Nickel
UT3691ORB UT3692ORB UT3693ORB Oil Rubbed Bronze
UT3692EP UT3693EP Chrome
UT3692EPBG UT3693EPBG Brushed Gold
UT3692EPBN UT3693EPBN Brushed Nickel
UT3692EPNL UT3693EPNL Polished Nickel
UT3692EPORB UT3693EPORB Oil Rubbed Bronze
EP =1.75gpm head
Cartridge Assembly
1213
Cartridge Nut
200762
Backing Plate
200768
Shower Arm & Flange Kit
161951 Chrome
161951BG Brushed Gold
161951BN Brushed Nickel
161951NL Polished Nickel
161951ORB Oil Rubbed Bronze
Shower Head 2.5 GPM
S6365 Chrome
S6365BG Brushed Gold
S6365BN Brushed Nickel
S6365NL Polished Nickel
S6365ORB Oil Rubbed Bronze
Sleeve
200778 Chrome
200778BG Brushed Gold
200778BN Brushed Nickel
200778NL Polished Nickel
200778ORB Oil Rubbed Bronze
Backing Plate Screws (X2)
200764
Snap Ring
200774
Optional 1" Handle Extension Kit
Model Finish
200781 Chrome
200781BG Brushed Gold
200781BN Brushed Nickel
200781NL Polished Nickel
200781ORB Oil Rubbed Bronze
Shower Head 1.75 GPM
S6365EP Chrome
S6365EPBG Brushed Gold
S6365EPBN Brushed Nickel
S6365EPNL Polished Nickel
S6365EPORB Oil Rubbed Bronze
Escutcheon Kit
200787 Chrome
200787BG Brushed Gold
200787BN Brushed Nickel
200787NL Polished Nickel
200787ORB Oil Rubbed Bronze
Handle Hub Kit
200820 Chrome
200820BG Brushed Gold
200820BN Brushed Nickel
200820NL Polished Nickel
200820ORB Oil Rubbed Bronze
6/20
M•pact System
Set Screw (Requires 3/32" Hex Key)
40057
Tub Spout
161955 Chrome
161955BG Brushed Gold
161955BN Brushed Nickel
161955NL Polished Nickel
161955ORB Oil Rubbed Bronze
Handle Kit
200786 Chrome
200786BG Brushed Gold
200786BN Brushed Nickel
200786NL Polished Nickel
200786ORB Oil Rubbed Bronze
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
