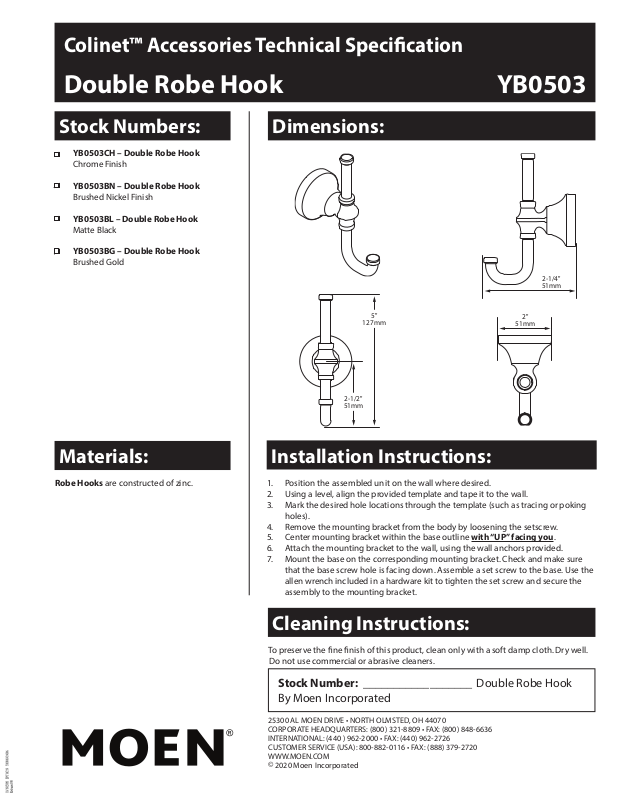

Colinet™ Accessories Technical Specication
Double Robe Hook YB0503
Stock Numbers:
YB0503CH – Double Robe Hook
Chrome Finish
YB0503BN – Double Robe Hook
Brushed Nickel Finish
YB0503BL – Double Robe Hook
Matte Black
YB0503BG – Double Robe Hook
Brushed Gold
Dimensions:
5"
127mm
2-1/2"
51mm
2"
51mm
2-1/4"
51mm
Materials:
Robe Hooks are constructed of zinc.
Installation Instructions:
1. Position the assembled unit on the wall where desired.
2. Using a level, align the provided template and tape it to the wall.
3. Mark the desired hole locations through the template (such as tracing or poking
holes).
4. Remove the mounting bracket from the body by loosening the setscrew.
5. Center mounting bracket within the base outline with “UP” facing you.
6. Attach the mounting bracket to the wall, using the wall anchors provided.
7. Mount the base on the corresponding mounting bracket. Check and make sure
that the base screw hole is facing down. Assemble a set screw to the base. Use the
allen wrench included in a hardware kit to tighten the set screw and secure the
assembly to the mounting bracket.
Cleaning Instructions:
To preserve the ne nish of this product, clean only with a soft damp cloth. Dry well.
Do not use commercial or abrasive cleaners.
Stock Number: __________________ Double Robe Hook
By Moen Incorporated
25300 AL MOEN DRIVE • NORTH OLMSTED, OH 44070
CORPORATE HEADQUARTERS: (800) 321-8809 • FAX: (800) 848-6636
INTERNATIONAL: (440 ) 962-2000 • FAX: (440) 962-2726
CUSTOMER SERVICE (USA): 800-882-0116 • FAX: (888) 379-2720
WWW.MOEN.COM
©
2020 Moen Incorporated
