DESCRIPTION
• Metal construction with various finishes identified by suffix
• Includes showerhead, arm and flange
OPERATION
• Handle operates counterclockwise through a 270˚ arc with off
at 6 o’clock and maximum hot at the 9 o’clock position, shut off in
clockwise direction
• Adjustable temperature limit stop to control maximum hot
water temperature
• Pressure balancing mechanism maintains selected discharge
temperature to ± 3°
FLOW
• Designed to deliver 2.5gpm (9.5 L/min) at 80 psi
• EP suffix models are limited to 1.75 gpm (6.6 L/min) at 80 psi
CARTRIDGE
• 1222 cartridge design
• Nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
STANDARDS
• Third party certified to meet ASME A112.18.1/CSA B125.1 and all
applicable requirements referenced therein
• EP suffix models are third party certified to WaterSense®
• ADA
WARRANTY
for lever handle
• Lifetime limited warranty against leaks, drips and nish defects to the
original homeowner
• 10 year limited warranty when used in a multifamily installation
• 5 year limited warranty when used in a commercial installation
Visit www.moen.com/support for complete details and limitations

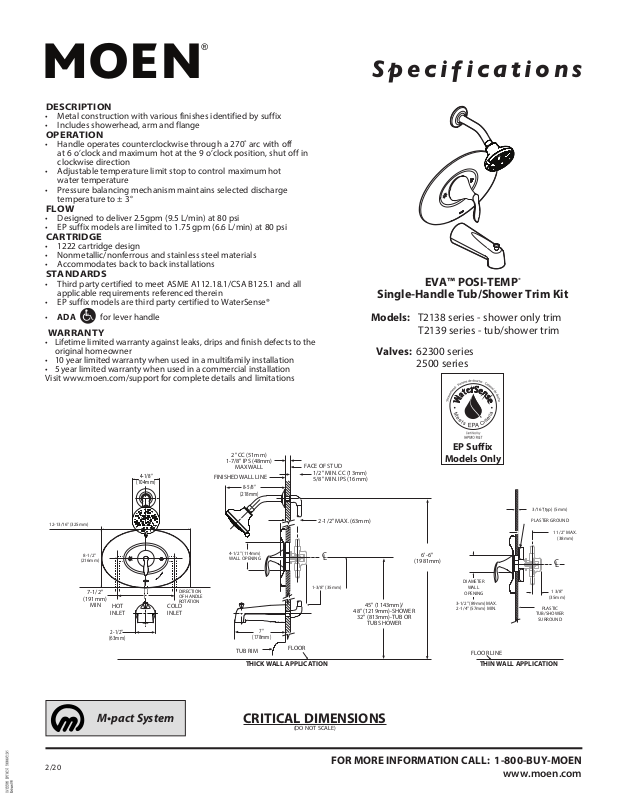

Spec i fi ca tions
EVA™ POSI-TEMP
Single-Handle Tub/Shower Trim Kit
Models: T2138 series - shower only trim
T2139 series - tub/shower trim
Valves: 62300 series
2500 series
®
12-13/16" (325mm)
8-1/2"
(216mm)
7-1/2"
(191mm)
MIN
HOT
INLET
2-1/2”
(63mm)
M•pact System
4-1/8”
(104mm)
COLD
INLET
DIRECTION
OF HANDLE
ROTATION
2" CC (51mm)
1-7/8" IPS (48mm)
MAX WALL
FINISHED WALL LINE
8-5/8”
(218mm)
4-1/2" (114mm)
WALL OPENING
7“
(178mm)
TUB RIM
THICK WALL APPLICATION

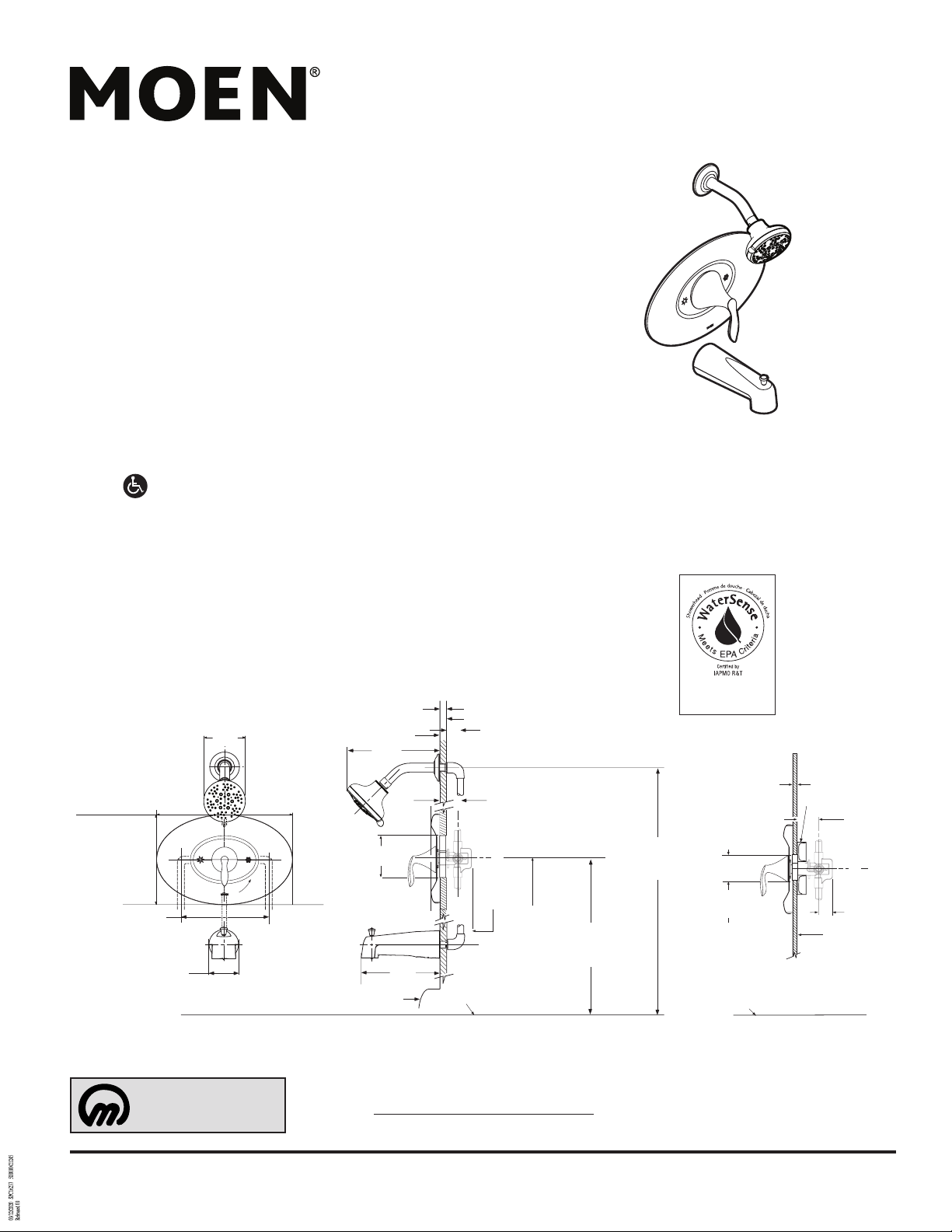

CRITICAL DIMENSIONS
FACE OF STUD
1/2" MIN. CC (13mm)
5/8" MIN. IPS (16mm)
1-3/8" (35mm)
FLOOR
(DO NOT SCALE)
2-1/2" MAX. (63mm)
EP Suffix
Models Only
3/16"(typ) (5mm)
PLASTER GROUND
1 1/2" MAX.
(38mm)
C
L
45" (1143mm)/
48" (1219mm)-SHOWER
32" (813mm)-TUB OR
TUB SHOWER
6'-6"
(1981mm)
DIAMETER
WALL
OPENING
3-1/2" (89mm) MAX.
2-1/4" (57mm) MIN.
FLOOR LINE
THIN WALL APPLICATION
C
L
1 3/8"
(35mm)
PLASTIC
TUB/SHOWER
SURROUND
2/20
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
