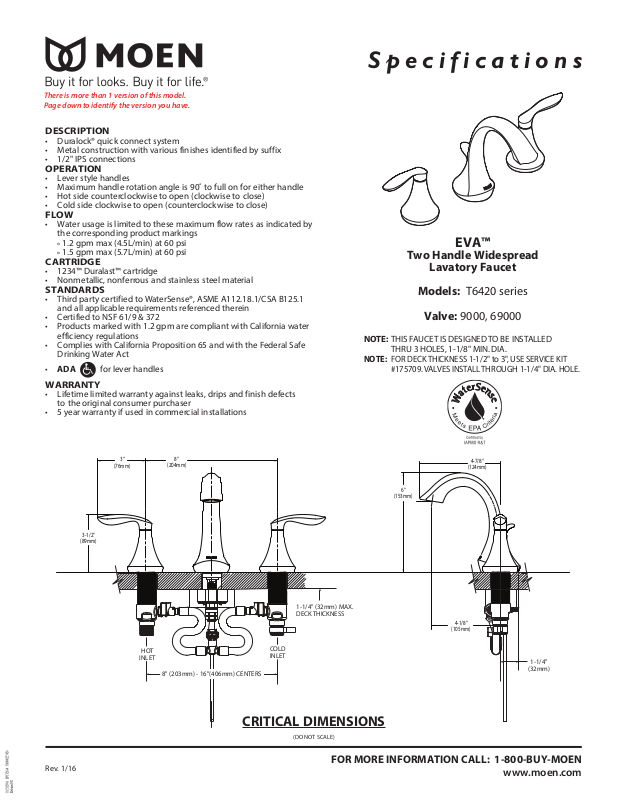

Page 1
4-7/8“
(124mm)
4-1/8“
(105mm)
3“
(76mm)
3-1/2“
(89mm)
8“
(204mm)
6“
(153mm)
1-1/4" (32mm) MAX.
DECK THICKNESS
HOT
INLET
COLD
INLET
8" (203mm) - 16"(406mm) CENTERS
1-1/4"
(32mm)
There is more than 1 version of this model.
Page down to identify the version you have.
DESCRIPTION
• Duralock® quick connect system
• Metal construction with various finishes identified by suffix
• 1/2" IPS connections
OPERATION
• Lever style handles
• Maximum handle rotation angle is 90˚ to full on for either handle
• Hot side counterclockwise to open (clockwise to close)
• Cold side clockwise to open (counterclockwise to close)
FLOW
• Water usage is limited to these maximum flow rates as indicated by
the corresponding product markings
1.2 gpm max (4.5L/min) at 60 psi
°
1.5 gpm max (5.7L/min) at 60 psi
°
CARTRIDGE
• 1234™ Duralast™ cartridge
• Nonmetallic, nonferrous and stainless steel material
STANDARDS
• Third party certified to WaterSense®, ASME A112.18.1/CSA B125.1
and all applicable requirements referenced therein
• Certified to NSF 61/9 & 372
• Products marked with 1.2 gpm are compliant with California water
efficiency regulations
• Complies with California Proposition 65 and with the Federal Safe
Drinking Water Act
• ADA for lever handles
WARRANTY
• Lifetime limited warranty against leaks, drips and finish defects
to the original consumer purchaser
• 5 year warranty if used in commercial installations
S p e c i f i c a t i o n s
EVA™
Two Handle Widespread
Lavatory Faucet
Models: T6420 series
Valve: 9000, 69000
NOTE: THIS FAUCET IS DESIGNED TO BE INSTALLED
THRU 3 HOLES, 1-1/8" MIN. DIA.
NOTE: FOR DECK THICKNESS 1-1/2" to 3", USE SERVICE KIT
#175709. VALVES INSTALL THROUGH 1-1/4" DIA. HOLE.
Rev. 1/16

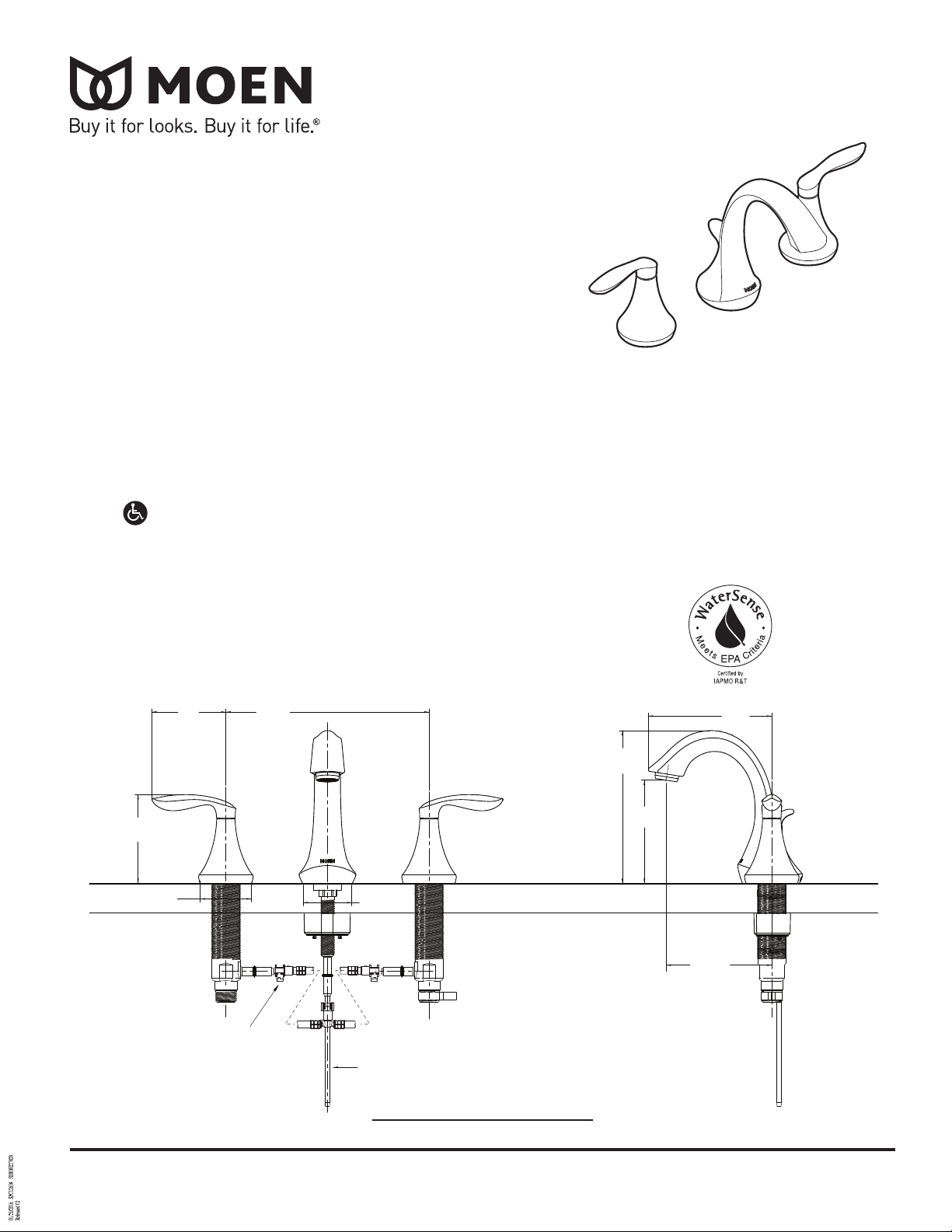

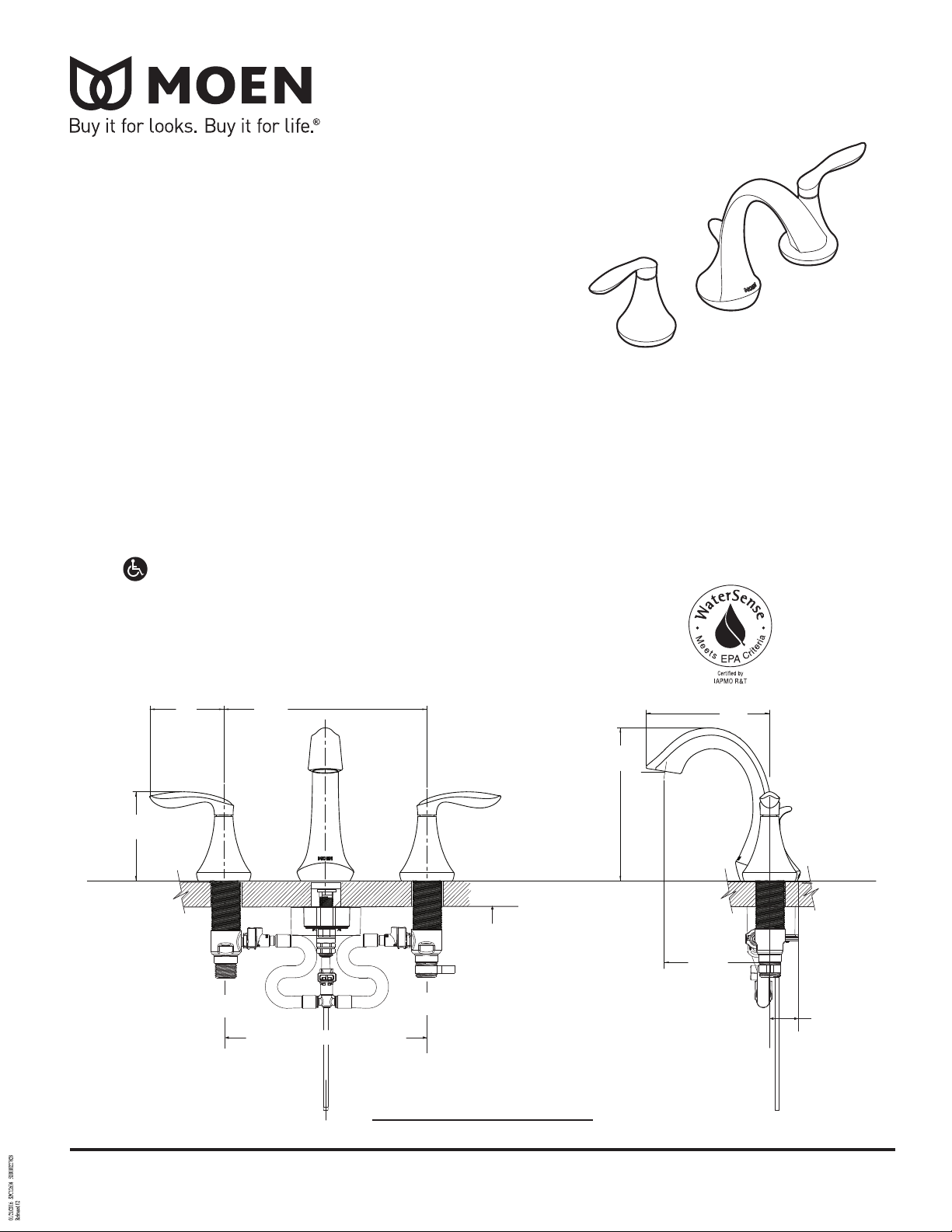

CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
Page 2
DESCRIPTION
4“
(102mm)
4-7/8“
(124mm)
4-1/8“
(105mm)
2“
(51mm)
Lift
Rod
2-1/4“
(57mm)
3“
(76mm)
3-1/2“
(89mm)
8“
(204mm)
6“
(153mm)
QUICK CONNECT
HOSE ASSEMBLY
• Quick connect system
• Metal construction with various finishes identified by suffix
• 1/2" IPS connections
OPERATION
• Lever style handles
• Maximum handle rotation angle is 90˚ to full on for either handle
• Hot side counterclockwise to open (clockwise to close)
• Cold side clockwise to open (counterclockwise to close)
FLOW
• Flow is limited to 1.5 gpm max (5.7L/min) at 60 psi, for products made
before October 2008 flow is limited to 2.2 gpm max (8.3 L/min)
CARTRIDGE
• 1224 cartridge design
• Nonmetallic, nonferrous and stainless steel material
STANDARDS
• Third party certified to WaterSense®, ASME A112.18.1/CSA B125.1
and all applicable requirements referenced therein
• Certified to NSF 61/9 & 372
• Complies with California Proposition 65 and with the Federal Safe
Drinking Water Act
• ADA for lever handles
WARRANTY
• Lifetime limited warranty against leaks, drips and finish defects
to the original consumer purchaser
• 5 year warranty if used in commercial installations
S p e c i f i c a t i o n s
EVA™
Two Handle Widespread
Lavatory Faucet
Models: T6420 series
Valve: 9000, 69000
NOTE: THIS FAUCET IS DESIGNED TO BE INSTALLED
THRU 3 HOLES, 1-1/8" MIN. DIA.
NOTE: FOR DECK THICKNESS 1-1/2" to 3", USE SERVICE KIT
#115001. VALVES INSTALL THROUGH 1-1/4" DIA. HOLE.
Rev. 8/15
CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
