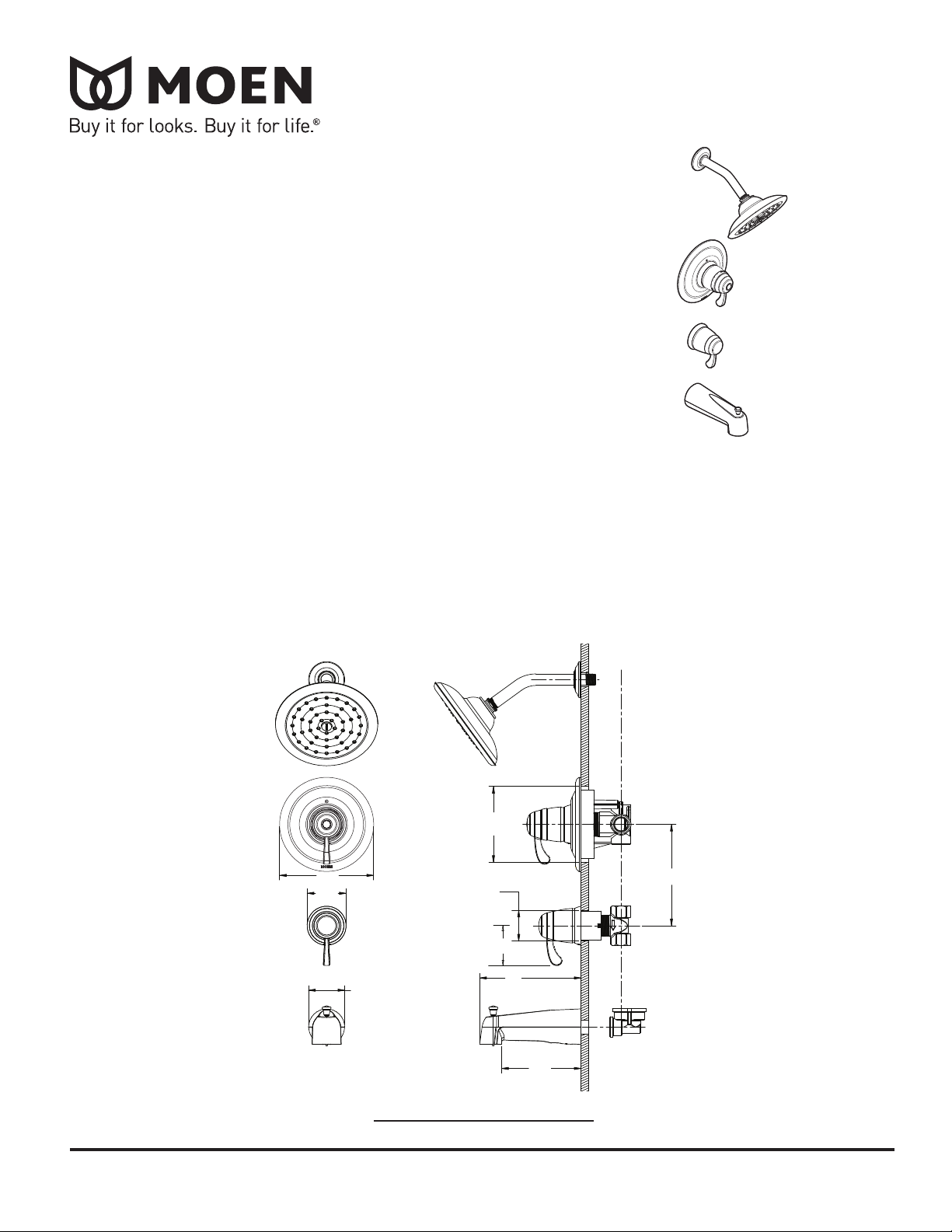

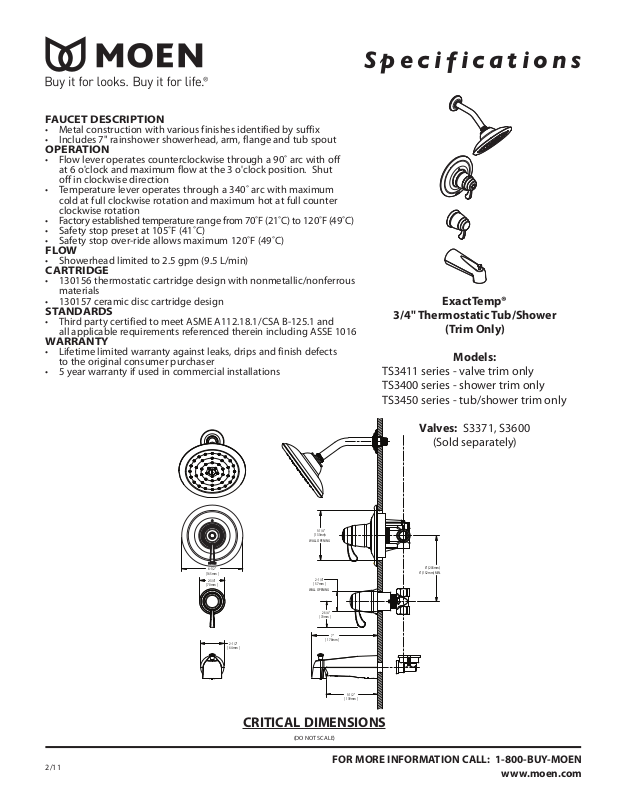

FAUCET DESCRIPTION
8" (203mm)
6" (152mm) MIN.
7”
178mm[]
5-1/2”
139mm[]
WALL OPENING
2-1/4”
57mm[]
WALL OPENING
5-1/4”
133mm[ ]
2-3/4”
70mm[]
2-1/2”
64mm[]
6-1/2”
165mm[]
2-3/4”
70mm[]
• Metal construction with various finishes identified by suffix
• Includes 7" rainshower showerhead, arm, flange and tub spout
OPERATION
• Flow lever operates counterclockwise through a 90˚ arc with off
at 6 o'clock and maximum flow at the 3 o'clock position. Shut
off in clockwise direction
• Temperature lever operates through a 340˚ arc with maximum
cold at full clockwise rotation and maximum hot at full counter
clockwise rotation
• Factory established temperature range from 70˚F (21˚C) to 120˚F (49˚C)
• Safety stop preset at 105˚F (41˚C)
• Safety stop over-ride allows maximum 120˚F (49˚C)
FLOW
• Showerhead limited to 2.5 gpm (9.5 L/min)
CARTRIDGE
• 130156 thermostatic cartridge design with nonmetallic/nonferrous
materials
• 130157 ceramic disc cartridge design
STANDARDS
• Third party certified to meet ASME A112.18.1/CSA B-125.1 and
all applicable requirements referenced therein including ASSE 1016
WARRANTY
• Lifetime limited warranty against leaks, drips and finish defects
to the original consumer purchaser
• 5 year warranty if used in commercial installations
S p e c i f i c a t i o n s
ExactTemp®
3/4" Thermostatic Tub/Shower
(Trim Only)
Models:
TS3411 series - valve trim only
TS3400 series - shower trim only
TS3450 series - tub/shower trim only
Valves: S3371, S3600
(Sold separately)
2/11
CRITICAL DIMENSIONS
(DO NOT SCALE)
FOR MORE INFORMATION CALL: 1-800-BUY-MOEN
www.moen.com
