Page 1

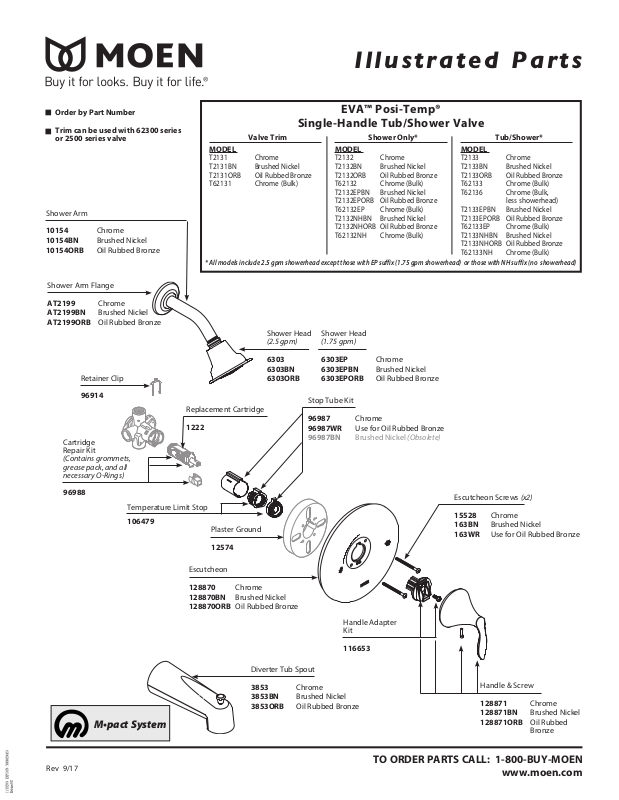

Illustrated Parts
Order by Part Number
Trim can be used with 62300 series
or 2500 series valve
Shower Arm
10154 Chrome
10154BN Brushed Nickel
10154ORB Oil Rubbed Bronze
Shower Arm Flange
AT2199 Chrome
AT2199BN Brushed Nickel
AT2199ORB Oil Rubbed Bronze
Retainer Clip
96914
Cartridge
Repair Kit
(Contains grommets,
grease pack, and all
necessary O-Rings)
EVA™ Posi-Temp®
Single-Handle Tub/Shower Valve
Valve Trim
MODEL
T2131 Chrome
T2131BN Brushed Nickel
T2131ORB Oil Rubbed Bronze
T62131 Chrome (Bulk)
* All models include 2.5 gpm showerhead except those with EP suffix (1.75 gpm showerhead) or those with NH suffix (no showerhead)
Shower Head Shower Head
(2.5 gpm) (1.75 gpm)
6303 6303EP Chrome
6303BN 6303EPBN Brushed Nickel
6303ORB 6303EPORB Oil Rubbed Bronze
Replacement Cartridge
1222
MODEL
T2132 Chrome
T2132BN Brushed Nickel
T2132ORB Oil Rubbed Bronze
T62132 Chrome (Bulk)
T2132EPBN Brushed Nickel
T2132EPORB Oil Rubbed Bronze
T62132EP Chrome (Bulk)
T2132NHBN Brushed Nickel
T2132NHORB Oil Rubbed Bronze
T62132NH Chrome (Bulk)
Stop Tube Kit
96987 Chrome
96987WR Use for Oil Rubbed Bronze
96987BN Brushed Nickel (Obsolete)
Shower Only*
Tub/Shower*
MODEL
T2133 Chrome
T2133BN Brushed Nickel
T2133ORB Oil Rubbed Bronze
T62133 Chrome (Bulk)
T62136 Chrome (Bulk,
less showerhead)
T2133EPBN Brushed Nickel
T2133EPORB Oil Rubbed Bronze
T62133EP Chrome (Bulk)
T2133NHBN Brushed Nickel
T2133NHORB Oil Rubbed Bronze
T62133NH Chrome (Bulk)
96988
Temperature Limit Stop
106479
M•pact System
Rev 9/17
Plaster Ground
12574
Escutcheon
128870 Chrome
128870BN Brushed Nickel
128870ORB Oil Rubbed Bronze
Diverter Tub Spout
3853 Chrome
3853BN Brushed Nickel
3853ORB Oil Rubbed Bronze
Escutcheon Screws (x2)
15528 Chrome
163BN Brushed Nickel
163WR Use for Oil Rubbed Bronze
Handle Adapter
Kit
116653
Handle & Screw
128871 Chrome
128871BN Brushed Nickel
128871ORB Oil Rubbed
Bronze
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
