Page 1

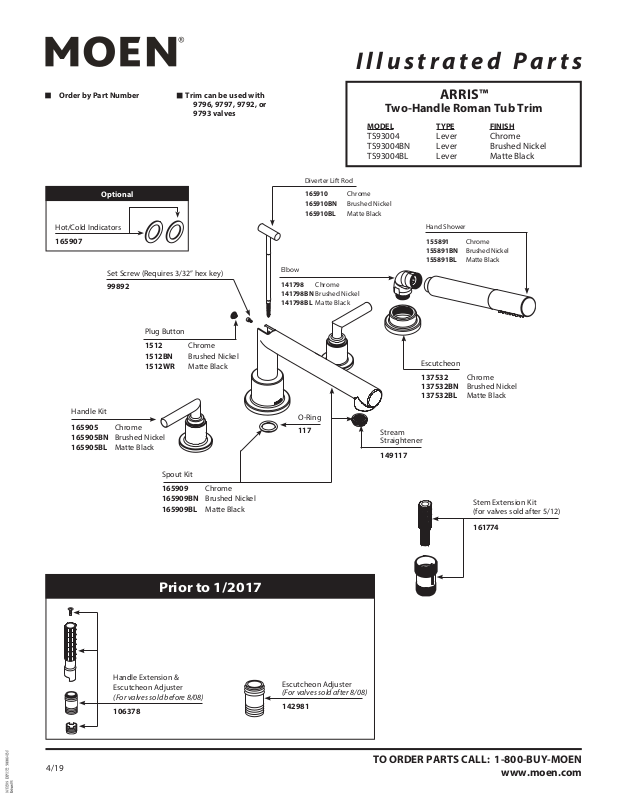

Illustrated Parts
Order by Part Number Trim can be used with
9796, 9797, 9792, or
9793 valves
Optional
Hot/Cold Indicators
165907
Set Screw (Requires 3/32” hex key)
99892
Plug Button
1512 Chrome
1512BN Brushed Nickel
1512WR Matte Black
Handle Kit
165905 Chrome
165905BN Brushed Nickel
165905BL Matte Black
Diverter Lift Rod
165910 Chrome
165910BN Brushed Nickel
165910BL Matte Black
Elbow
141798 Chrome
141798BN Brushed Nickel
141798BL Matte Black
O-Ring
117
ARRIS™
Two-Handle Roman Tub Trim
MODEL TYPE FINISH
TS93004 Lever Chrome
TS93004BN Lever Brushed Nickel
TS93004BL Lever Matte Black
Hand Shower
155891 Chrome
155891BN Brushed Nickel
155891BL Matte Black
Escutcheon
137532 Chrome
137532BN Brushed Nickel
137532BL Matte Black
Stream
Straightener
149117
4/19
Spout Kit
165909 Chrome
165909BN Brushed Nickel
165909BL Matte Black
Prior to 1/2017
Handle Extension &
Escutcheon Adjuster
(For valves sold before 8/08)
106378
Stem Extension Kit
(for valves sold after 5/12)
161774
Escutcheon Adjuster
(For valves sold after 8/08)
142981
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
