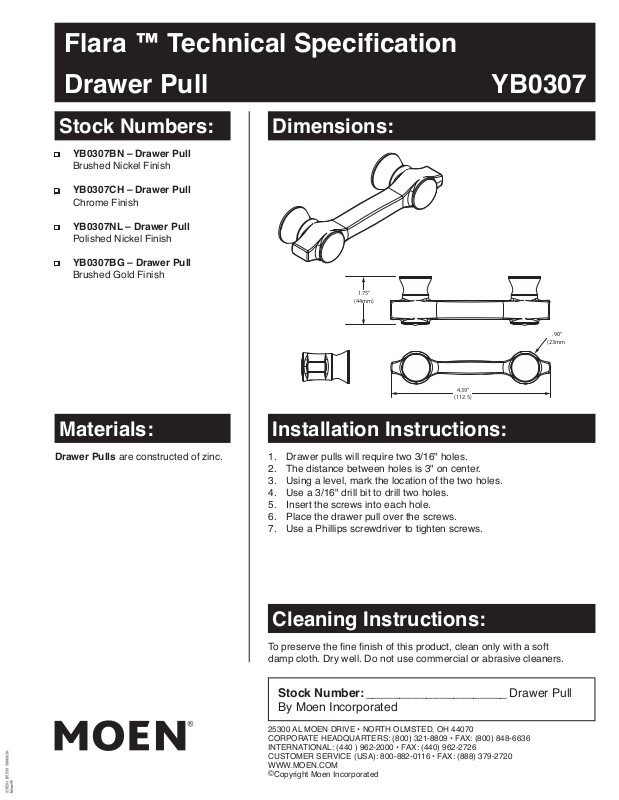

Flara ™ Technical Specication

(23mm)

Drawer Pull YB0307

Stock Numbers:

YB0307BN – Drawer Pull

Brushed Nickel Finish

YB0307CH – Drawer Pull

Chrome Finish

YB0307NL – Drawer Pull

Polished Nickel Finish

YB0307BG – Drawer Pull

Brushed Gold Finish

Dimensions:

1.75”

(44mm)

4.39”

(112.5)

.90”

Materials:

Drawer Pulls are constructed of zinc.

Installation Instructions:

1. Drawer pulls will require two 3/16" holes.

2. The distance between holes is 3" on center.

3. Using a level, mark the location of the two holes.

4. Use a 3/16" drill bit to drill two holes.

5. Insert the screws into each hole.

6. Place the drawer pull over the screws.

7. Use a Phillips screwdriver to tighten screws.

Cleaning Instructions:

To preserve the ne nish of this product, clean only with a soft damp cloth. Dry well. Do not use commercial or abrasive cleaners.

Stock Number: _____________________ Drawer Pull

By Moen Incorporated
