Page 1

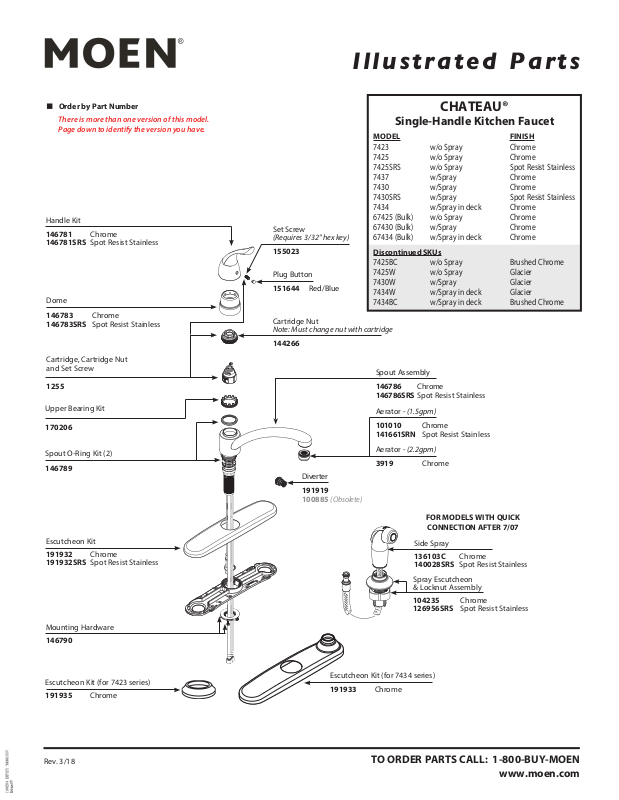

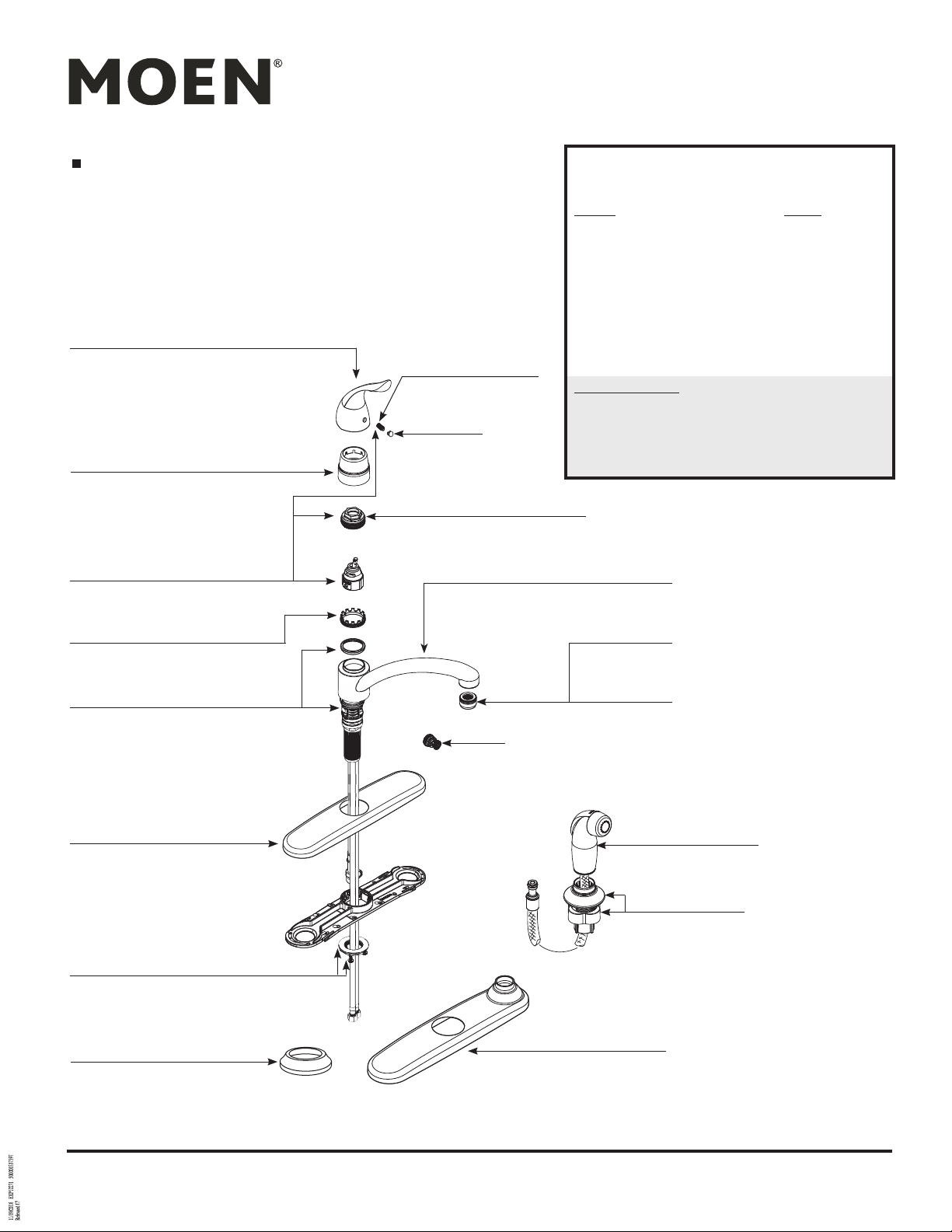

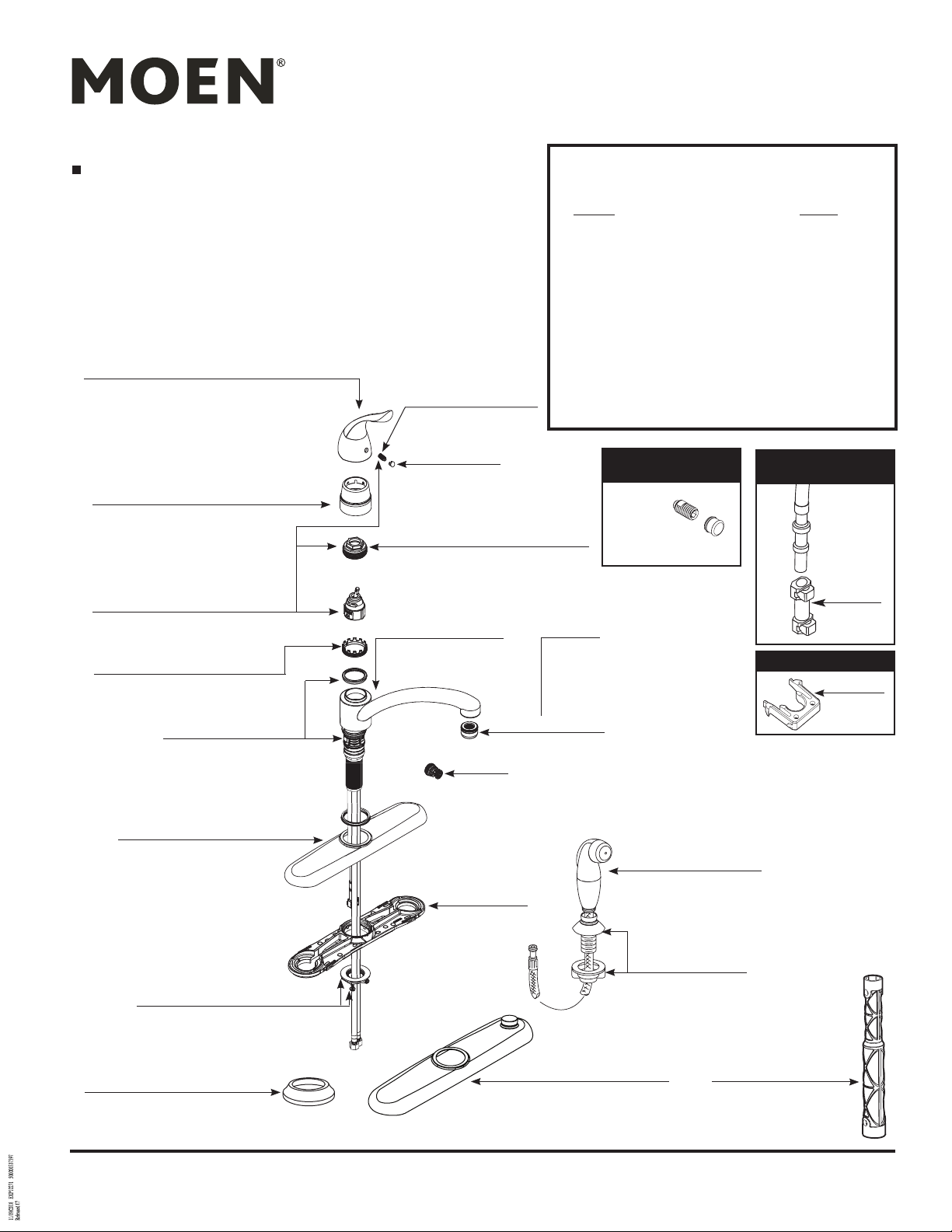

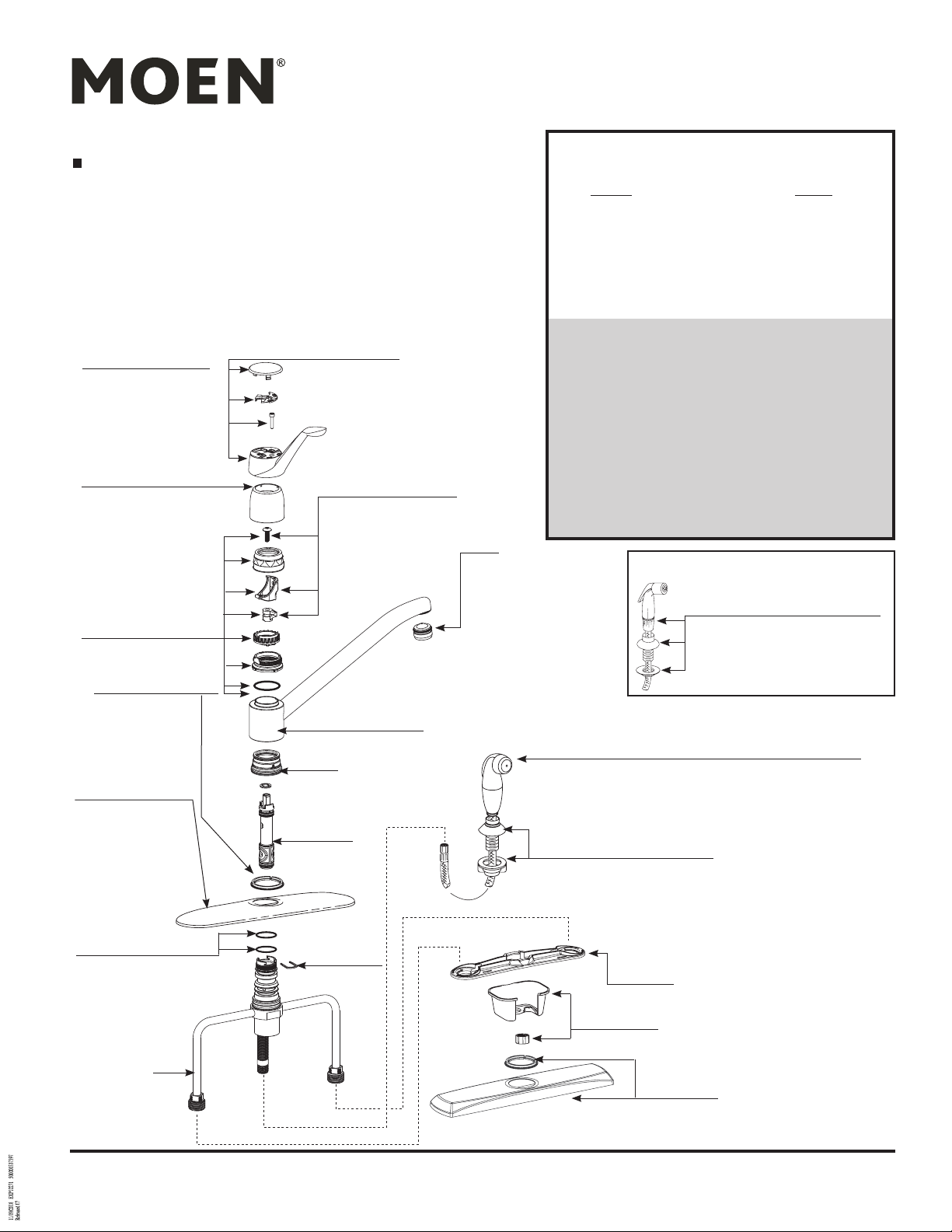

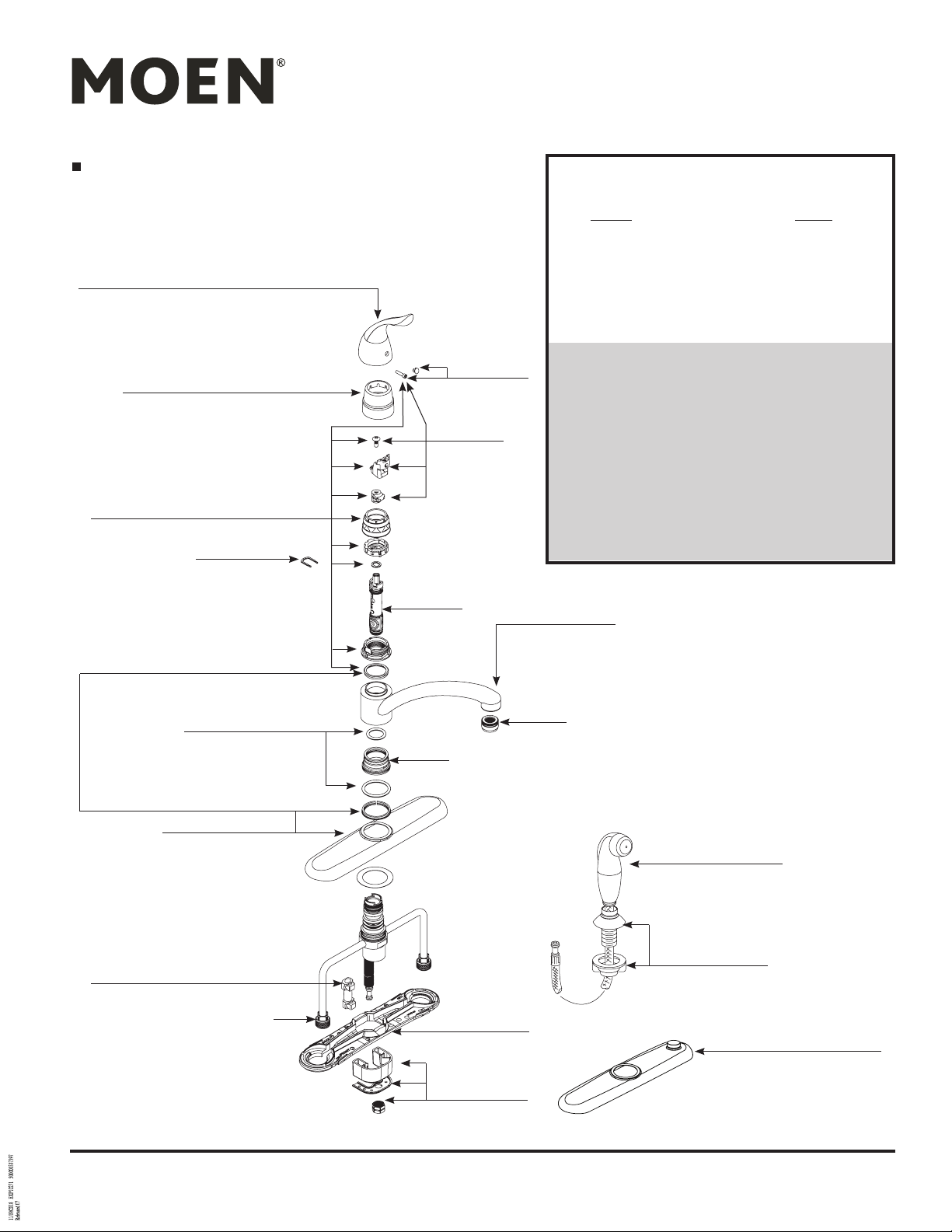

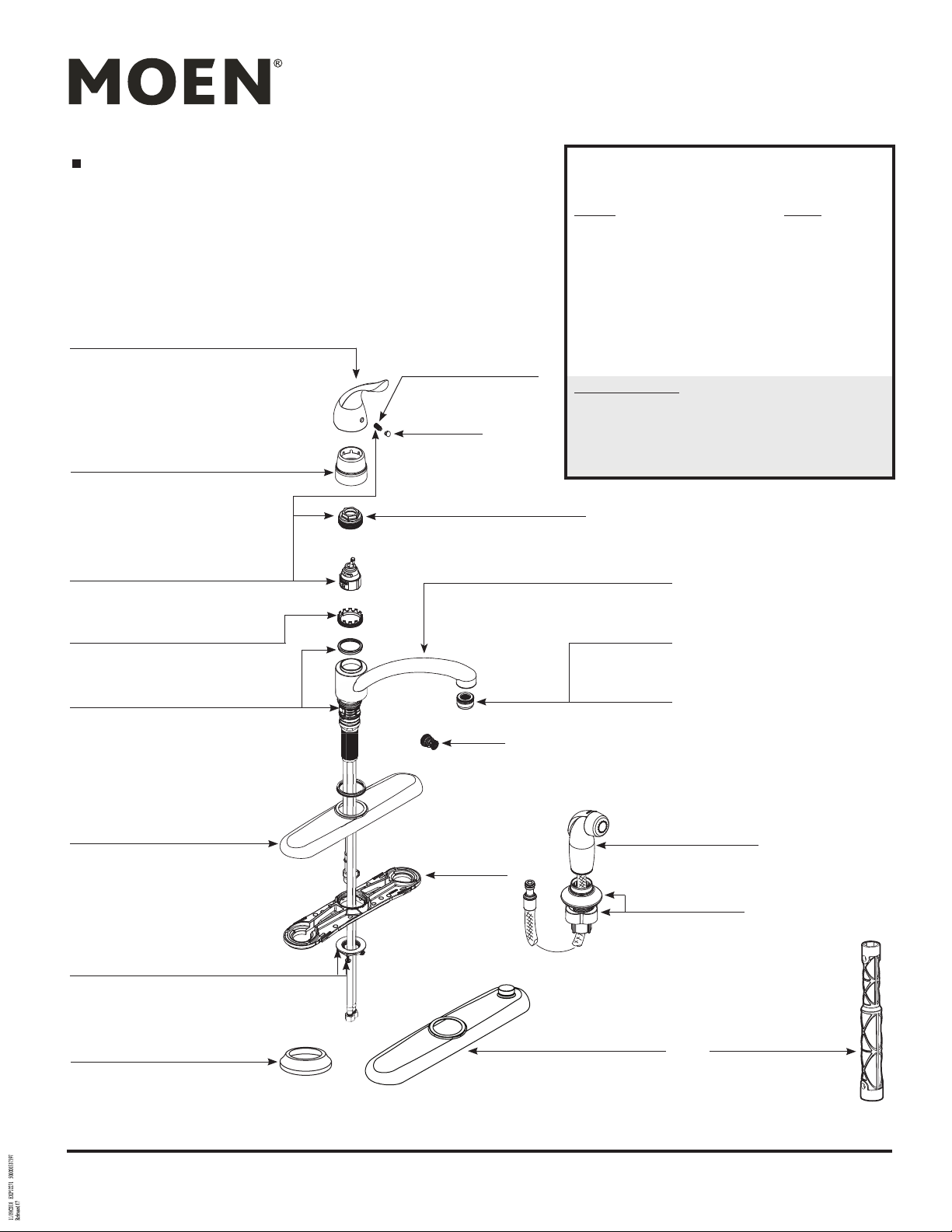

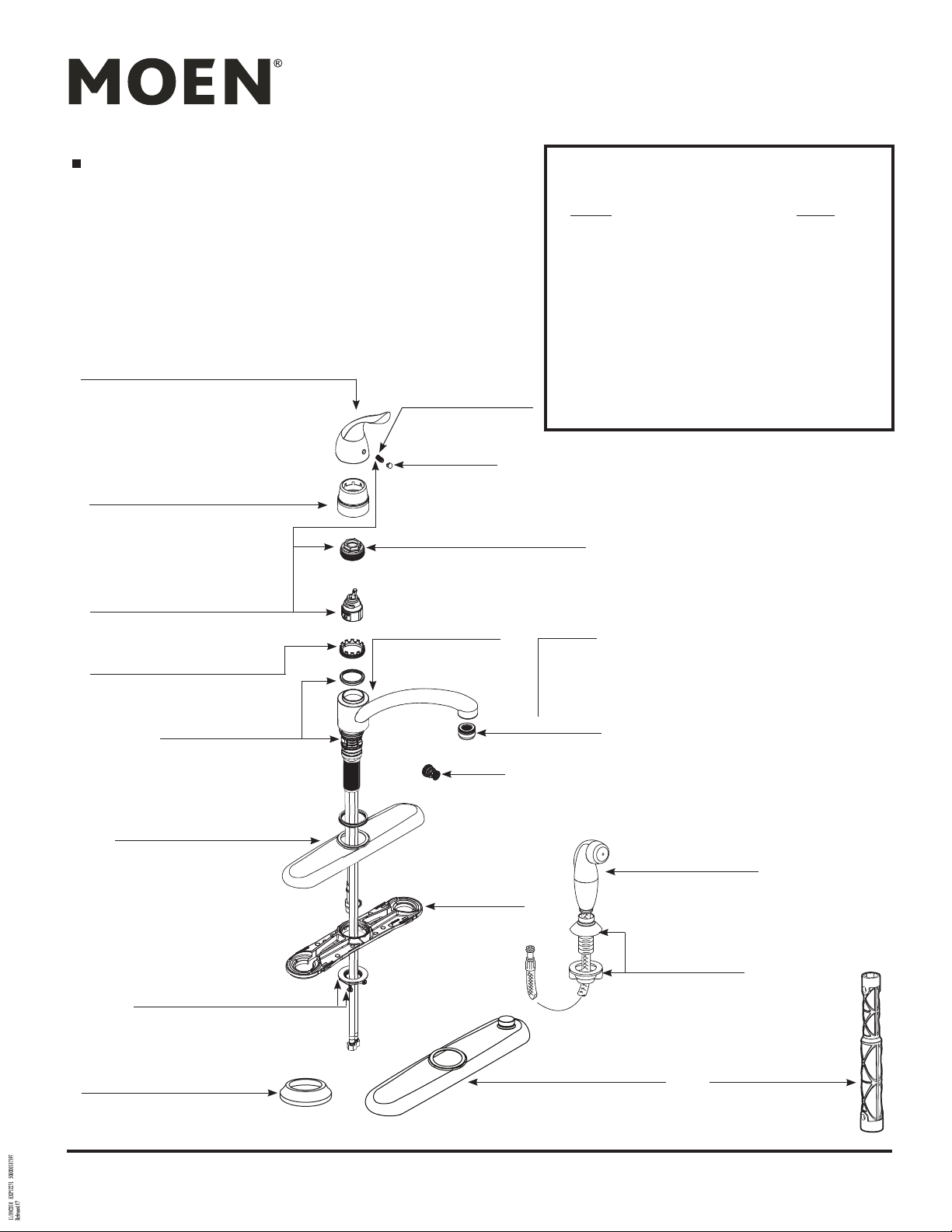

Illustrated Parts
Order by Part Number
There is more than one version of this model.
Page down to identify the version you have.
Handle Kit
146781 Chrome
146781SRS Spot Resist Stainless
Dome
146783 Chrome
146783SRS Spot Resist Stainless
Cartridge, Cartridge Nut
and Set Screw
1255
Upper Bearing Kit
170206
Spout O-Ring Kit (2)
146789
MODEL FINISH
7423 w/o Spray Chrome
7425 w/o Spray Chrome
7425SRS w/o Spray Spot Resist Stainless
7437 w/Spray Chrome
7430 w/Spray Chrome
7430SRS w/Spray Spot Resist Stainless
7434 w/Spray in deck Chrome
67425 (Bulk) w/o Spray Chrome
Set Screw
(Requires 3/32" hex key)
155023
67430 (Bulk) w/Spray Chrome
67434 (Bulk) w/Spray in deck Chrome
Discontinued SKUs
7425BC w/o Spray Brushed Chrome
Plug Button
151644 Red/Blue
7425W w/o Spray Glacier
7430W w/Spray Glacier
7434W w/Spray in deck Glacier
7434BC w/Spray in deck Brushed Chrome
Cartridge Nut
Note: Must change nut with cartridge
144266
Spout Assembly
146786 Chrome
146786SRS Spot Resist Stainless
Aerator - (1.5gpm)
101010 Chrome
141661SRN Spot Resist Stainless
Aerator - (2.2gpm)
3919 Chrome
Diverter
191919
100885 (Obsolete)
CHATEAU®
Single-Handle Kitchen Faucet
Escutcheon Kit
191932 Chrome
191932SRS Spot Resist Stainless
Mounting Hardware
146790
Escutcheon Kit (for 7423 series)
191935 Chrome
Rev. 3/18
FOR MODELS WITH QUICK
CONNECTION AFTER 7/07
Side Spray
136103C Chrome
140028SRS Spot Resist Stainless
Spray Escutcheon
& Locknut Assembly
104235 Chrome
126956SRS Spot Resist Stainless
Escutcheon Kit (for 7434 series)
191933 Chrome
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
Page 2
Illustrated Parts
Order by Part Number
Handle Kit
146781 Chrome
146781SRS Spot Resist Stainless
Dome
146783 Chrome
146783SRS Spot Resist Stainless
Cartridge, Cartridge Nut
and Set Screw
1255
Upper Bearing Kit
170206
Spout O-Ring Kit (2)
146789
MODEL FINISH
7423 w/o Spray Chrome
7425 w/o Spray Chrome
7425SRS w/o Spray Spot Resist Stainless
7437 w/Spray Chrome
7430 w/Spray Chrome
7430SRS w/Spray Spot Resist Stainless
7434 w/Spray in deck Chrome
67425 (Bulk) w/o Spray Chrome
Set Screw
(Requires 3/32" hex key)
155023
67430 (Bulk) w/Spray Chrome
67434 (Bulk) w/Spray in deck Chrome
Discontinued SKUs
7425BC w/o Spray Brushed Chrome
Plug Button
151644 Red/Blue
7425W w/o Spray Glacier
7430W w/Spray Glacier
7434W w/Spray in deck Glacier
7434BC w/Spray in deck Brushed Chrome
Cartridge Nut
Note: Must change nut with cartridge
144266
Spout Assembly
146786 Chrome
146786SRS Spot Resist Stainless
Aerator - (1.5gpm)
101010 Chrome
141661SRN Spot Resist Stainless
Aerator - (2.2gpm)
3919 Chrome
Diverter
189801
100885 (Obsolete)
CHATEAU®
Single-Handle Kitchen Faucet
Escutcheon Kit
146778 Chrome
146778SRS Spot Resist Stainless
Mounting Hardware
146790
Escutcheon Kit (for 7423 series)
146788 Chrome
Rev. 11/17
Support Plate
W/Gasket
148521
Escutcheon Kit (for 7434 series)
146779 Chrome
FOR MODELS WITH QUICK
CONNECTION AFTER 7/07
Side Spray
136103C Chrome
140028SRS Spot Resist Stainless
Spray Escutcheon
& Locknut Assembly
104235 Chrome
126956SRS Spot Resist Stainless
Installation Tool
118305
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
Page 3
Illustrated Parts
Order by Part Number
Handle Kit
146781 Chrome
146781W Glacier
146781BC Brushed Chrome
Dome
146783 Chrome
146783W Glacier
146783BC Brushed Chrome
Cartridge, Cartridge Nut
and Set Screw
MODEL FINISH
7423 w/o Spray Chrome
7437 w/Spray Chrome
7425 w/o Spray Chrome
7425BC w/o Spray Brushed Chrome
7425W w/o Spray Glacier
7430 w/Spray Chrome
7430W w/Spray Glacier
7434 w/Spray in deck Chrome
7434W w/Spray in deck Glacier
7434BC w/Spray in deck Brushed Chrome
Set Screw
(Requires 3/32" hex key)
155023
Plug Button
151644 Red/Blue
Cartridge Nut
Note: Must change nut with cartridge
144266
67425 (Bulk) w/o Spray Chrome
67430 (Bulk) w/Spray Chrome
67434 (Bulk) w/Spray in deck Chrome
CHATEAU®
Single-Handle Kitchen Faucet
1255
Upper Bearing Kit
170206
Spout O-Ring Kit (2)
146789
Escutcheon Kit
146778 Chrome
146778W Glacier
146778BC Brushed Chrome
Mounting Hardware
146790
Escutcheon Kit (for 7423 series)
146788 Chrome
Spout Assembly
146786 Chrome
146786W Glacier
146786BC Brushed Chrome
Diverter
189801
100885 (Obsolete)
Support Plate
W/Gasket
148521
Escutcheon Kit (for 7434 series)
146779 Chrome
146779W Glacier
146779BC Brushed Chrome
Aerator
101010 (1.5 gpm) Chrome
101010W (1.5 gpm) Glacier
101010SL (1.5 gpm) Brushed Platinum
(for Brushed Chrome)
101010BN (1.5 gpm) Brushed Nickel
Aerator
3919 (2.2 gpm) Chrome
3919W (2.2 gpm) Glacier
3919SL (2.2 gpm) Brushed Platinum
(for Brushed Chrome)
FOR MODELS WITH QUICK
CONNECTION AFTER 7/07
Protégé Spray Head &
Hose Assembly
136103C Chrome
136103W Glacier
136103SLP Brushed Platinum
(for Brushed Chrome)
Spray Escutcheon
& Locknut Assembly
104235 Chrome
100006 Glacier
100005SLP Brushed Platinum
Installation Tool
100110
Rev. 11/17
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
Page 4
Illustrated Parts
Order by Part Number
Handle Kit
146781 Chrome
146781W Glacier
146781BC Brushed Chrome
Dome
146783 Chrome
146783W Glacier
146783BC Brushed Chrome
Cartridge, Cartridge Nut
and Set Screw
1255
Upper Bearing Kit
170206
Spout O-Ring Kit (2)
146789
Escutcheon Kit
146778 Chrome
146778W Glacier
146778BC Brushed Chrome
Set Screw
(Requires 3/32" hex key)
155023
Plug Button
151644 Red/Blue
Cartridge Nut
Note: Must change nut with cartridge
144266
Spout Assembly
146786 Chrome
146786W Glacier
146786BC Brushed Chrome
Diverter
189801
100885 (Obsolete)
Support Plate
W/Gasket
148521
Aerator
101010 (1.5 gpm) Chrome
101010W (1.5 gpm) Glacier
101010SL (1.5 gpm) Brushed Platinum
(for Brushed Chrome)
101010BN (1.5 gpm) Brushed Nickel
CHATEAU®
Single-Handle Kitchen Faucet
MODEL FINISH
7423 w/o Spray Chrome
7437 w/Spray Chrome
7425 w/o Spray Chrome
7425BC w/o Spray Brushed Chrome
7425W w/o Spray Glacier
7430 w/Spray Chrome
7430W w/Spray Glacier
7434 w/Spray in deck Chrome
7434W w/Spray in deck Glacier
7434BC w/Spray in deck Brushed Chrome
67425 (Bulk) w/o Spray Chrome
67430 (Bulk) w/Spray Chrome
67434 (Bulk) w/Spray in deck Chrome
HANDLE PLUG BUTTON
PRIOR TO 1/2011
Plug
Button Kit
137403
Aerator
3919 (2.2 gpm) Chrome
3919W (2.2 gpm) Glacier
3919SL (2.2 gpm) Brushed Platinum
(for Brushed Chrome)
FOR MODELS WITH QUICK
CONNECTION AFTER 7/07
Protégé Spray Head &
Hose Assembly
136103C Chrome
136103W Glacier
136103SLP Brushed Platinum
(for Brushed Chrome)
QUICK CONNECTION
PRIOR TO 12/2009
Hose
Adapter
136101
HOSE ADAPTER CLIP
Clip
152767
Mounting Hardware
146790
Escutcheon Kit (for 7423 series)
146788 Chrome
Rev. 11/17
Spray Escutcheon
& Locknut Assembly
104235 Chrome
100006 Glacier
100005SLP Brushed Platinum
Escutcheon Kit (for 7434 series)
146779 Chrome
146779W Glacier
146779BC Brushed Chrome
TO ORDER PARTS CALL: 1-800-BUY-MOEN
Installation Tool
100110
www.moen.com
Page 5
Illustrated Parts
Order by Part Number
Handle Kit
126971 Chrome
126971V Ivory
126971W Glacier
126971SLP Brushed Platinum
Dome
126964 Chrome
126964V Ivory
126964W Glacier
126964SLP Brushed Platinum
Mechanism Kit
Handle
93980
Retainer Clip
1883
Bearing Washer Kit
115061
Spout O-Ring Kit
117 (12 Pack)
or
96778 (Single Pack)
(Also included in
Spout Assembly)
Escutcheon Kit
126958 Chrome
126958V Ivory
126958W Glacier
Plug Button
& Screw Kit
113957
Adapter Kit
100429
Replacement
Cartridge
1225
Collar
Diverter
91192
CHATEAU®
Single-Handle Kitchen Faucet
MODEL FINISH
7425 4” Supplies w/o Spray Chrome
7425BC 4” Supplies w/o Spray Brushed Chrome
7425W 4” Supplies w/o Spray Glacier
67425 4” Supplies w/o Spray Chrome
7430 4” Supplies w/ Spray Chrome
7430BC 4” Supplies w/ Spray Brushed Chrome
7430W 4” Supplies w/ Spray Glacier
67430 4” Supplies w/ Spray Chrome
87430 4” Supplies w/ Spray Chrome
DISCONTINUED SKUS
7442 4” Supplies w/ Spray Chrome
7425S 4” Supplies w/o Spray Sand
7425SLP 4” Supplies w/o Spray Brushed Platinum
7425V 4” Supplies w/o Spray Ivory
7426 4” Supplies w/ Swing ‘N’ Spray Chrome
7430S 4” Supplies w/ Spray Sand
7430V 4” Supplies w/ Spray Ivory
7430SLP 4” Supplies w/ Spray Brushed Platinum
67424 16” Supplies w/o Spray Chrome
67433 16” Supplies w/ Spray Chrome
67442 4” Supplies w/ Spray Chrome
87430SLP 4” Supplies w/ Spray Brushed Platinum
87430V 4” Supplies w/ Spray Ivory
87430W 4” Supplies w/ Spray Glacier
Spout Assembly
93988 Chrome
93988V Ivory
93988W Glacier
93988SLP Brushed Platinum
Aerator
3919 Chrome
3919V Ivory
3919W Glacier
3919SLP Brushed Platinum
FOR MODELS WITH QUICK
CONNECTION AFTER 7/07
Protégé Spray Head &
Hose Assembly
136103C Chrome
136103V Ivory
136103W Glacier
136103SLP Brushed Platinum
Quick Connection
136102
Rev. 11/18
Hot Supply
Support Plate
W/Gasket
93964
Hardware Kit
93959
Spray Escutcheon
& Locknut Assembly
104235 Chrome
104235V Ivory
100006 Glacier
100005SLP Brushed Platinum
Escutcheon Kit (for 7434 series)
102421 Chrome
102421S Sand
102421W Glacier
102421SLP Brushed Platinum
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
Page 6
Illustrated Parts
Order by Part Number
For models sold before 1/2/06
Cap and Temperature
Indicator Kit
100021 Chrome
100021S Sand
100021V Ivory
100021W Glacier
100021SLP Brushed
Platinum
Dome
93990 Chrome
93990S Sand
93990V Ivory
93990W Glacier
93990SLP Brushed
Platinum
Handle Mechanism Kit
(includes handle kit screw)
93980
Bearing Washer Kit
115061
Escutcheon Kit
93995 Chrome
93995S Sand
93995V Ivory
93995W Glacier
93995SLP Brushed
Platinum
Handle Kit
93989 Chrome
93989S Sand
93989V Ivory
93989W Glacier
93989SLP Brushed
Platinum
Adapter Kit
(includes handle kit screw)
100429
Spout Assembly
93988 Chrome
Collar
93988S Sand
Diverter
93988V Ivory
93988W Glacier
91192
93988SLP Brushed
Replacement
Platinum
Cartridge
1225
CHATEAU®
Single-Handle Kitchen Faucet
MODEL FINISH
7425 4” Supplies w/o Spray Chrome
7425BC 4” Supplies w/o Spray Brushed Chrome
7425W 4” Supplies w/o Spray Glacier
67425 4” Supplies w/o Spray Chrome
7430 4” Supplies w/ Spray Chrome
7430BC 4” Supplies w/ Spray Brushed Chrome
7430W 4” Supplies w/ Spray Glacier
67430 4” Supplies w/ Spray Chrome
87430 4” Supplies w/ Spray Chrome
DISCONTINUED SKUS
7442 4” Supplies w/ Spray Chrome
7425S 4” Supplies w/o Spray Sand
7425SLP 4” Supplies w/o Spray Brushed Platinum
7425V 4” Supplies w/o Spray
Ivory
7426 4” Supplies w/ Swing ‘N’ Spray Chrome
7430S 4” Supplies w/ Spray Sand
7430V 4” Supplies w/ Spray Ivory
7430SLP 4” Supplies w/ Spray Brushed Platinum
67424 16” Supplies w/o Spray Chrome
67433 16” Supplies w/ Spray Chrome
67442 4” Supplies w/ Spray Chrome
87430SLP 4” Supplies w/ Spray Brushed Platinum
87430V 4” Supplies w/ Spray Ivory
87430W 4” Supplies w/ Spray Glacier
Aerator
3919 Chrome
3919S Sand
3919SLP Brushed Platinum
3919W Glacier
103441V Ivory
FOR MODELS WITH THREADED CONNECTION
(must order 168665 for threaded connection side sprays)
Protégé Spray Head & Hose Assembly
136103C Chrome
136103S Sand
136103V Ivory
136103W Glacier
136103SLP Brushed
Platinum
Spray Escutcheon & Locknut Assembly
104235 Chrome
100007 Sand
100005V Ivory
100006 Glacier
100005SLP Brushed Platinum
+ 168665
+ 168665
+ 168665
+ 168665
+ 168665
MODELS SOLD BEFORE
MARCH 1999
Spray Head
& Hose Assembly
170926C Chrome
170926S Sand
170926W Glacier
(Obsolete)
1873 Black
1873S Sand
1873W Glacier
BETWEEN
(Obsolete)
104234 Chrome
101474S Sand
101474V Ivory
101474W Glacier
101474SLP Brushed
Platinum
+ 168665
+ 168665
+ 168665
3/99 to 7/07
+ 104235
+ 100007
+ 100006
Spout O-Ring Kit
117 (12 Pack)
or
96778 (Single Pack)
(Also included in
Spout Assembly)
Hot Supply
Rev. 10/16
Retainer Clip
1883
Support Plate
W/Gasket
93964
Hardware Kit
93959
Escutcheon Kit
100264 Chrome
100264V Ivory
100264W Glacier
TO ORDER PARTS CALL: 1-800-BUY-MOEN
www.moen.com
Loading...
